The Cartwright
Photographs may reflect modified homes.
1882*
Square Feet
3
Bedrooms
2.5
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for simple house plan 801 The Cartwright
This is the bonus room floor plan image for one story house plan 801 The Cartwright
This is the first floor plan image for three bedroom house plan 801 The Cartwright if the home is built over a basement
The Cartwright
Rotating Image

The Cartwright

Plan Number: 801
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation
$1,525.00 USD

Plan Type: PDF, Review, CAD explained below. Learn more.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.

Additional Specs:

  • *Total Living: 1882 sq. ft.
  • Bedrooms: 3
  • Bathrooms: 2.5
  • Stories: 1
  • House Dimensions: 61' 4" x 55' 0"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
  • Bonus Room: 359 sq. ft.
  • Garage/Storage: 492 sq. ft.
  • Porch: 403 sq. ft.
* Some plans may increase in square footage to accommodate 2x6 framing.

** Alternate foundations may be available for an additional charge.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
NFC Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Classic Home Plan

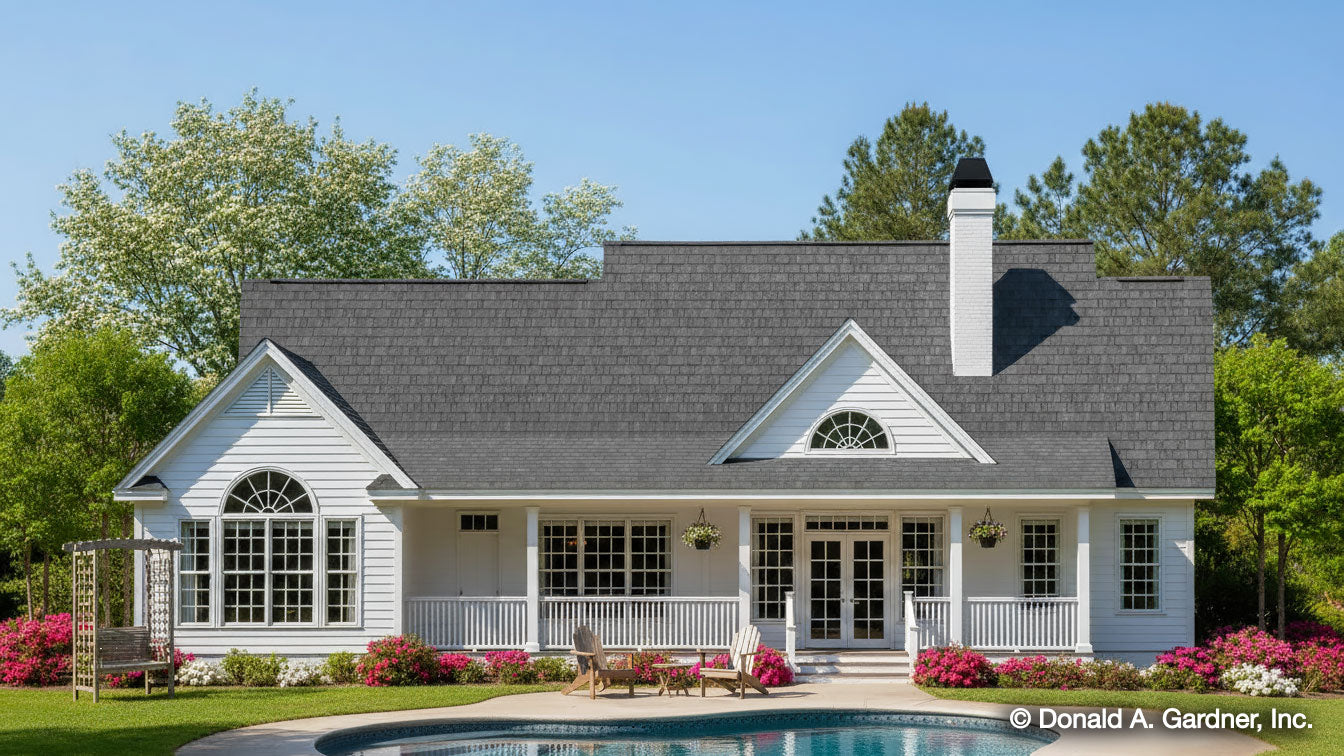

An arched window in a center, front-facing gable lends style and beauty to the facade of this three-bedroom house plan. An open common area that features a great room with cathedral ceiling, a formal dining room with tray ceiling, a functional kitchen and an informal breakfast area separates the master suite from the secondary bedrooms for optimal privacy in this house plan. The master suite is expanded by a dramatic cathedral ceiling and includes access to the back porch, abundant closet space and a bath with enclosed toilet, garden tub and separate shower. This house plan also features access to a versatile bonus room.
Return Policy

ALL SALES ARE FINAL. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show them the plan and determine what they will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.
Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.
Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
