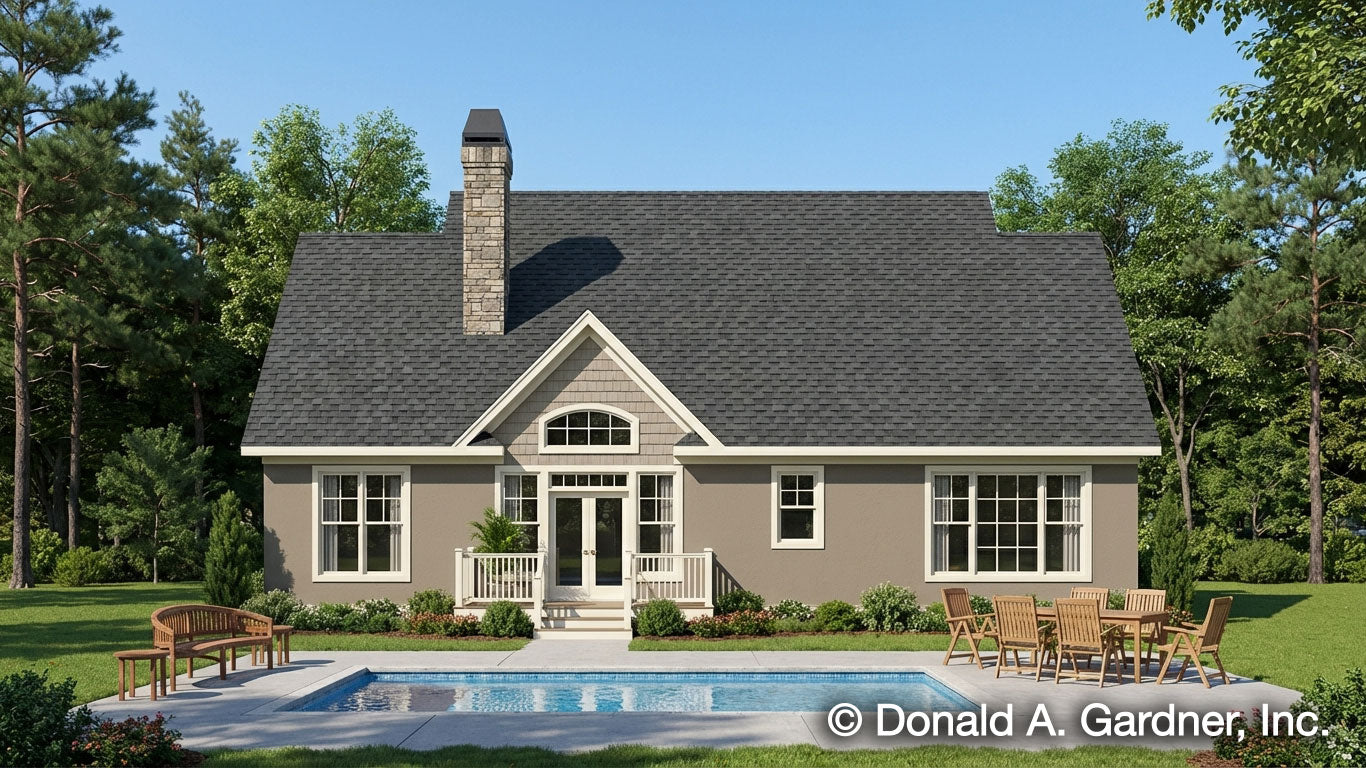

The Tanglewood
Plan Type: PDF, Review, CAD explained below. Learn more here.
Additional Specs:
- Total Living: 1473 sq. ft.
- Bedrooms: 3
- Full Baths: 2
- Stories: 1
- House Dimensions: 53' 4" x 49' 8"
- **Foundation: Crawl Space
- Exterior Wall Construction: 2x4
- Garage Bays: 2
- Garage Load: Side
Unfinished Square Footage:
- Bonus Room: 297 sq. ft.
- Garage/Storage: 501 sq. ft.
- Porch: 156 sq. ft.
Plan Types Explained:
AutoCAD file with Unlimited Build
AutoCAD file with Unlimited Build
Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set
PDF Reproducible Set
One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
PDF Review Set
PDF Review Set
One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.
Share
Small House Plan with a Craftsman Exterior
Form and function blend wonderfully together in this Arts-and-Crafts style house plan. A bold combination of exterior building materials elicits interest outside, while inside, a practical design creates space in the house plan's economical floor plan. To maximize space, the foyer, great room, dining room, and kitchen are completely open to one another. A cathedral ceiling spans the great room and kitchen, expanding the rooms vertically. The bedrooms are split for ultimate master suite privacy, and a cathedral ceiling caps the master bedroom for an added sense of space. A bonus room, accessed near the master suite, offers options for storage and expansion. Two family bedrooms and a hall bath are located on the opposite side of the house plan.
