Photographs may reflect modified homes.
1882*
Square Feet
3
Bedrooms
2.5
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for simple house plan 801 The Cartwright
This is the bonus room floor plan image for one story house plan 801 The Cartwright
This is the first floor plan image for three bedroom house plan 801 The Cartwright if the home is built over a basement

The Cartwright

House Plan #801
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
Regular price $1,475.00 USD
Regular price Sale price $1,475.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1882 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Stories: 1
  • House Dimensions: 61' 4" x 55' 0"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 359 sq. ft.
  • Garage/Storage: 492 sq. ft.
  • Porch: 403 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Classic Home Plan

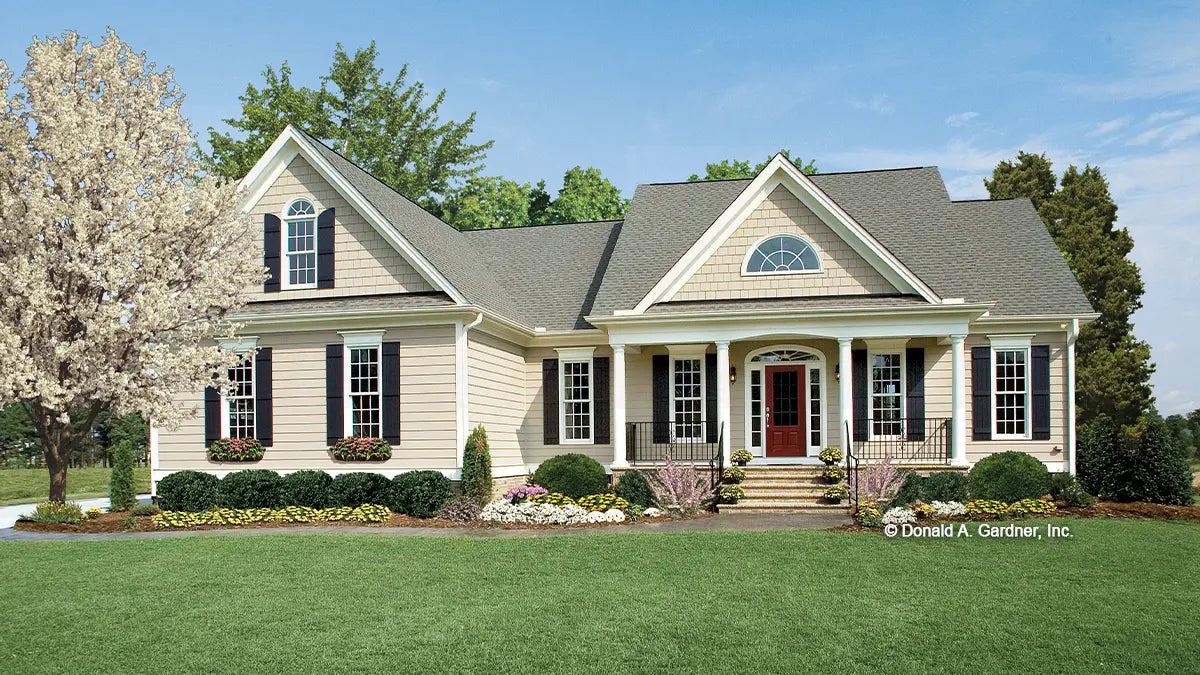

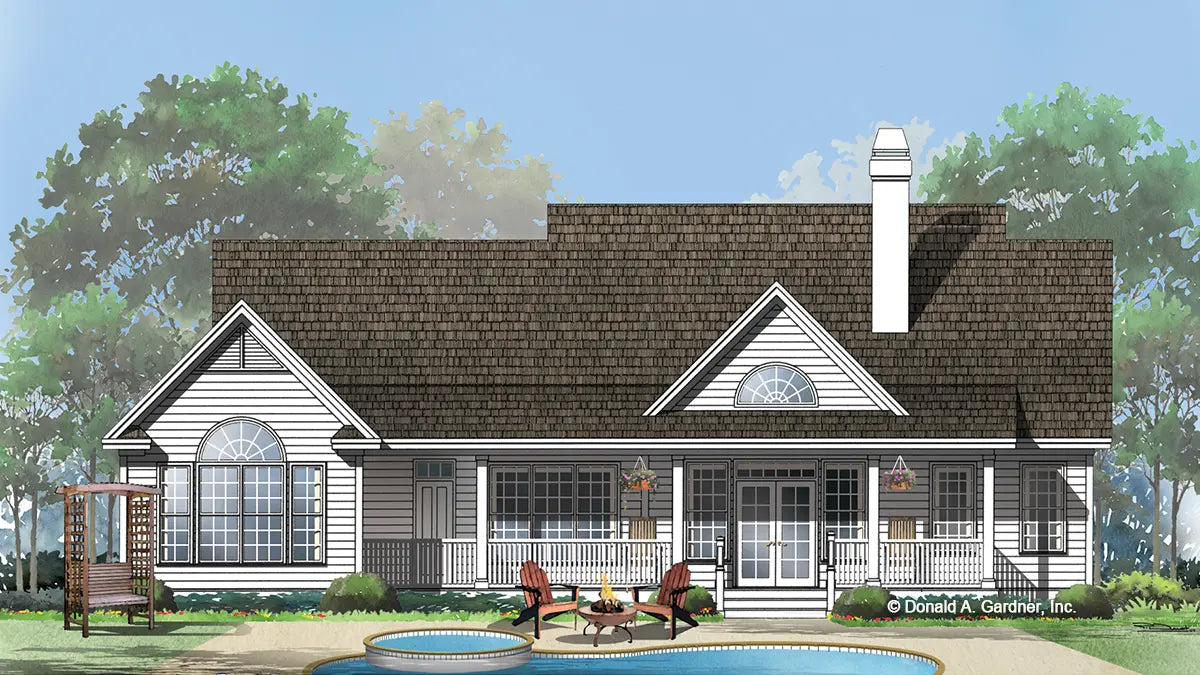

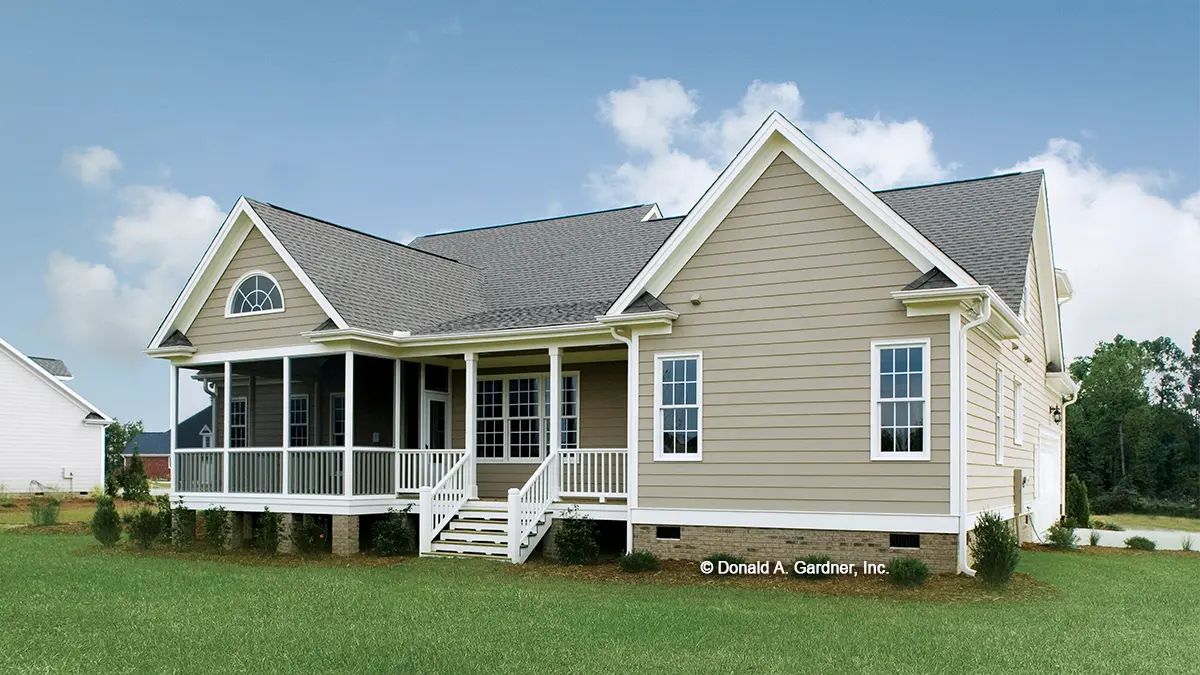

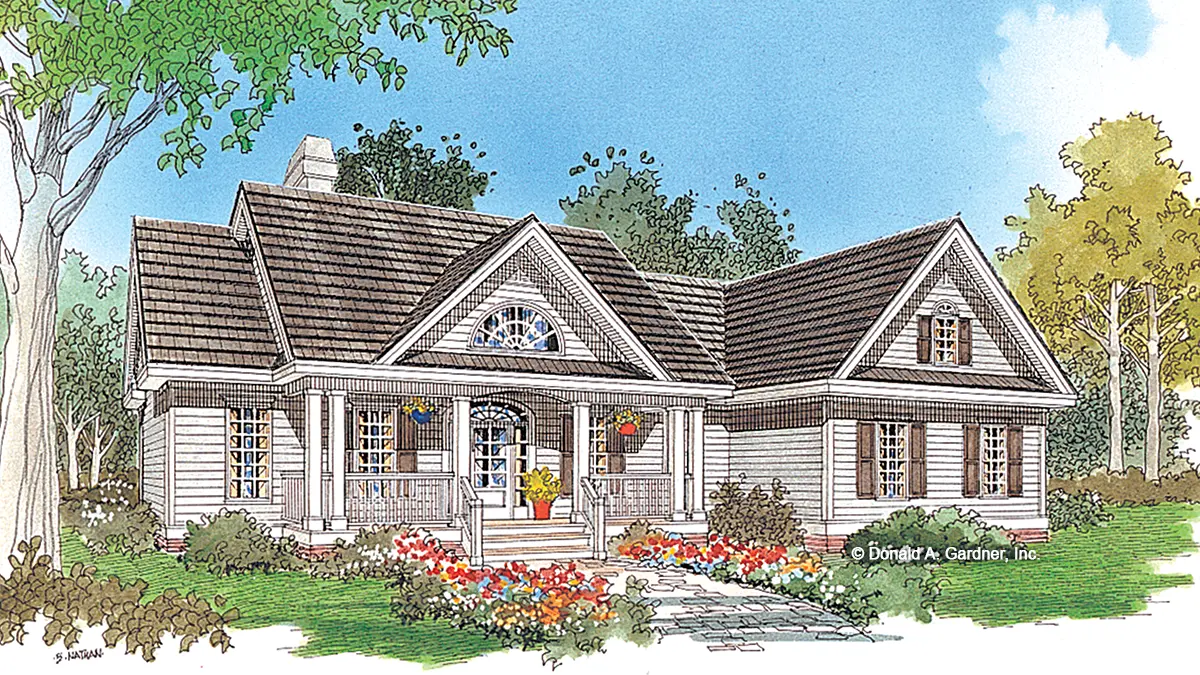

An arched window in a center, front-facing gable lends style and beauty to the facade of this three-bedroom house plan. An open common area that features a great room with cathedral ceiling, a formal dining room with tray ceiling, a functional kitchen and an informal breakfast area separates the master suite from the secondary bedrooms for optimal privacy in this house plan. The master suite is expanded by a dramatic cathedral ceiling and includes access to the back porch, abundant closet space and a bath with enclosed toilet, garden tub and separate shower. This house plan also features access to a versatile bonus room.
