The Carlyle
Photographs may reflect modified homes.
2082*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.
The Carlyle
Rotating Image

The Carlyle

Plan Number: 511
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation
$1,625.00 USD

Plan Type: PDF, Review, CAD explained below. Learn more.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.

Additional Specs:

  • *Total Living: 2082 sq. ft.
  • Bedrooms: 3
  • Bathrooms: 2
  • Stories: 1
  • House Dimensions: 47' 10" x 86' 4"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Courtyard
  • Bonus Room: 466 sq. ft.
  • Garage/Storage: 606 sq. ft.
  • Porch: 482 sq. ft.
* Some plans may increase in square footage to accommodate 2x6 framing.

** Alternate foundations may be available for an additional charge.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
NFC Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Open, Flowing Design

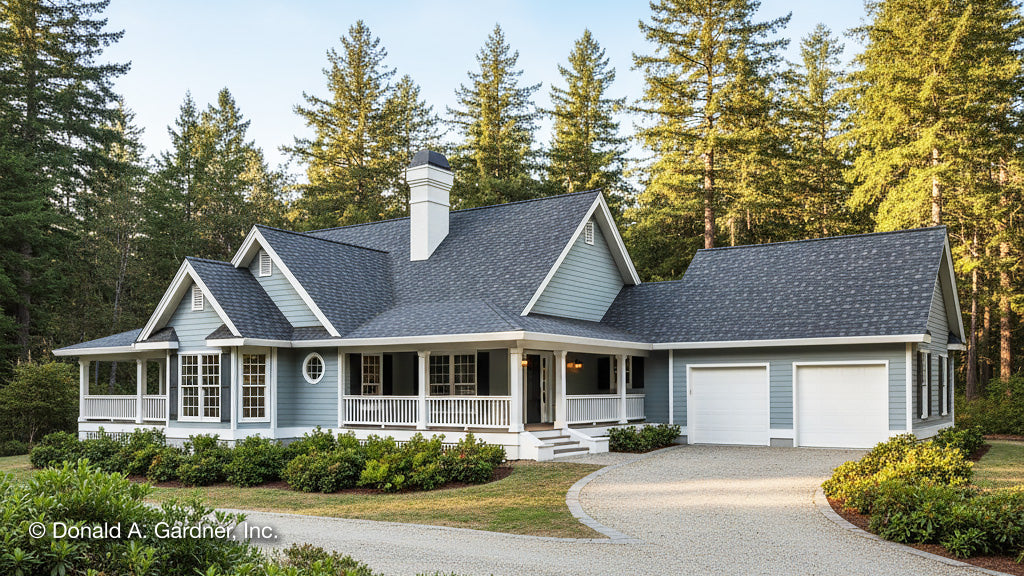

Attention to detail is what makes this plan special. We included wrapping porches, special ceiling treatments, bay windows, interior columns, built-in bookshelves, and plenty of storage space in this three-bedroom traditional home. With its open, flowing design, The Carlyle entertains as well as it lives. The dining room receives distinction from its tray ceiling, octagonal shape, and columns, while the great room features a fireplace, built-in bookshelves, and French doors that open onto the front porch. The master suite delights with his and her walk-in closets, back porch access, and a bath with all the amenities. Two additional bedrooms share another full bath, while the upstairs bonus space offers numerous options for expansion.
Return Policy

ALL SALES ARE FINAL. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show them the plan and determine what they will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.
Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.
Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
