The Pinewood Cottage

Plan Number: 1634

Plan Type: PDF, Review, CAD explained below. Learn more.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.

Additional Specs:

*Total Living: 1999 sq. ft.
Bedrooms: 3
Bathrooms: 2.5
Stories: 1.5
House Dimensions: 51' 6" x 75' 0"
**Foundation: Crawl Space
Exterior Wall Construction: 2x4
Garage Bays: 2

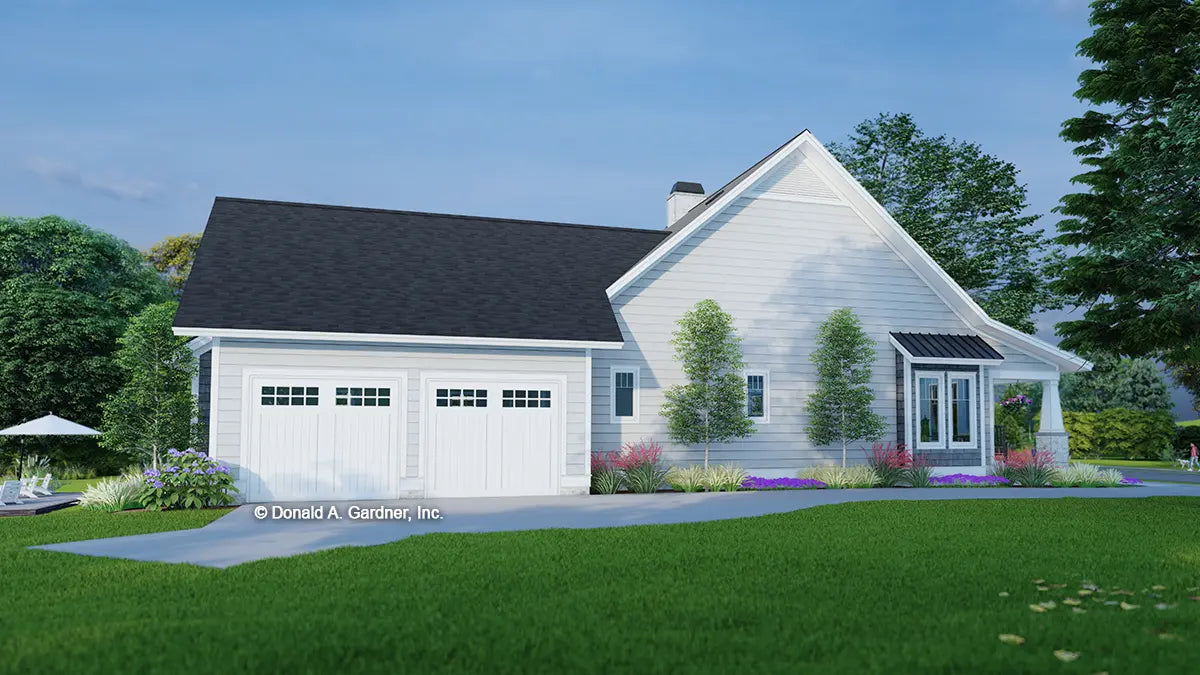

Garage Load: Side

Garage/Storage: 615 sq. ft.
Porch - Front: 281 sq. ft.

* Some plans may increase in square footage to accommodate 2x6 framing.

** Alternate foundations may be available for an additional charge.

Plan Types Explained:

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Two-Story Cottage Design

This charming cottage features a simple siding facade with a prominent center dormer and a front porch with columns. Skylights and a cathedral ceiling highlight the great room while an island and built-in pantry enhance the kitchen. Just steps away, the dining room features a bay window. The master suite opens to a spacious rear porch with a fireplace. Upstairs, find two bedrooms and a full bathroom. The garage is located at the rear of the home and leads to a mudroom and adjoining utility room.

ALL SALES ARE FINAL. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show them the plan and determine what they will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.

Learn all about what comes in a set of plans here. If you have any questions please contact us.

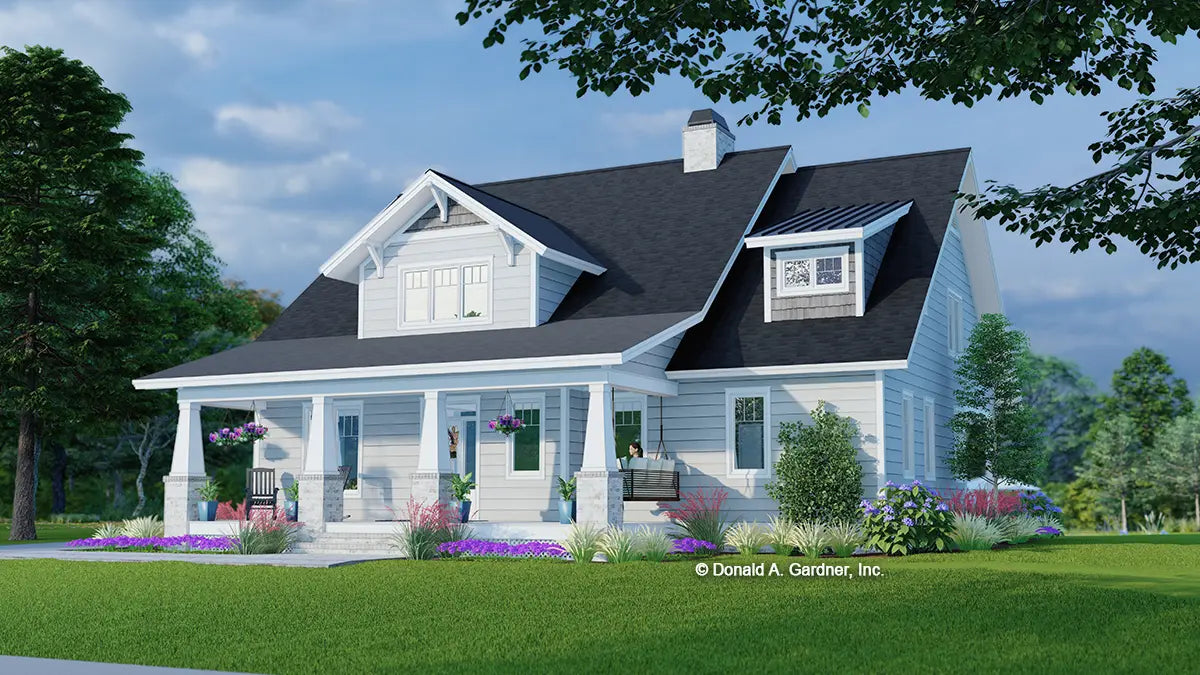

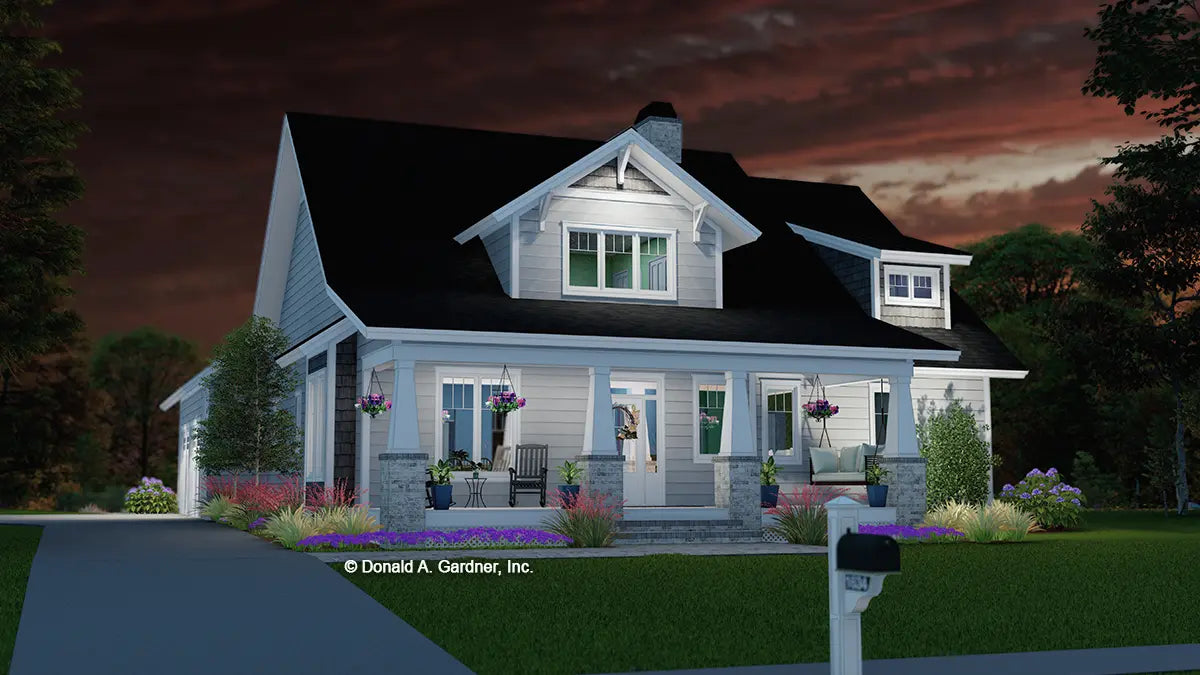

Front Panorama:

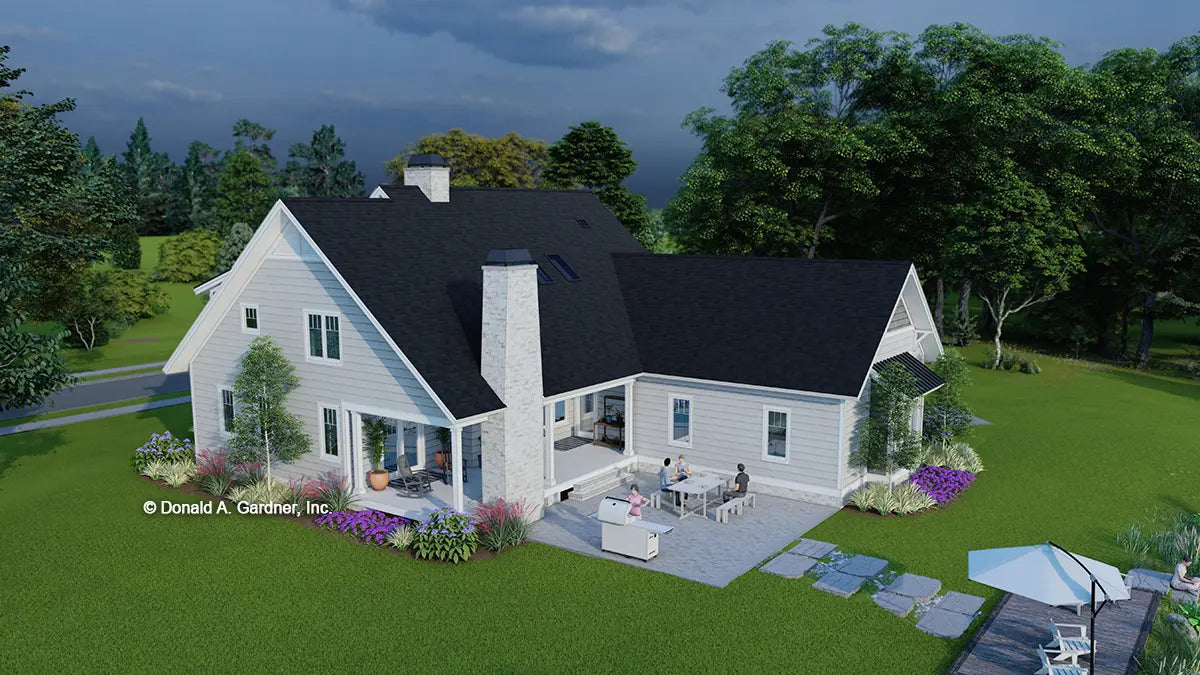

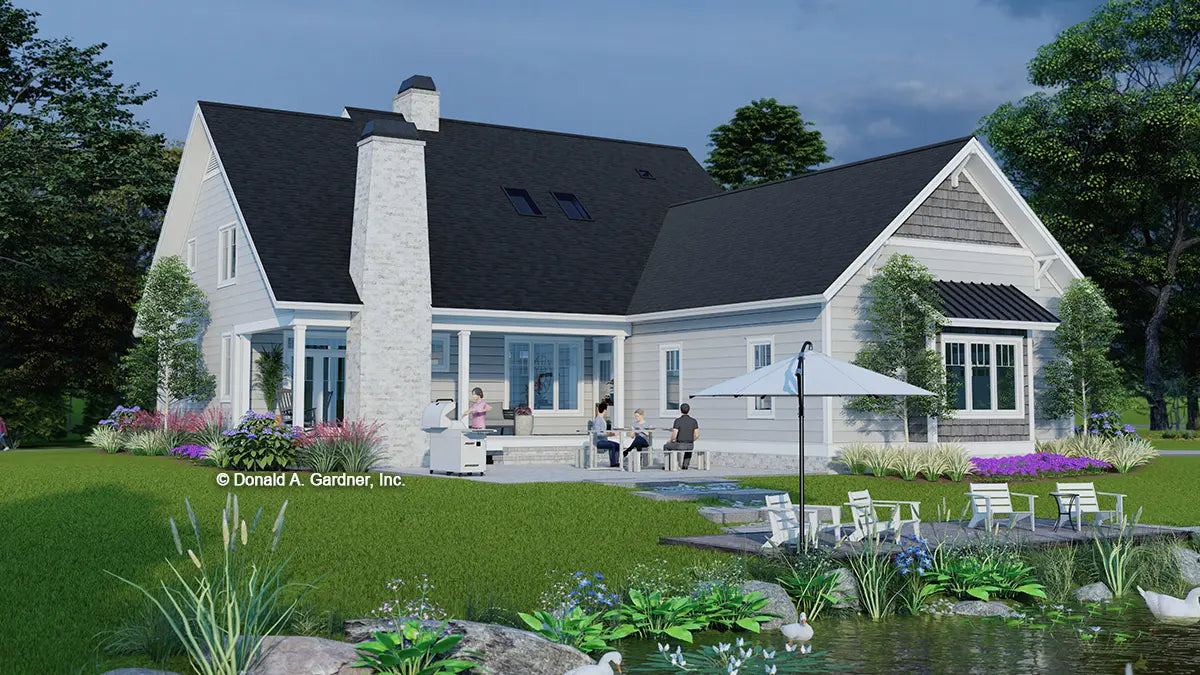

Rear Panorama:
