Photographs may reflect modified homes.
1895*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for southwest house plan 996 The Las Cruces

The Las Cruces

House Plan #996
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
Regular price $1,475.00 USD
Regular price Sale price $1,475.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1895 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Stories: 1
  • House Dimensions: 65' 10" x 59' 9"
  • **Foundation: Slab
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Garage/Storage: 460 sq. ft.
  • Porch: 411 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Southwestern House Plan

Architectural details enhance a stucco exterior to redefine classic southwestern design and promote modern living. The courtyard opens to a stunning entryway and loggia topped with a tile roof. French doors lead to the bedroom/study and dining room, while sidelights and a transom fill the foyer with natural light. Box tray ceilings crown the great room, dining room and master bedroom, while pillars and posts define space without enclosing it. The open floorplan creates a natural traffic pattern, and a kitchen pass-thru adds convenience. Accessible through French doors, the rear loggia expands living to the outdoors. Located away from secondary bedrooms, the master suite is complete with a bath that features a double vanity, garden tub, shower and private privy, and the large walk-in closet is a step-saver during morning routines.

View full details

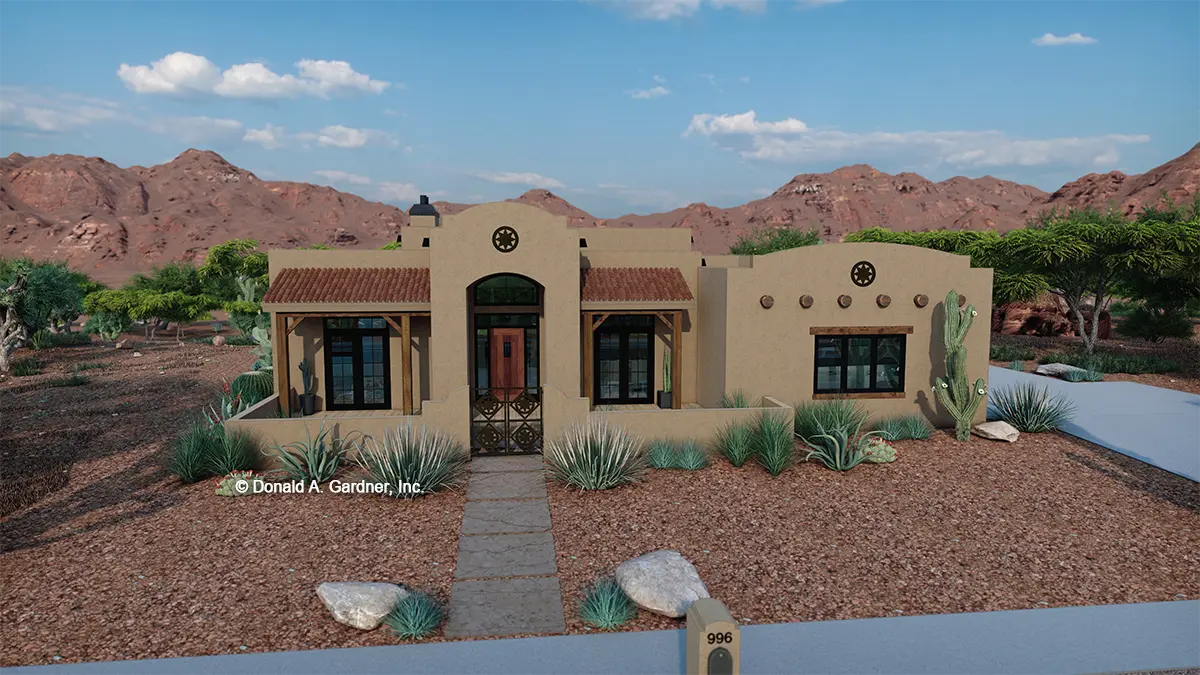

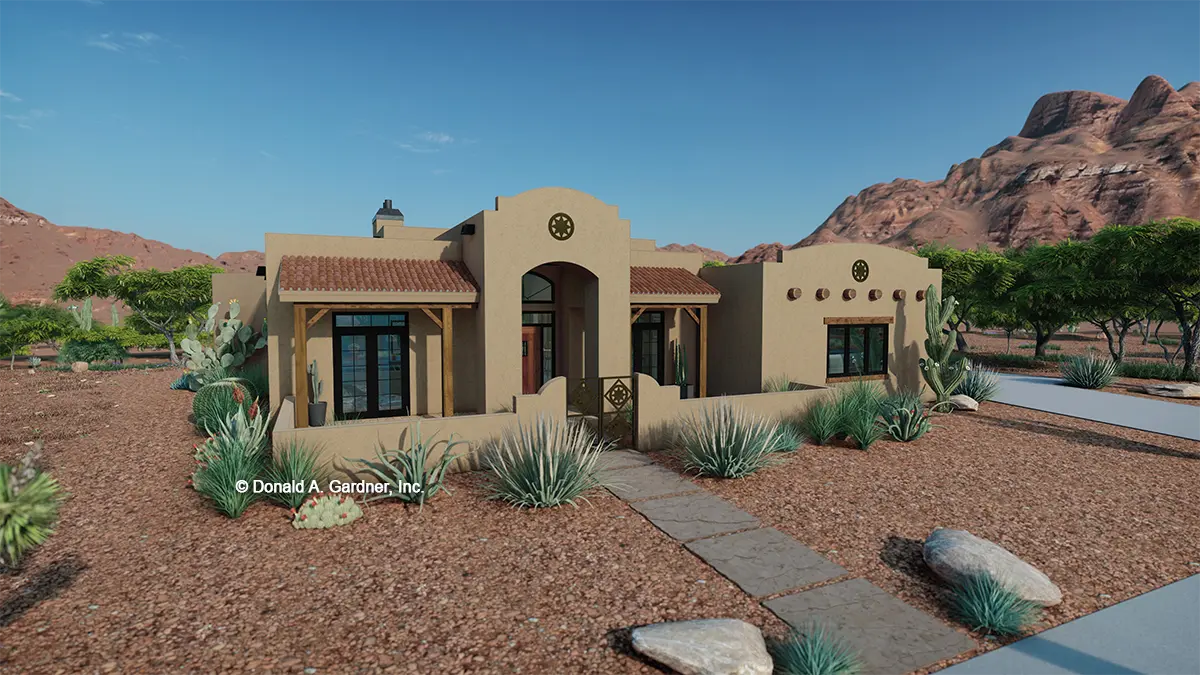

Front Panorama:

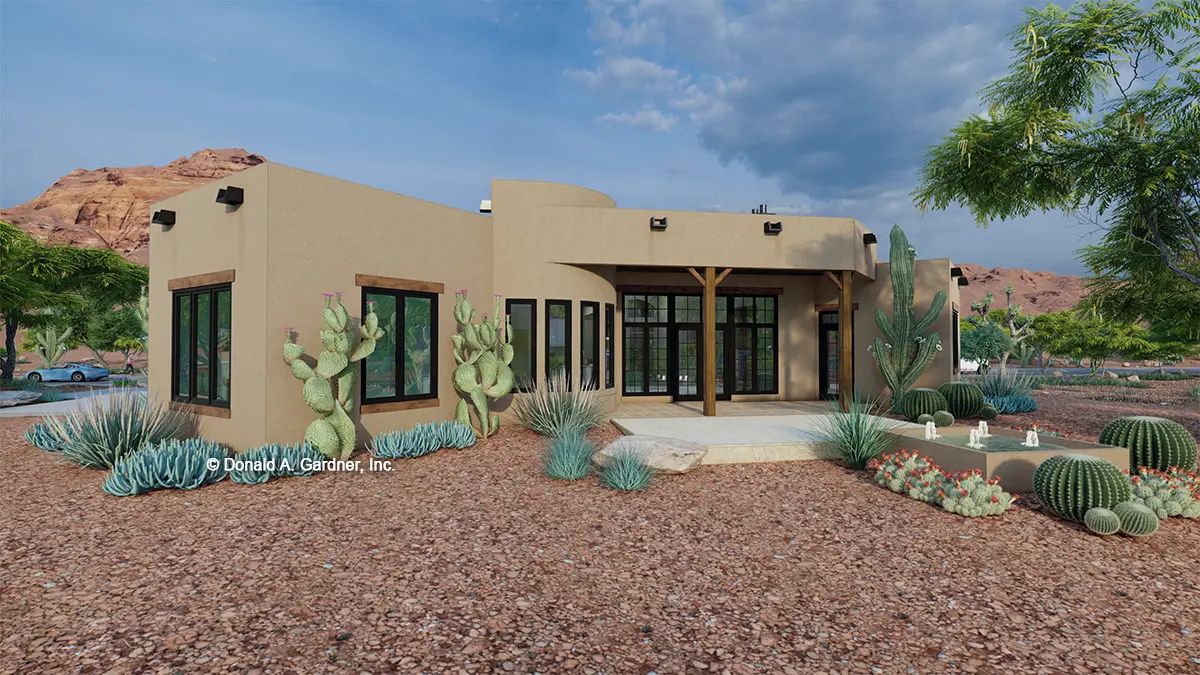

Rear Panorama:

You May Also Like to Know:

Return Policy

ALL SALES ARE FINAL. Because plans are printed especially for you at the time you place your order, returns and refunds are not acceptable. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show him the plan and determine what he will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.

Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.

Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
