The Newcastle
Plan Type: PDF, Review, CAD explained below. Learn more here.
Couldn't load pickup availability
![house plan modifications](https://cdn.shopify.com/s/files/1/0688/6250/9375/files/Make-Changes-to-This-Plan.webp?v=1688400800)
Additional Specs:
- Total Living: 2515 sq. ft.
- Bedrooms: 3
- Full Baths: 3
- Half Baths: 1
- Stories: 1.5
- House Dimensions: 50' 8" x 66' 8"
- **Foundation: Crawl Space
- Exterior Wall Construction: 2x4
- Garage Bays: 2
- Garage Load: Courtyard
Unfinished Square Footage:
- Bonus Room: 365 sq. ft.
- Garage/Storage: 490 sq. ft.
- Porch: 250 sq. ft.
Plan Types Explained:
AutoCAD file with Unlimited Build
AutoCAD file with Unlimited Build
Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set
PDF Reproducible Set
One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
PDF Review Set
PDF Review Set
One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.
Share
Two-story English cottage
With Old World charm, this house plan features stone and cedar shake with stylish dormers. Inside, the gathering rooms are open to each other, individually distinguished by columns and ceiling treatments. The breakfast nook includes two pantries, and a cook-top island completes the kitchen. Upstairs, a bonus room awaits expansion.
![Front view finished build, photographs submitted by the customer. The Newcastle plan 994.](http://dongardner.com/cdn/shop/files/Newcastle-house-plan-994-front-exterior.webp?v=1697550253&width=1445)

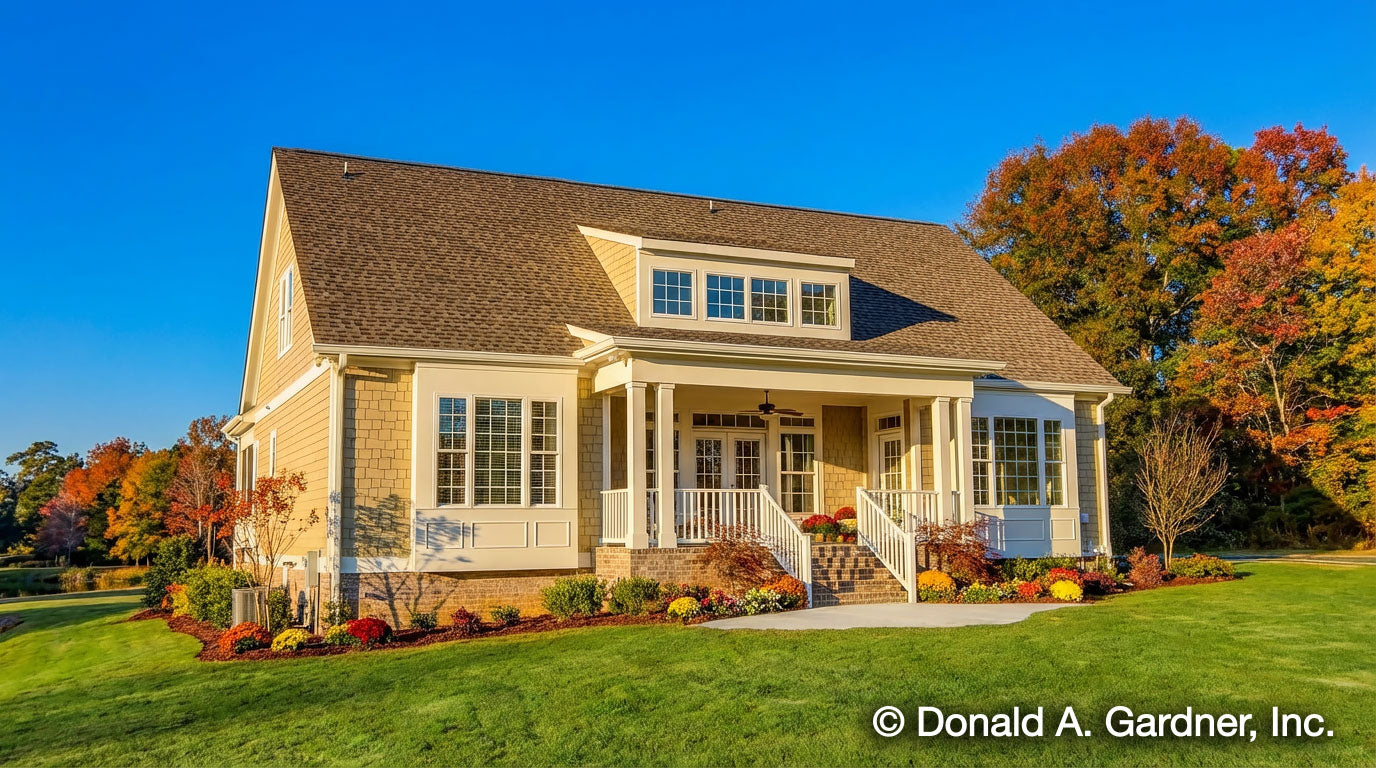

![Rear view finished build. The Newcastle plan 994.](http://dongardner.com/cdn/shop/files/Newcastle-house-plan-994-rear-exterior.webp?v=1718984908&width=1445)
