1 7
Photographs may reflect modified homes.
2864*
Square Feet
4
Bedrooms
4.5
Baths
1
Stories
Unit A
1432*
Square Feet
2
Bedrooms
2.5
Baths
Unit B
1432*
Square Feet
2
Bedrooms
2.5
Baths

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

The Phelps

House Plan #8102
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$2,375.00 USD
$2,375.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2864 sq. ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 2
  • Stories: 1
  • House Dimensions: 88' 4" x 63' 6"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 4
  • Garage Load: Front
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Garage/Storage: 1278 sq. ft.
  • Porch - Front: 306 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Duplex design with two master suites

Discover double the cottage charm in this darling duplex design. Mirrored gables, shutters, and a cozy front porch enhance the facade. Each unit has a two-car garage with storage space. Inside, the great room is open to the dining room and island kitchen while a rear porch with skylights invites outdoor relaxation. Additional amenities include a pantry, powder room, and a utility room with a laundry sink. Two equally sized master suites complete this efficient one-story design.

View full details

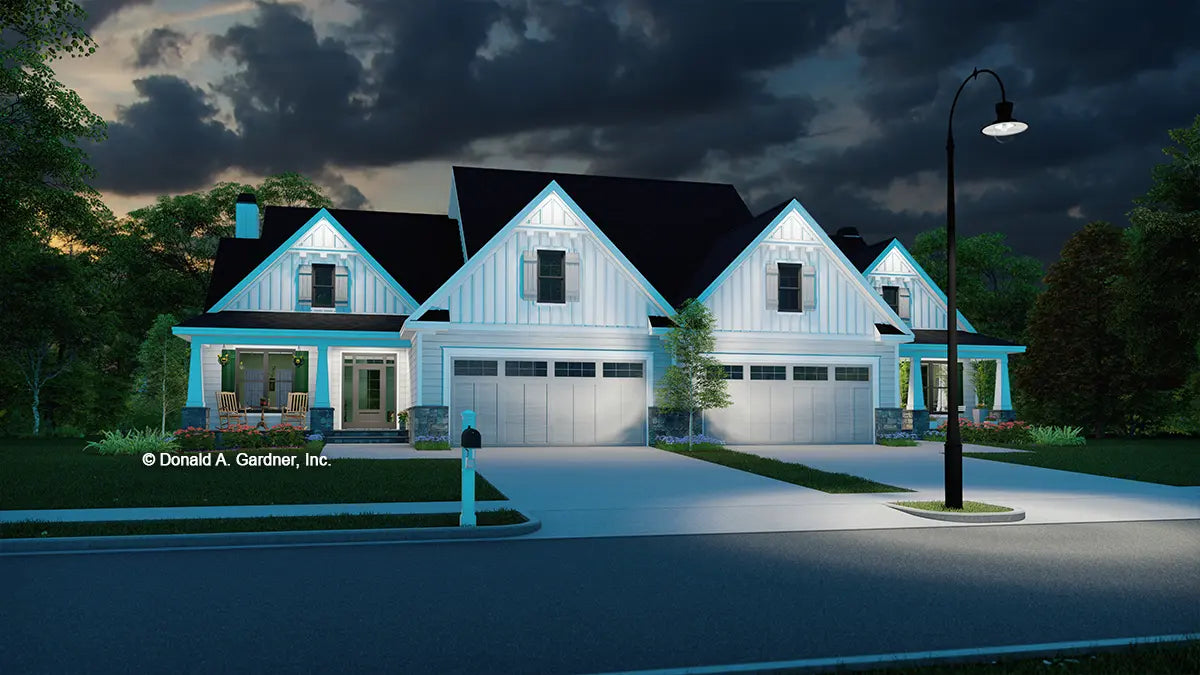

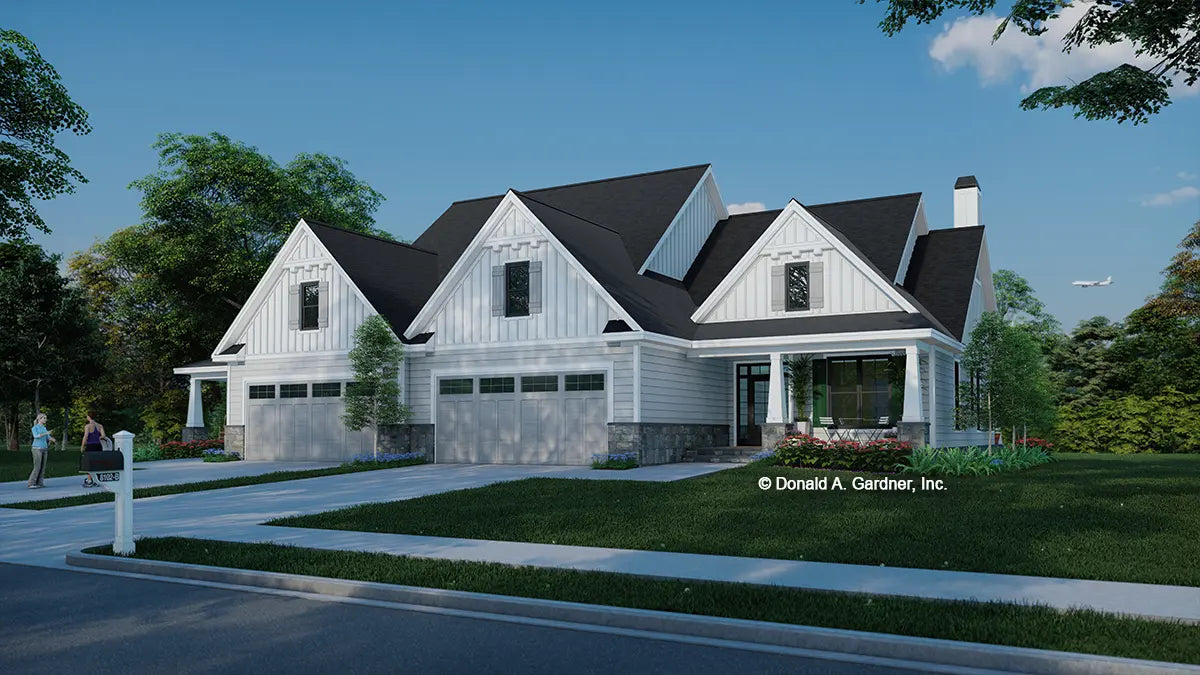

Front Panorama:

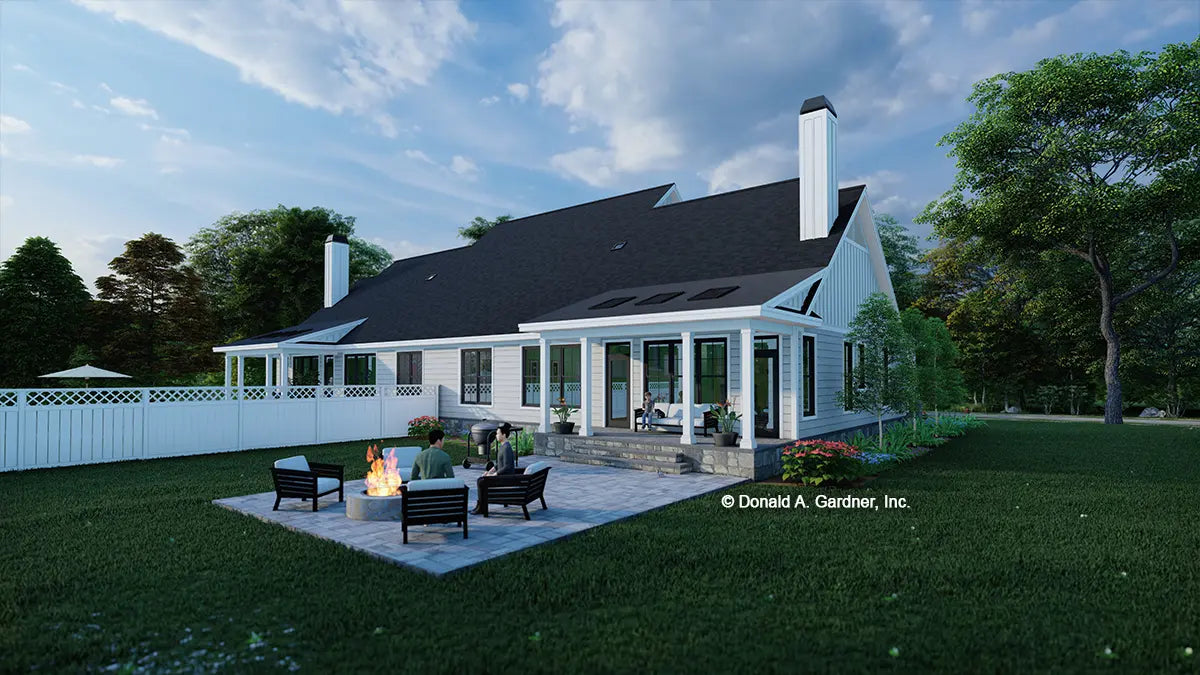

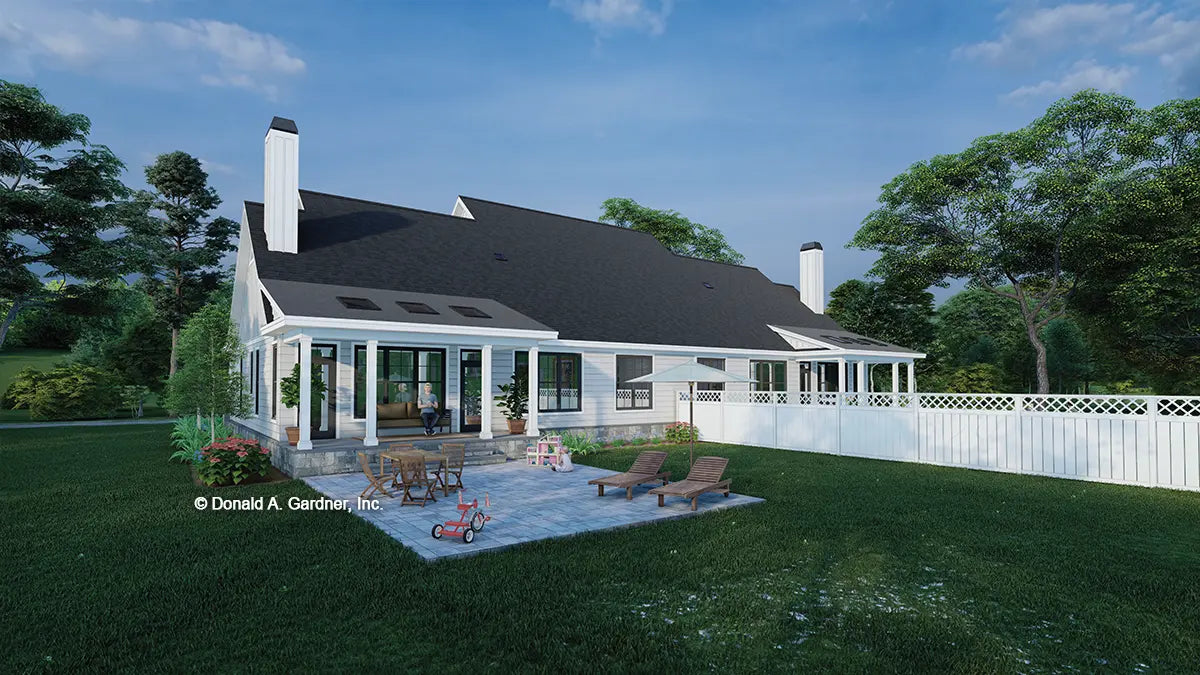

Rear Panorama:
