Photographs may reflect modified homes.
1821*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

The Pikeview

House Plan #805
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,475.00 USD
$1,475.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1821 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Stories: 1
  • House Dimensions: 54' 4" x 61' 6"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 409 sq. ft.
  • Garage/Storage: 568 sq. ft.
  • Porch: 241 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Fantastic Master Bedroom

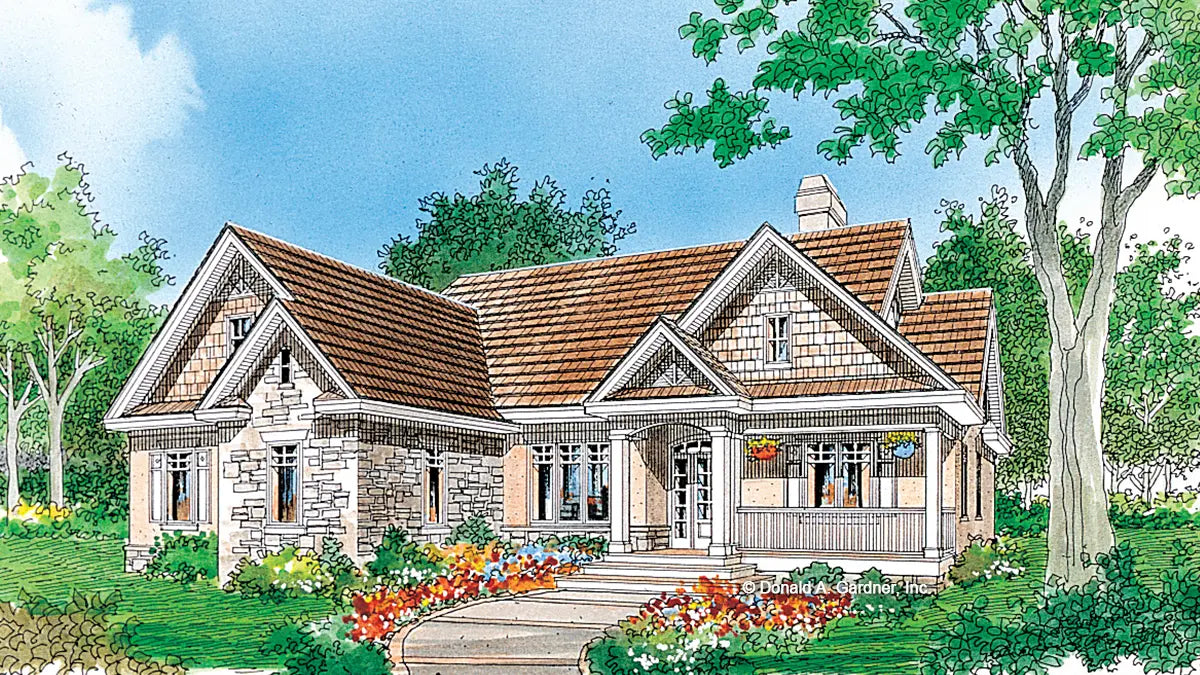

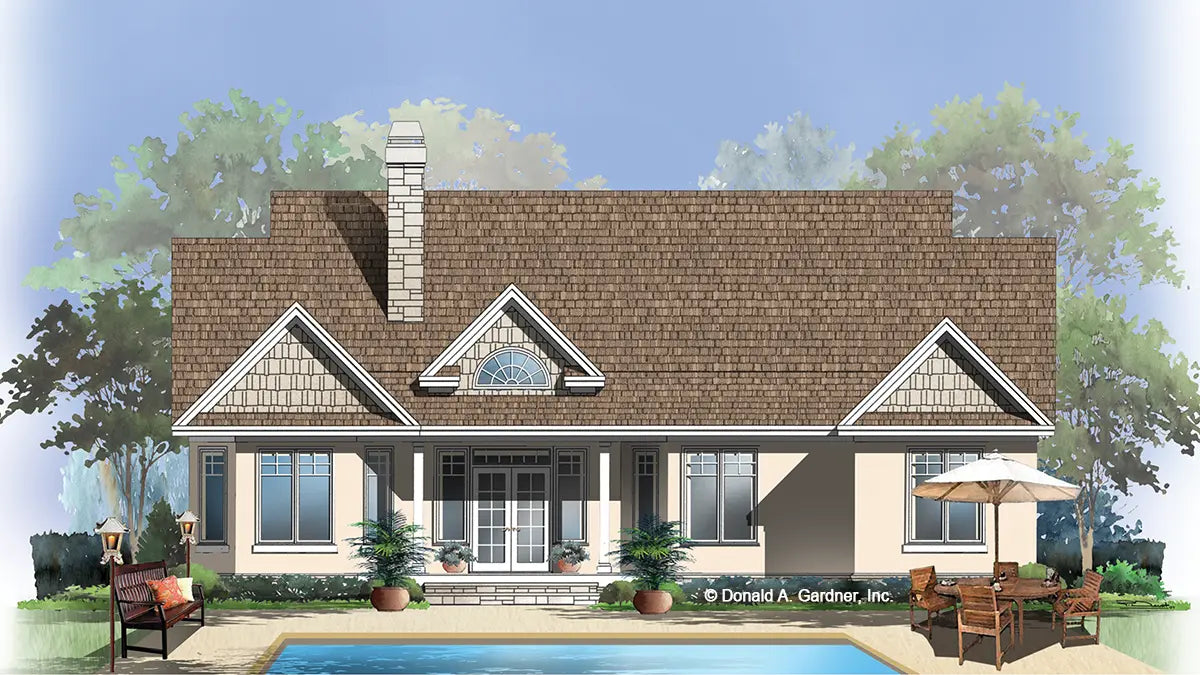

Stone, stucco, and cedar shakes establish an interesting exterior for this gabled, three-bedroom home. Common rooms are angled to create both intimacy and openness, while volume ceilings add space and definition. A rear clerestory dormer brings additional natural light into the centrally located great room. The efficient design of the kitchen includes an open pass-thru to the great room. The master suite is secluded and generously proportioned with a bay window, back porch access, his and her walk-in closets, and a splendid bath. The home's two family bedrooms each enjoy walk-in closets. The garage boasts extra storage space, and a bonus room above the garage provides additional room for storage or future expansion.
