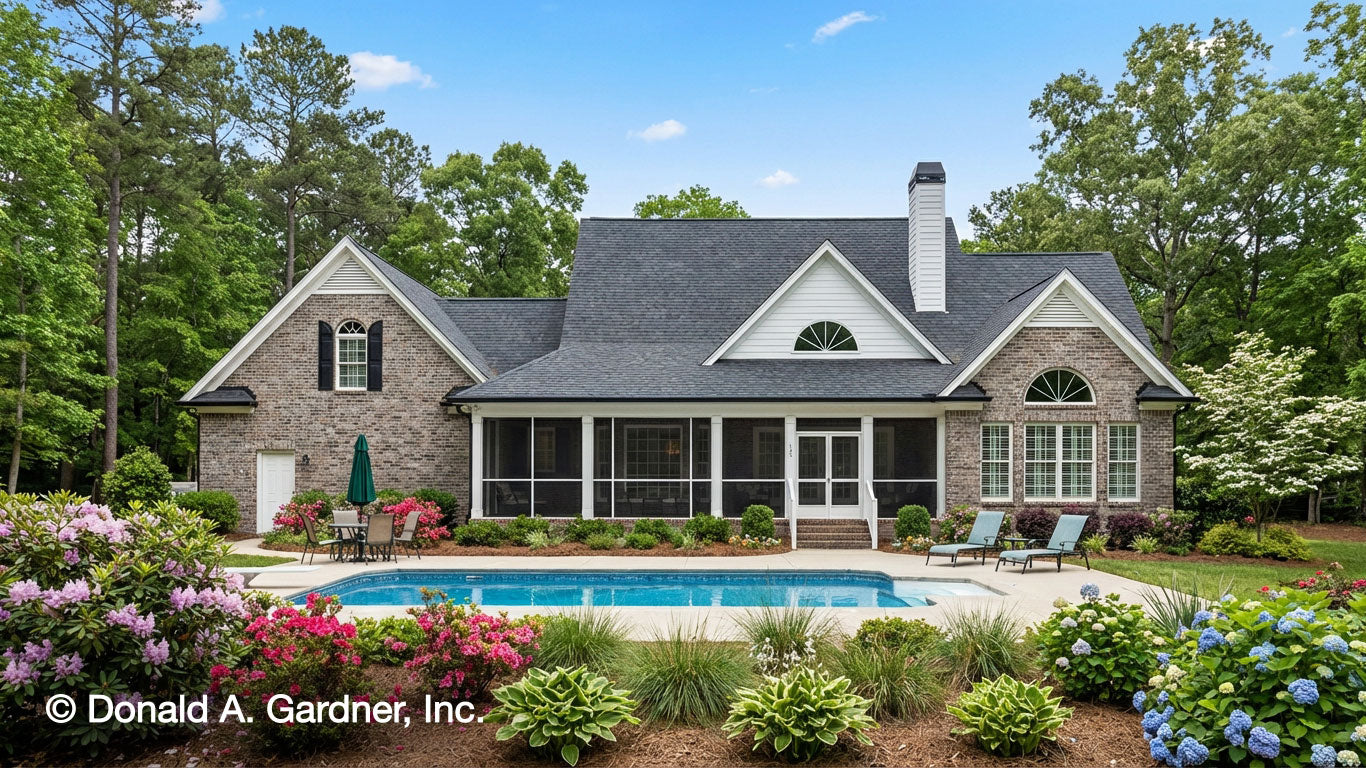

The Orchard Park
Photographs may reflect modified homes.
2042*
Square Feet
3
Bedrooms
2.5
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for brick house plan 703 The Orchard Park
This is the bonus room floor plan image for three bedroom house plan 703 The Orchard Park
This is the first floor plan image for one story house plan 703 The Orchard Park if the home is built over a basement
The Orchard Park

The Orchard Park

Plan Number: 703
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation
$1,625.00 USD

Plan Type: PDF, CAD explained below. Learn more.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.

Additional Specs:

  • *Total Living: 2042 sq. ft.
  • Bedrooms: 3
  • Bathrooms: 2.5
  • Stories: 1
  • House Dimensions: 75' 11" x 56' 7"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
  • Bonus Room: 475 sq. ft.
  • Garage/Storage: 660 sq. ft.
  • Porch: 514 sq. ft.
  • Porch - Screened: 331 sq. ft.
* Some plans may increase in square footage to accommodate 2x6 framing.

** Alternate foundations may be available for an additional charge.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

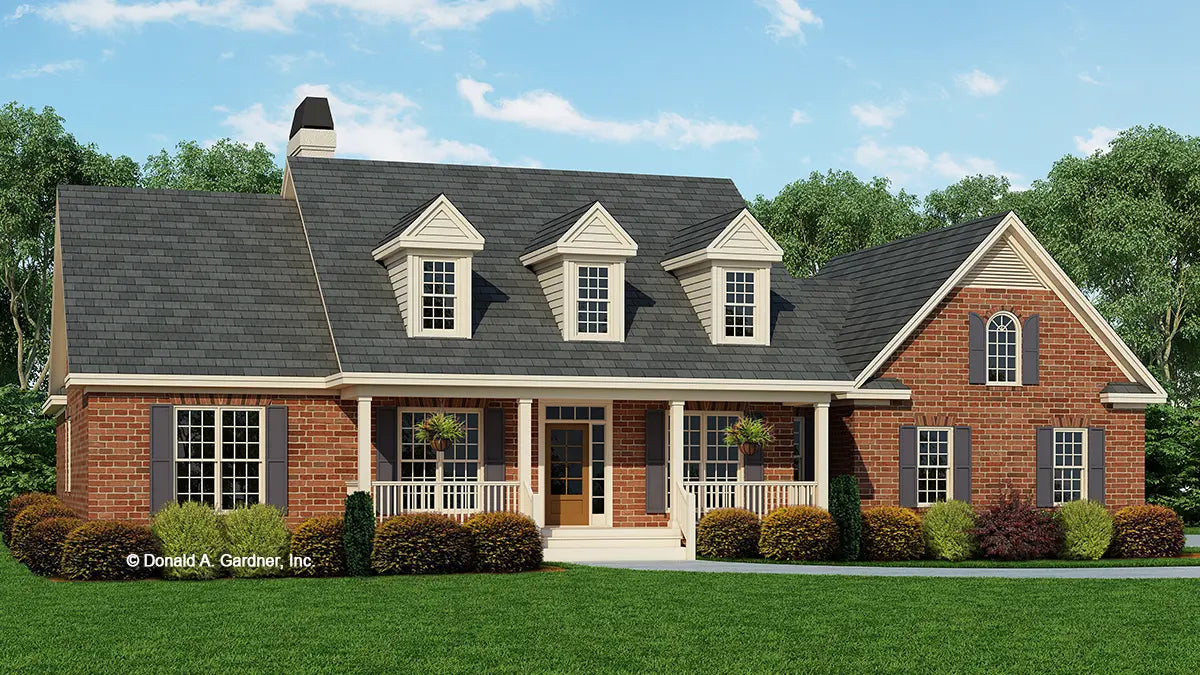

One-story brick home plan

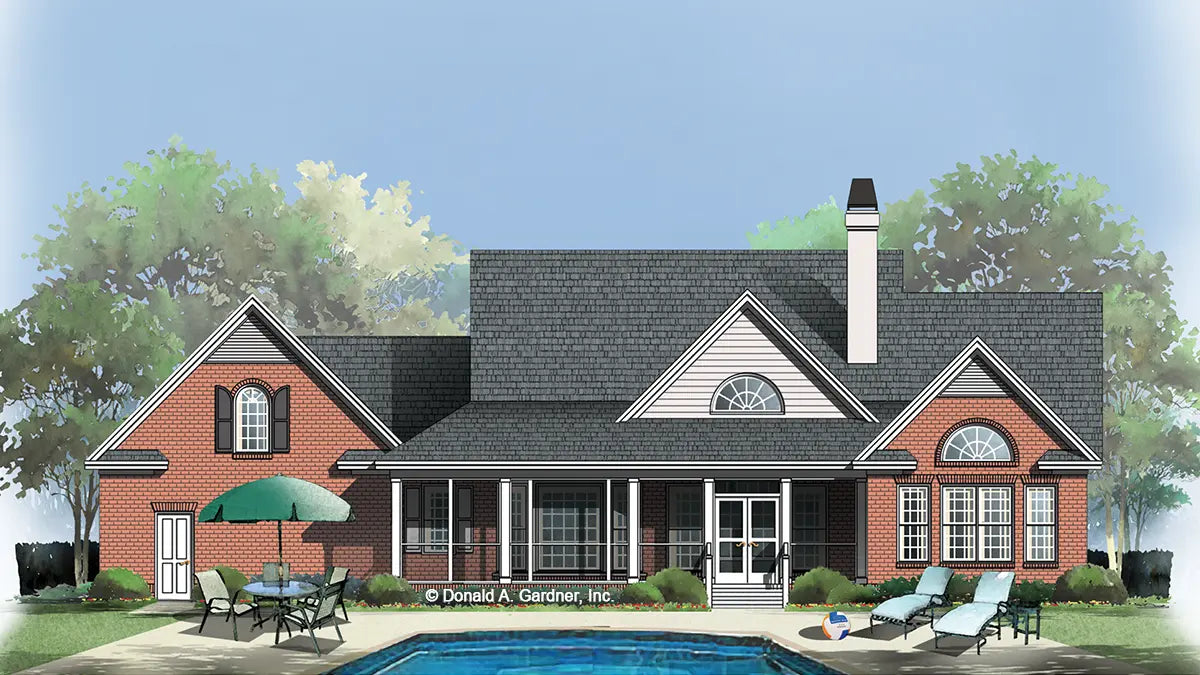

A pleasing mixture of styles, this home combines a traditional brick veneer with an otherwise country home appearance. Built-ins flank the fireplace in the great room, while a soaring cathedral ceiling expands the room visually. The kitchen's angled counter opens the room to both the breakfast bay and great room, and a large screened porch, with access from both the great room and master suite, serves as a casual area for family relaxation. More built-in shelves just outside the master suite provide room for books and curios. The vaulted master bedroom adjoins a private bath with oversized walk-in closet. The front bedroom and bedroom/study share a roomy hall bath with large linen closet. An additional half bath is located near the utility room and bonus room stairs.
Return Policy

ALL SALES ARE FINAL. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show them the plan and determine what they will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.
Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.
Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
