Photographs may reflect modified homes.
2250*
Square Feet
3
Bedrooms
2.5
Baths
2
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

The Belhaven

House Plan #516
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
Regular price $1,575.00 USD
Regular price Sale price $1,575.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2250 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Stories: 2
  • House Dimensions: 61' 7" x 67' 4"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 548 sq. ft.
  • Garage/Storage: 657 sq. ft.
  • Porch: 278 sq. ft.
  • Porch - Screened: 150 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Two-Story Brick House

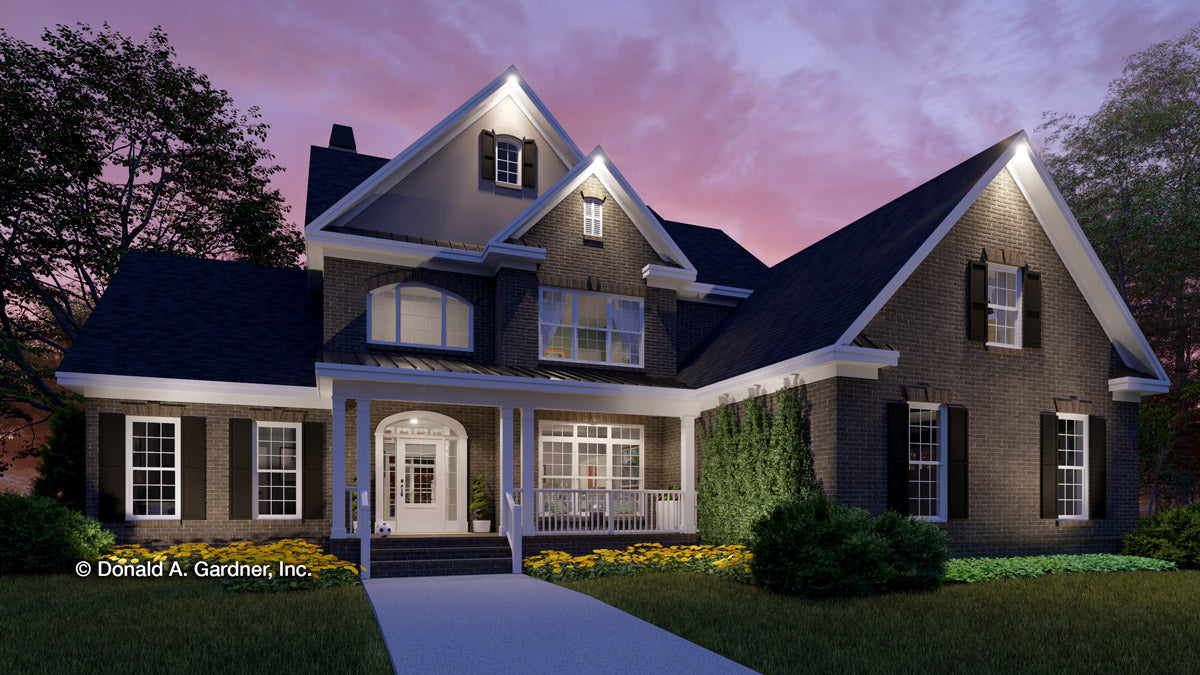

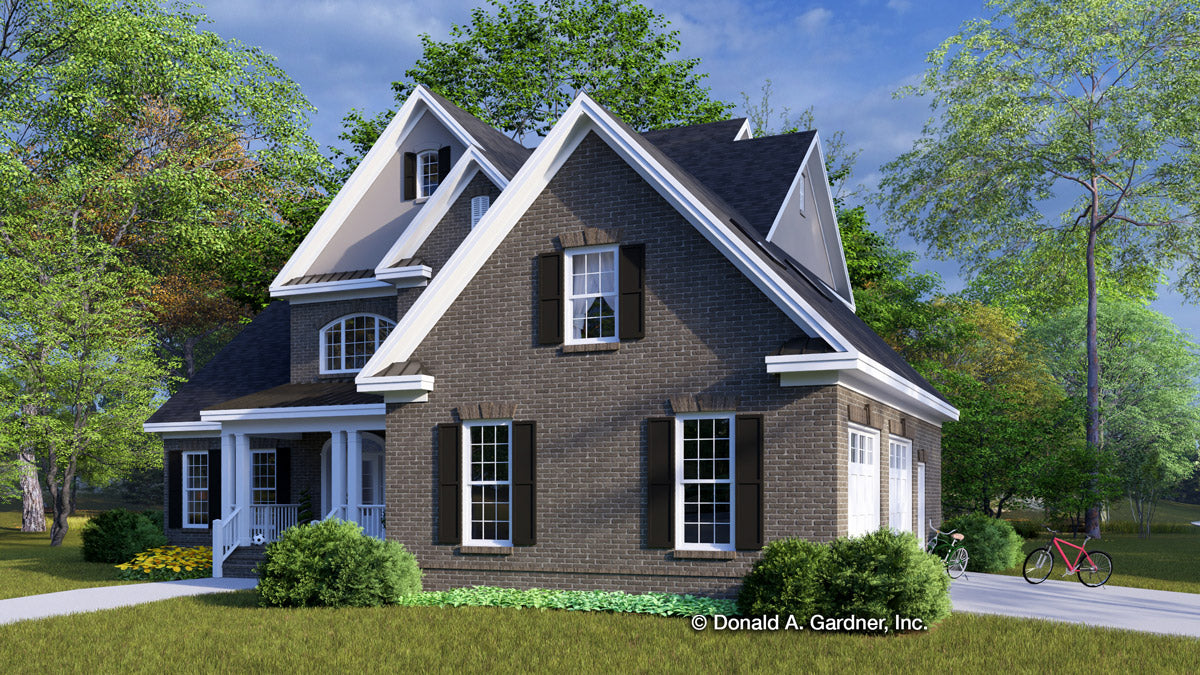

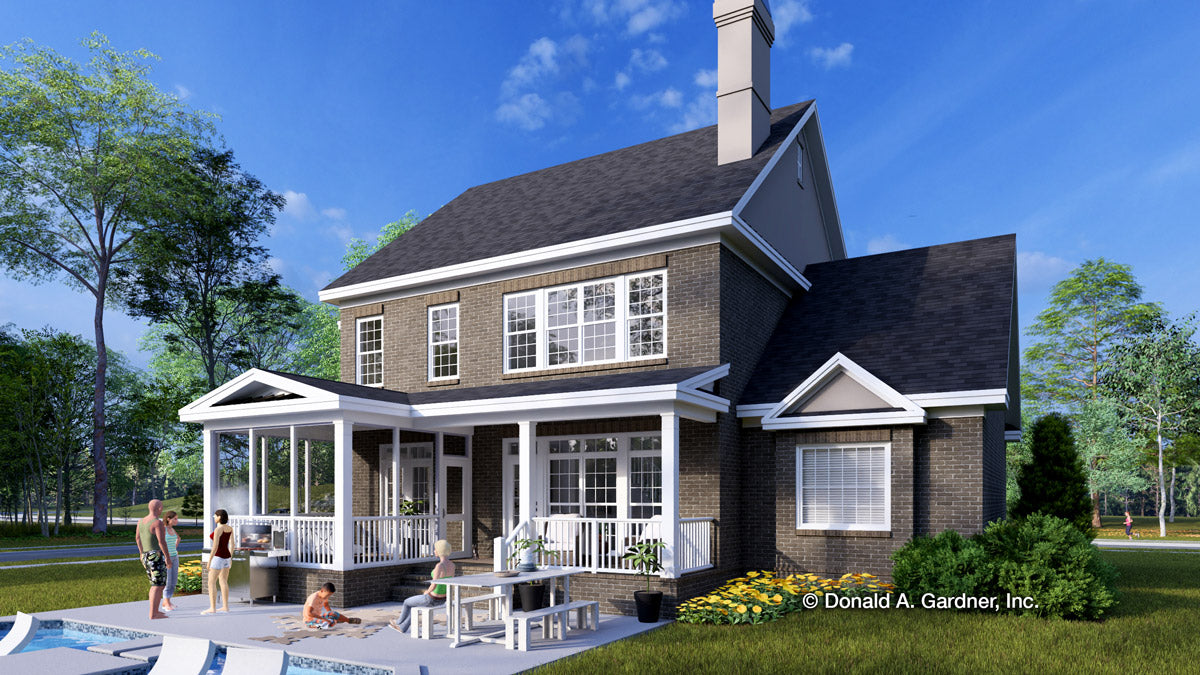

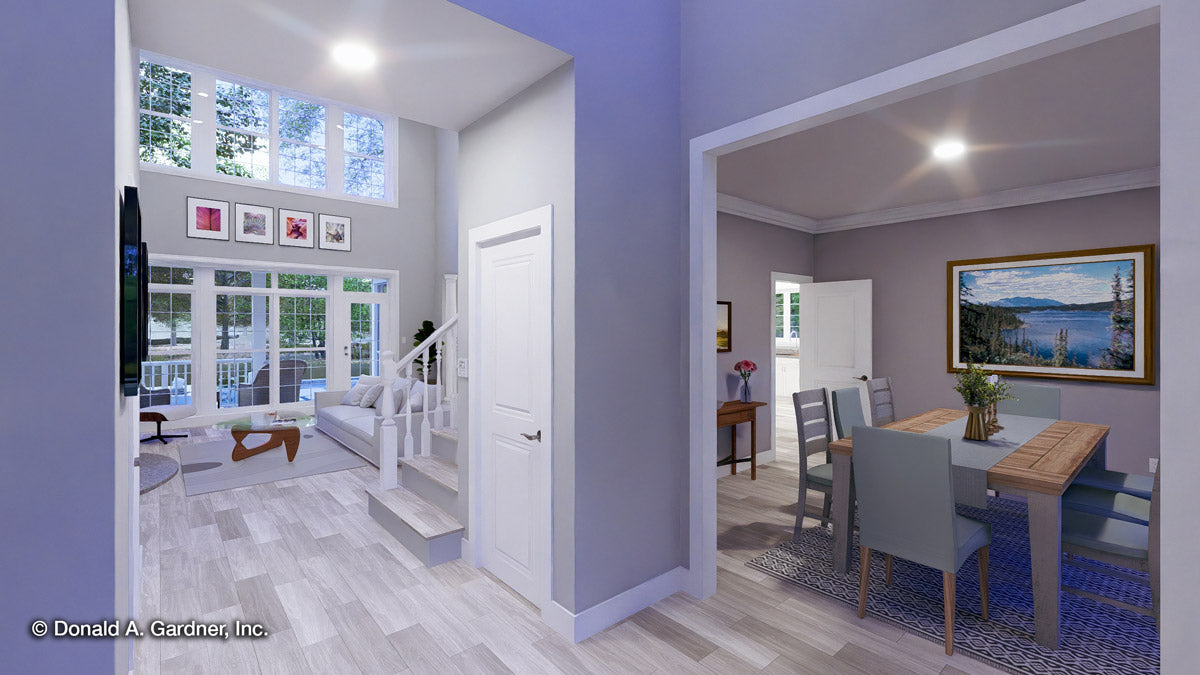

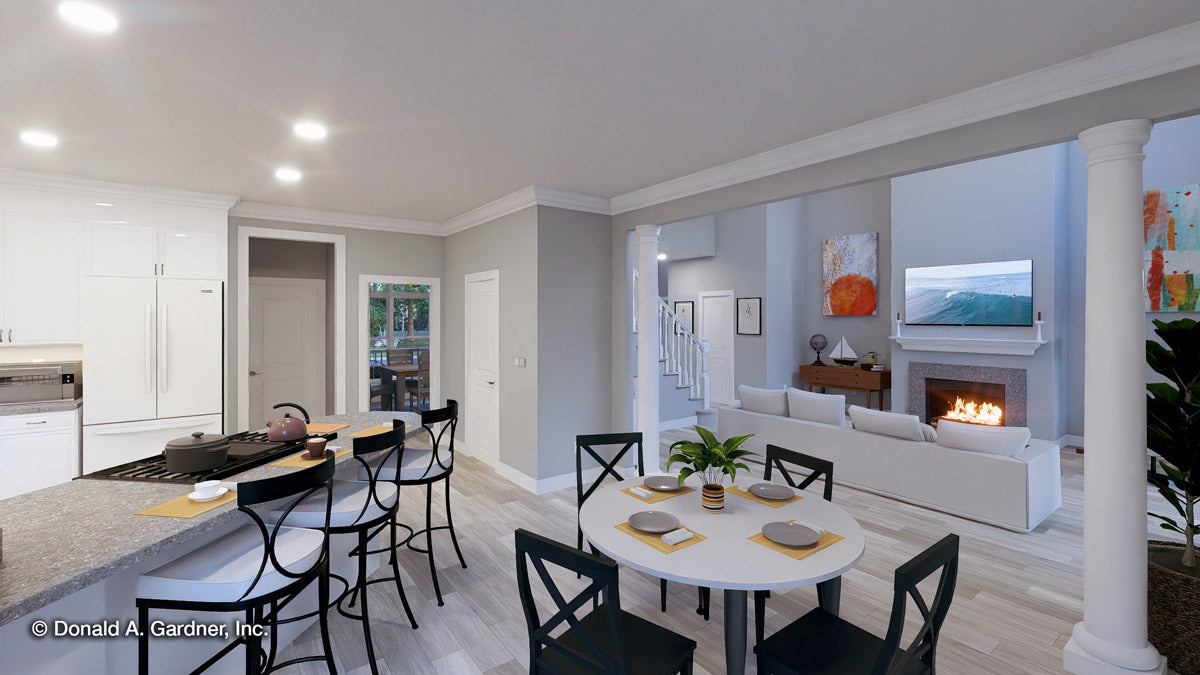

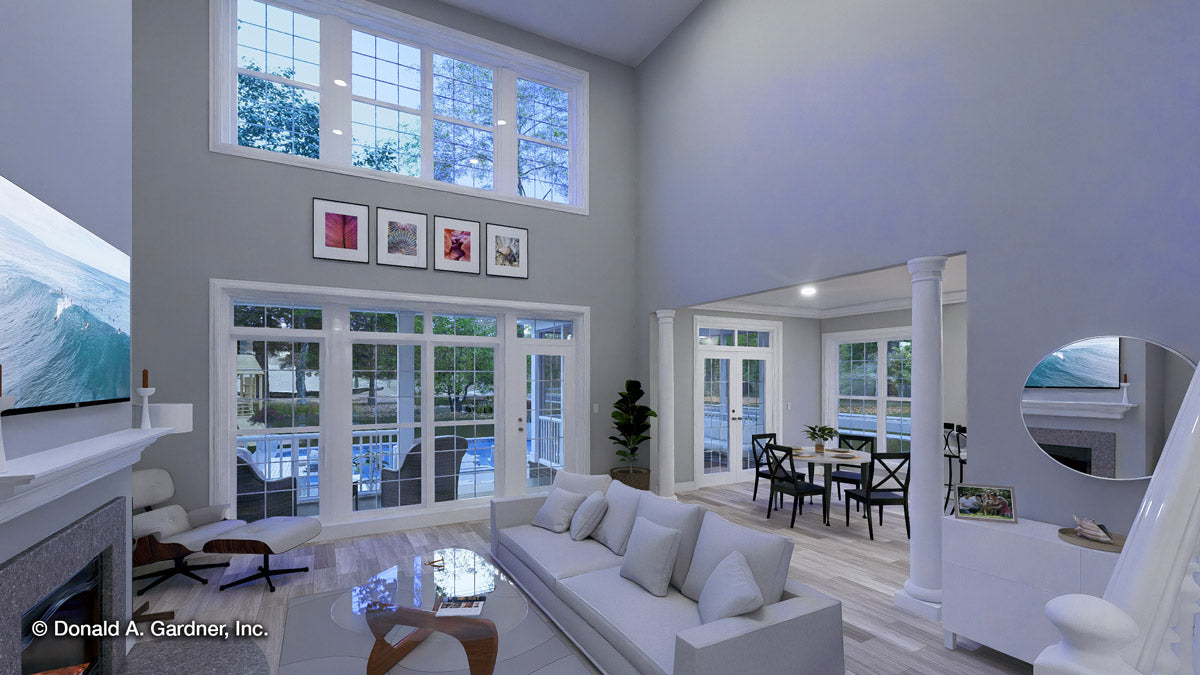

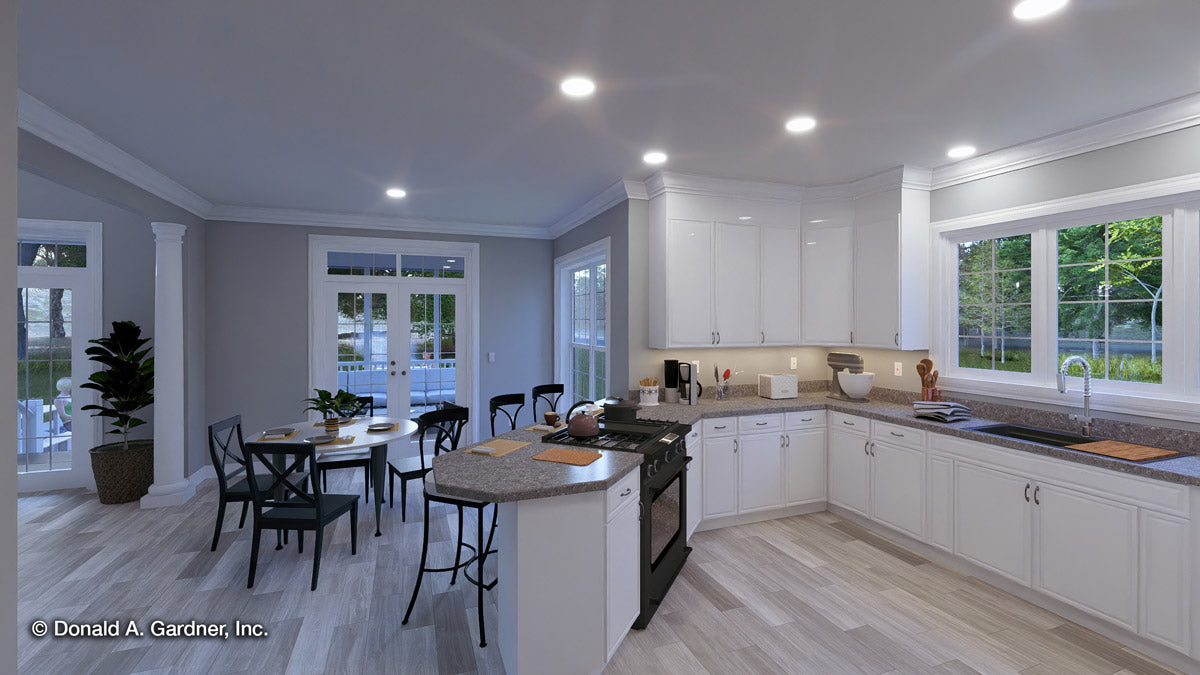

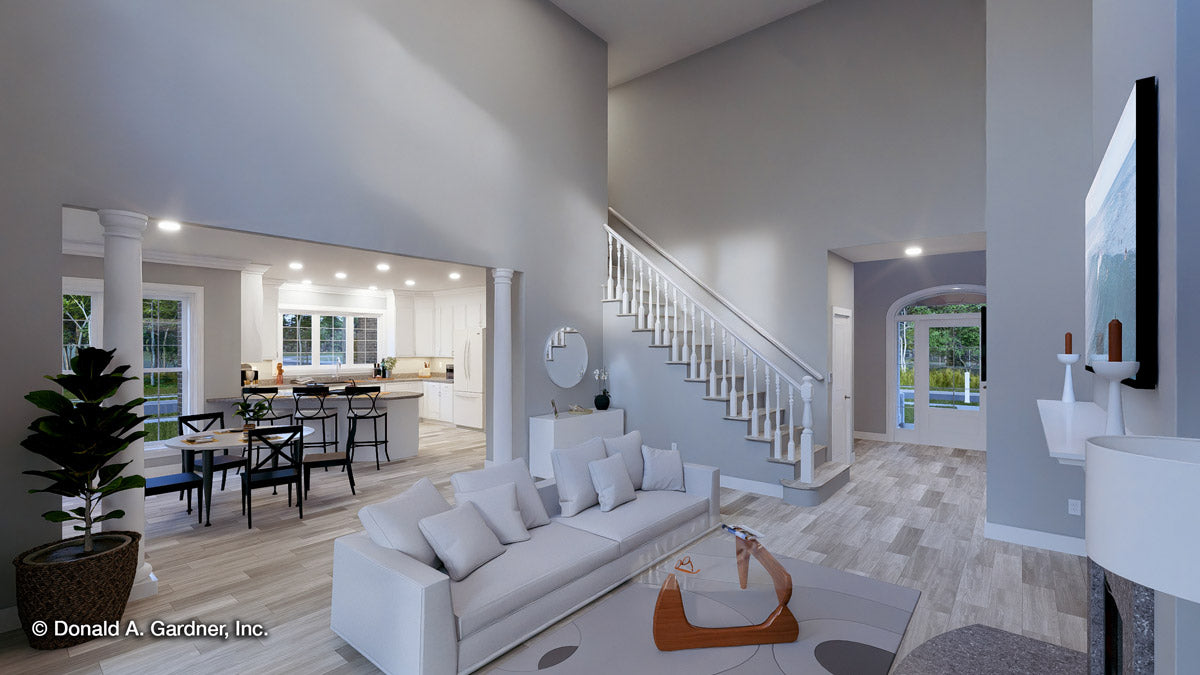

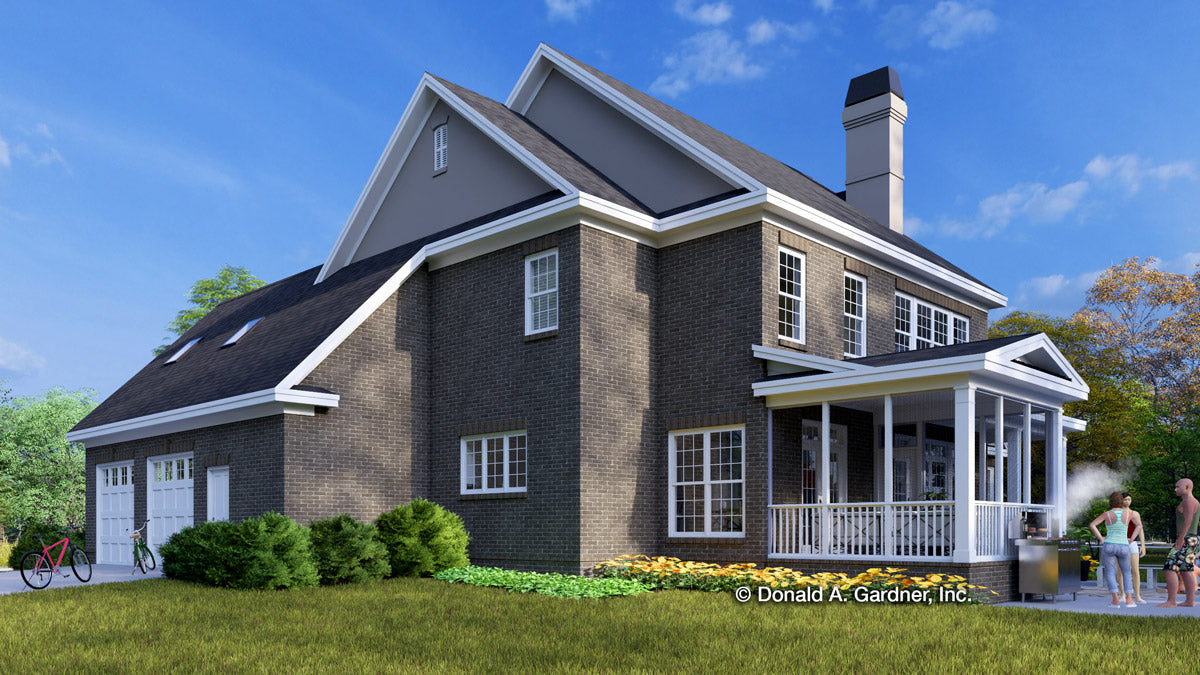

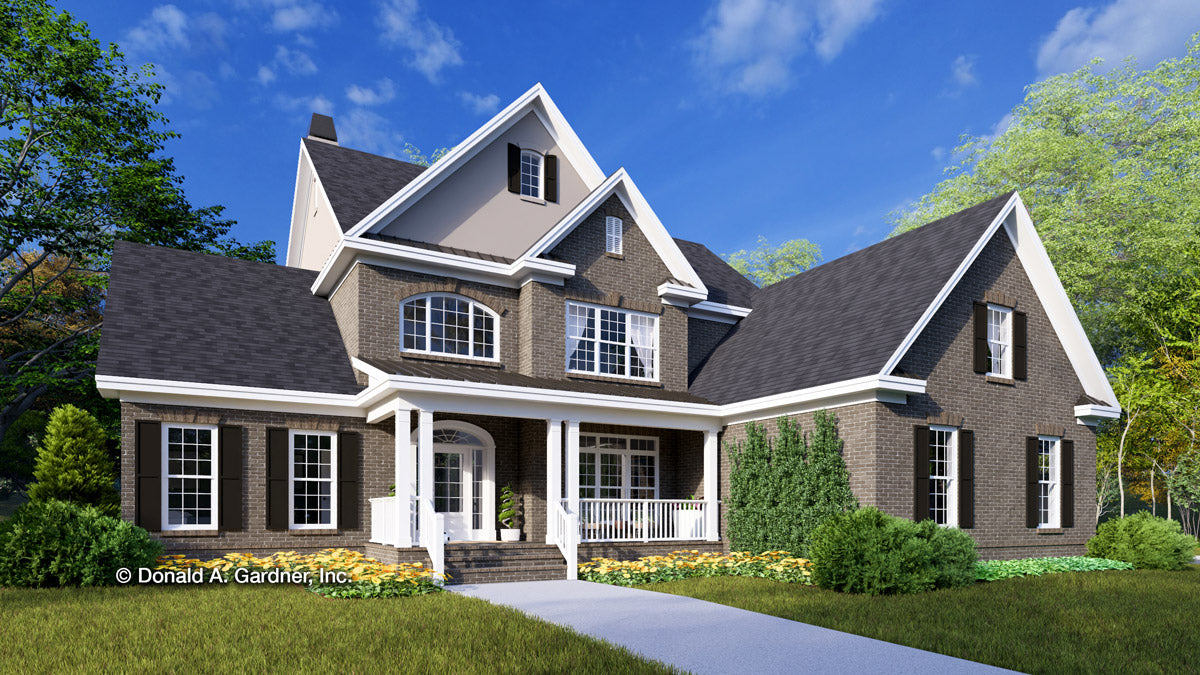

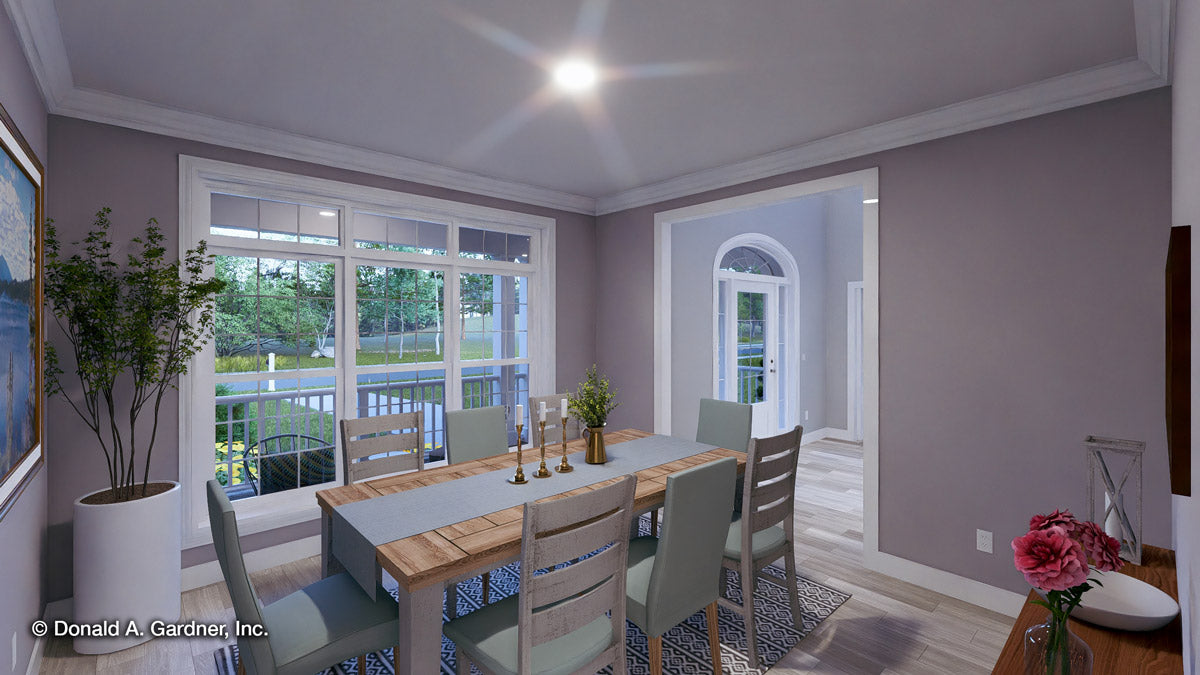

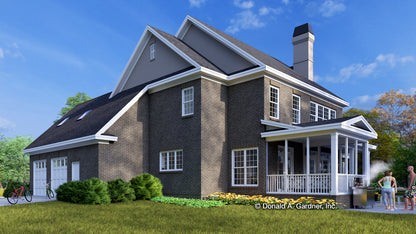

Tradition abounds in this two-story with transoms, keystone accents, and multiple gables. Inside, a convenient, open design and a spilt bedroom plan provide all the comfort today's families need. An arched clerestory window casts light into the two-story foyer for a dramatic welcome. The two-story great room is just as exciting with its rear wall of windows. Columns define the open breakfast area where French doors lead to a screened porch. Note the large kitchen pantry. Double doors lead to the first-floor master suite with his and her walk-in closets and a bath with every amenity. Both bedrooms upstairs feature walk-in closets, and a unique bath arrangement gives the rear bedroom a private powder room. The bonus room can be accessed from the upstairs hall or a separate staircase.
