• This is an illustration of the front of narrow lot house plan 512 The Hudson

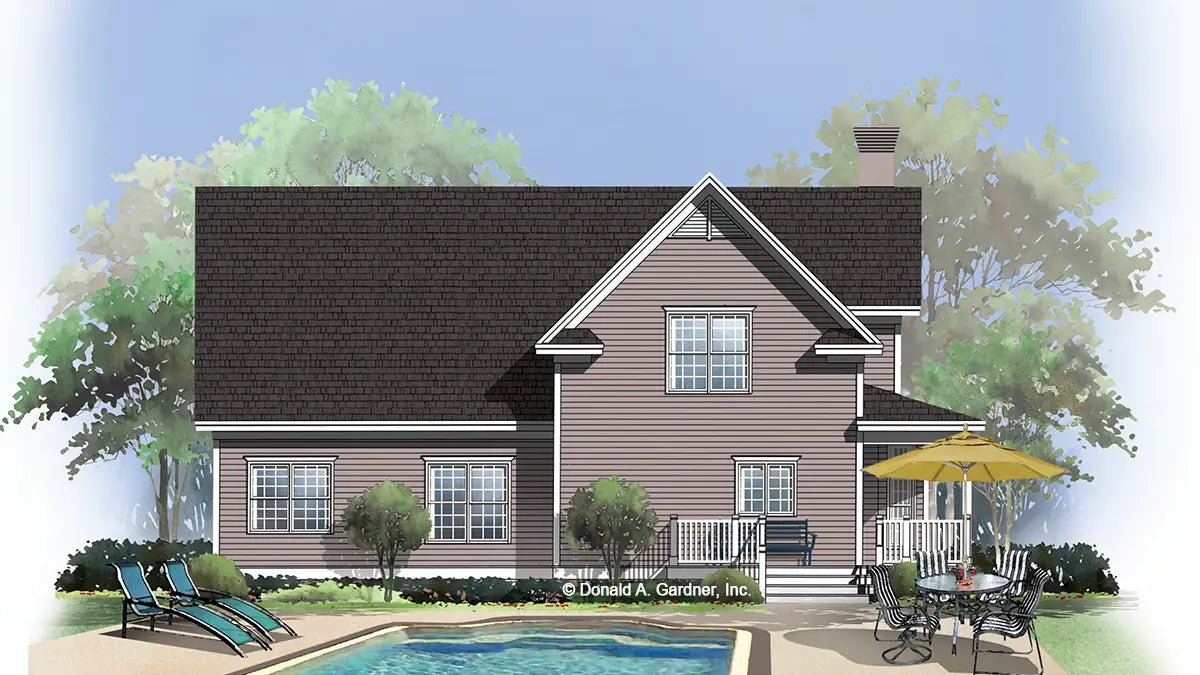

  • This is an illustration of the rear of two story house plan 512 The Hudson
1 2

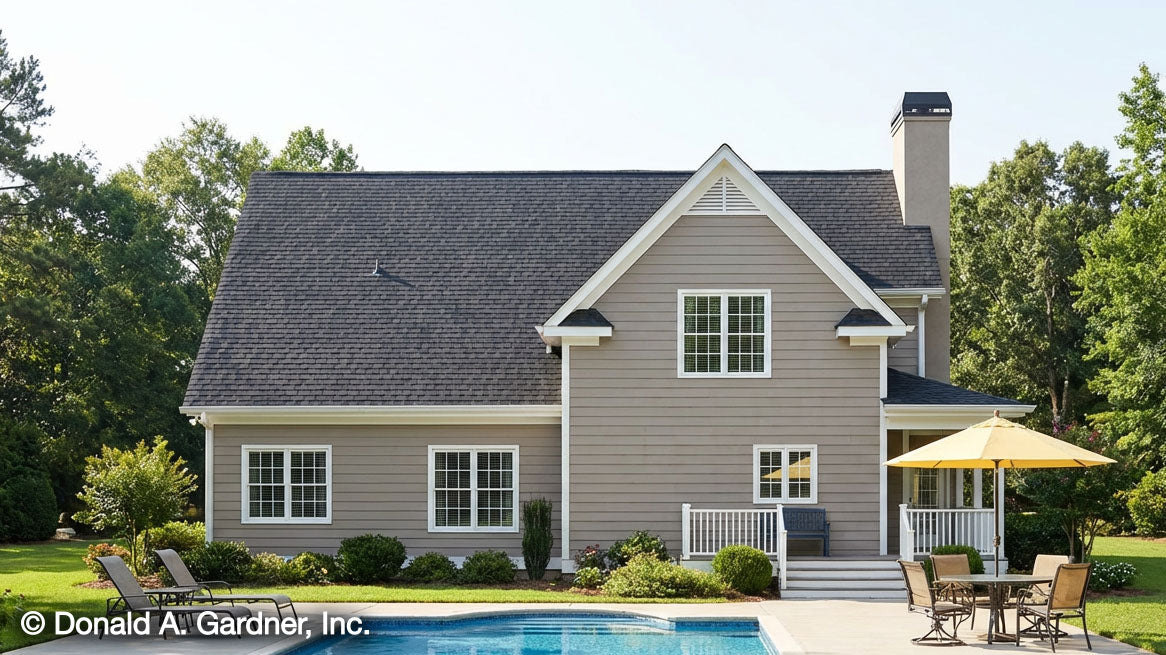

Photographs may reflect modified homes.
1669*
Square Feet
3
Bedrooms
2.5
Baths
1.5
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

The Hudson

House Plan #512
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,475.00 USD
$1,475.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1669 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Stories: 1.5
  • House Dimensions: 50' 4" x 49' 2"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Front
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 406 sq. ft.
  • Garage/Storage: 473 sq. ft.
  • Porch: 461 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Narrow Farmhouse Plan

This narrow lot Farmhouse plan offers some of the extras usually reserved for wider lots, such as a wraparound porch and a two-car garage. A vaulted ceiling adds volume to the great room, while columns and a bay window add distinction to the dining room. The kitchen is designed for efficiency and offers access to the side porch and rear deck for outdoor dining options. The master suite is located on the first floor, while two secondary bedrooms and a bonus room are upstairs. The bonus room can be turned into a fourth bedroom with bath for growing families.
