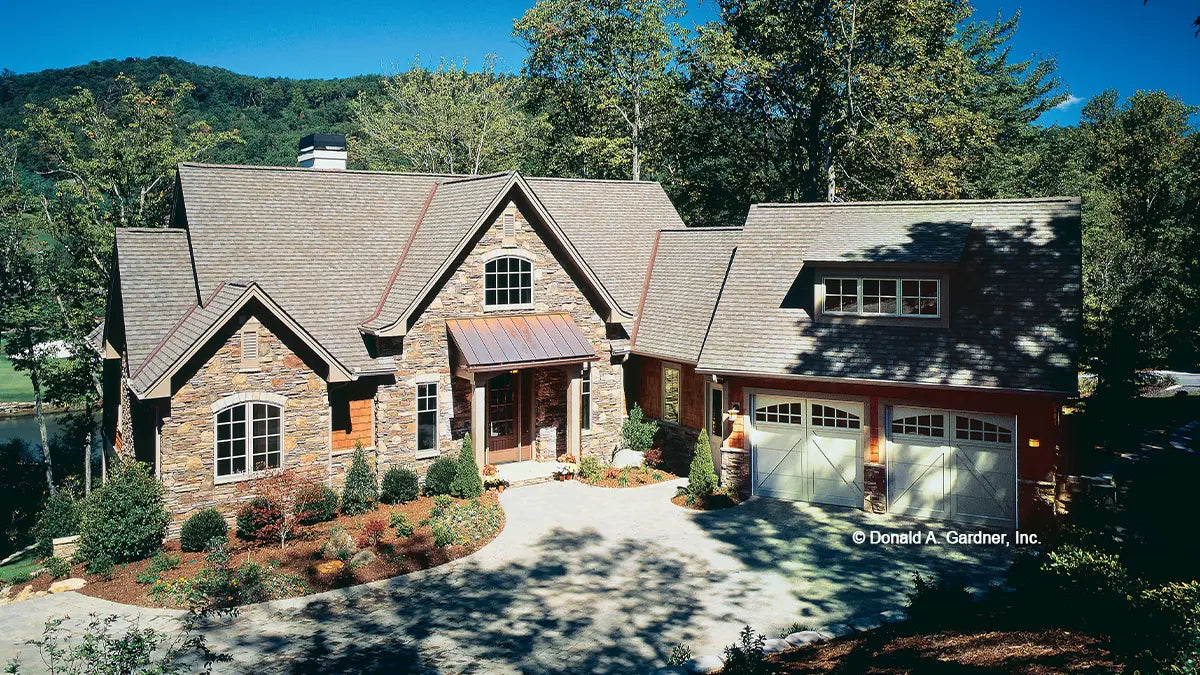

• Front view photograph submitted by the customer. The Dogwood Ridge plan 5005.

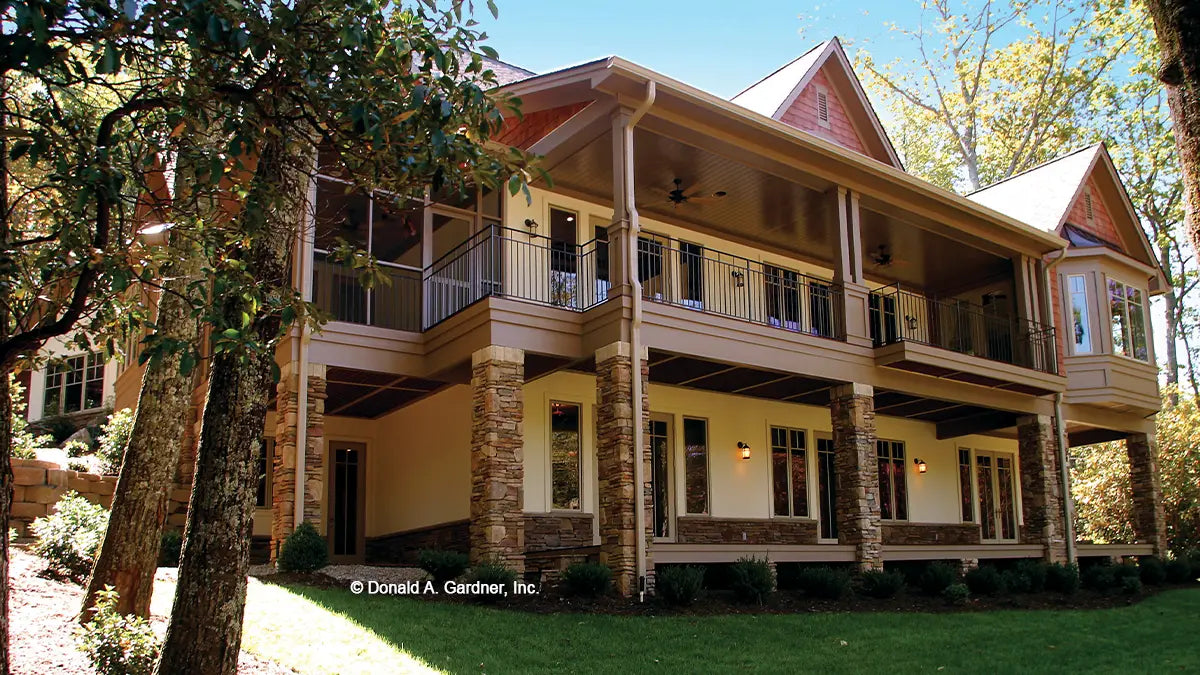

  • Rear view photograph submitted by the customer. The Dogwood Ridge plan 5005.

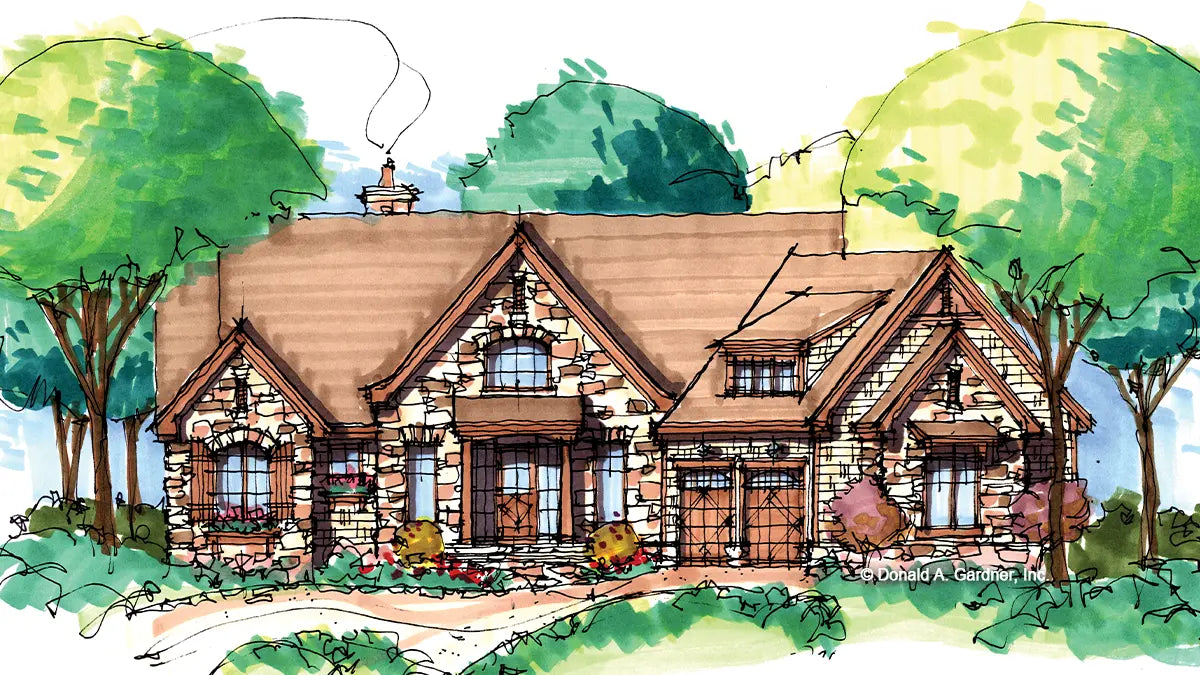

  • Front view illustration. The Dogwood Ridge plan 5005.

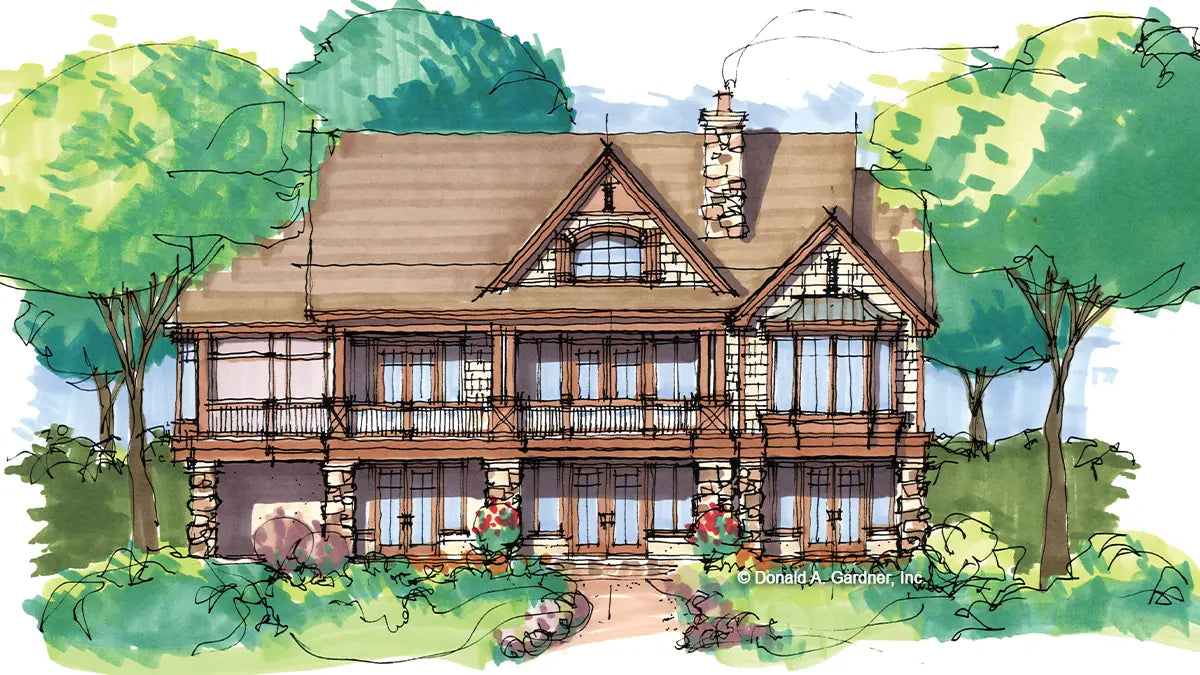

  • Rear view illustration. The Dogwood Ridge plan 5005.

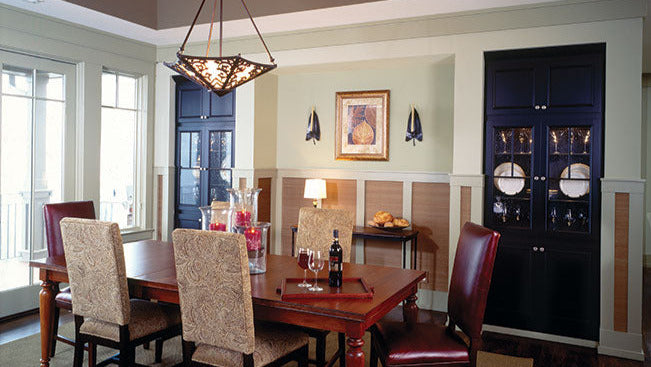

  • Chandelier in the dining room with tray ceiling. The Dogwood Ridge plan 5005.

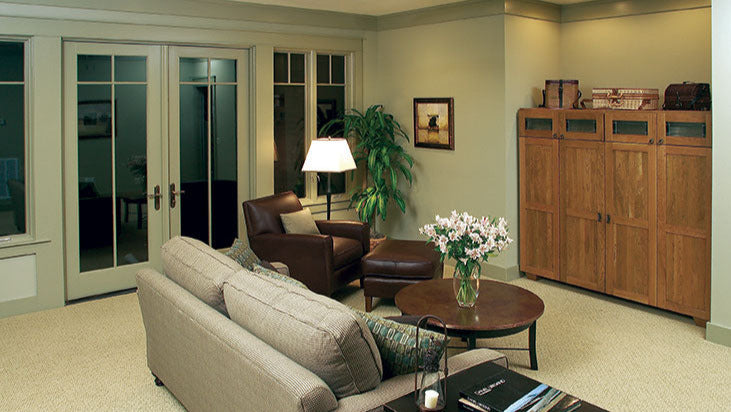

  • French doors in the entertainment room. The Dogwood Ridge plan 5005.

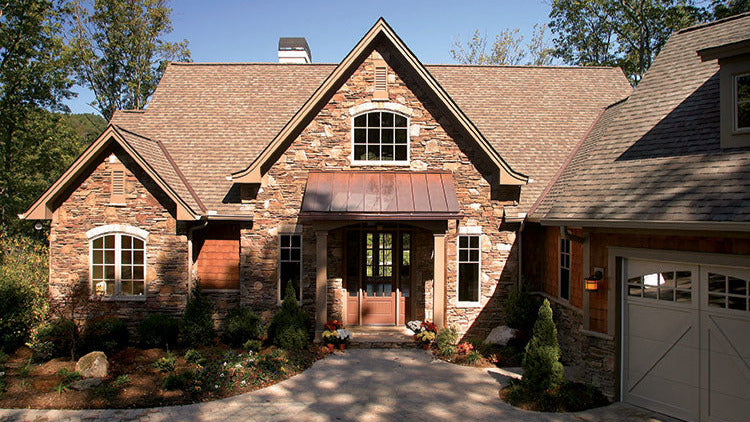

  • Front porch view. The Dogwood Ridge plan 5005.

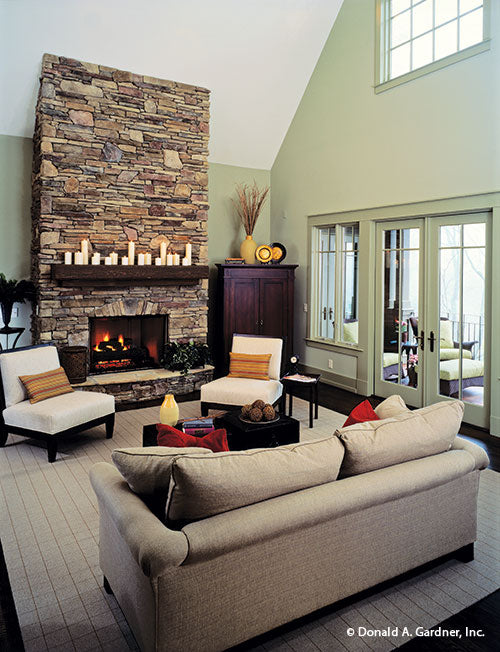

  • Stone fireplace in the great room. The Dogwood Ridge plan 5005.

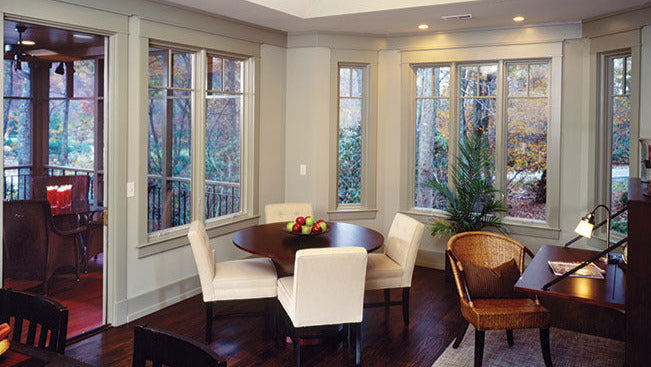

  • Writing desk and seating in the keeping room. The Dogwood Ridge plan 5005.

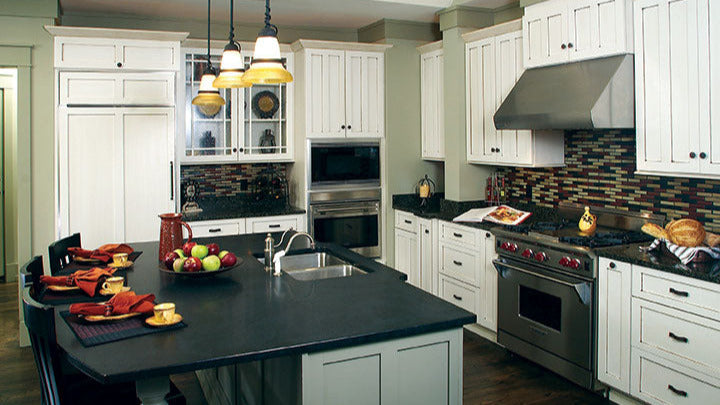

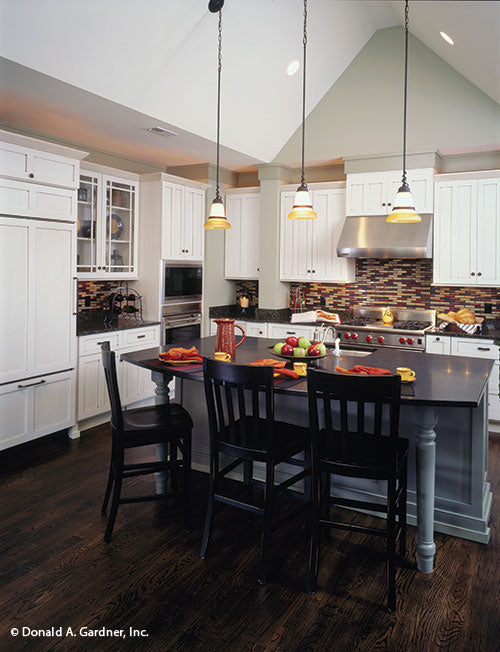

  • Island bar seating in the kitchen. The Dogwood Ridge plan 5005.
  • Sink in the kitchen island. The Dogwood Ridge plan 5005.

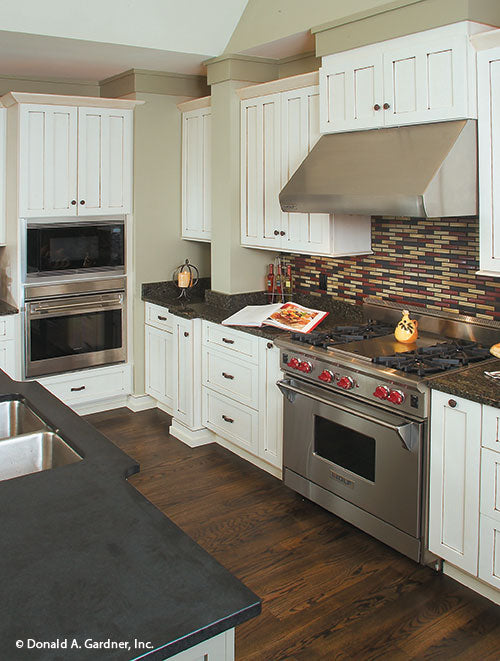

  • Stainless steel appliances in the kitchen. The Dogwood Ridge plan 5005.

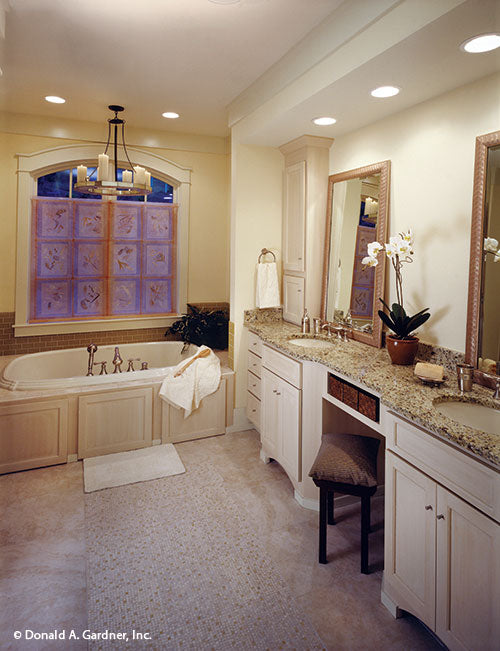

  • Double sink vanity beside sitting tub in the master bathroom. The Dogwood Ridge plan 5005.

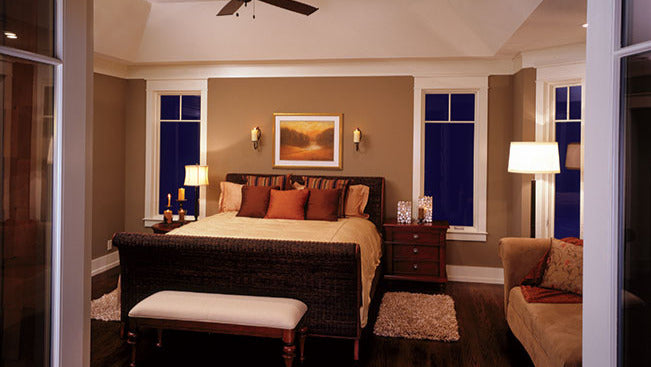

  • Tray ceiling in the master bedroom. The Dogwood Ridge plan 5005.

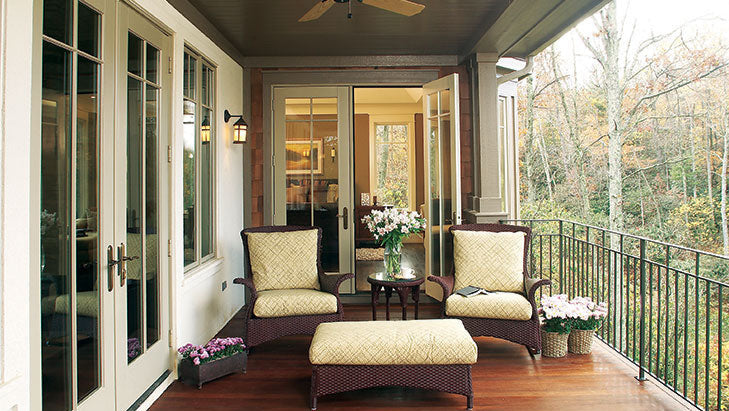

  • Covered rear porch with ceiling fan. The Dogwood Ridge plan 5005.

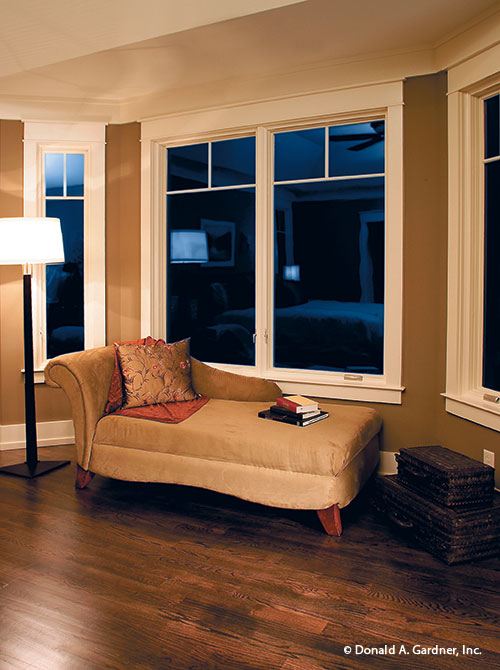

  • Chaise lounge in the sitting room. The Dogwood Ridge plan 5005.
1 17
Photographs may reflect modified homes.
3195*
Square Feet
3
Bedrooms
3.5
Baths
2
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for walkout basement house plan 5005 The Dogwood Ridge
This is the basement floor plan image for mountain house plan 5005 The Dogwood Ridge

The Dogwood Ridge

House Plan #5005
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,875.00 USD
$1,875.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 3195 sq. ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Stories: 2
  • House Dimensions: 71' 1" x 78' 6"
  • **Foundation: Hillside Walkout
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Courtyard
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Garage/Storage: 594 sq. ft.
  • Porch: 462 sq. ft.
  • Porch - Screened: 185 sq. ft.
  • Patio: 473 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Walkout basement design with European flair

Stone and cedar shake combine with triumphant gables and graceful arches to create a Craftsman house plan exterior with European flair. Influenced by the cottages of old, this hillside walkout house plan boasts a rear wall of glasswork on both floors to capture breath-taking views. A rear porch and screened porch take living outdoors. The open floor plan distinguishes rooms by ceiling treatments and columns instead of enclosing space with walls. For added convenience and future planning, an elevator makes living easier. Custom features in this house plan include a walk-in pantry, abundant storage space and large utility room with sink. The master bedroom is complete with two walk-in closets, a double vanity, garden tub, separate shower and private privy. Along with the master suite, the secondary bedrooms take advantage of the natural scenery.
