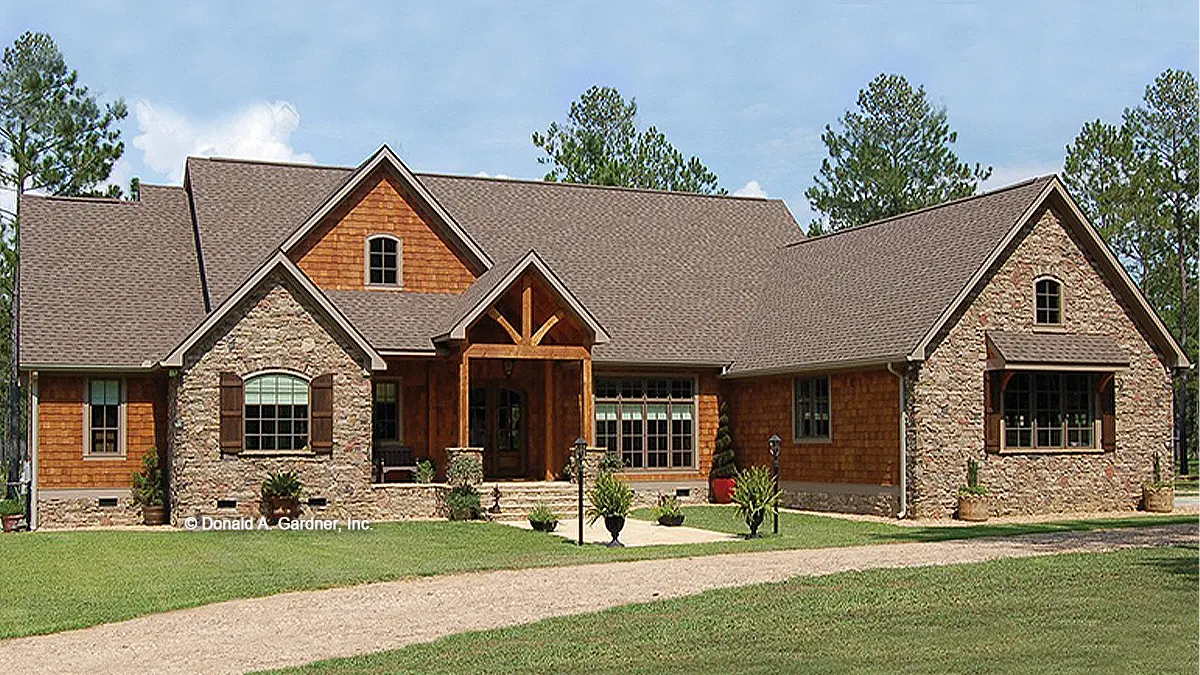

• Photographs submitted by the customer. Front view of a stone and cedar craftsman style home. The Sycamore Hall plan 5000.
  • Rear view photograph of a cedar craftsman style with a screened in porch. The Sycamore Hall plan 5000.

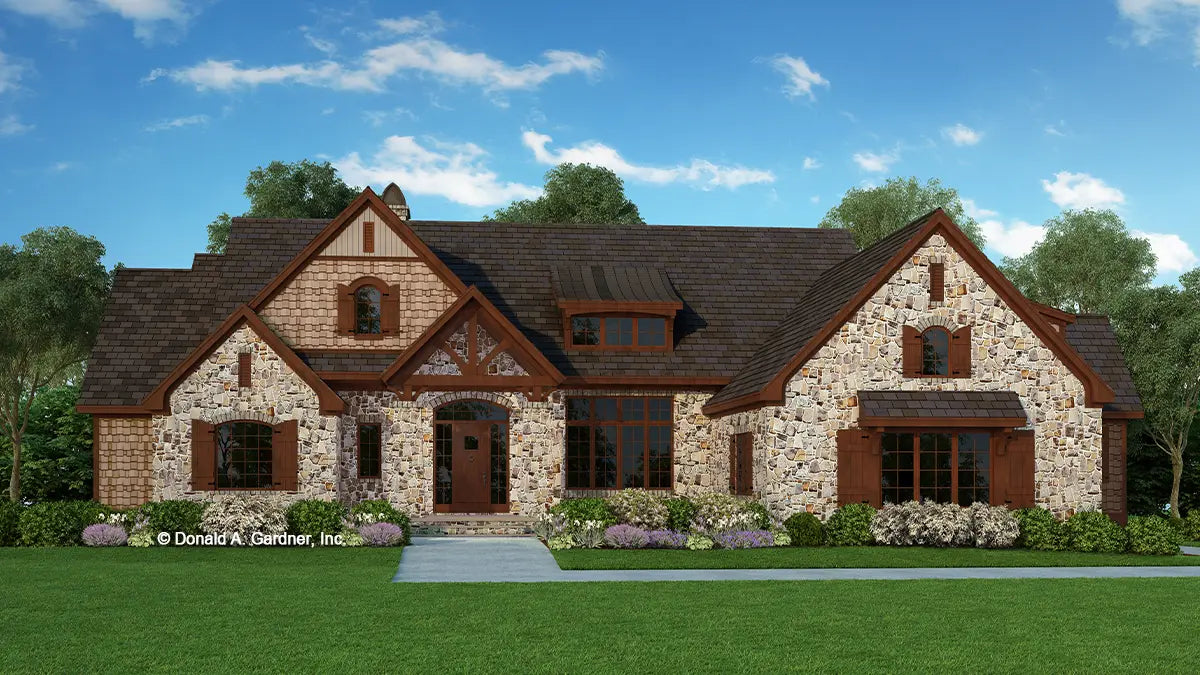

  • Front view stone and cedar craftsman style home. The Sycamore Hall plan 5000.

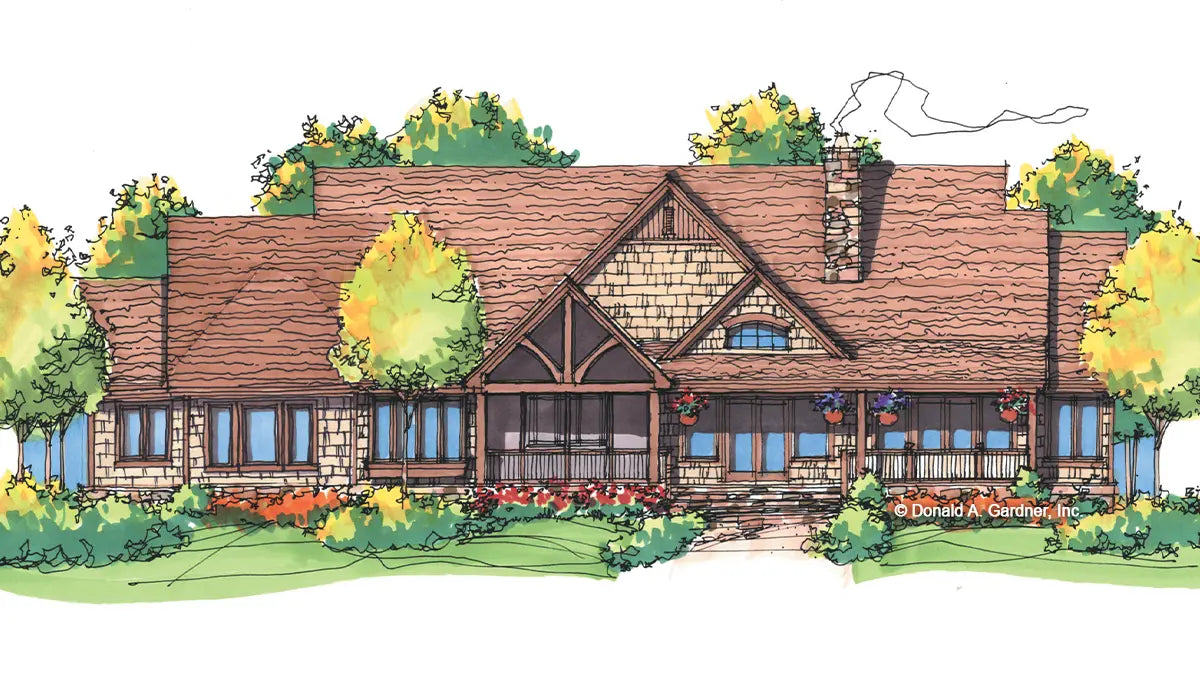

  • Rear view illustration of a craftsman style home with a screened in porch. The Sycamore Hall plan 5000.
1 4
Photographs may reflect modified homes.
2882*
Square Feet
3
Bedrooms
3.5
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

The Sycamore Hall

House Plan #5000
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,675.00 USD
$1,675.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2882 sq. ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Stories: 1
  • House Dimensions: 95' 10" x 70' 5"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x6
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Garage/Storage: 678 sq. ft.
  • Porch: 385 sq. ft.
  • Porch - Screened: 274 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Sprawling Executive Home

The American Frontier meets Old World Charm in this beautiful Craftsman home. Stone, cedar shake and a prominent gable with a decorative wood bracket creates a welcoming facade and blends with the natural surroundings. An open floorplan and decorative ceiling treatments create spaciousness and volume. Tray ceilings crown the foyer, dining room and master bedroom, while cathedral ceilings grace the great room and screened porch. Bowed windows expand the breakfast nook and master suite's sitting area. Interior columns make a bold statement, and the kitchen allows room for two cooks. All of the common rooms are grouped for a natural traffic flow. The master suite is opposite the secondary bedrooms for additional privacy, and each bedroom has its own private bath.
