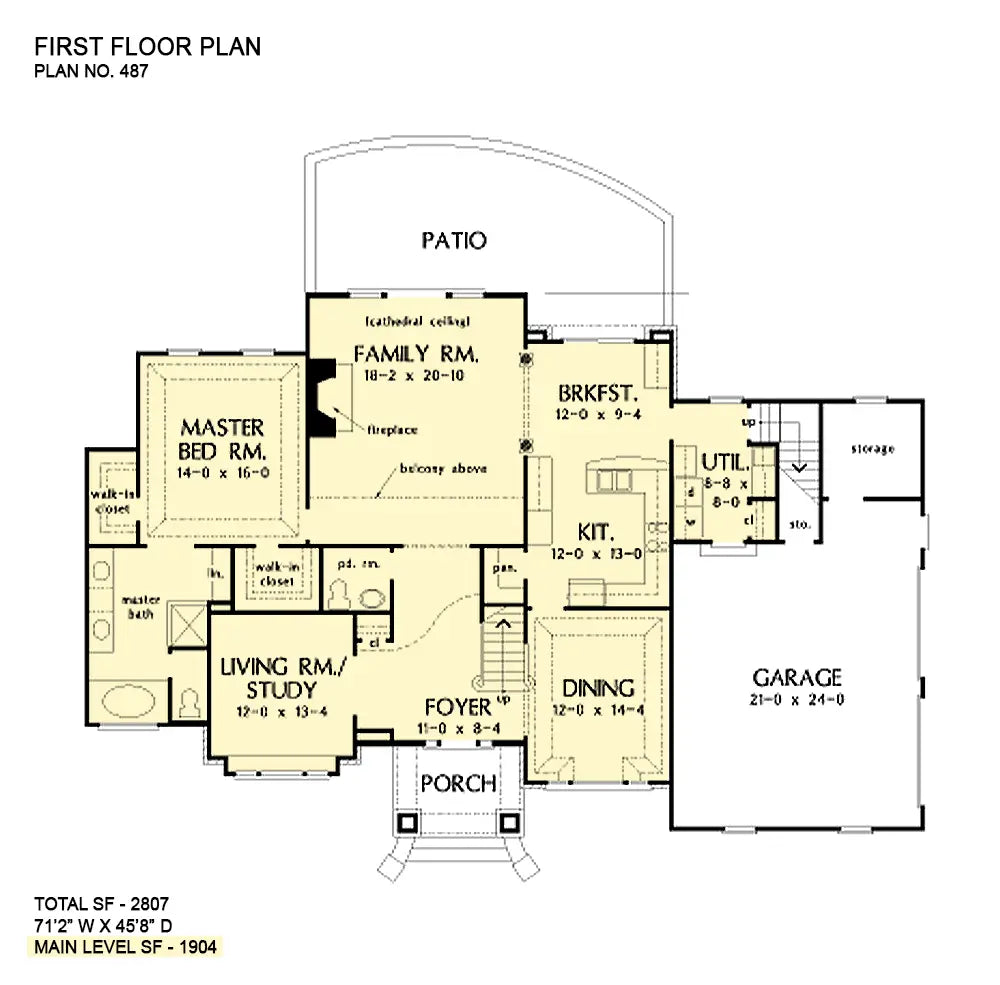

  • First-floor floor plan. The Trudeaux plan 487.

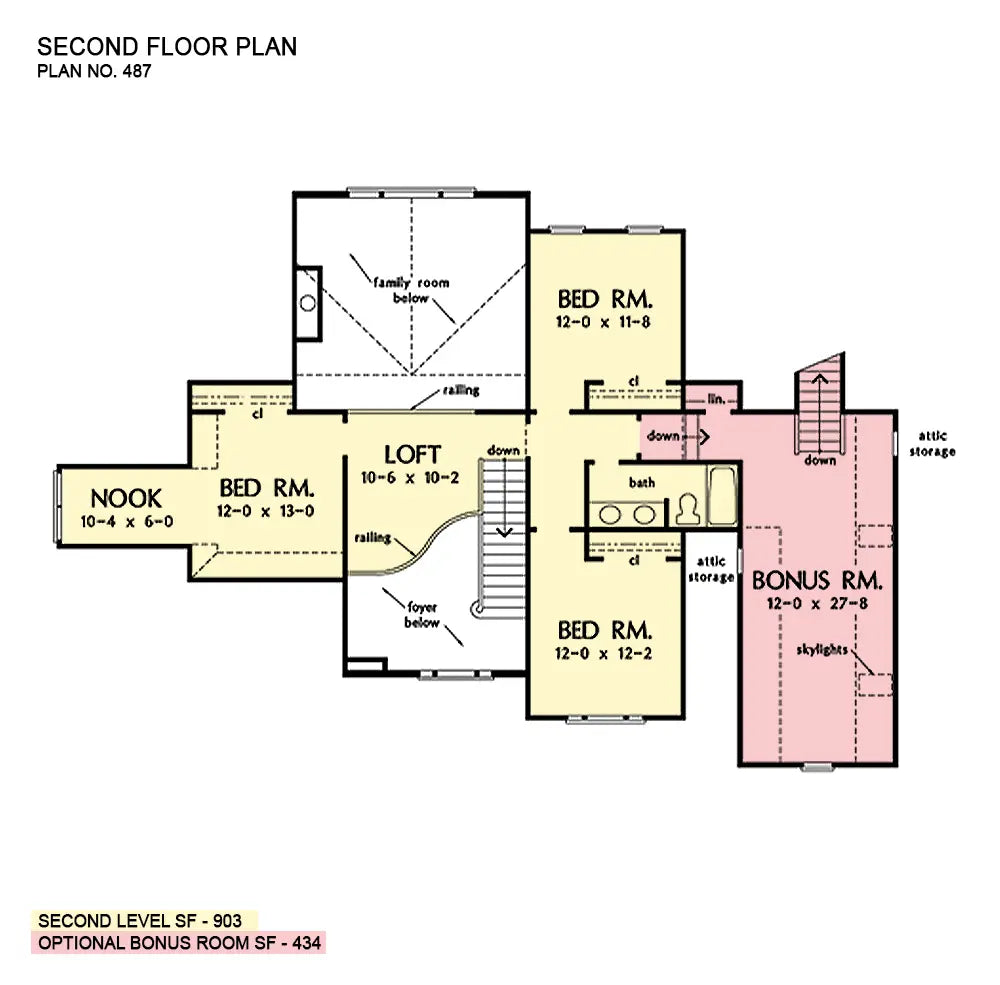

  • Second-floor floor plan with bonus room. The Trudeaux plan 487.

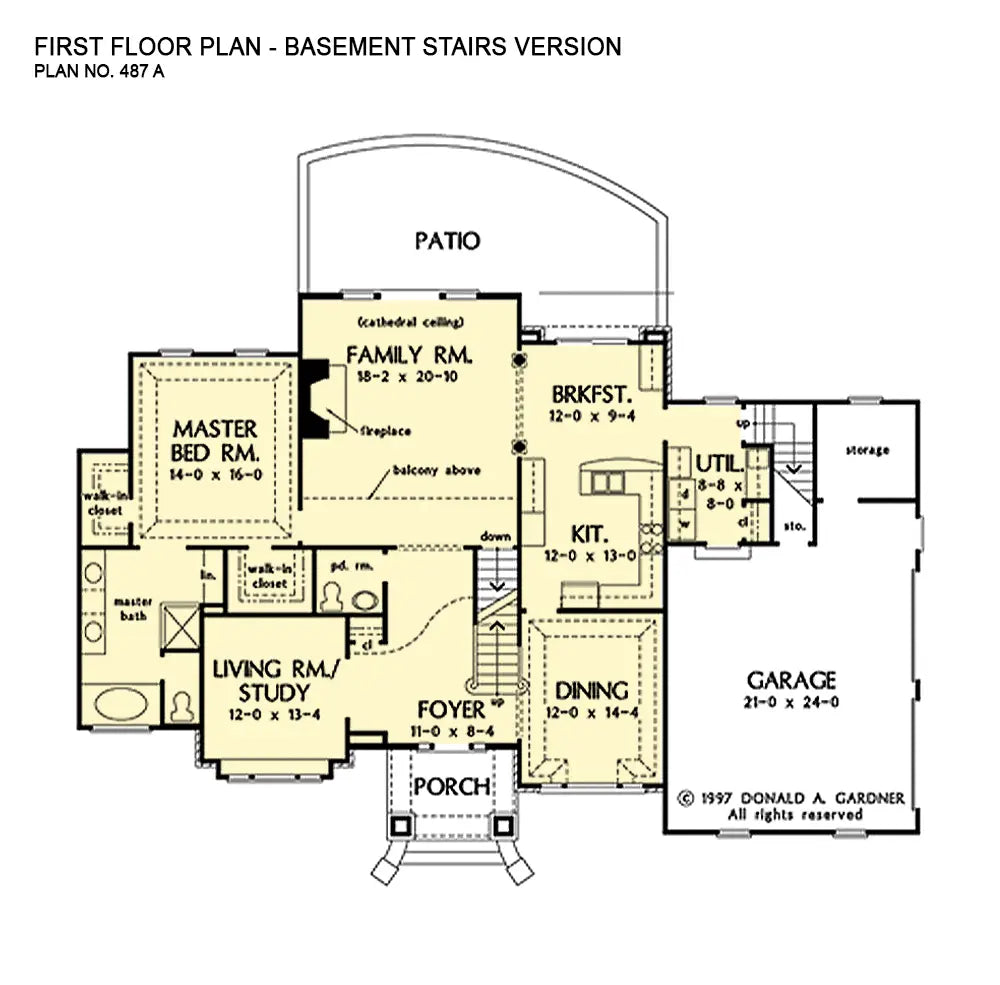

  • First-floor floor plan with basement stairs. The Trudeaux plan 487.
  • Rear view illustration. The Trudeaux plan 487.
1 5
Photographs may reflect modified homes.
2807*
Square Feet
4
Bedrooms
2.5
Baths
2
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

The Trudeaux

House Plan #487
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,675.00 USD
$1,675.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2807 sq. ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Stories: 2
  • House Dimensions: 71' 2" x 45' 8"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 434 sq. ft.
  • Garage/Storage: 646 sq. ft.
  • Porch: 84 sq. ft.
  • Patio: 364 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Graceful Appearance

With its stone and stucco exterior, arched windows, and grand entry, this Traditional home's graceful appearance merely hints at the treasures that await inside. The two-story foyer makes a formal invitation into a living room/study with box bay window seat, a dining room with elegant tray ceiling, and generous family room with fireplace and cathedral ceiling. Columns mark the entrance to the breakfast area, open to a spacious kitchen with walk-in pantry. The master suite has a private location on the first floor and includes a tray ceiling, his and her walk-in closets, and spacious bath with linen closet. Three more bedrooms are located upstairs along with a full bath and skylit bonus room.
