Plan Type: PDF, Review, CAD explained below. Learn more.
Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

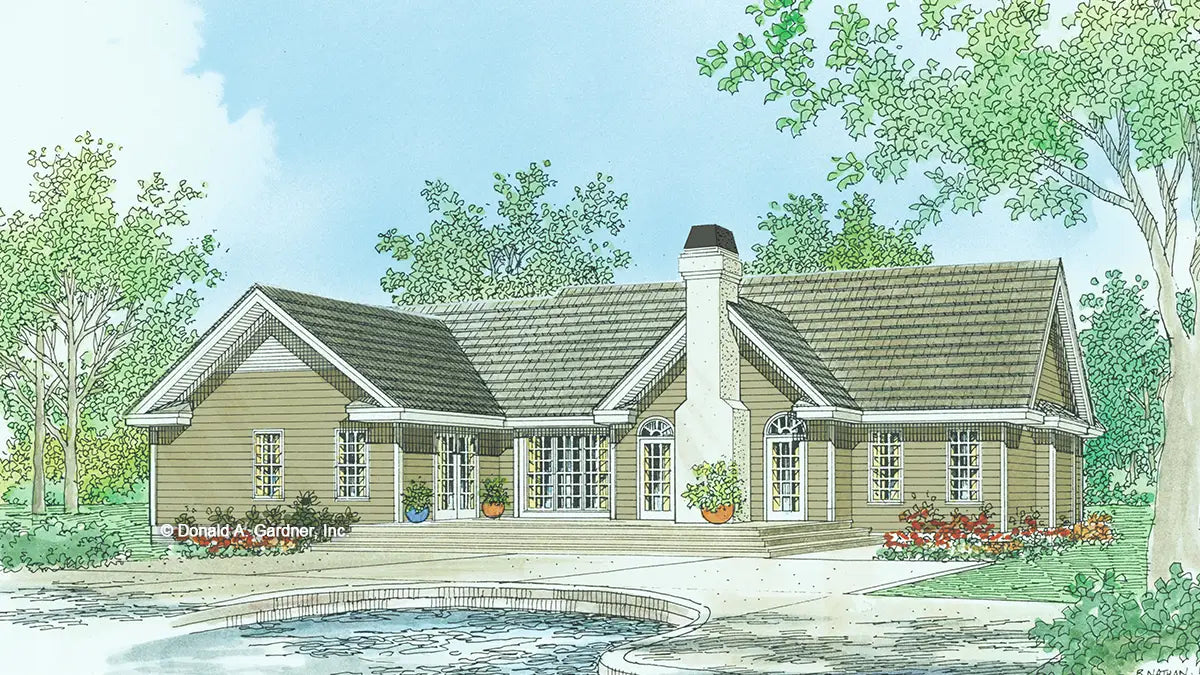

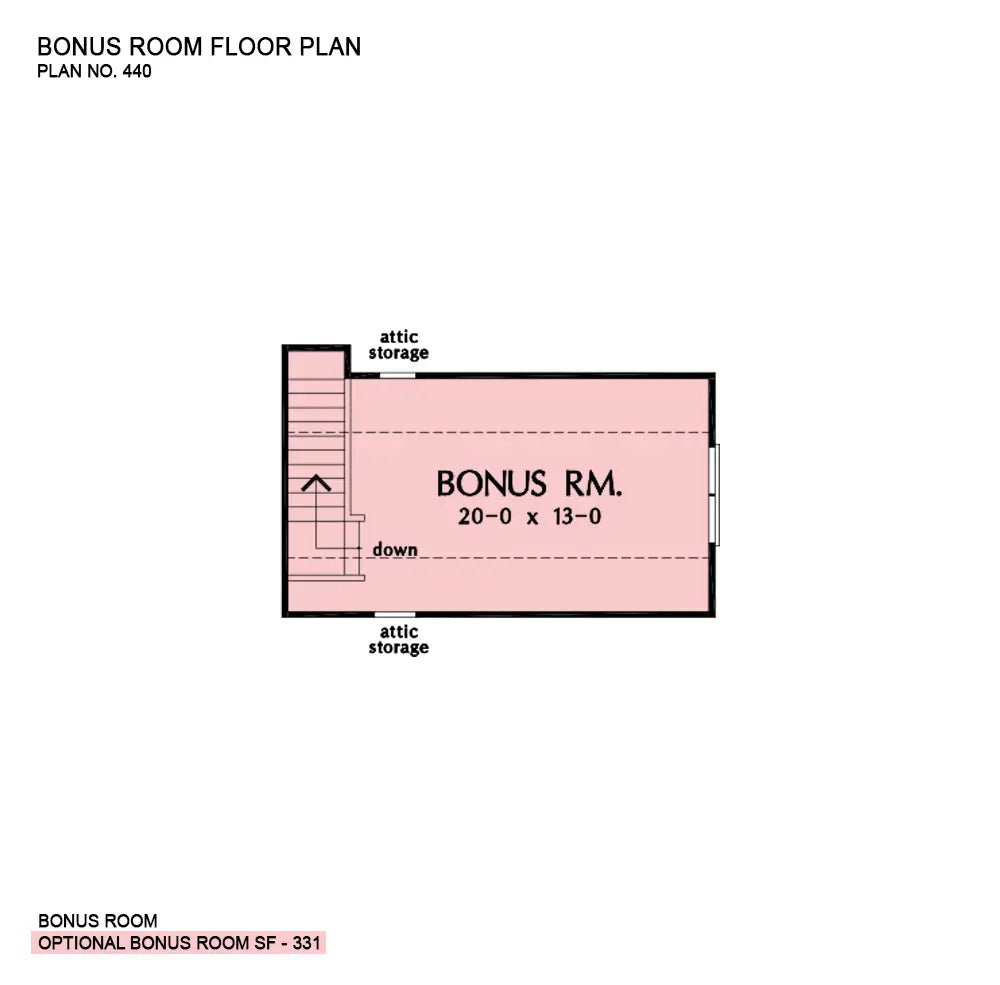

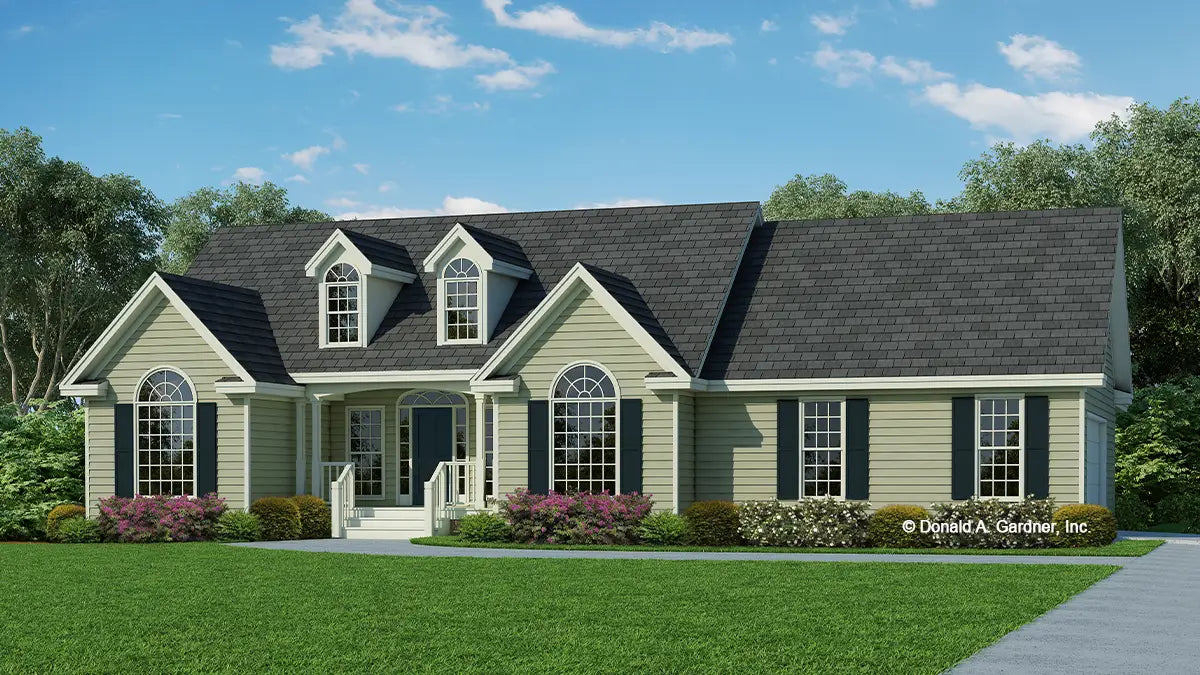

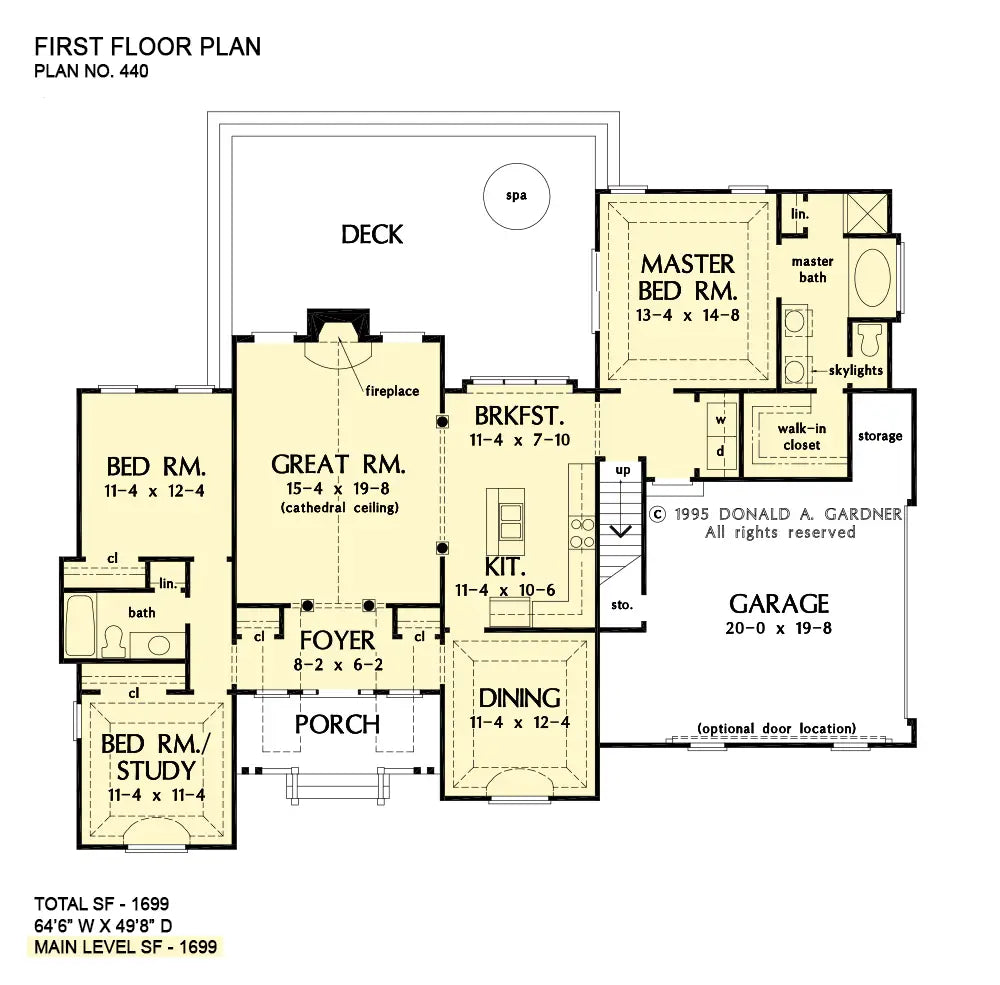

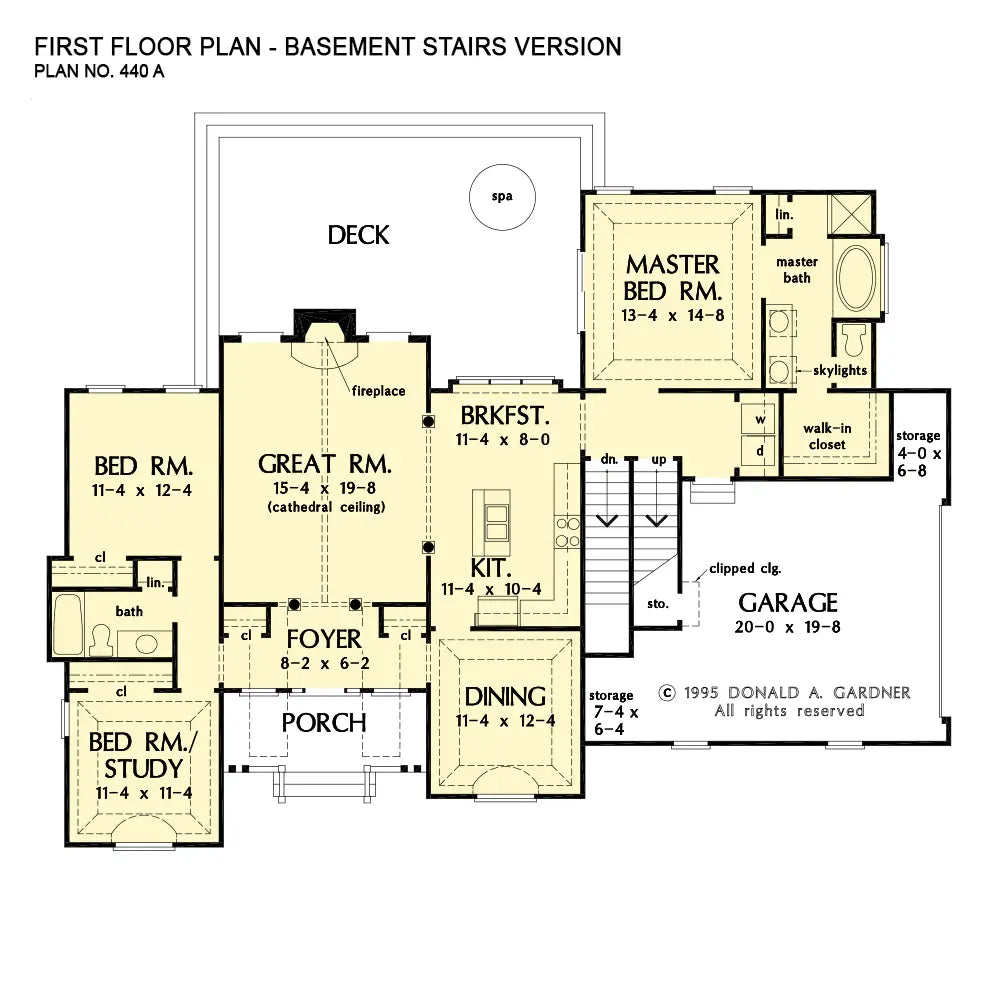

An inviting front porch, dormers, gables, and windows topped by half-rounds give curb appeal to this lovely ranch house, while inside, an open floor plan with split bedroom design and a spacious bonus room steal the show. Two dormers add light and volume to the foyer, while a cathedral ceiling enlarges the open great room. Accent columns define the foyer, great room, kitchen, and breakfast area. Both dining room and front bedroom/study have tray ceilings that show off stunning picture windows with half-rounds. The private master suite with tray ceiling accesses the rear deck through sliding glass doors, and the bath includes a garden tub, separate shower, and two skylights over a double bowl vanity.
ALL SALES ARE FINAL. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show them the plan and determine what they will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.
If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.
Learn all about what comes in a set of plans here. If you have any questions please contact us.
