• Front view illustration. The Jefferson plan 404.

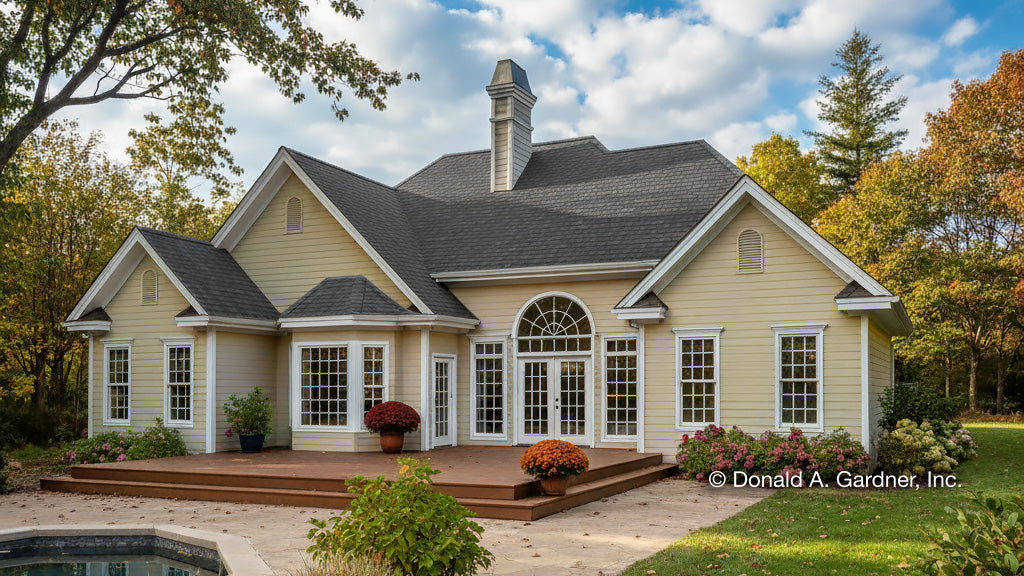

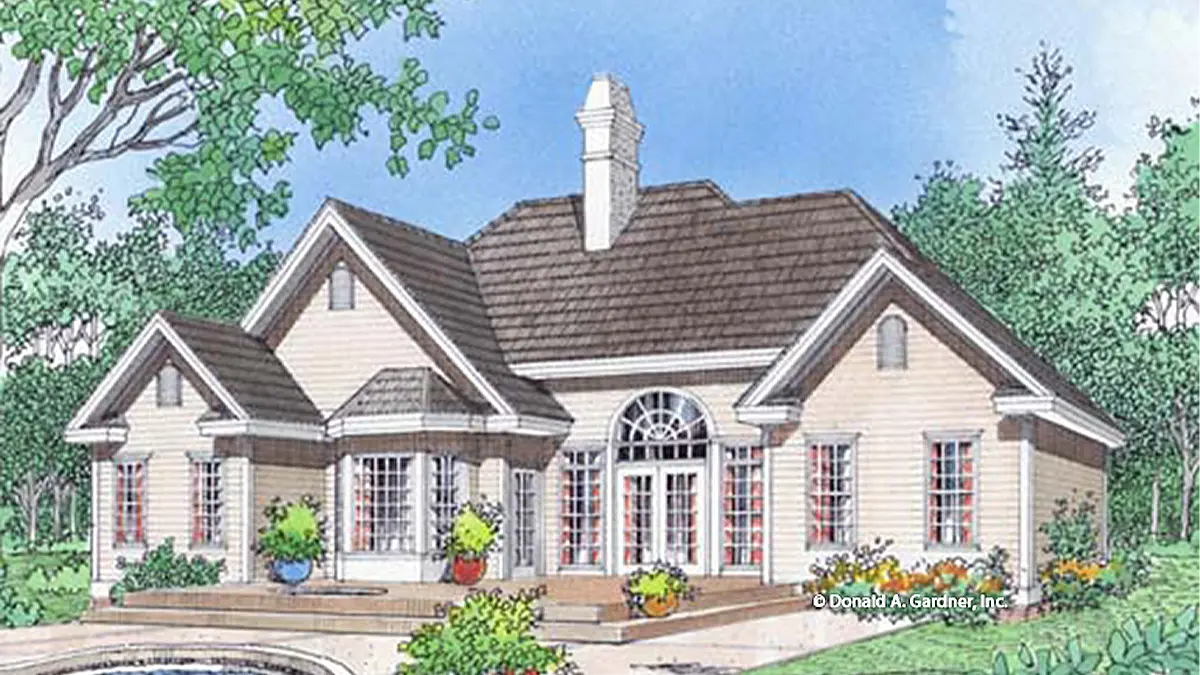

  • rear view illustration. The Jefferson plan 404.
1 2
Photographs may reflect modified homes.
1696*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for traditional house plan 404 The Jefferson
This is the bonus room floor plan image for three bedroom house plan 404 The Jefferson

The Jefferson

House Plan #404
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,475.00 USD
$1,475.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1696 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Stories: 1
  • House Dimensions: 55' 4" x 59' 2"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 334 sq. ft.
  • Garage/Storage: 520 sq. ft.
  • Porch: 35 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Elegant One-Story House Plan

Traditional elegance beckons guests into a home that offers roomy volumes, unrestricted spaces, and refined accents. Daylight soars from exciting windows and twelve-foot-high ceilings in the united foyer, dining, and great room. These open public areas are punctuated by columns and flow into an island kitchen and breakfast room or out to a patio. The master suite, privately located to one side of the common spaces, features a square footage-enhancing tray ceiling. In the master bath, a tray ceiling highlights a picture window with a circle top at the garden tub. Two other bedrooms, a full bath with a linen closet, and a skylit bonus room complete the plan.
