The Galpin
Plan Type: PDF, Review, CAD explained below. Learn more here.
Additional Specs:
- Total Living: 2996 sq. ft.
- Bedrooms: 5
- Full Baths: 3
- Stories: 2
- House Dimensions: 61' 10" x 74' 6"
- **Foundation: Hillside Walkout
- Exterior Wall Construction: 2x4
- Garage Bays: 2
- Garage Load: Courtyard
Unfinished Square Footage:
- Bonus Room: 575 sq. ft.
Plan Types Explained:
AutoCAD file with Unlimited Build
AutoCAD file with Unlimited Build
Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set
PDF Reproducible Set
One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
1 Review Set
1 Review Set
One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.
Share
Five-Bedroom Mountain Home

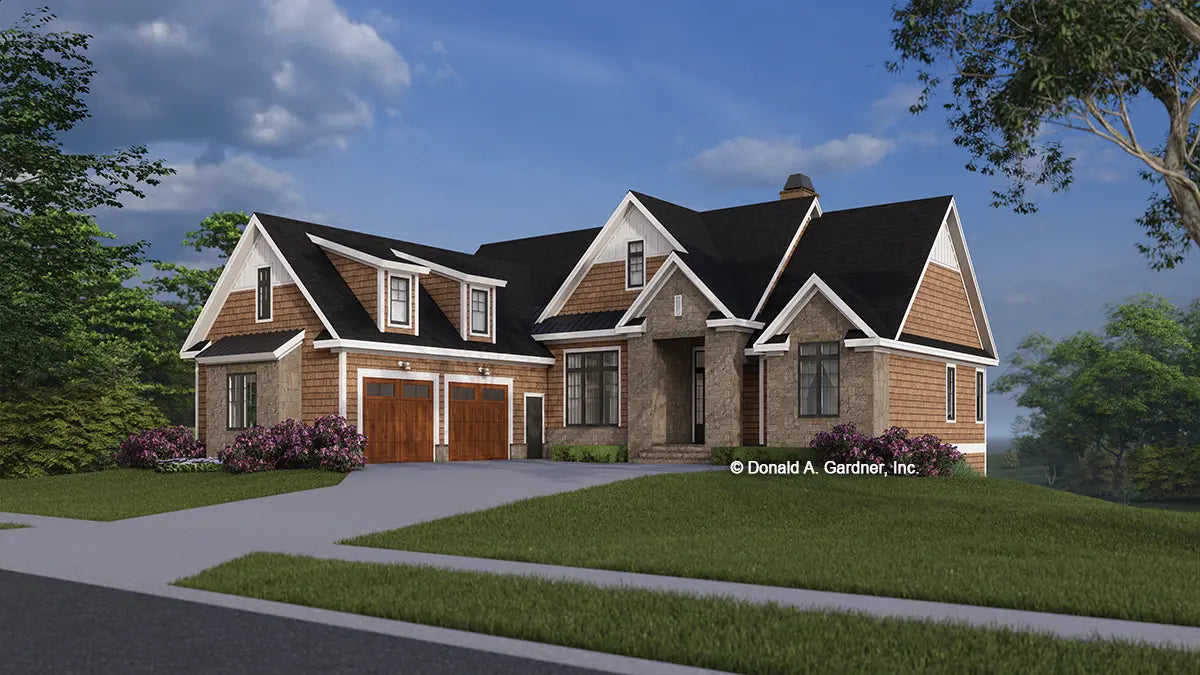

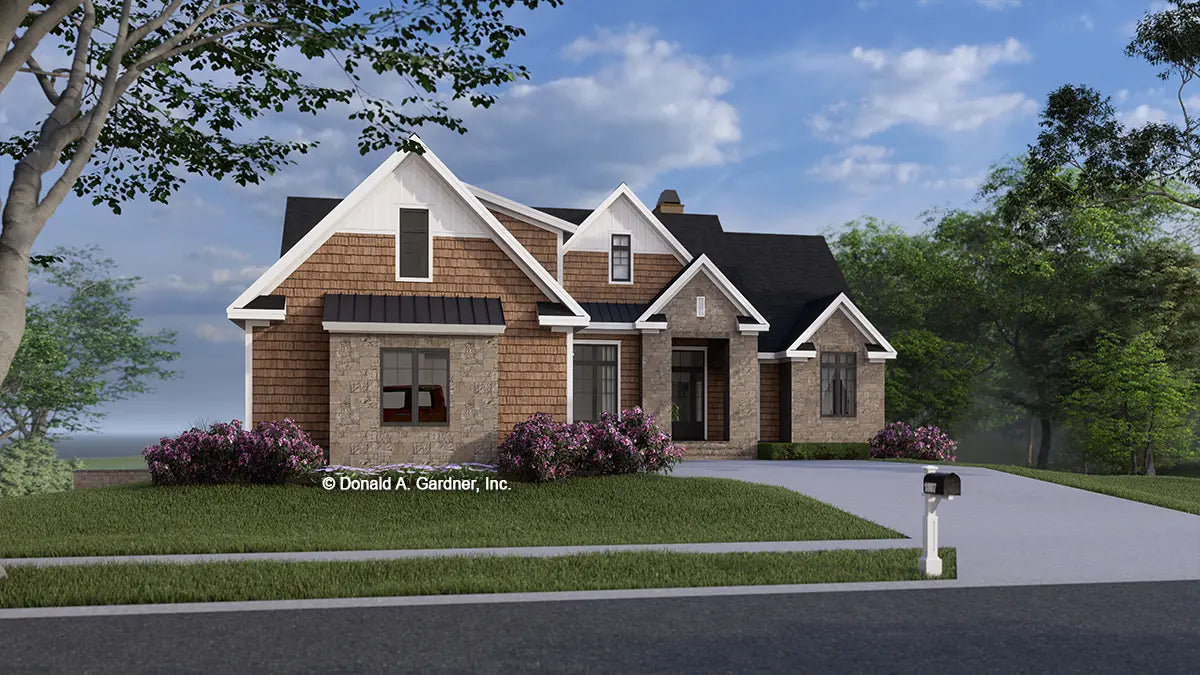

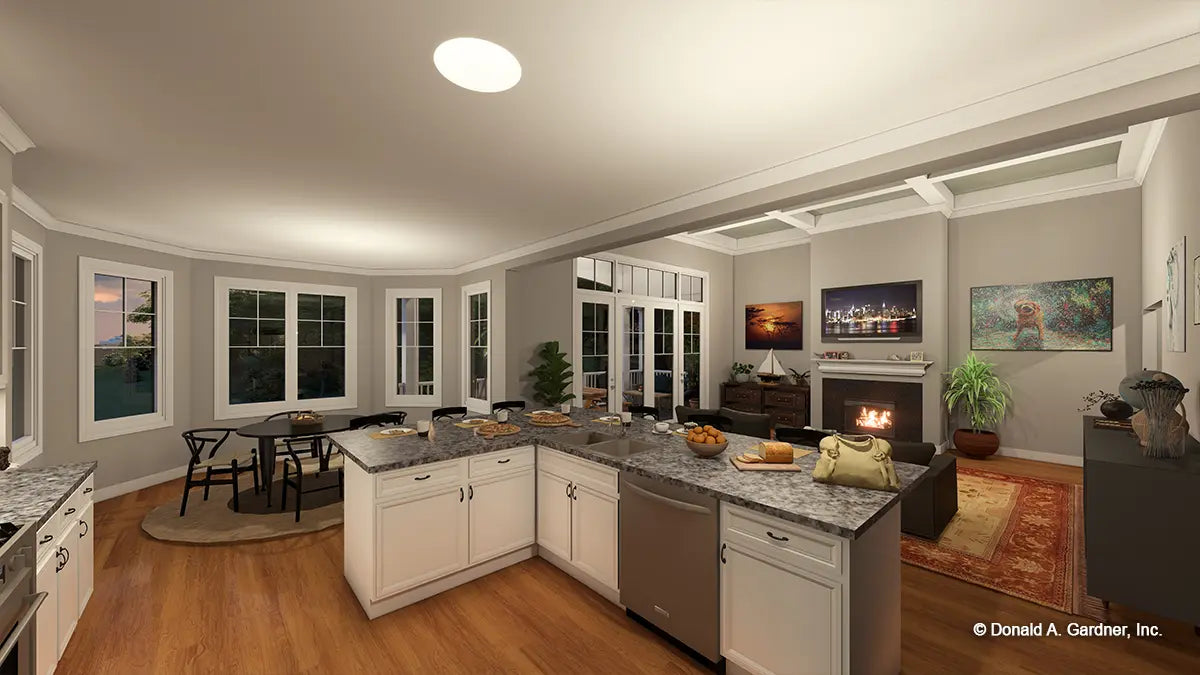

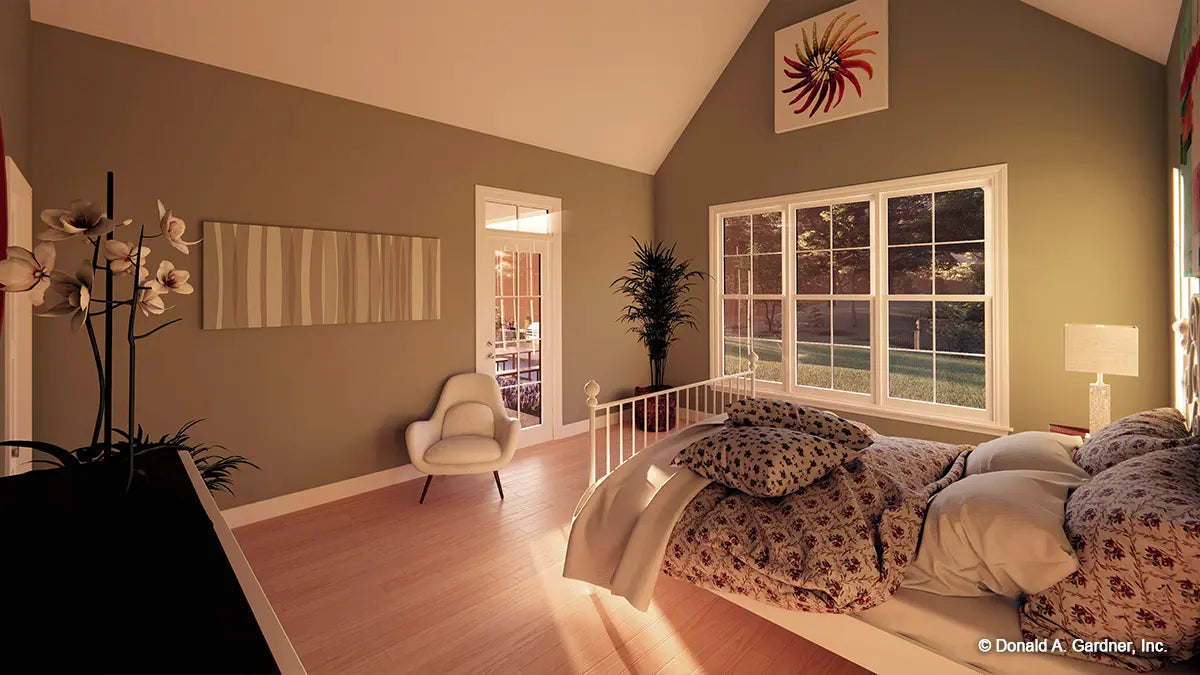

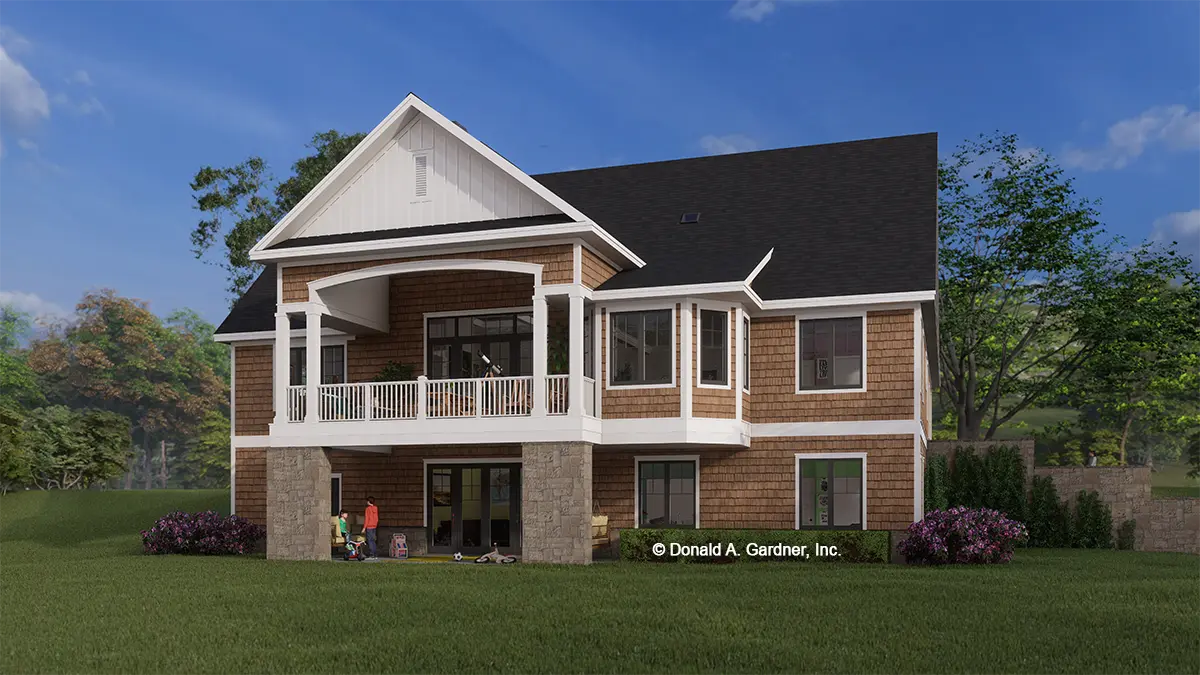

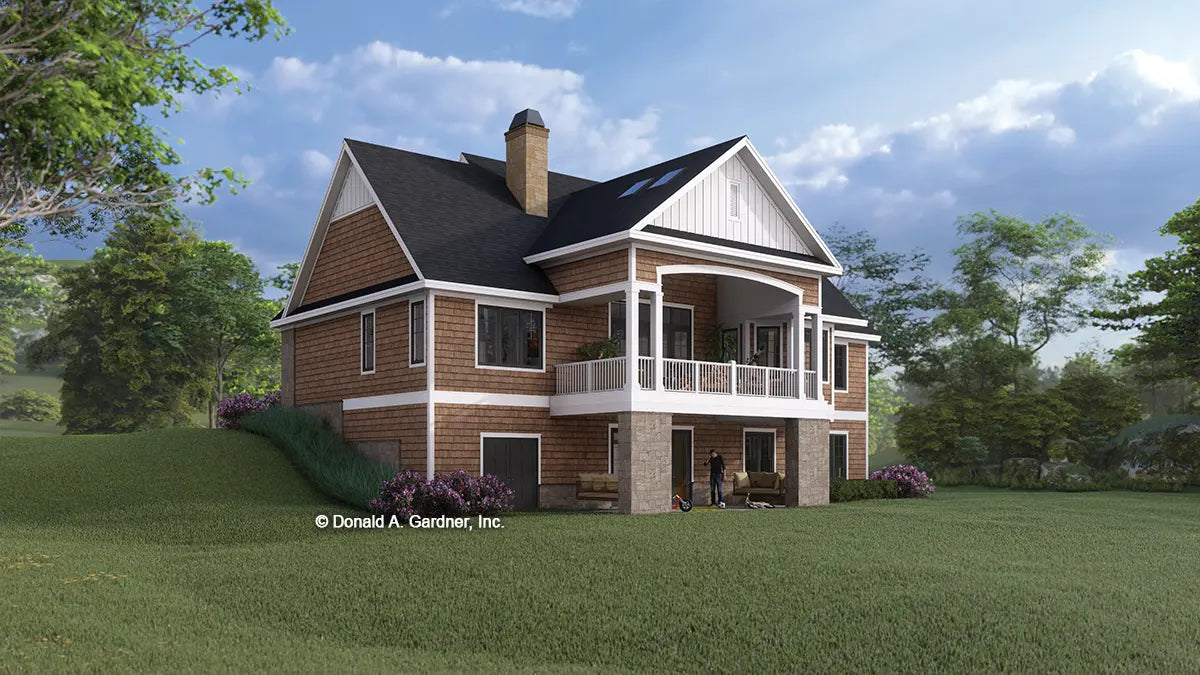

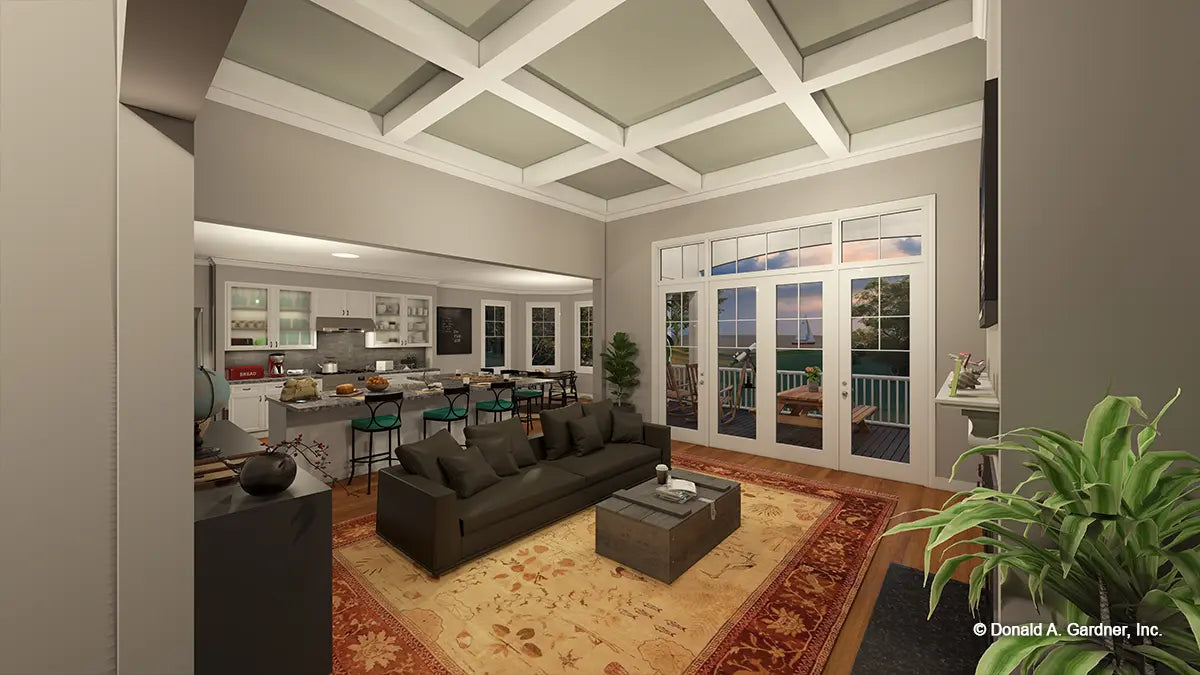

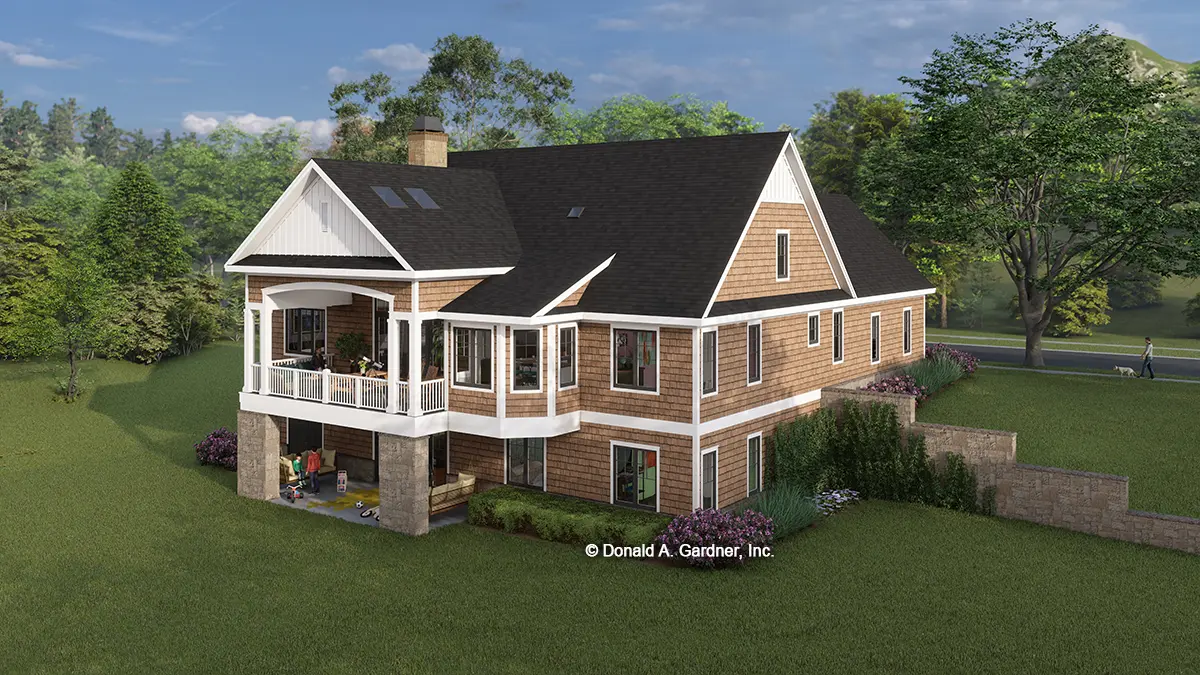

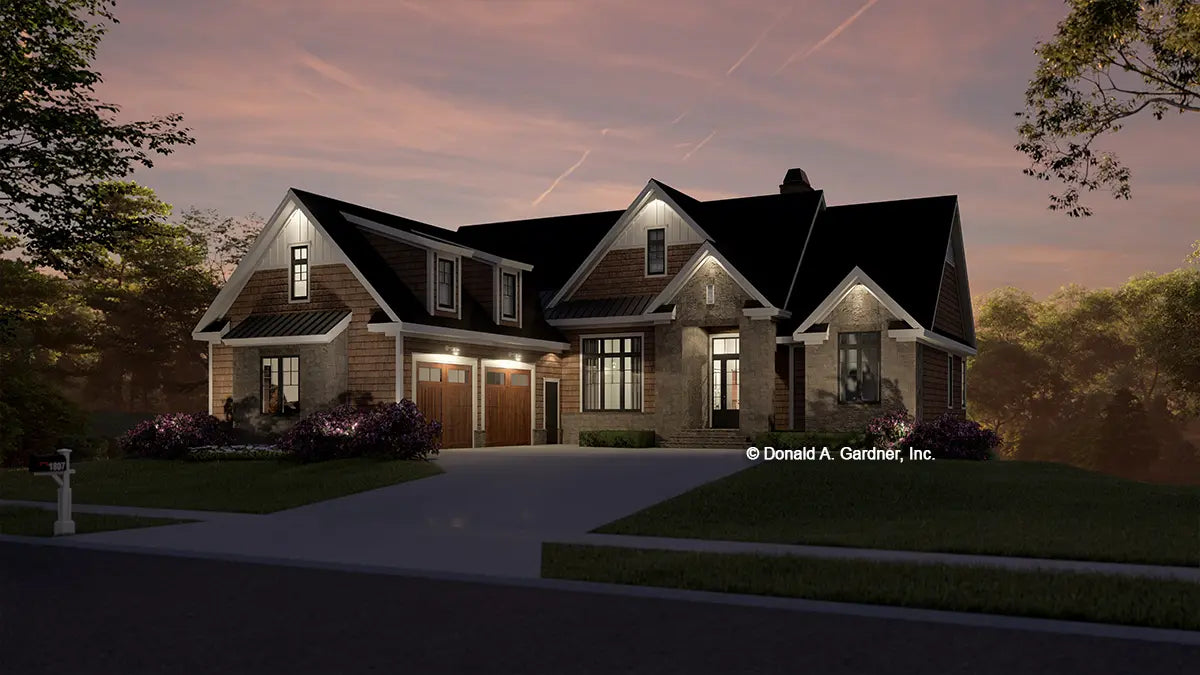

This hillside walkout design features a charming Craftsman facade with cedar shakes, stone, and metal roof accents. Inside, the floor plan is thoughtfully arranged with a cozy great room, island kitchen, and bayed dining room. A rear porch with skylights welcomes outdoor living. The first-floor master suite enjoys a tray ceiling, dual closets, and a luxurious bathroom. Two bedrooms are on the main floor and a bonus room is upstairs for expansion. On the basement level, find two bedrooms, a full bathroom, and a rec room. The workshop provides a dedicated space to complete projects and store lawn equipment.
Front Panorama:
Inside Panorama:
Rear Panorama:
