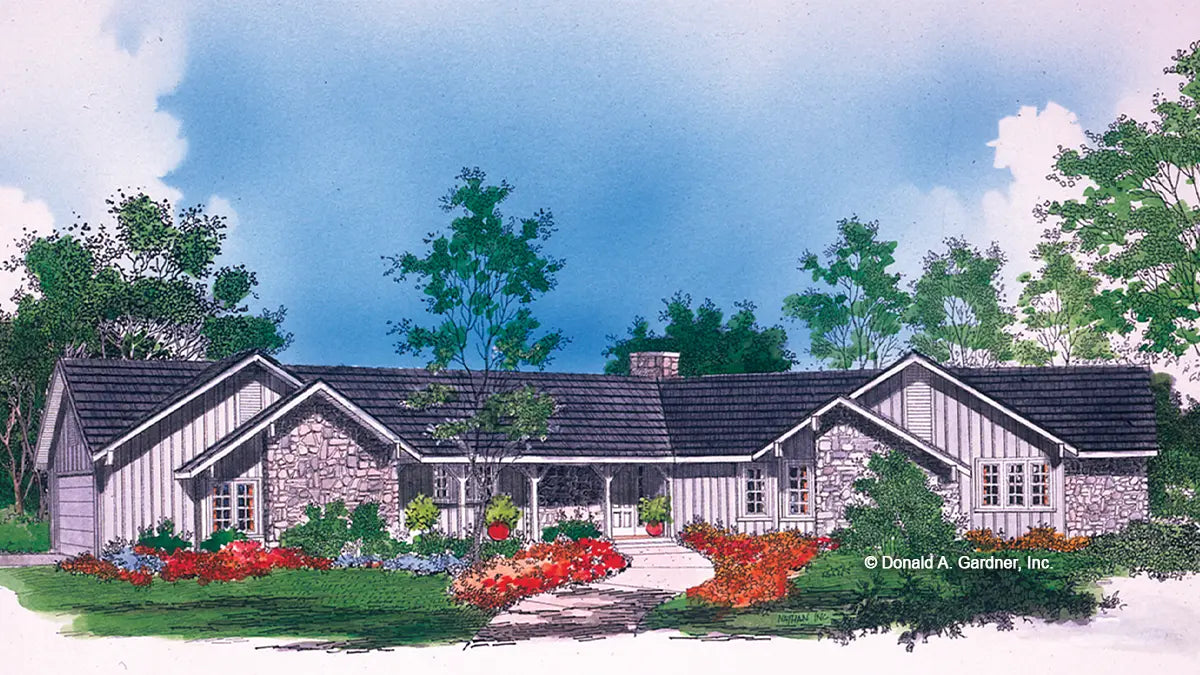

• This is an illustration of the front of contemporary house plan 172 The Guilford II

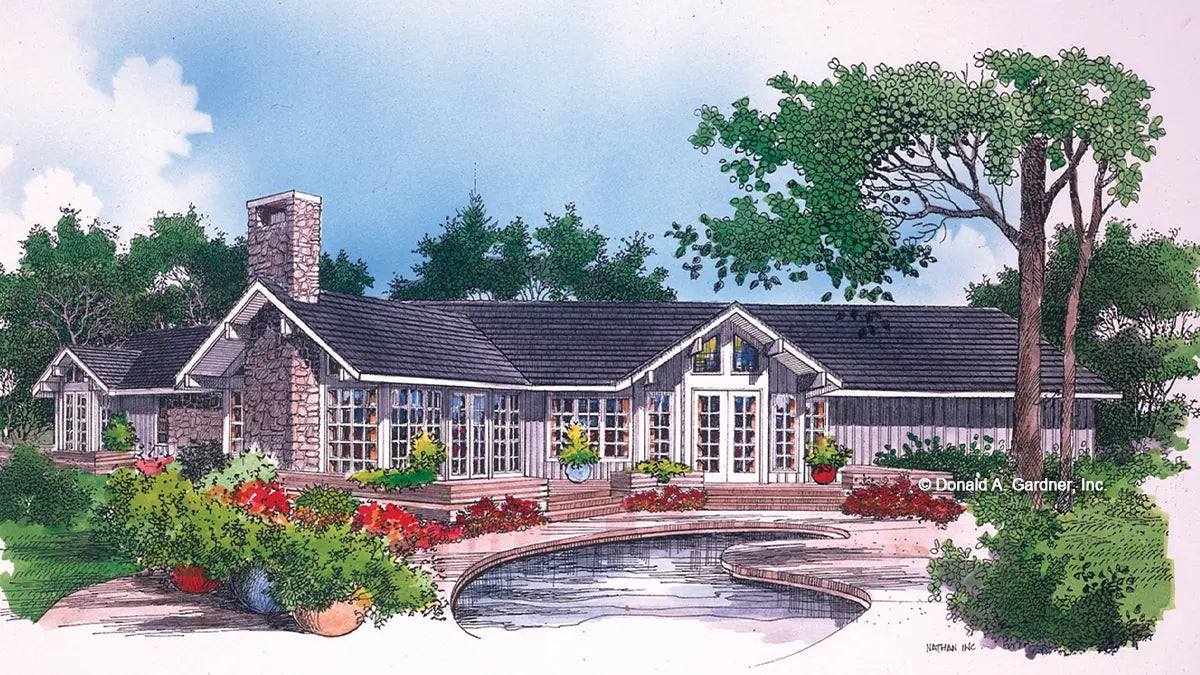

  • This is an illustration of the rear of ranch house plan 172 The Guilford II
1 2
Photographs may reflect modified homes.
2046*
Square Feet
4
Bedrooms
3
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for contemporary house plan 172 The Guilford II
This is the first floor plan image for ranch house plan 172 The Guilford II if the home is built over a basement

The Guilford II

House Plan #172
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,575.00 USD
$1,575.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2046 sq. ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Stories: 1
  • House Dimensions: 94' 0" x 64' 8"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Garage/Storage: 564 sq. ft.
  • Porch: 110 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Contemporary Styling

A unique combination of materials and shapes on the exterior of this angled, four-bedroom, three-bath country ranch warms up the neighborhood. The master suite features a private deck, cathedral ceiling, and spacious bath with every amenity. Two other bedrooms share a hall bath, while a third bedroom with private bath offers greater flexibility. Both the family room and great room gain added drama from cathedral ceilings and open to a large angled deck.

View full details

You May Also Like to Know:

Return Policy

ALL SALES ARE FINAL. Because plans are printed especially for you at the time you place your order, returns and refunds are not acceptable. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show him the plan and determine what he will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.

Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.

Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
