Photographs may reflect modified homes.
3599*
Square Feet
4
Bedrooms
4.5
Baths
2
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for craftsman house plan 1616 The Penelope
This is the basement floor plan image for walkout basement house plan 1616 The Penelope
This is the bonus room floor plan image for mountain house plan 1616 The Penelope

The Penelope

House Plan #1616
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
Regular price $2,375.00 USD
Regular price Sale price $2,375.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 3599 sq. ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Stories: 2
  • House Dimensions: 84' 3" x 80' 9"
  • **Foundation: Hillside Walkout
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Courtyard
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 388 sq. ft.
  • Other Storage: 343 sq. ft.
  • Garage/Storage: 741 sq. ft.
  • Porch - Front: 173 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

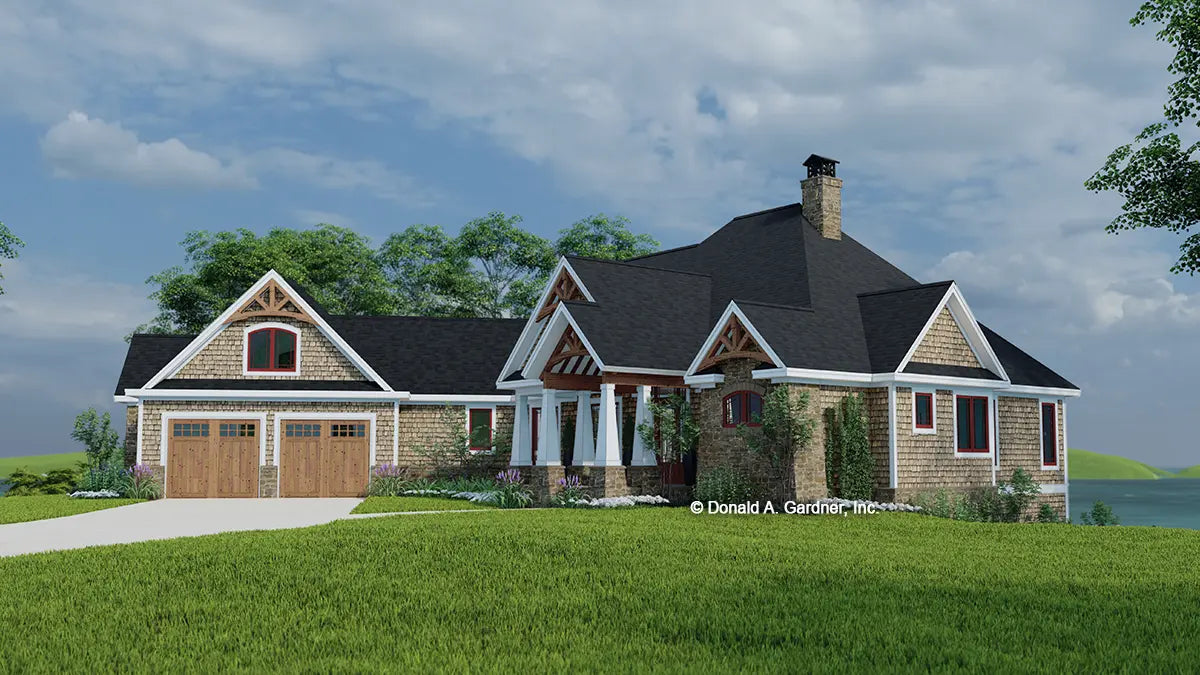

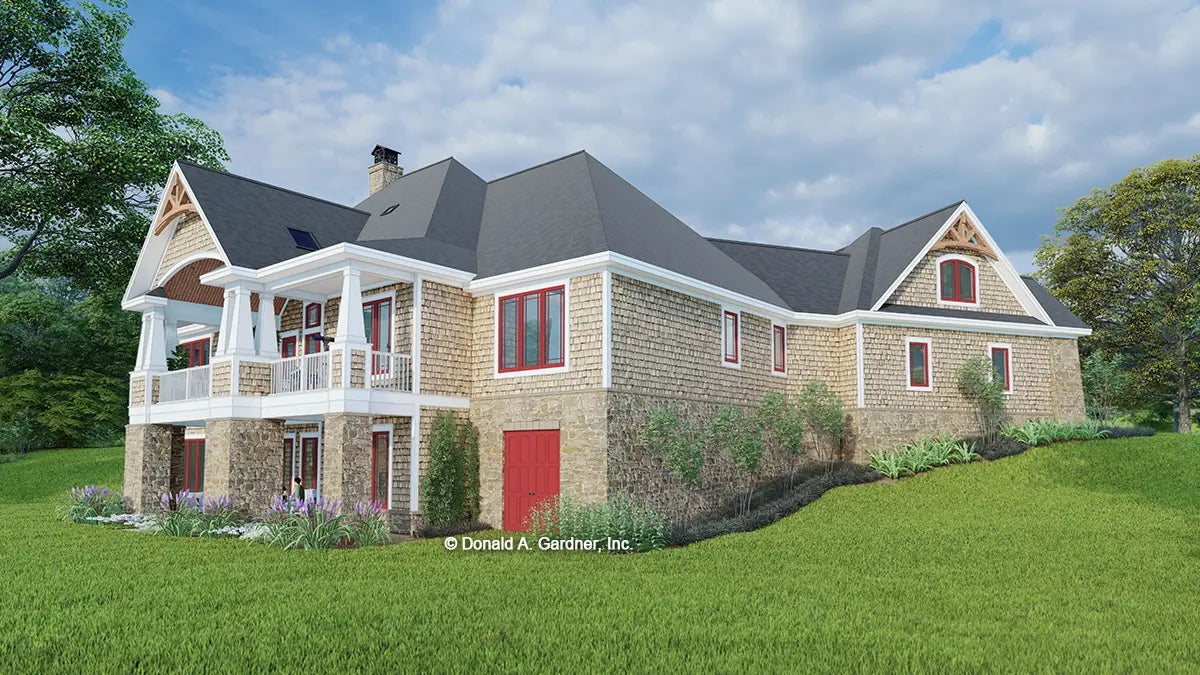

Rustic Craftsman Hillside Walkout Design

This hillside walkout design features a breathtaking facade of stone, cedar shakes, and arched gable trusses. The floor plan is equally impressive with an open great room, island kitchen, and spacious dining room. Highly functional spaces are plentiful with a mudroom, pantry, and oversized utility room. The master suite is impeccable with a thoughtfully arranged bathroom and a spacious walk-in closet with a dressing nook. A guest bedroom joins the master suite on the first floor while two additional bedrooms are downstairs with a recreation room. Porches on both levels offer abundant outdoor living.

View full details

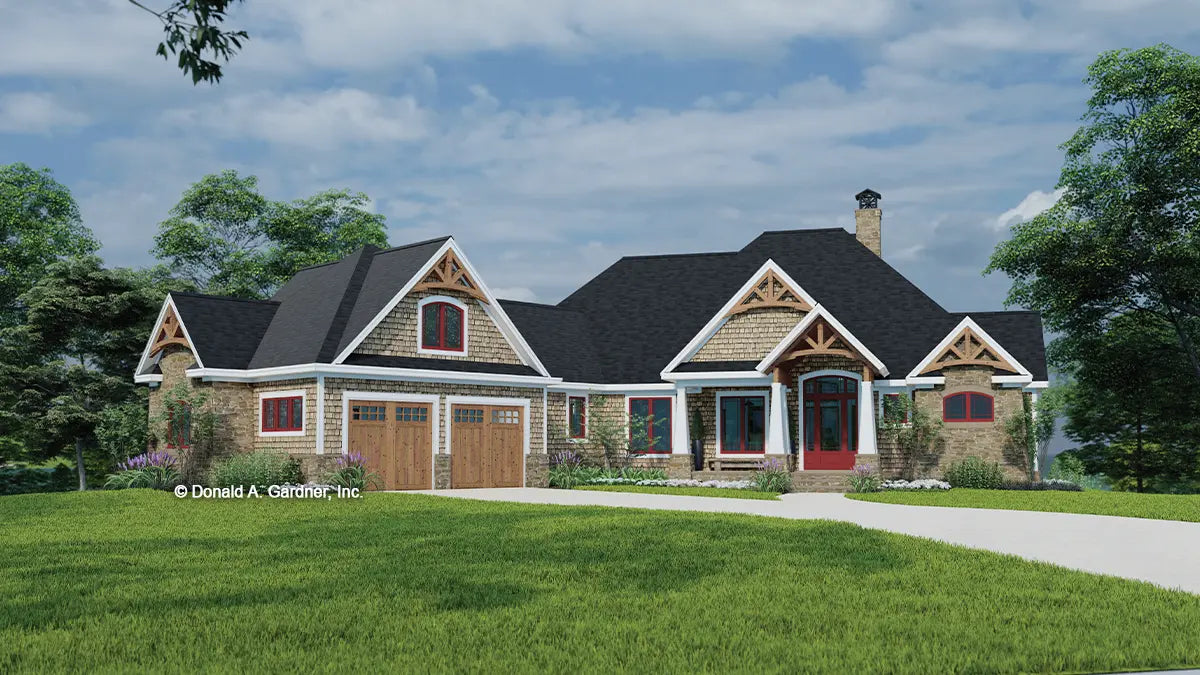

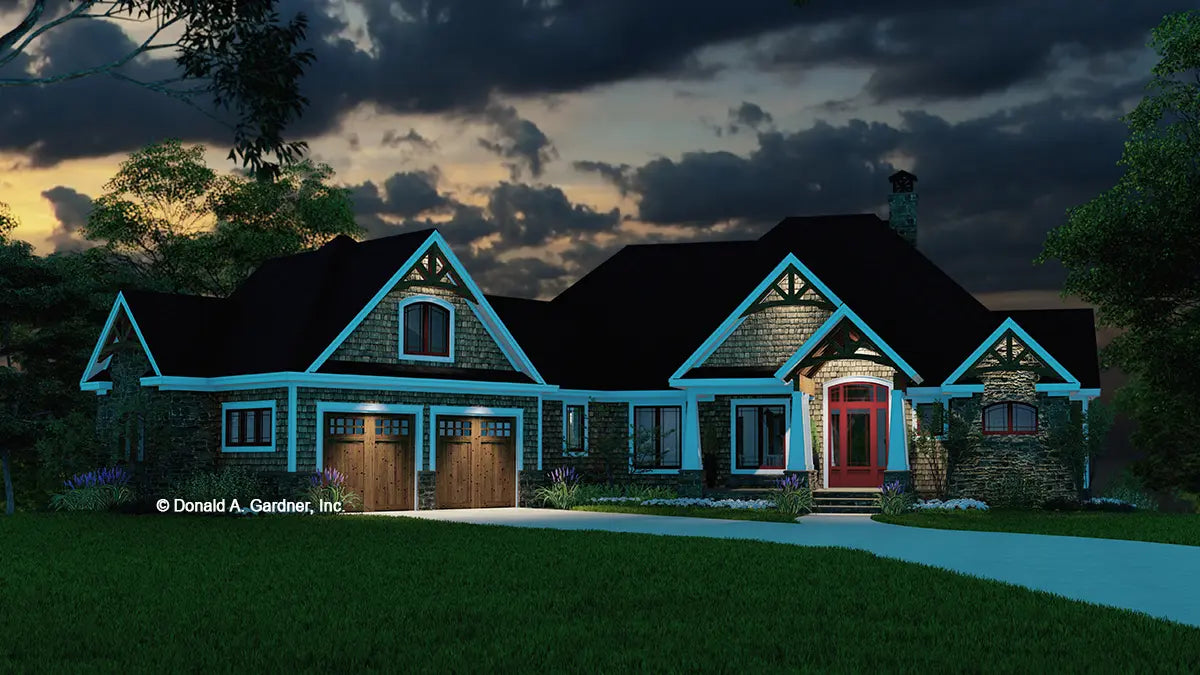

Front Panorama:

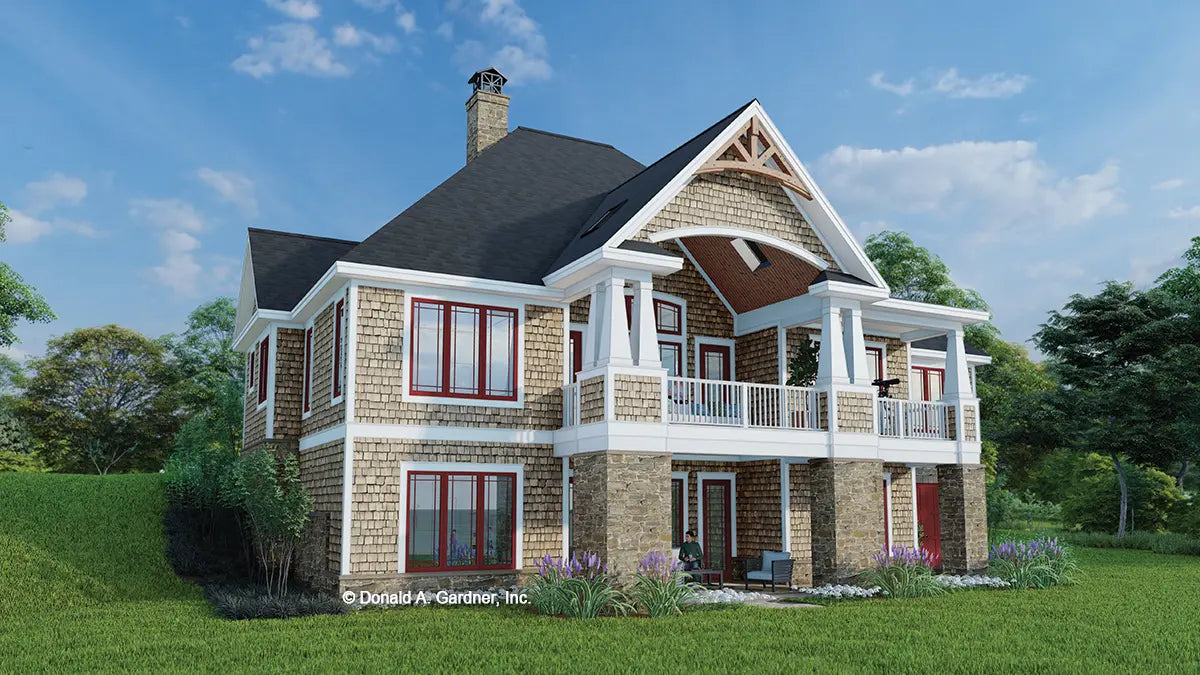

Rear Panorama:
