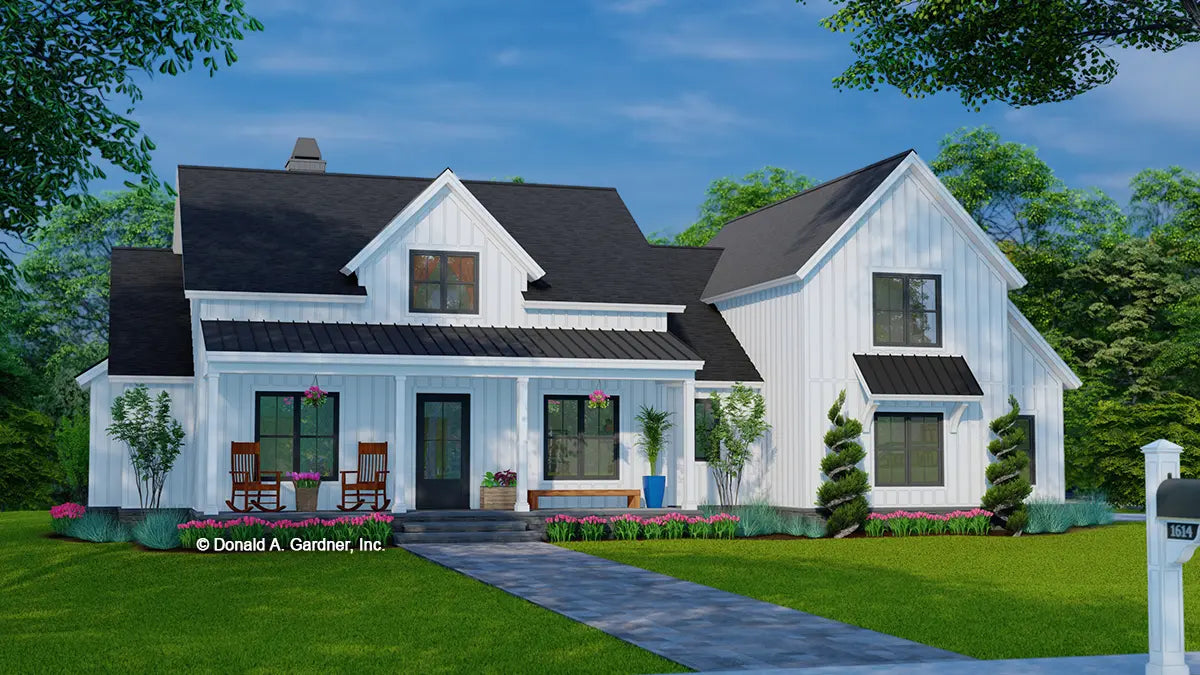

• This is an illustration of the front of modern farmhouse house plan 1614 The Arlene

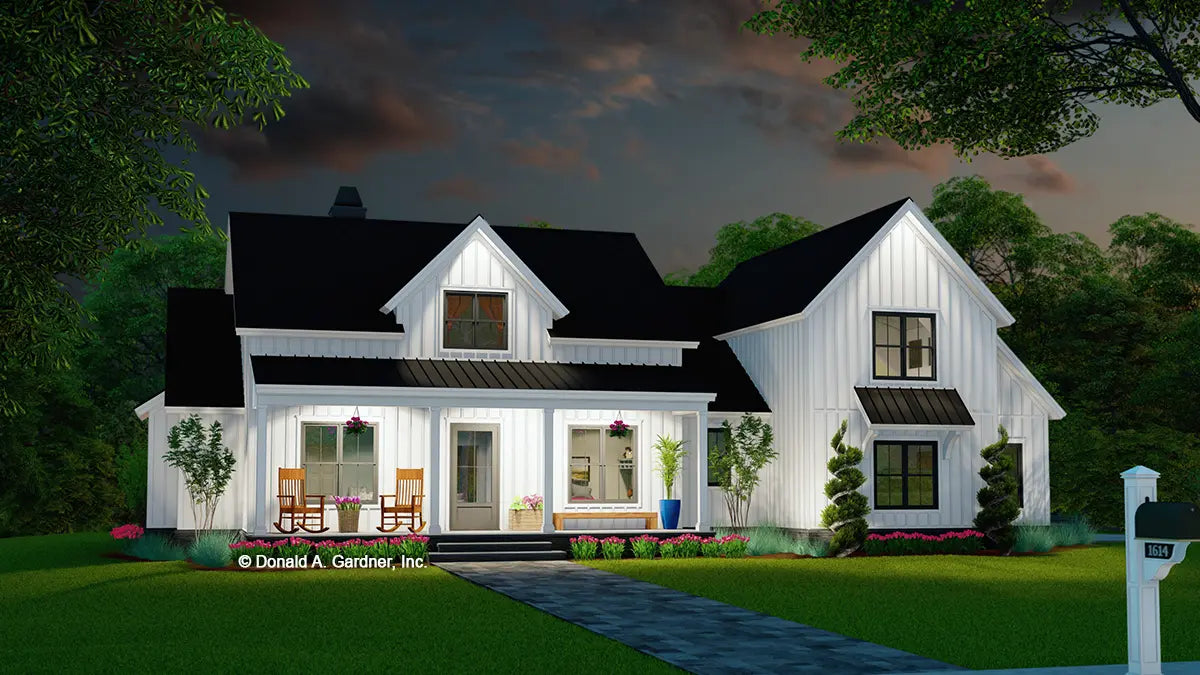

  • This is an illustration of the front of four bedroom house plan 1614 The Arlene at dusk

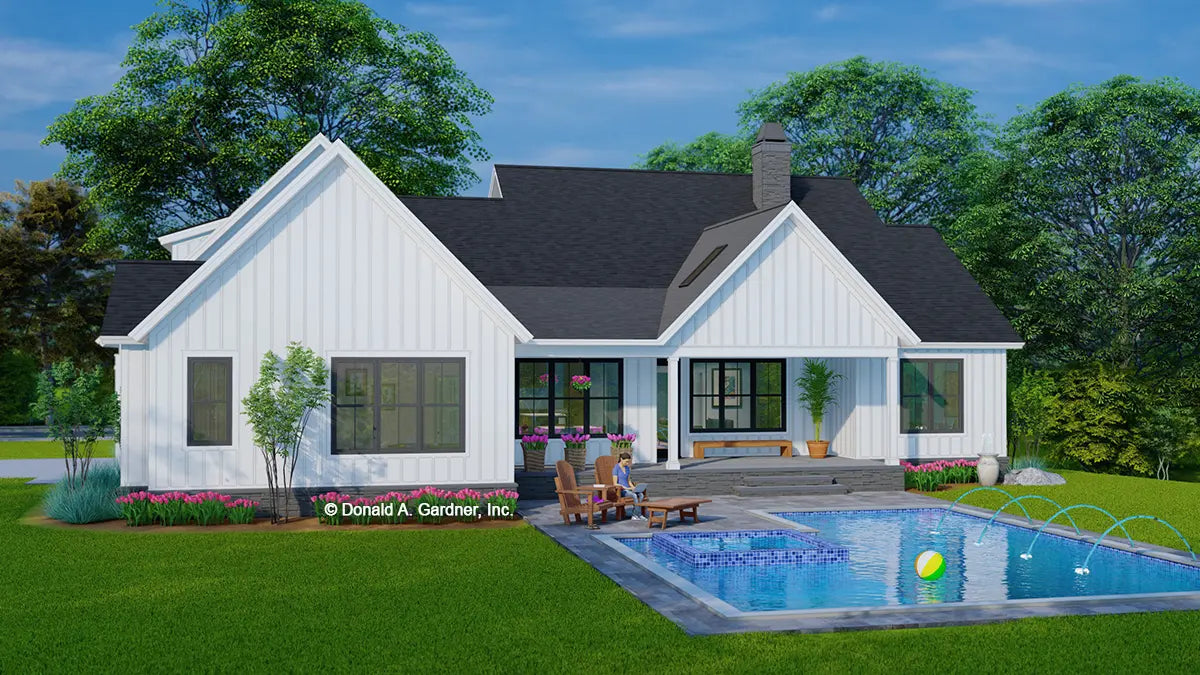

  • This is an illustration of the rear of one story house plan 1614 The Arlene

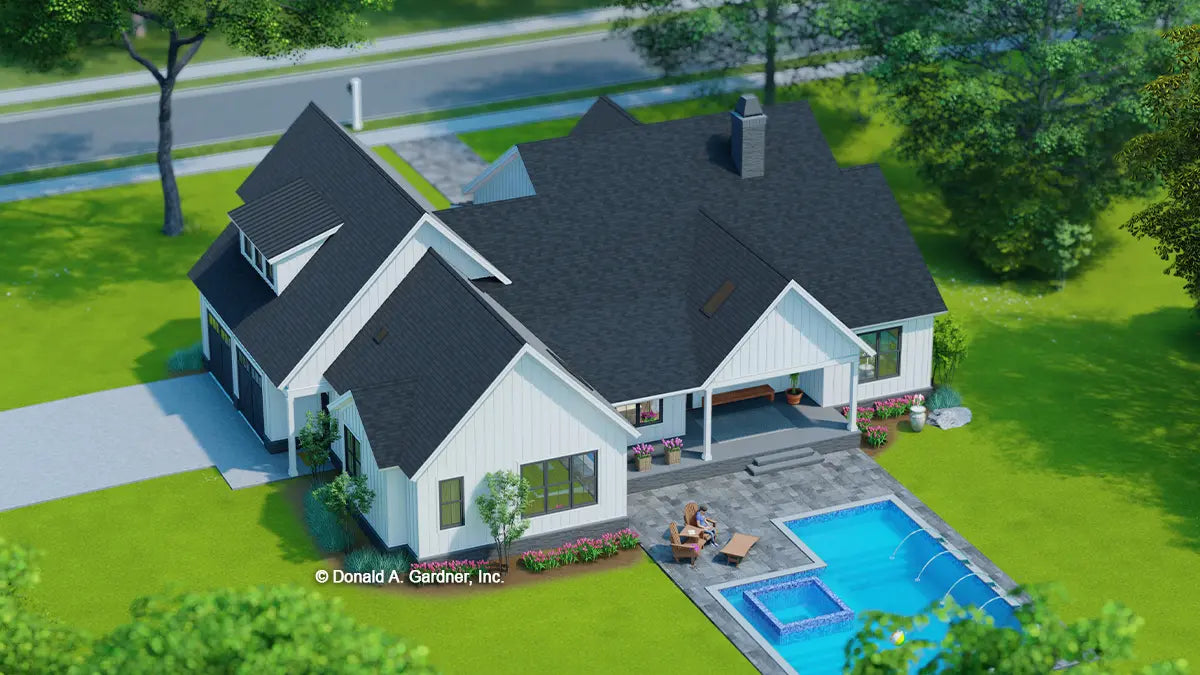

  • This is a birds eye view of The Arlene
1 5
Photographs may reflect modified homes.
2375*
Square Feet
4
Bedrooms
2.5
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for modern farmhouse house plan 1614 The Arlene
This is the bonus room floor plan image for four bedroom house plan 1614 The Arlene
This is the first floor plan image for one story house plan 1614 The Arlene if the home is built over a basement
Rotating Image

The Arlene

House Plan #1614
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,725.00 USD
$1,725.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2375 sq. ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Stories: 1
  • House Dimensions: 73' 4" x 61' 0"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 606 sq. ft.
  • Garage/Storage: 724 sq. ft.
  • Porch - Front: 222 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Four-bedroom modern farmhouse

This modern farmhouse design features a dramatic center dormer over a sprawling front porch. The open floor plan promotes family togetherness, and a large rear porch extends living outdoors. A large pantry adjoins the island kitchen, and a mudroom offers a convenient location to drop coats, bags, and shoes. The master suite is luxurious with skylights, a cathedral ceiling, a thoughtfully designed bathroom, and a walk-in closet that connects to the utility room. Two additional bedrooms and an office complete the first floor and an optional bonus room and full bathroom are upstairs.

View full details

Front Panorama:

Rear Panorama:
