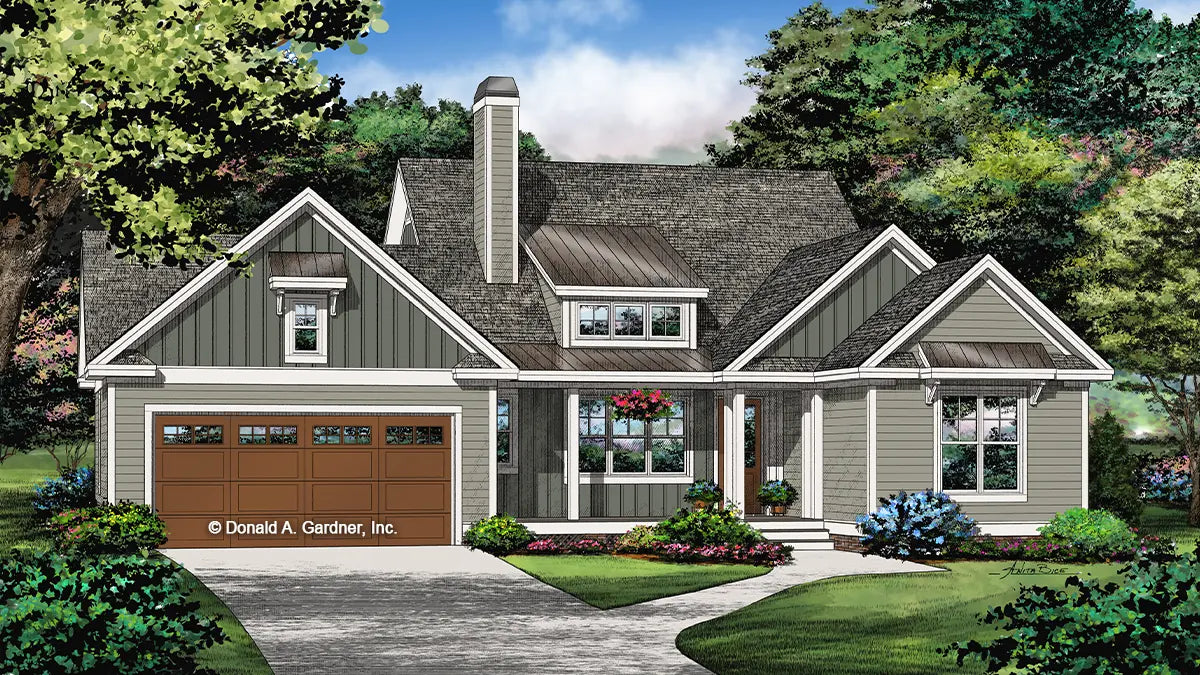

• Front view illustration. The Vincent plan 1480.

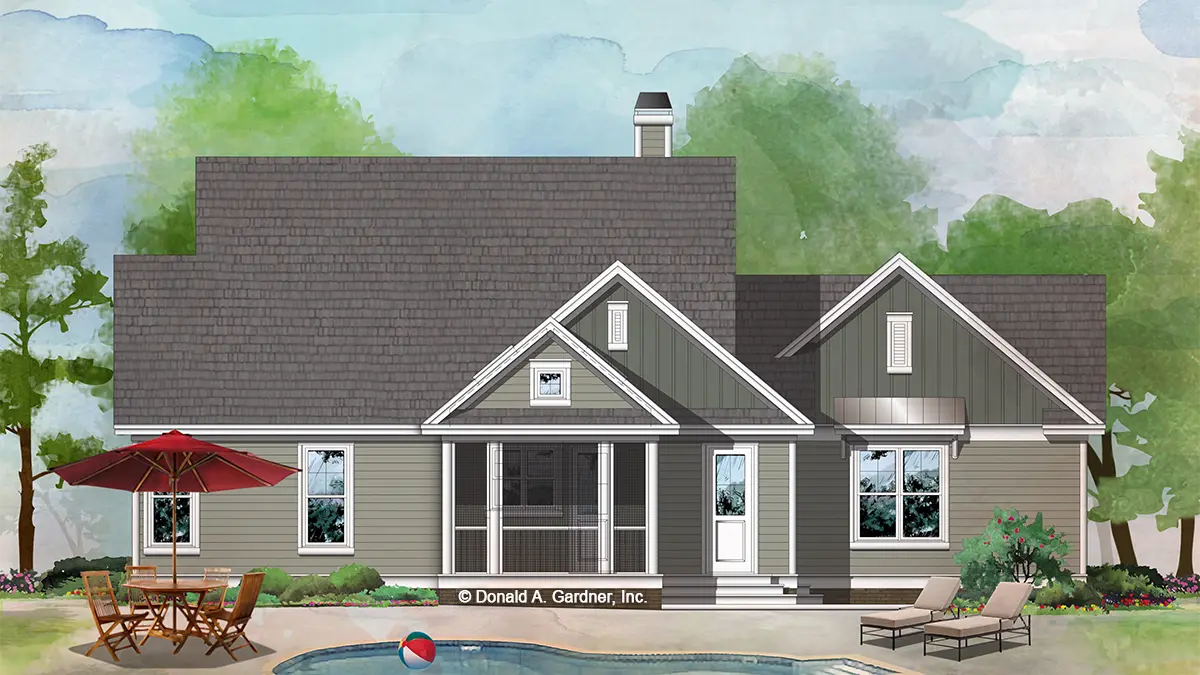

  • Rear view illustration. The Vincent plan 1480.
1 2
Photographs may reflect modified homes.
1641*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

The Vincent

House Plan #1480
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,575.00 USD
$1,575.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1641 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Stories: 1
  • House Dimensions: 60' 2" x 66' 6"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Front
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Garage/Storage: 606 sq. ft.
  • Porch - Front: 142 sq. ft.
  • Porch - Screened: 181 sq. ft.
  • Patio: 614 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Loads of Outdoor Living Space

This simple design offers just the right amount of curb-appeal with board-and-batten accented gables and a discerning usage of metal roofing. The open floor plan showcases the dining room with a tray ceiling and a low built-in bookshelf. The kitchen features a breakfast counter for additional bar seating and opens to a screened porch with skylights. Living is extended outdoors with a side porch and a rear deck that are connected by an expansive patio. The utility room has its own access door and a laundry sink provides easy clean-up after yard work. The master suite is generous with a massive walk-in closet, a double sink vanity, and a spacious shower. A bedroom and bedroom/study share a full bathroom with linen closet. Storage options include a garage storage closet, a pantry and a coat closet.

View full details

You May Also Like to Know:

Return Policy

ALL SALES ARE FINAL. Because plans are printed especially for you at the time you place your order, returns and refunds are not acceptable. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show him the plan and determine what he will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.

Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.

Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
