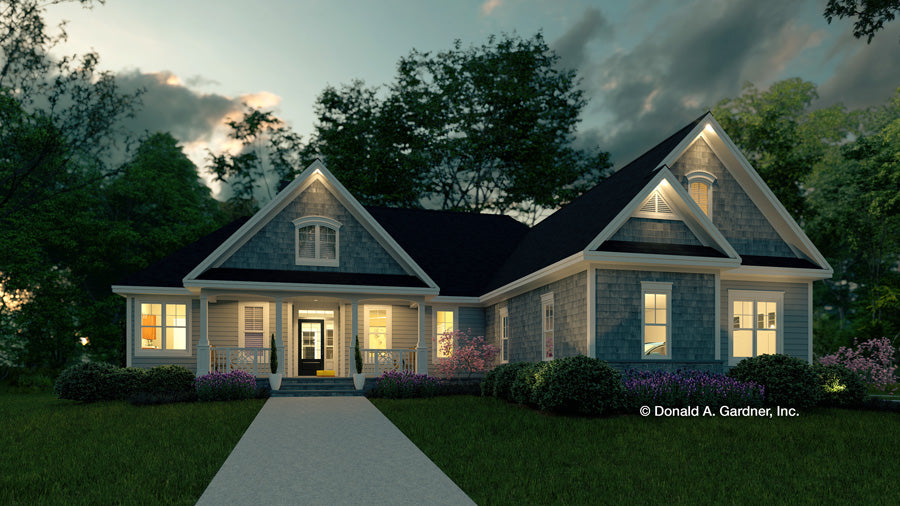

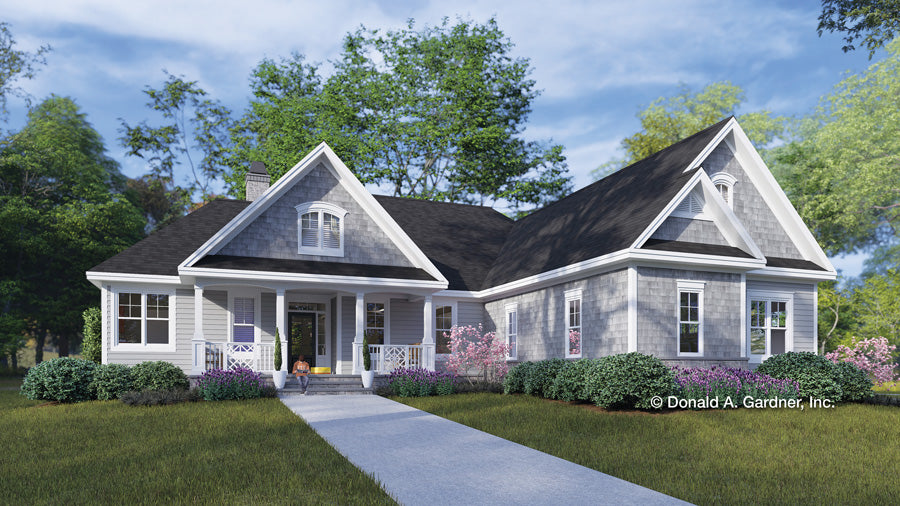

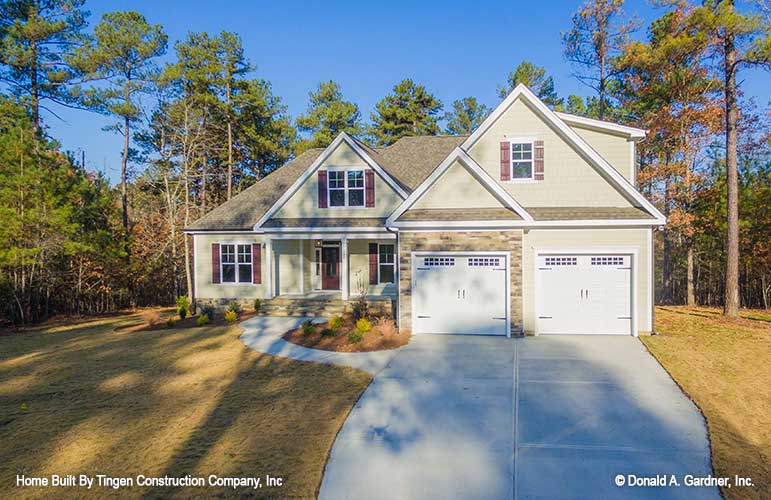

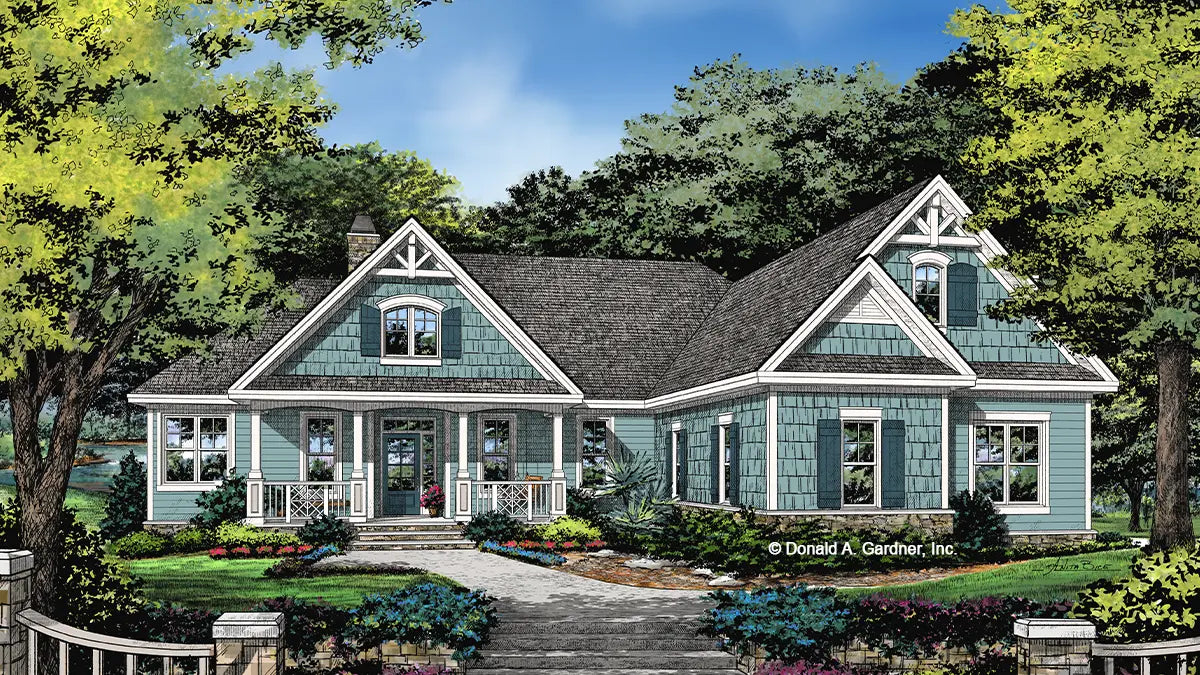

• This is an illustration of the front of Craftsman house plan 1421 The Napier

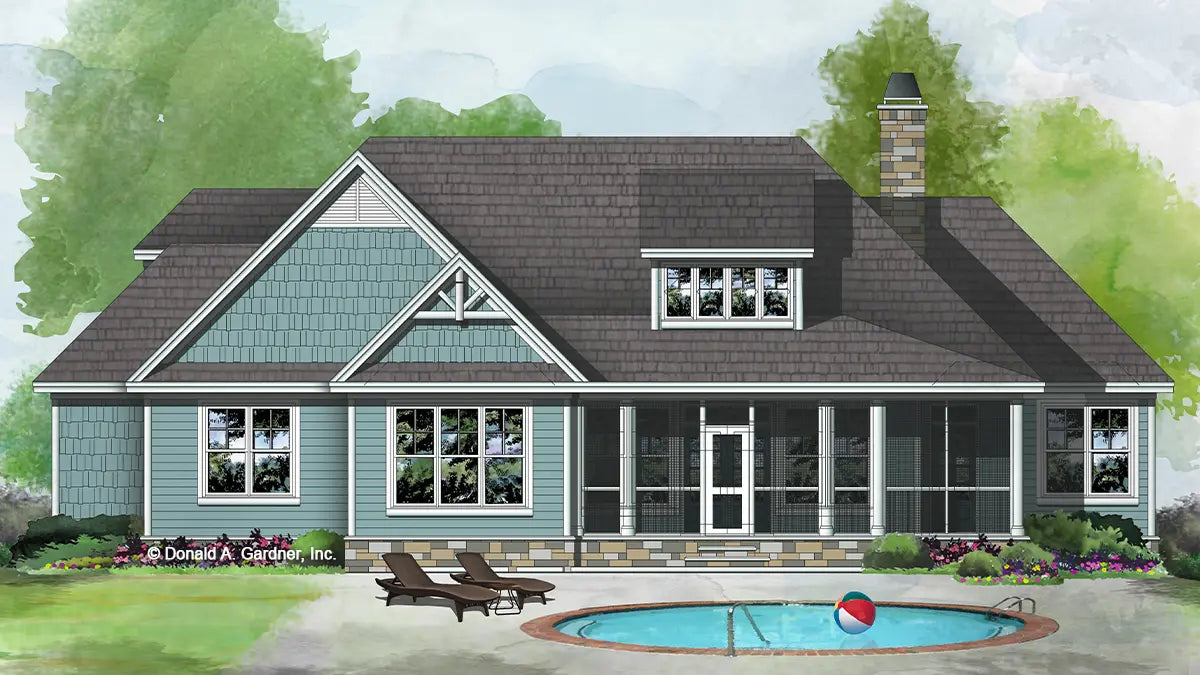

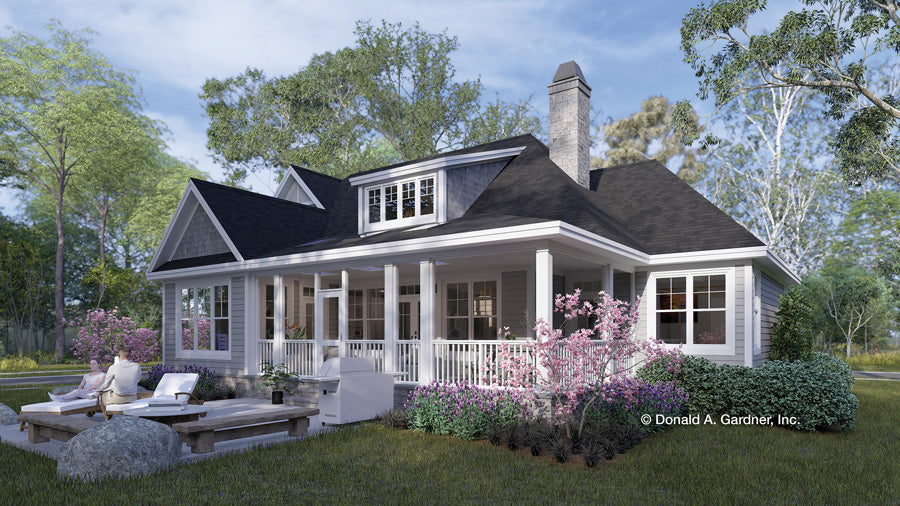

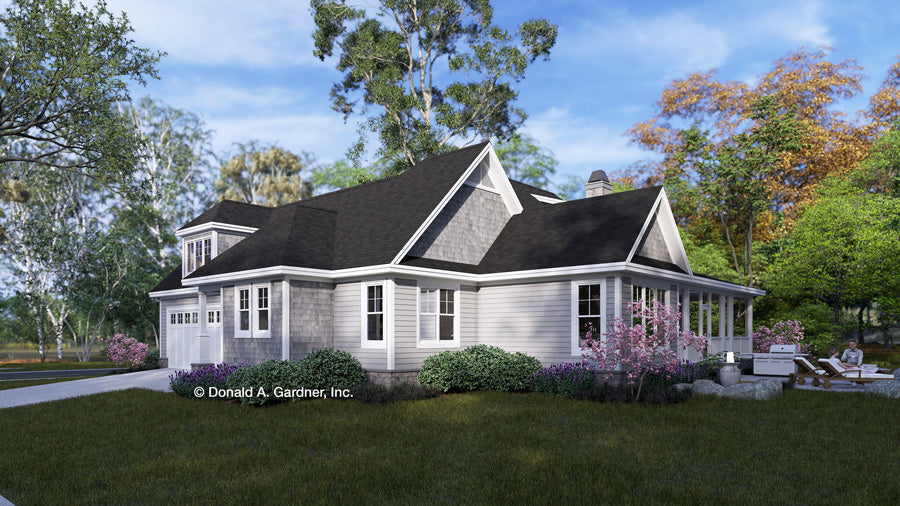

  • This is an illustration of the rear of three bedroom house plan 1421 The Napier
1 11
Photographs may reflect modified homes.
1871*
Square Feet
3
Bedrooms
3
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for Craftsman house plan 1421 The Napier
This is the bonus room floor plan image for one story house plan 1421 The Napier
This is the first floor plan image for three bedroom house plan 1421 The Napier if the home is built over a basement

The Napier

House Plan #1421
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,575.00 USD
$1,575.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1871 sq. ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Stories: 1
  • House Dimensions: 67' 10" x 68' 2"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 397 sq. ft.
  • Garage/Storage: 630 sq. ft.
  • Porch - Front: 155 sq. ft.
  • Porch - Screened: 322 sq. ft.
  • Patio: 237 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Small Craftsman House Plan

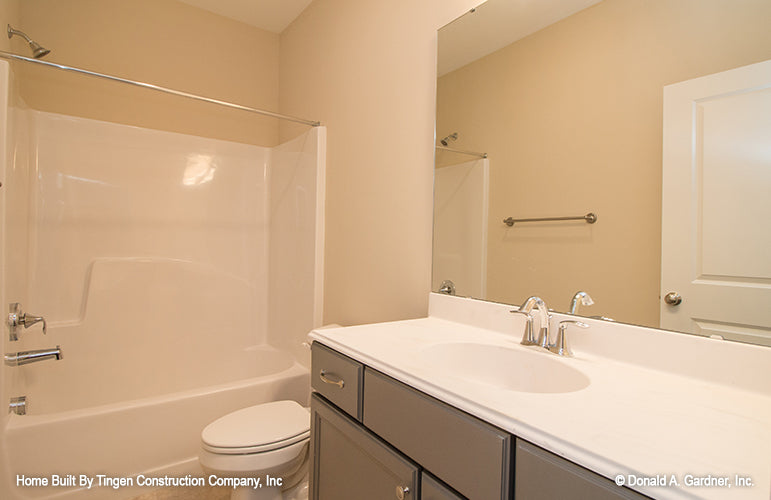

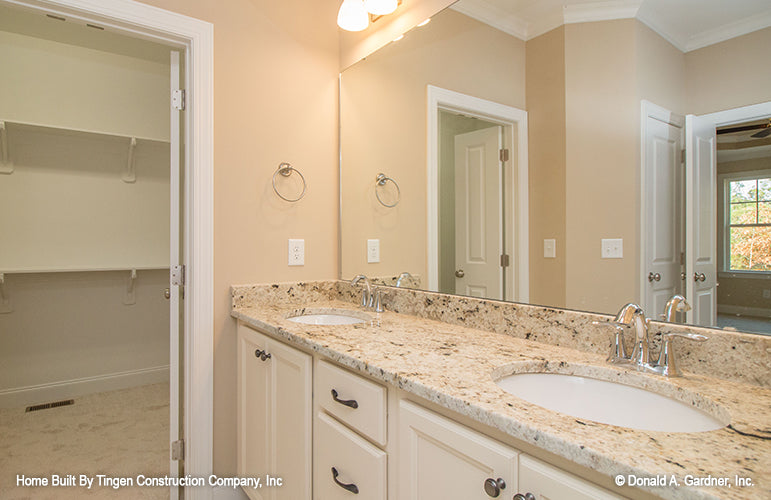

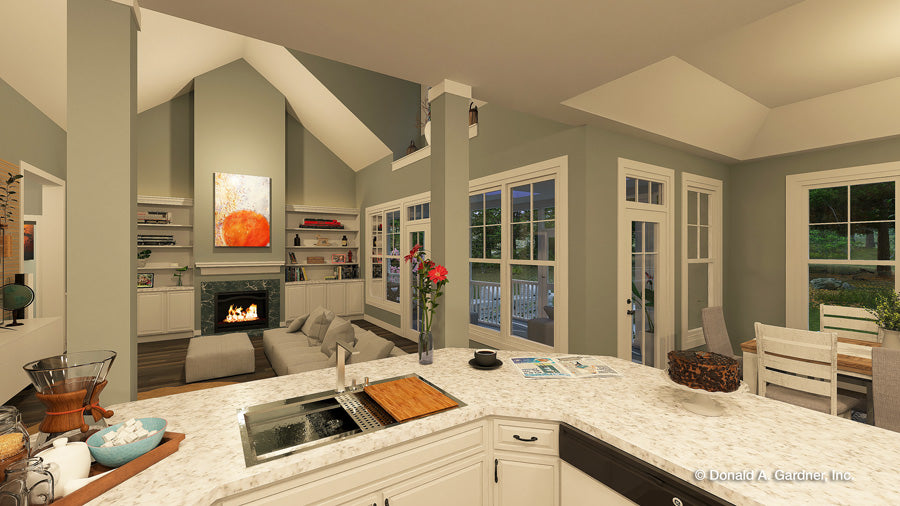

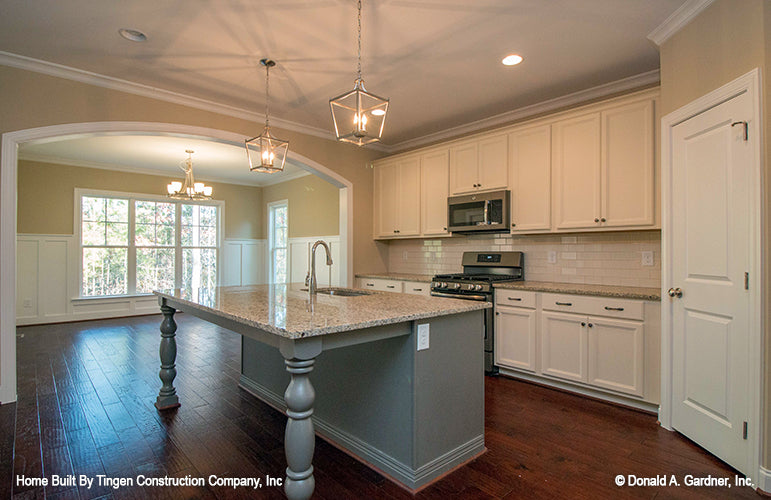

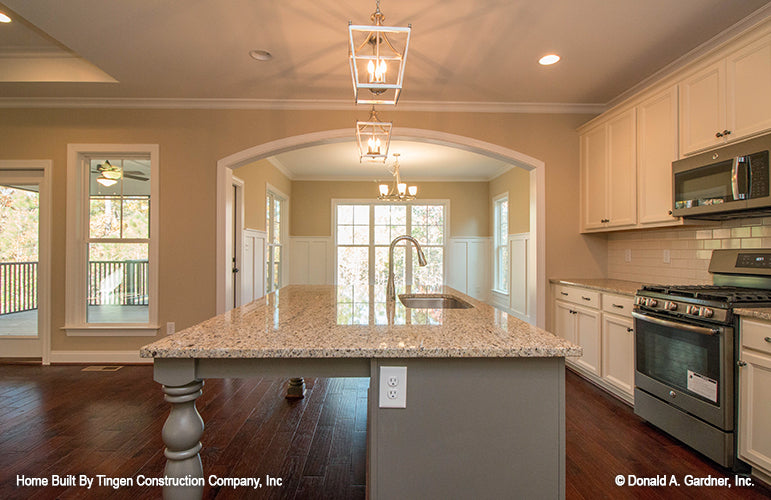

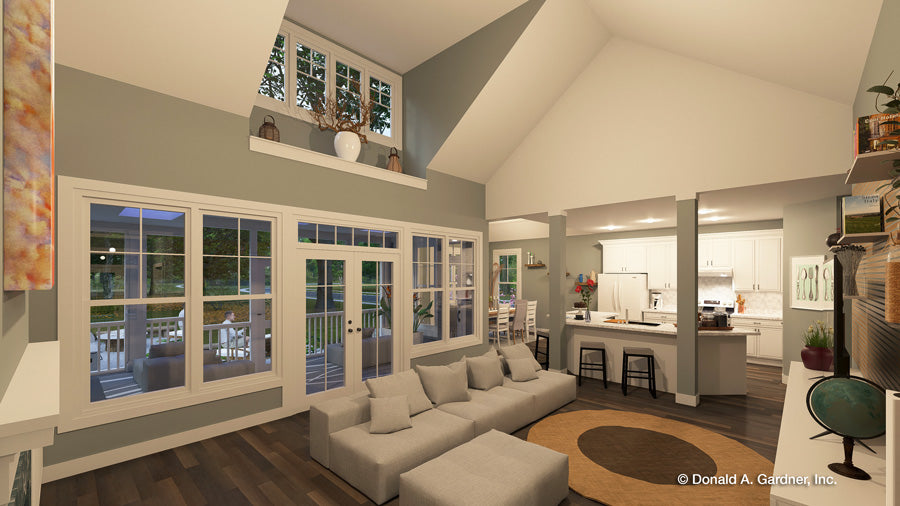

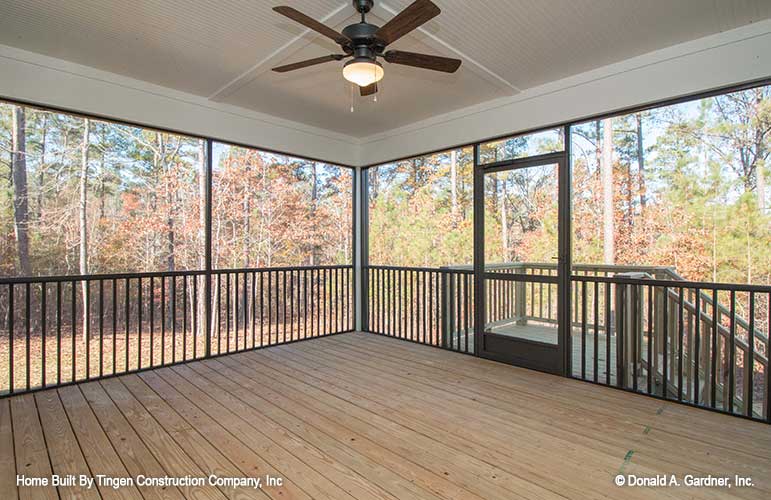

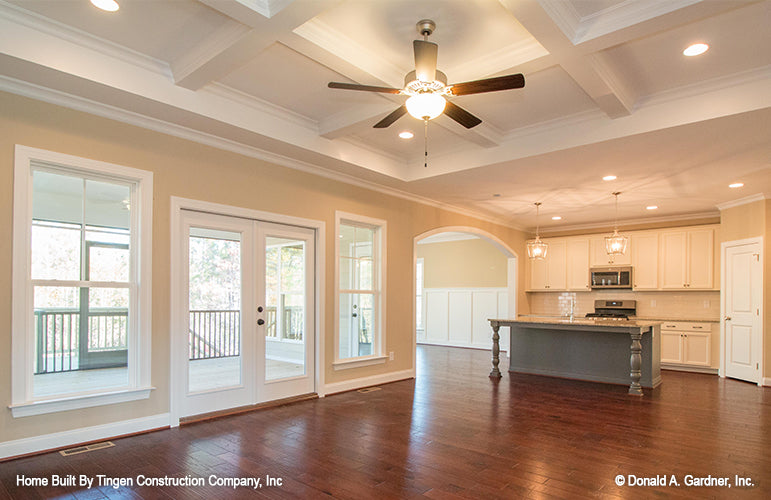

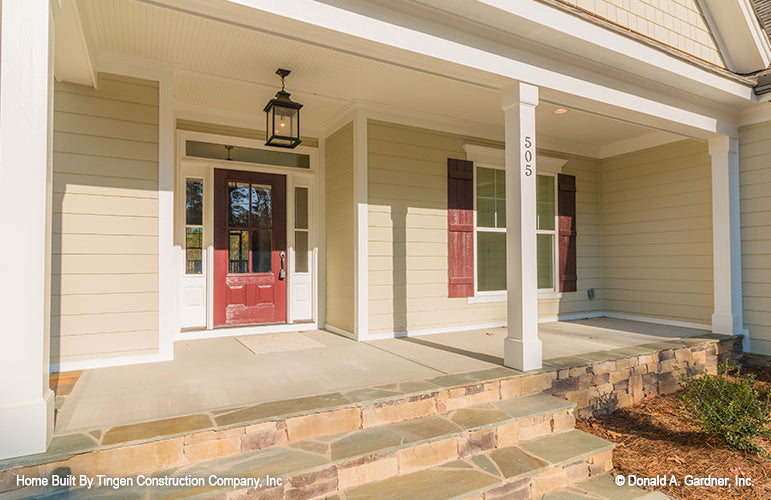

This small house plan is anything but ordinary with eye-catching details, including a mixed exterior of siding, shakes and stone, arched upper windows, and decorative gable brackets. The interior flows nicely with open living in the great room, kitchen, and dining room. The bedrooms are spaced for privacy and each has a full bathroom. Outdoor living is enhanced with a skylight-topped screened porch. Extra storage is available in the garage and above, a bonus room offers additional square footage.

View full details

Front Panorama:

Inside Panorama:

Rear Panorama:
