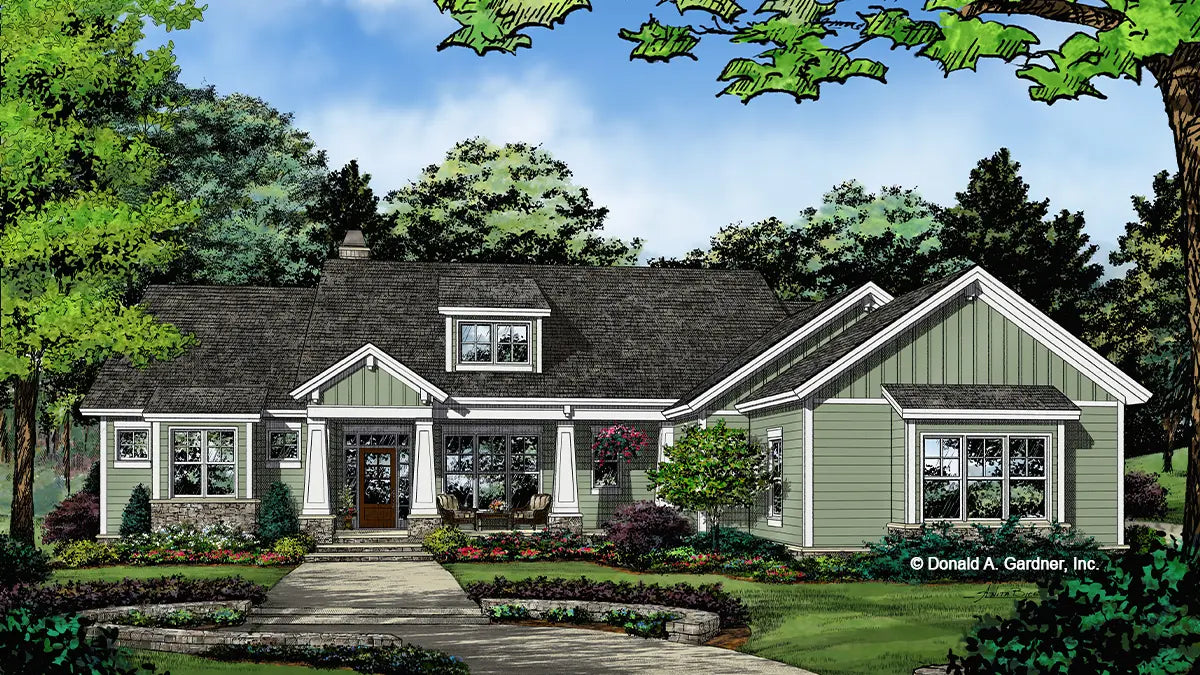

• Front view illustration. The Nelson plan 1416.

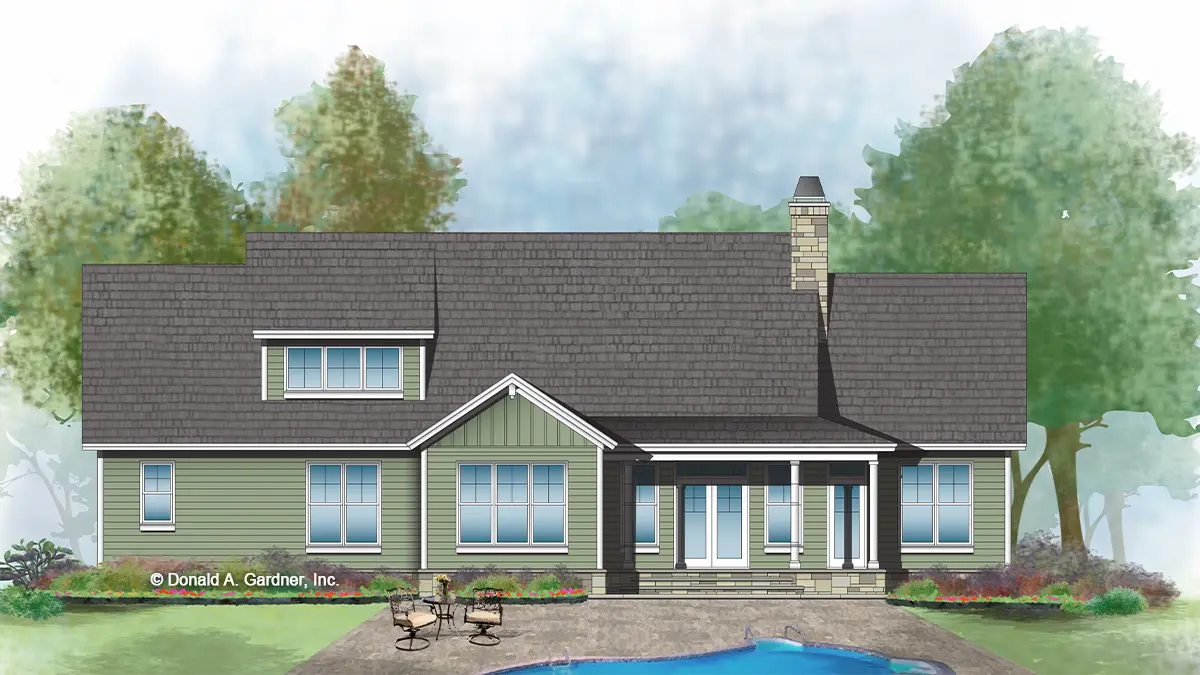

  • Rear view illustration. The Nelson plan 1416.
1 2
Photographs may reflect modified homes.
2294*
Square Feet
4
Bedrooms
3
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for four bedroom house plan 1416 The Nelson
This is the bonus room floor plan image for ranch house plan 1416 The Nelson
This is the first floor plan image for modern house plan 1416 The Nelson if the home is built over a basement

The Nelson

House Plan #1416
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,675.00 USD
$1,675.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2294 sq. ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Stories: 1
  • House Dimensions: 68' 8" x 69' 8"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 3
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 578 sq. ft.
  • Garage/Storage: 857 sq. ft.
  • Porch - Front: 187 sq. ft.
  • Patio: 314 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Modern Ranch Plan with Three-Car Garage

Tapered columns frame the country porch on this low-slung ranch home plan. The kitchen is the center of this floor plan and opens to the dining room. The great room is cozy with a fireplace and coffered ceiling and accesses the rear porch. Positioned for privacy, the master suite is located away from high traffic areas. The huge master bath provides a comfortable oasis. A three-car garage and large utility room appeal to modern homeowners.
