Square Feet
Bedrooms
Baths
Stories
* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.
The Braxton
Plan Type: PDF, Review, CAD explained below. Learn more here.
Additional Specs:
- Total Living: 2876 sq. ft.
- Bedrooms: 4
- Full Baths: 3
- Stories: 2
- House Dimensions: 52' 6" x 75' 6"
- **Foundation: Crawl Space
- Exterior Wall Construction: 2x4
- Garage Bays: 2
- Garage Load: Side
Unfinished Square Footage:
- Bonus Room: 475 sq. ft.
- Garage/Storage: 750 sq. ft.
- Porch - Front: 155 sq. ft.
- Porch - Screened: 258 sq. ft.
- Patio: 401 sq. ft.
Plan Types Explained:
AutoCAD file with Unlimited Build
AutoCAD file with Unlimited Build
Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set
PDF Reproducible Set
One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
PDF Review Set
PDF Review Set
One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.
Share

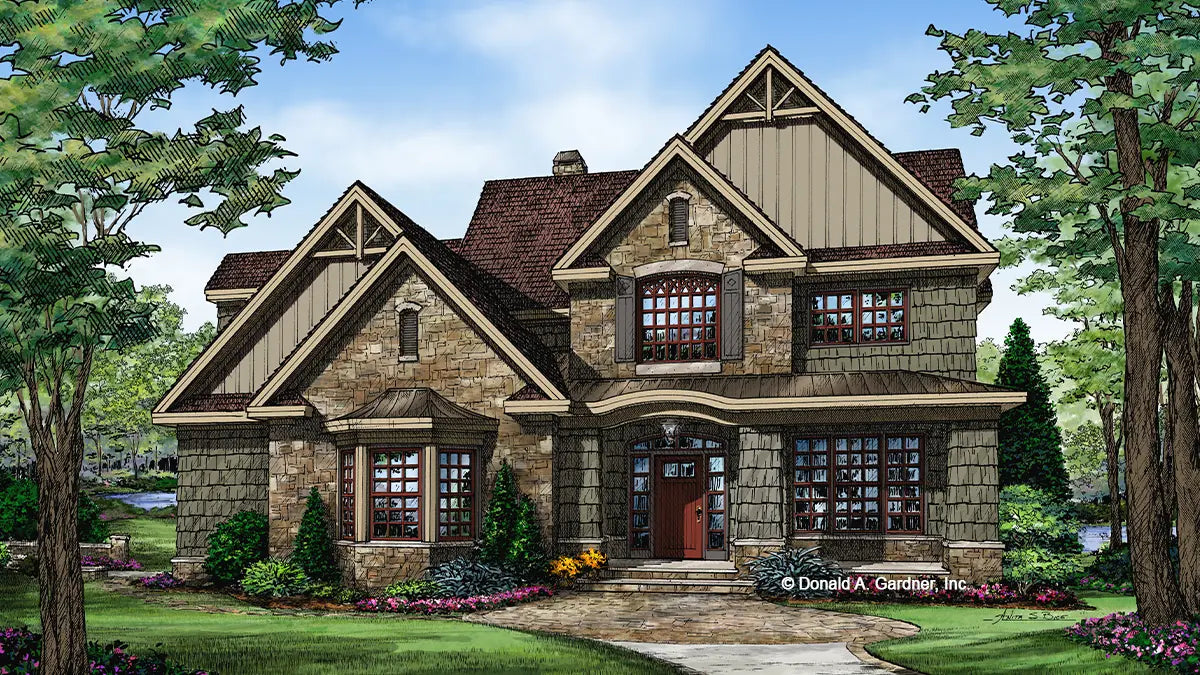

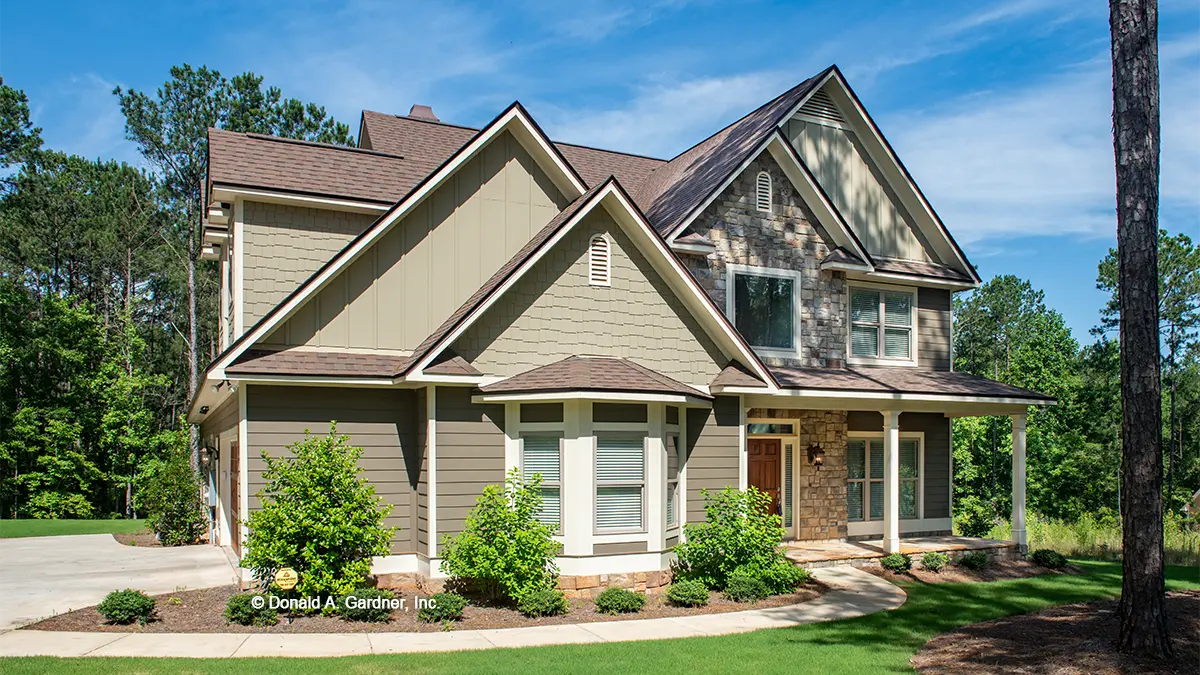

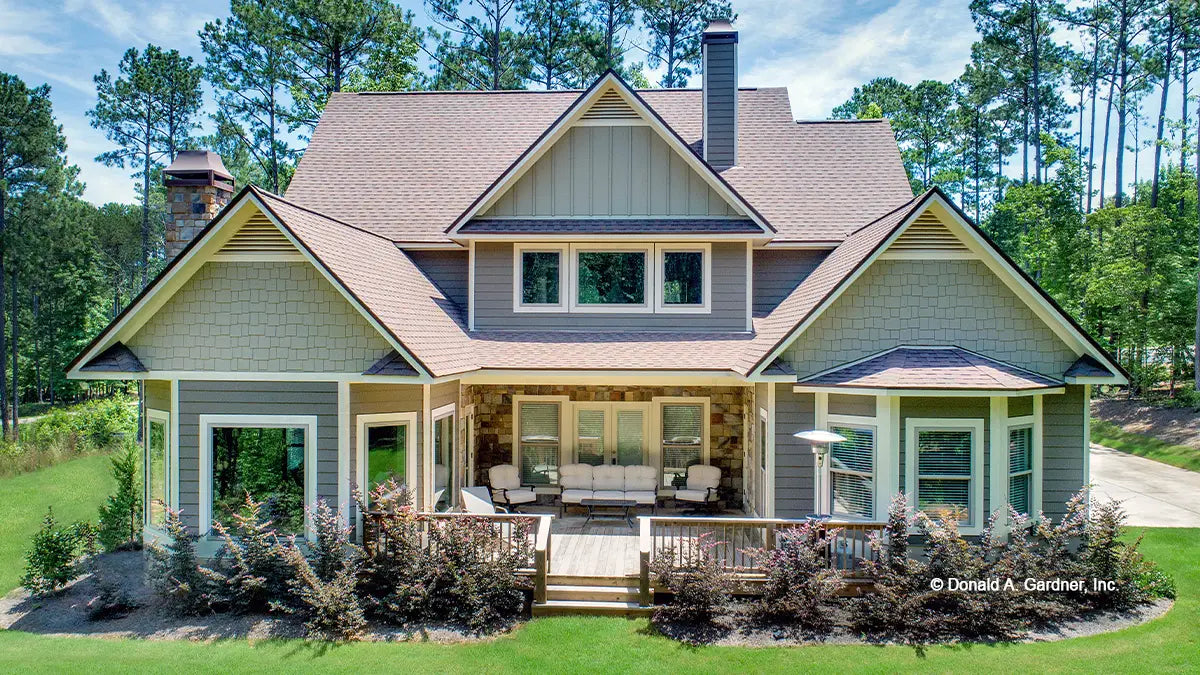

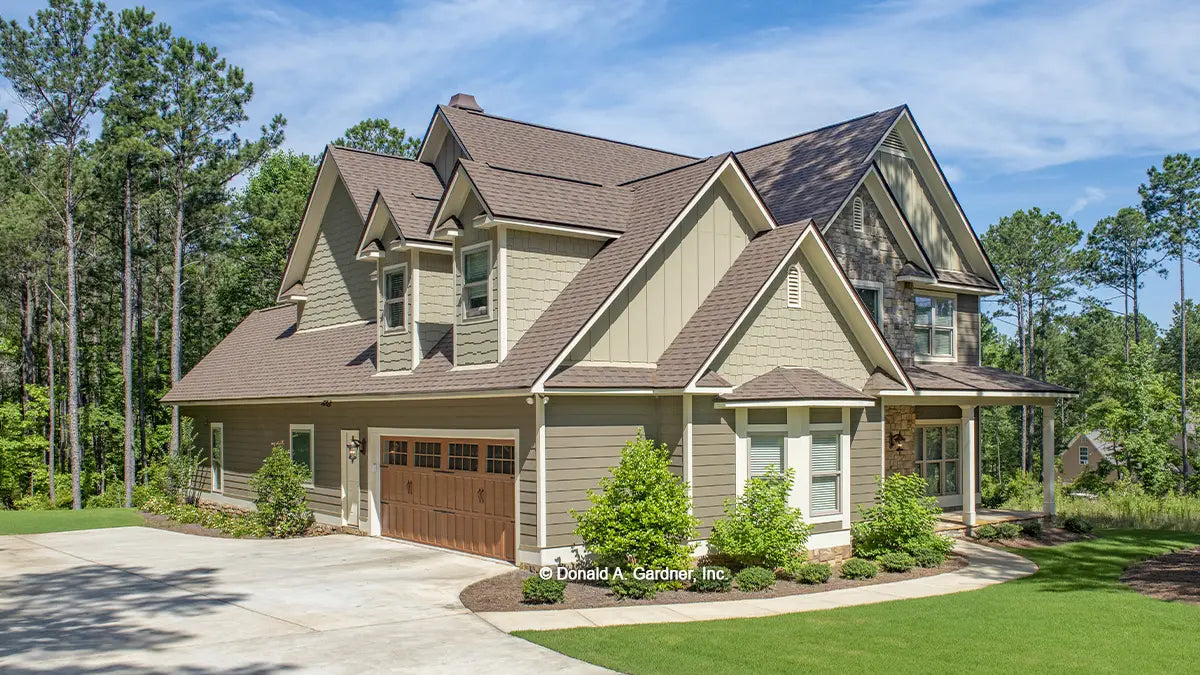

Two-story house plan with a stunning Craftsman facade

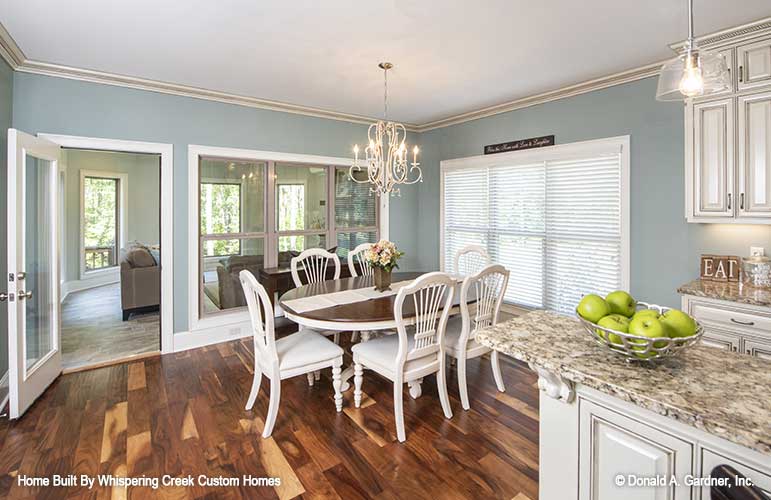

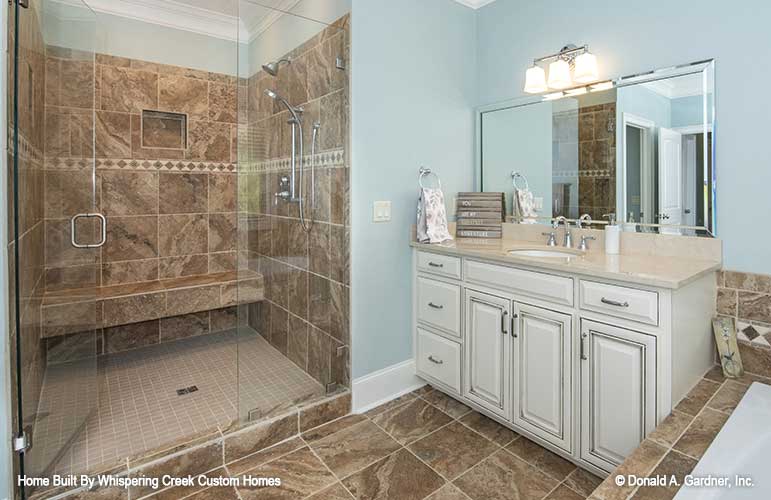

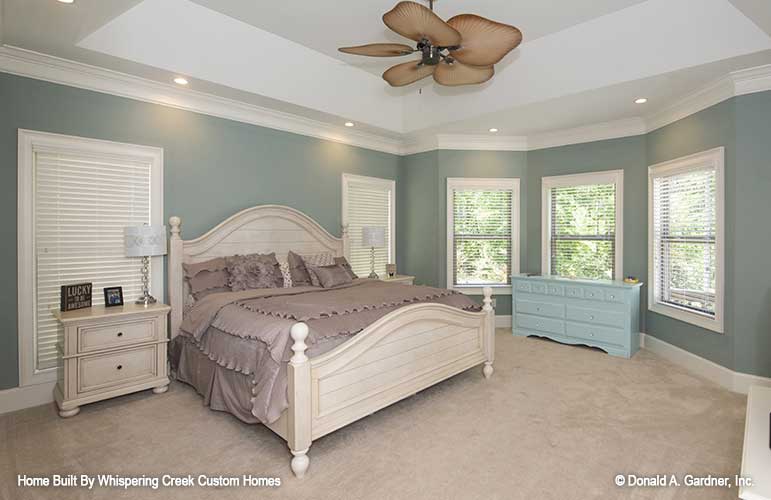

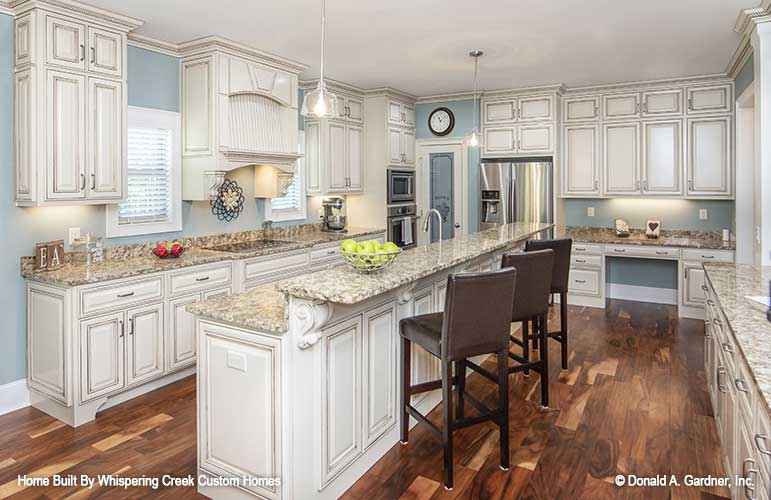

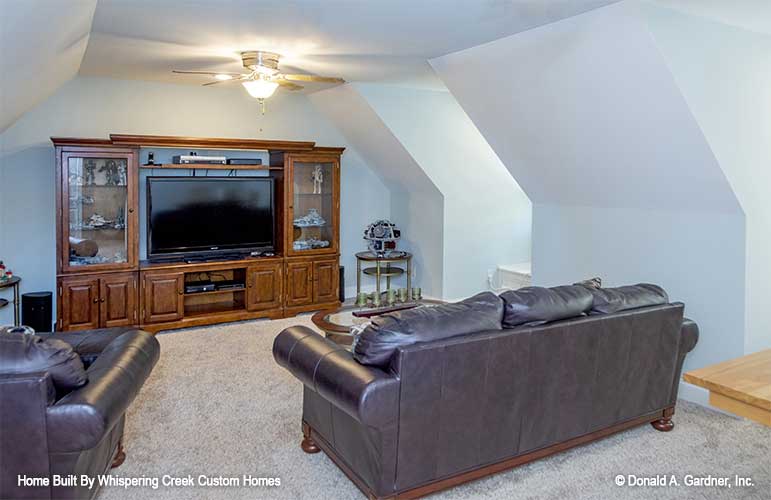

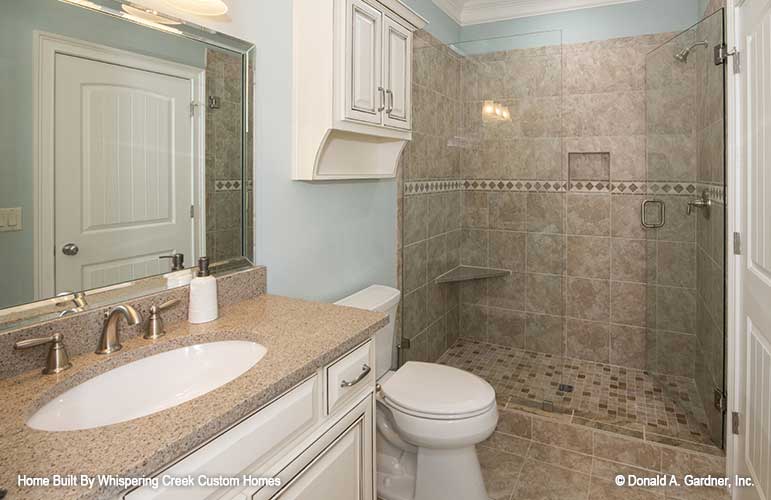

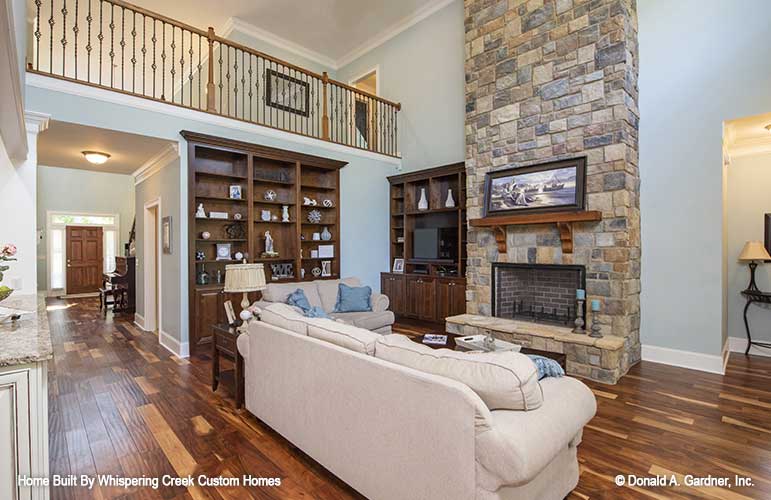

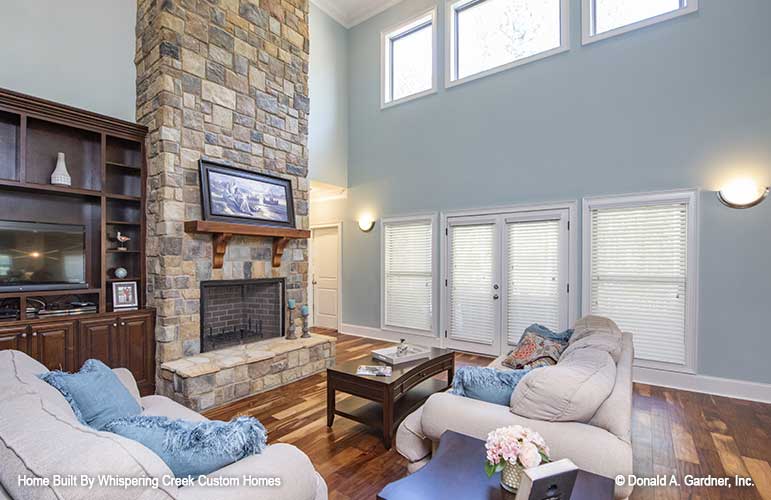

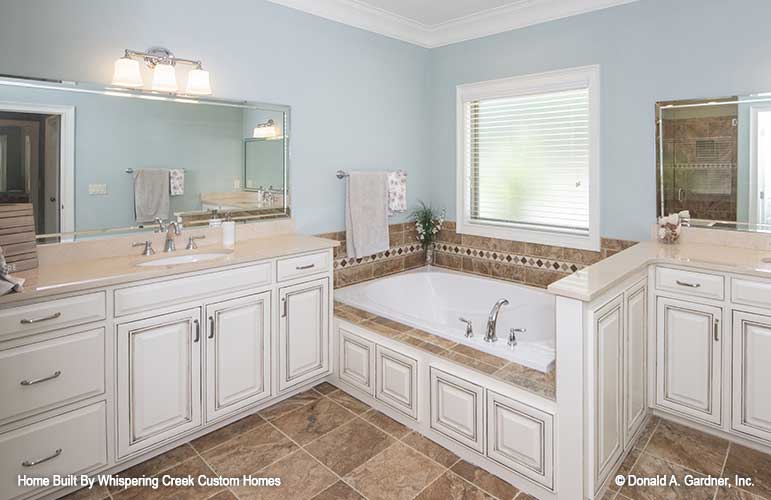

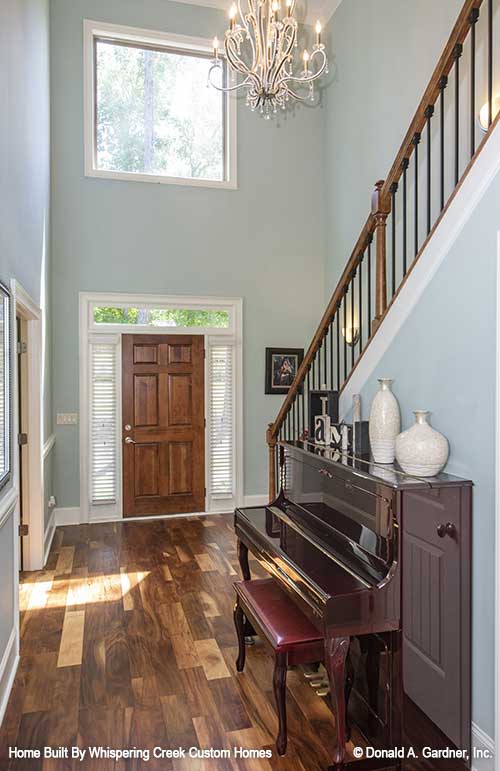

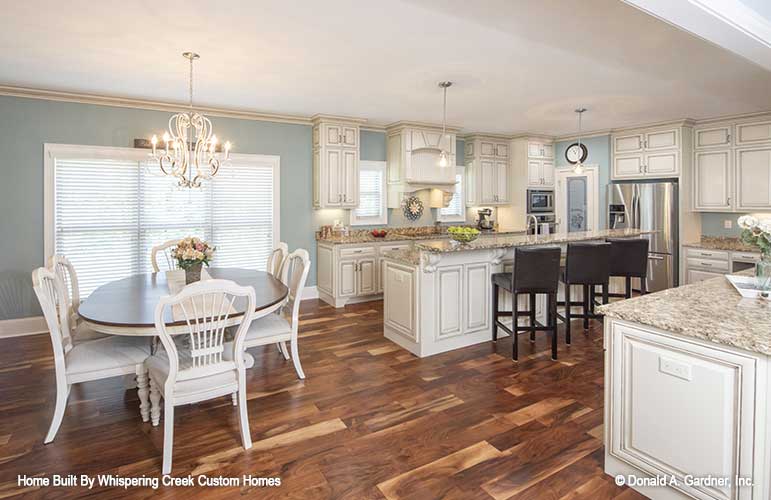

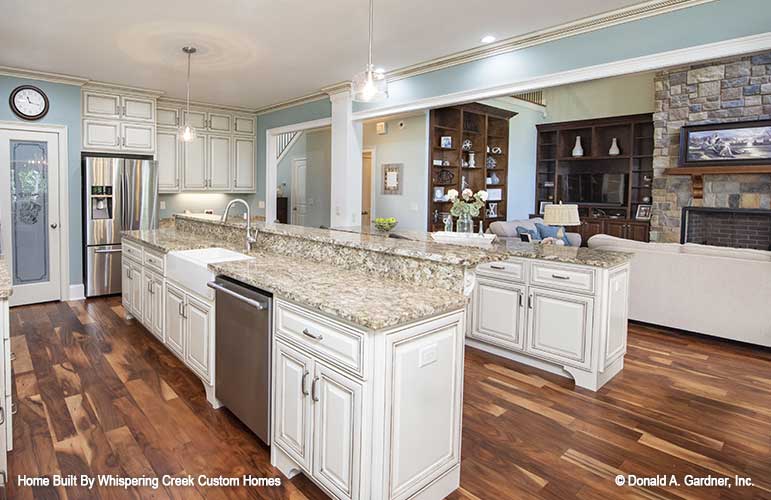

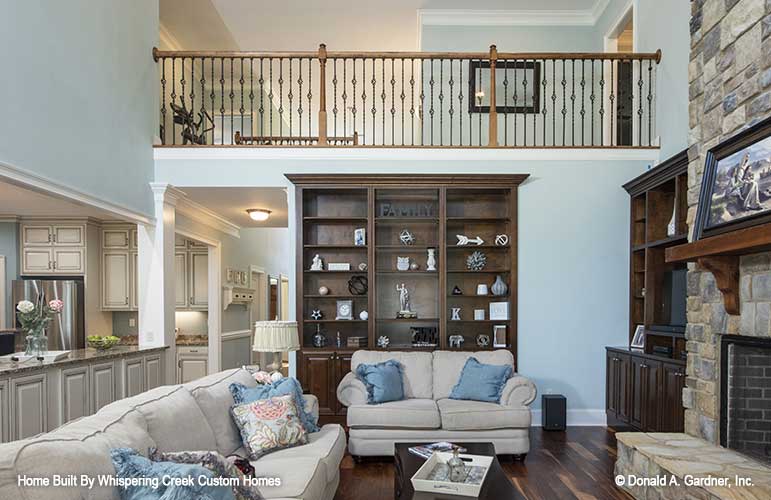

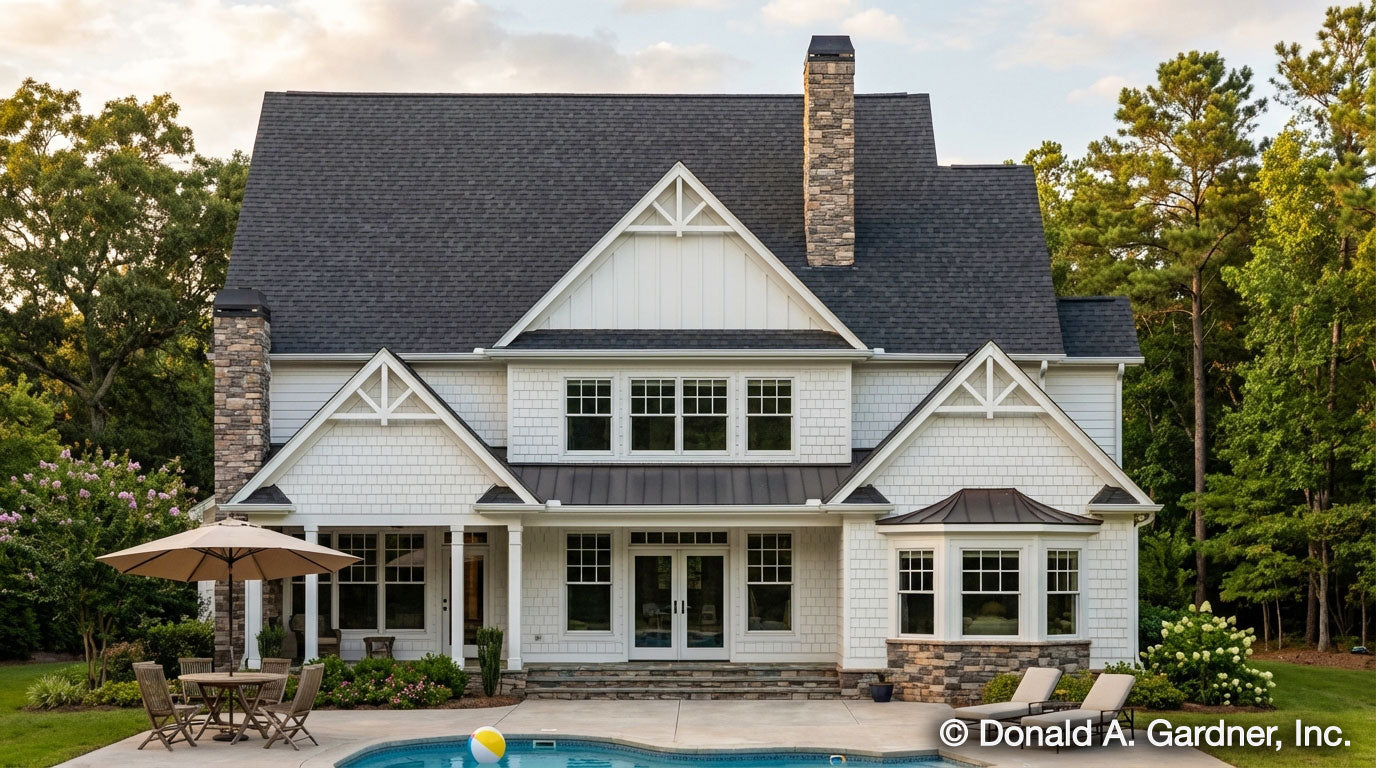

This two-story Craftsman home welcomes with a stunning curved staircase in the foyer, opposite a study/bedroom. The great room, kitchen, and dining room are open and surrounded by windows for rear and side views. The master suite includes a bayed sitting area, two walk-in closets, a linen closet, and a spacious bathroom. The upstairs is open to below, with two bedrooms sharing a Jack-and-Jill bathroom and an oversized bonus room.
