Photographs may reflect modified homes.

2872*
Square Feet

4
Bedrooms

3.5
Baths

2
Stories

This is the first floor plan image for craftsman house plan 1340 The Brodie

The Brodie

Add to compare House Plan #1340

#1 Select Plan Type PDF Reproducible Set PDF Review Set AutoCAD file with Unlimited Builds

#2 Select Reverse Option No Reverse Full Reverse

#3 Select Exterior Wall & Foundation Type 2x4 Hillside Walkout 2x6 Hillside Walkout

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.

$1,875.00 USD

Sale Sold out

Additional Specs:

Total Living: 2872 sq. ft.
Bedrooms: 4
Full Baths: 3
Half Baths: 1
Stories: 2
House Dimensions: 56' 2" x 79' 10"
**Foundation: Hillside Walkout
Exterior Wall Construction: 2x4
Garage Bays: 2

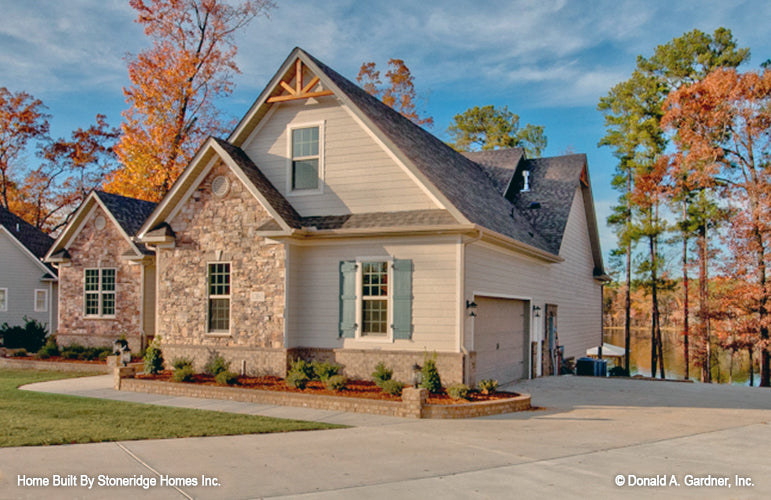

Garage Load: Side

**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

Bonus Room: 581 sq. ft.
Garage/Storage: 694 sq. ft.
Porch - Front: 116 sq. ft.

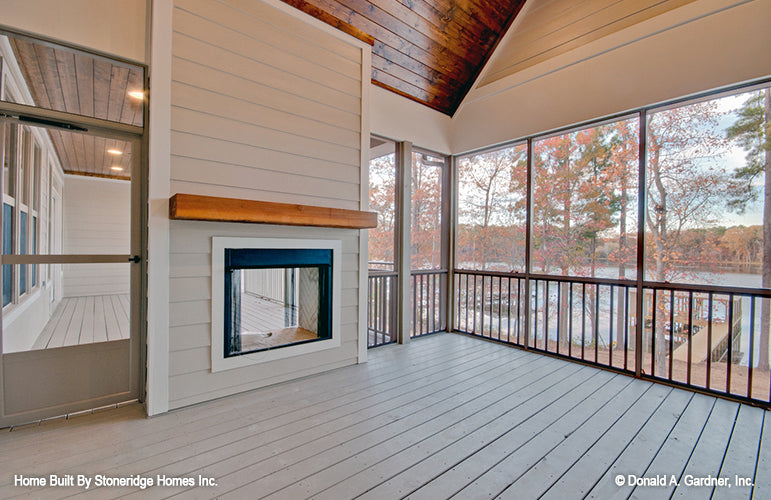

Porch - Screened: 214 sq. ft.
Patio: 288 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

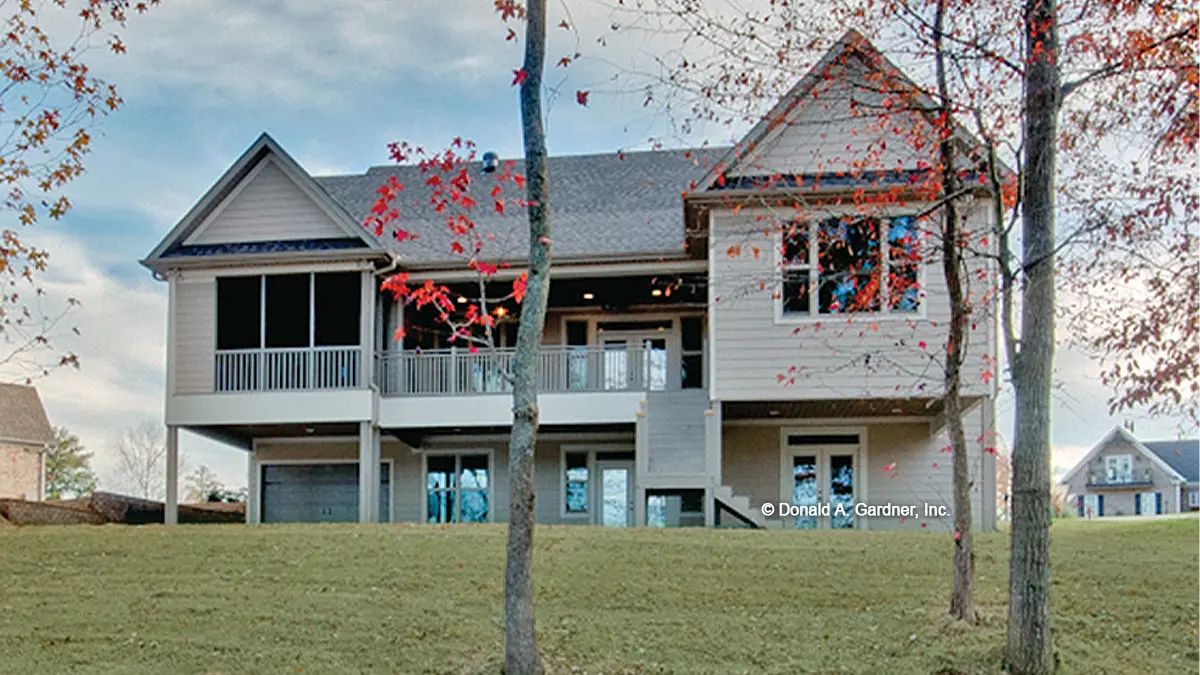

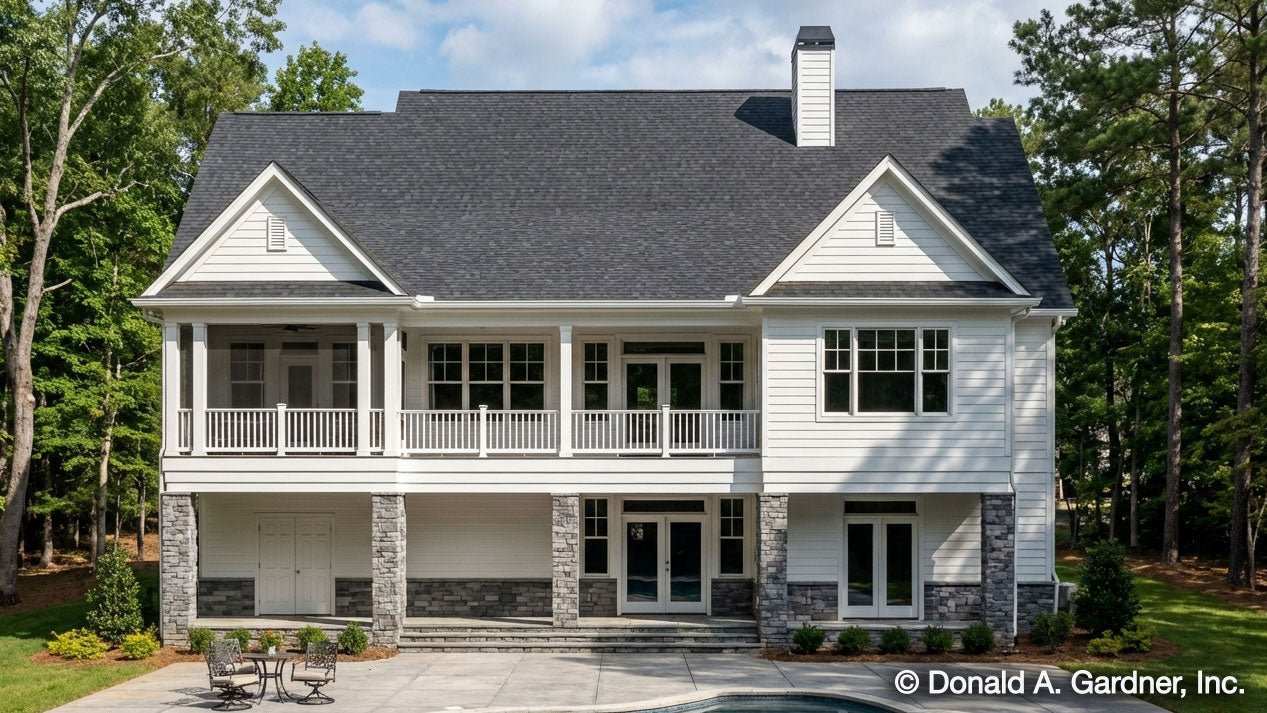

Walkout Basement House Plan

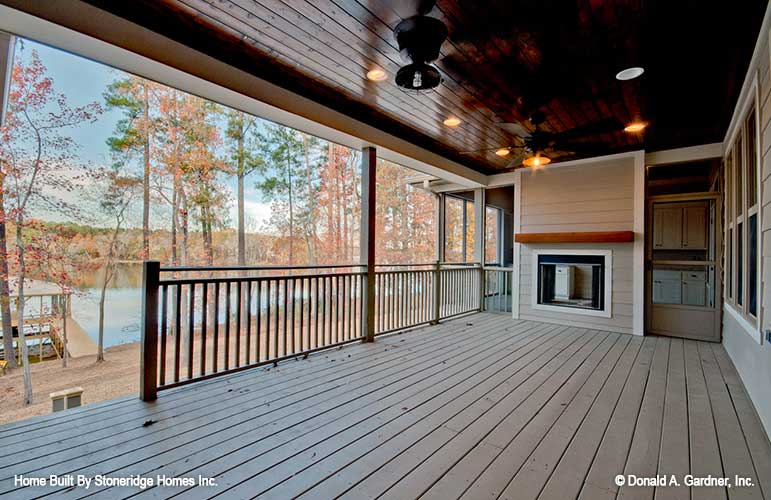

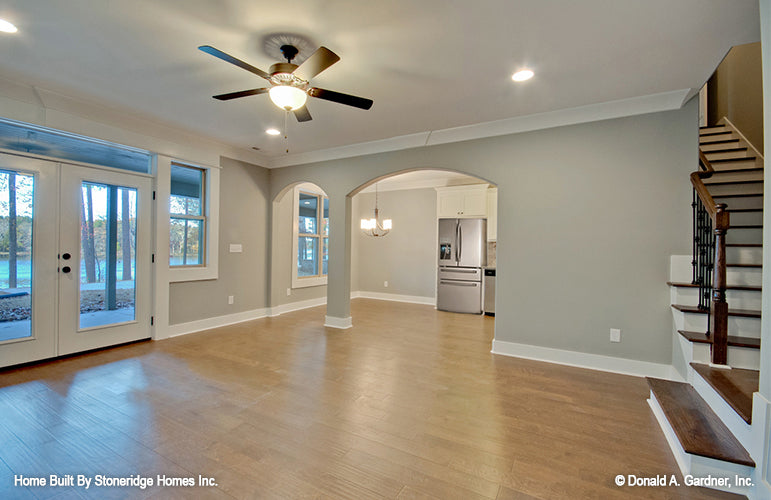

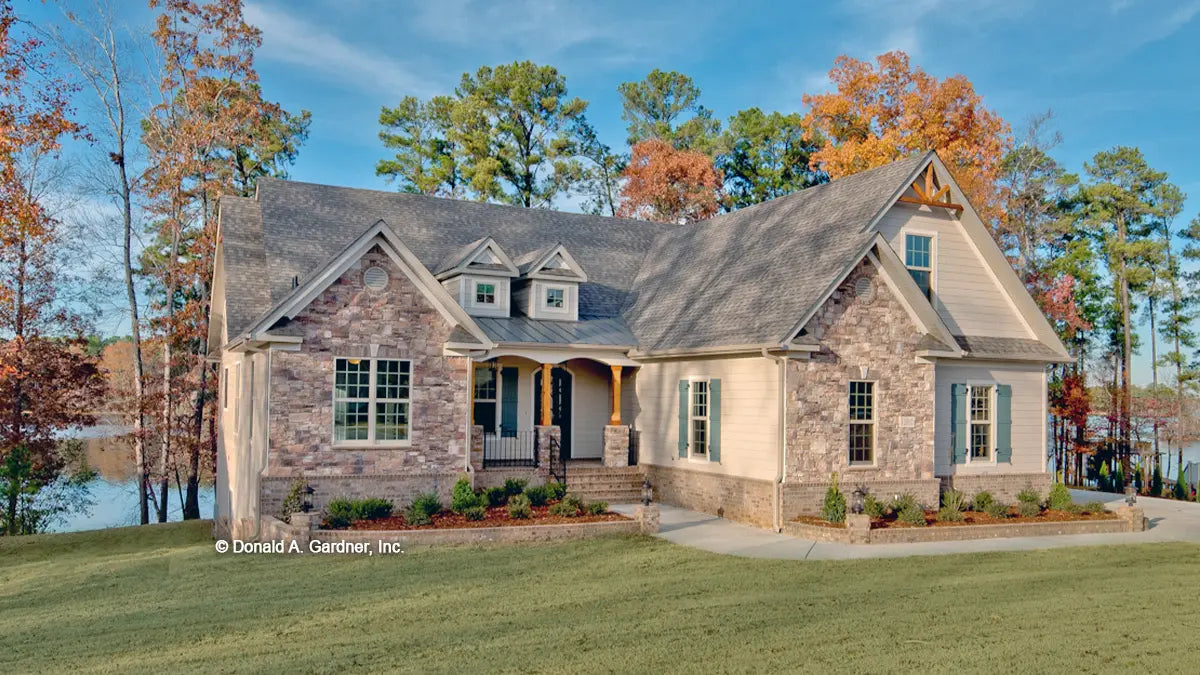

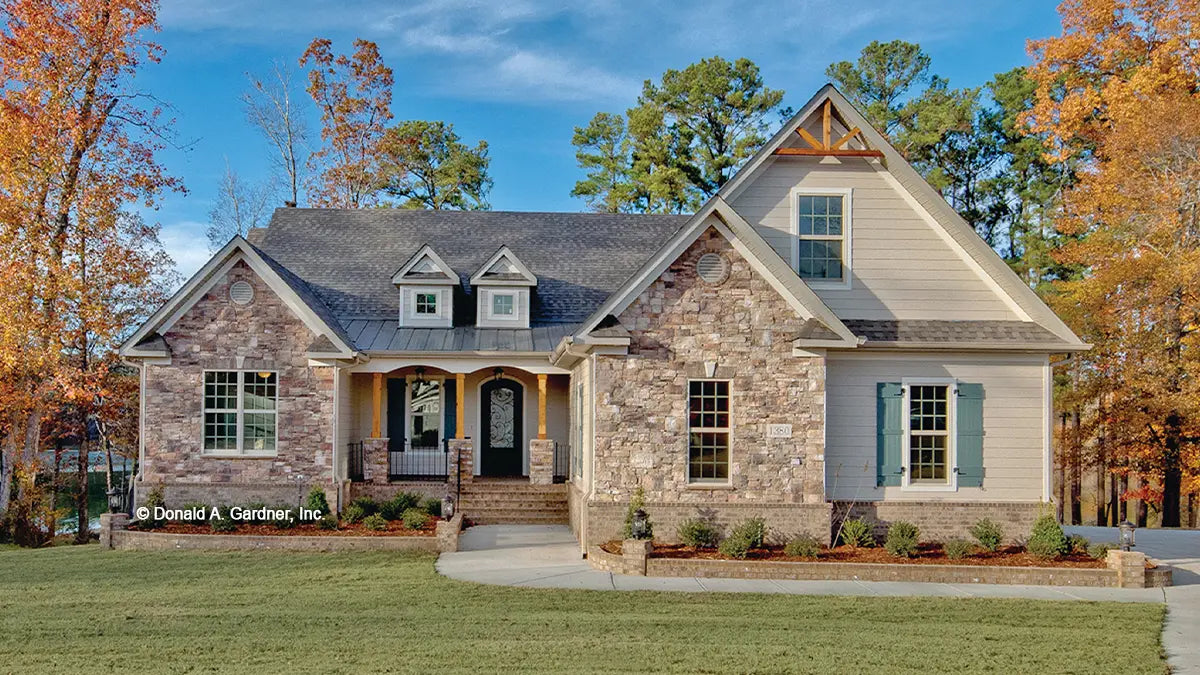

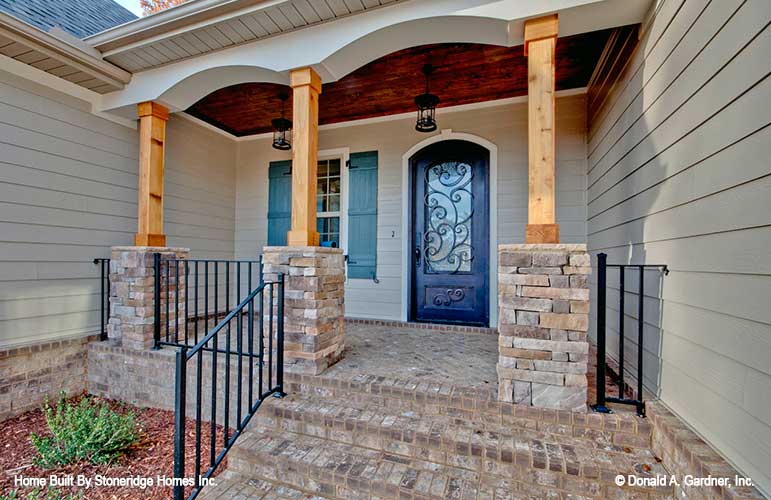

Stone, siding, and a metal porch roof create low maintenance curb appeal for this Craftsman home. Wide open living areas and ample storage and utility space combine for a plan that is appealing and efficient, while porches and patios take living outdoors. With a rec room on the walkout basement level and a bonus room over the garage, the Brodie has plenty of flexible space.

View full details

You May Also Like to Know:

Return Policy

ALL SALES ARE FINAL. Because plans are printed especially for you at the time you place your order, returns and refunds are not acceptable. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show him the plan and determine what he will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.

Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.

Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
