Square Feet
Bedrooms
Baths
Stories
* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.
The Rainey
Plan Type: PDF, Review, CAD explained below. Learn more here.
Additional Specs:
- Total Living: 2966 sq. ft.
- Bedrooms: 4
- Full Baths: 3
- Stories: 2
- House Dimensions: 70' 0" x 65' 4"
- **Foundation: Hillside Walkout
- Exterior Wall Construction: 2x4
- Garage Bays: 2
- Garage Load: Side
Unfinished Square Footage:
- Other Storage: 169 sq. ft.
- Garage/Storage: 724 sq. ft.
- Porch - Front: 99 sq. ft.
- Porch - Screened: 169 sq. ft.
- Patio: 285 sq. ft.
Plan Types Explained:
AutoCAD file with Unlimited Build
AutoCAD file with Unlimited Build
Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set
PDF Reproducible Set
One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
PDF Review Set
PDF Review Set
One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.
Share
Walkout Basement Home With Four Large Bedrooms

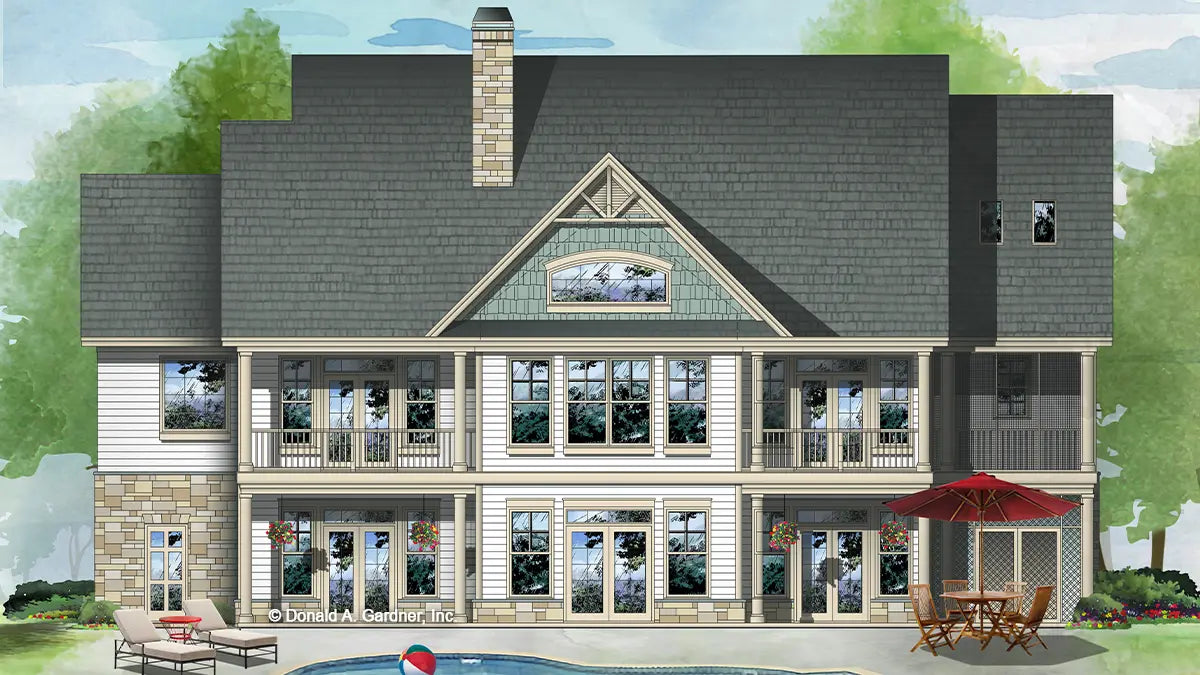

Perfect for sloping lots, this hillside walkout plan takes advantage of rear views with plenty of windows and porches. The main level is full of open living space, with a vaulted great room open to the dining room and kitchen. A large utility room and walk-in pantry sit behind the garage, while the indulgent master suite lies across the home. Downstairs, two additional bedrooms with patio access are separated by a family room with fireplace.
You May Also Like to Know:
Return Policy
ALL SALES ARE FINAL. Because plans are printed especially for you at the time you place your order, returns and refunds are not acceptable. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show him the plan and determine what he will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.
Delivery & Returns
If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.
Whats In a Set?
Learn all about what comes in a set of plans here. If you have any questions please contact us.
