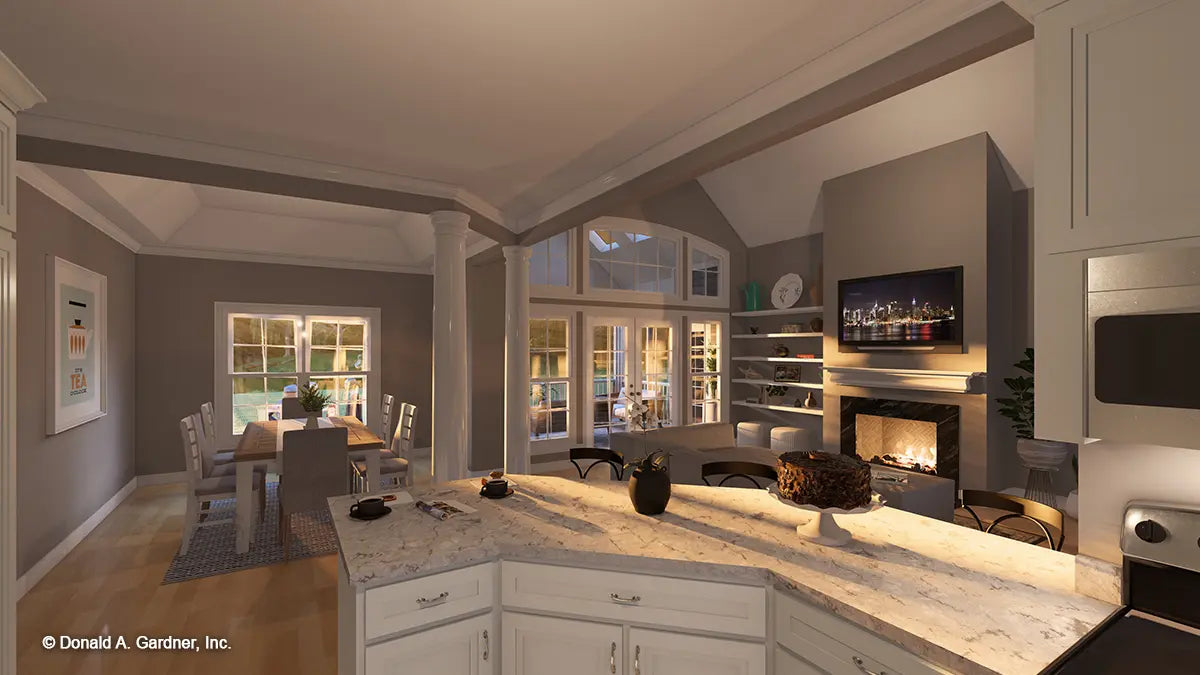

  • Interior digital illustration view into the great room and dining room from the kitchen. The Whitford plan 1298.

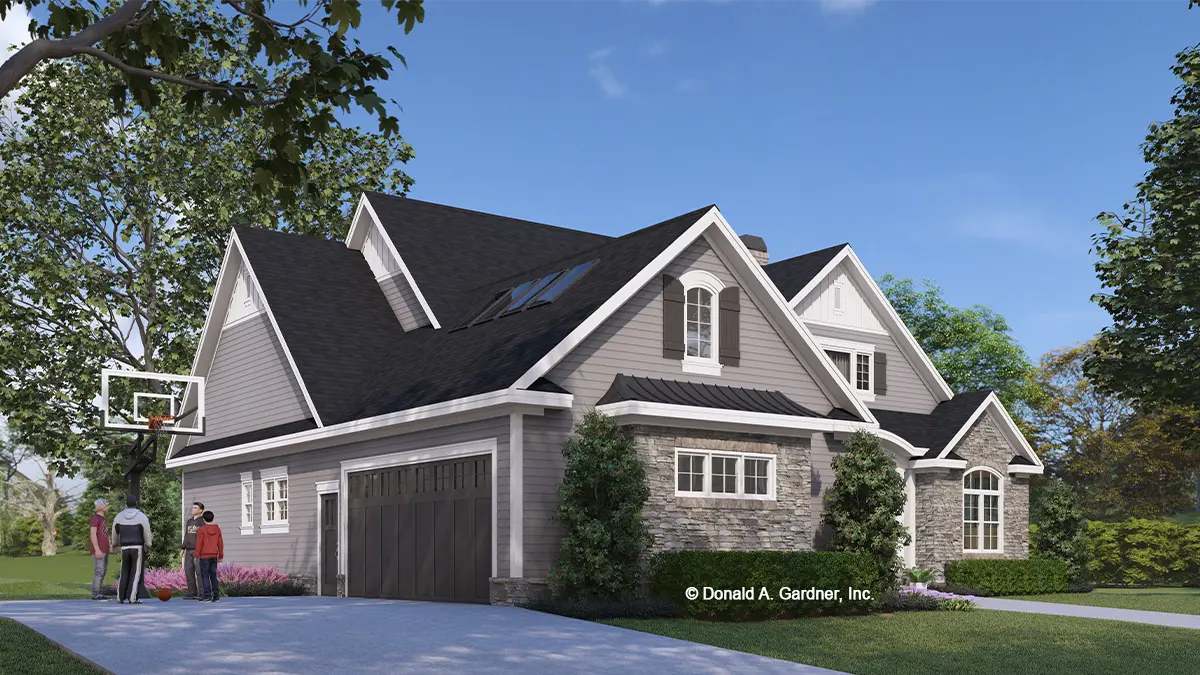

  • Side front view illustration with garage. The Whitford plan 1298.
  • Rear side view illustration with garage. The Whitford plan 1298.
  • Rear side view illustration. The Whitford plan 1298.
1 9
Photographs may reflect modified homes.
1818*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

The Raleigh

House Plan #1303
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,575.00 USD
$1,575.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1818 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Stories: 1
  • House Dimensions: 64' 2" x 63' 4"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 397 sq. ft.
  • Garage/Storage: 698 sq. ft.
  • Porch - Front: 149 sq. ft.
  • Porch - Screened: 223 sq. ft.
  • Patio: 342 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

3 Bedroom Craftsman Ranch

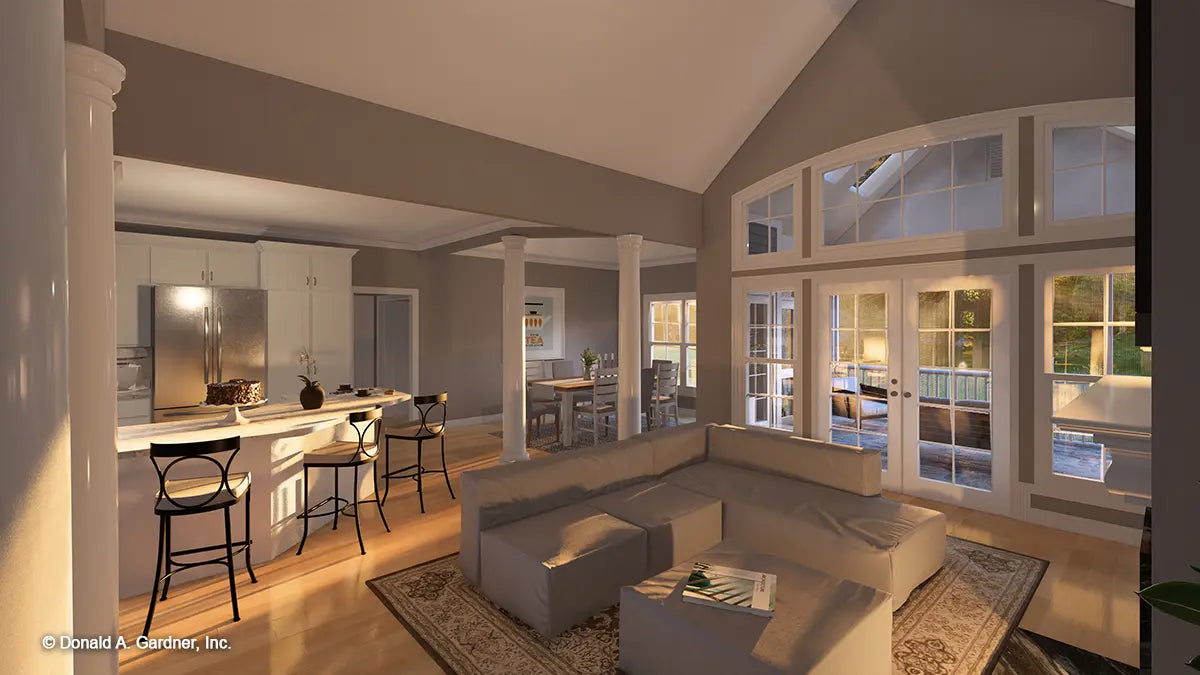

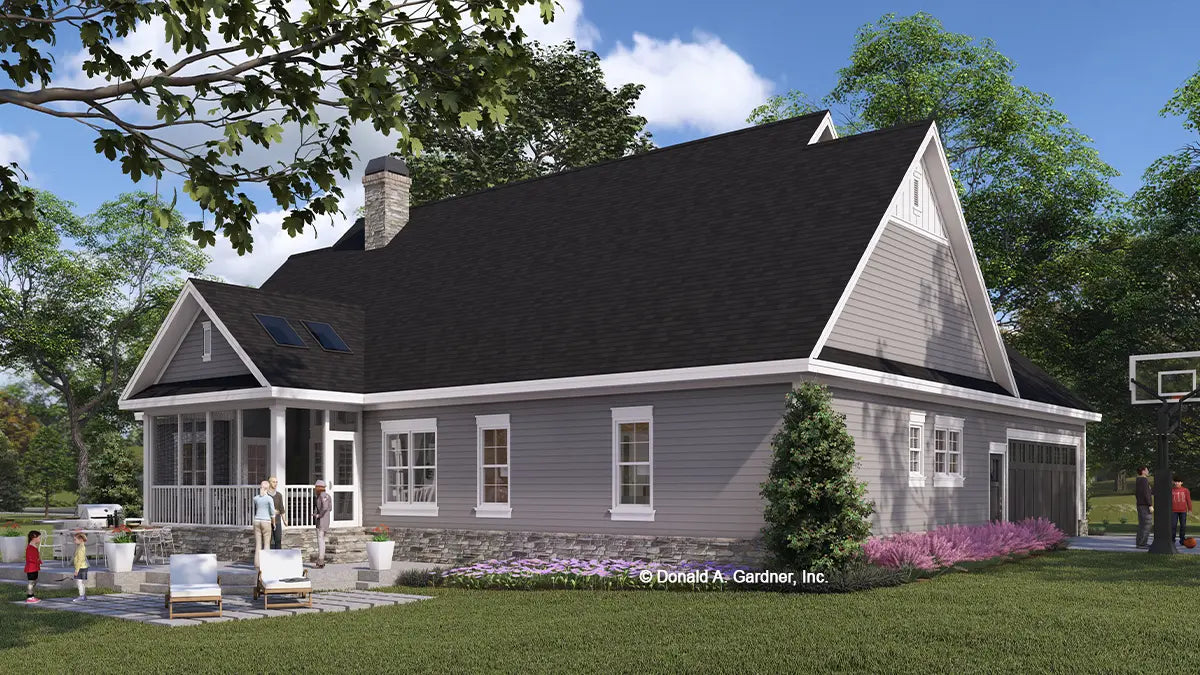

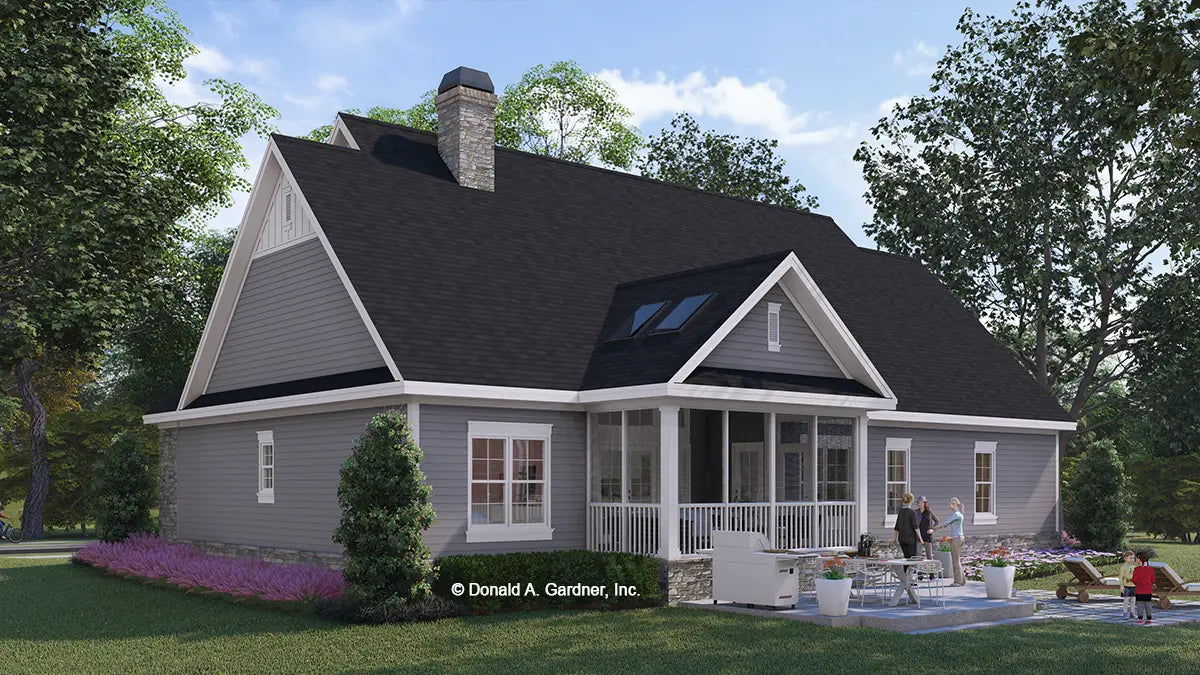

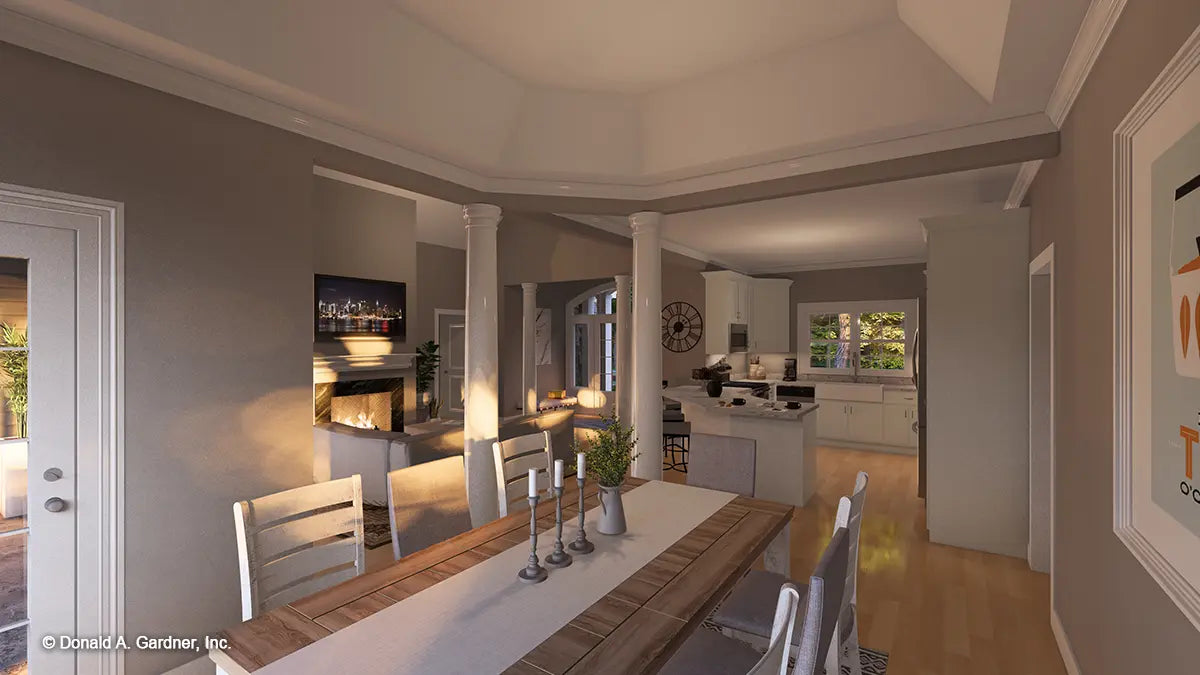

Arches and twin columns adorn a welcoming front porch on this Craftsman ranch plan, with double doors leading to an inviting, open floor plan. Columns mark the entrance to the great room and, along with a tray ceiling, distinguish the single dining space. The master suite is positioned for privacy with convenient access to the mud room and utility room. Additional bedrooms are found across the house plan with a bathroom featuring a double vanity. A screened porch with skylights is accessed by the great room, dining room, and back bedroom.
