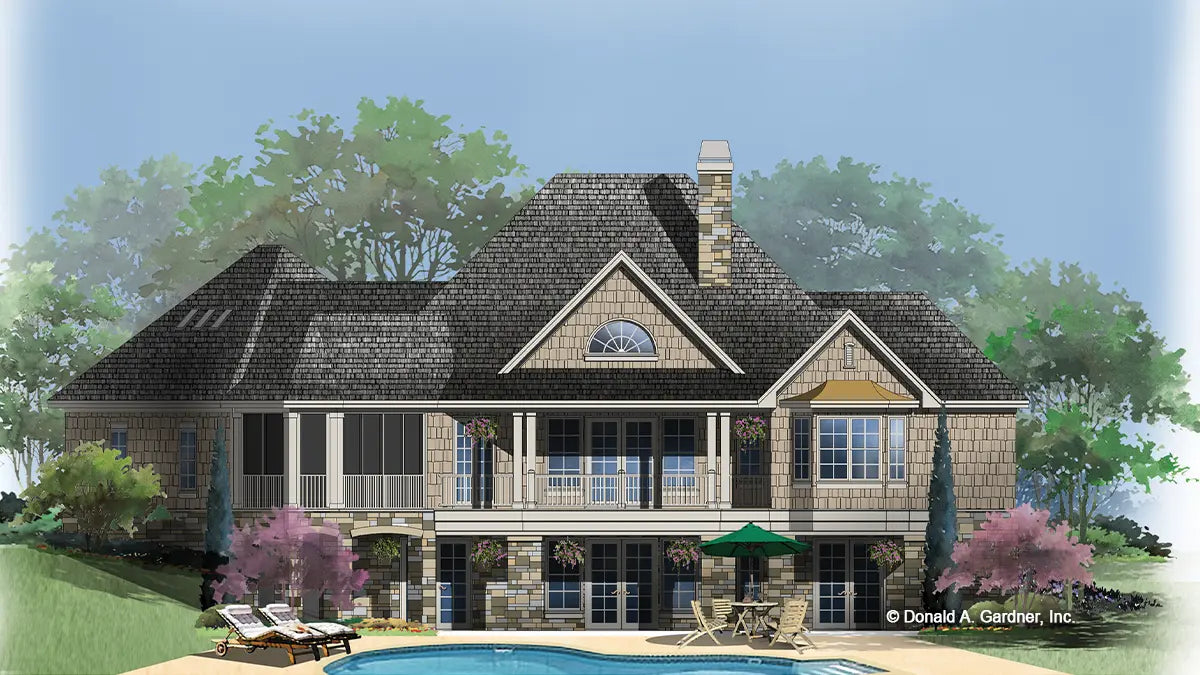

  • Rear view illustration. The Chatsworth plan 1301.

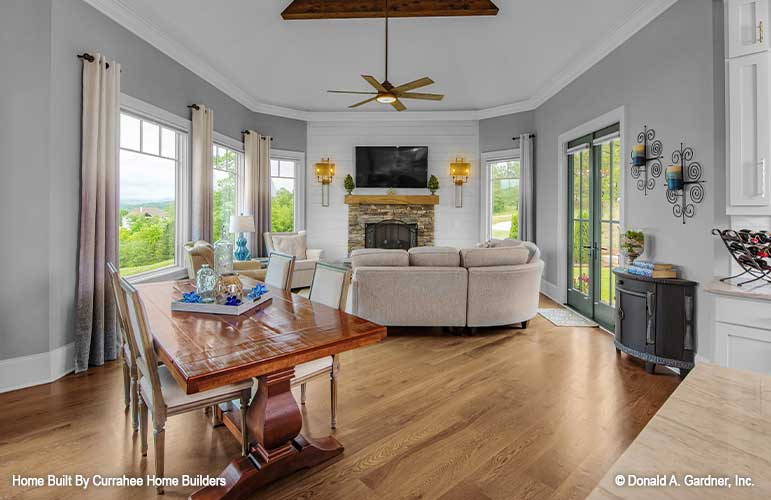

  • Breast room view with seating and fireplace off to the side.. The Chatsworth plan 1301.

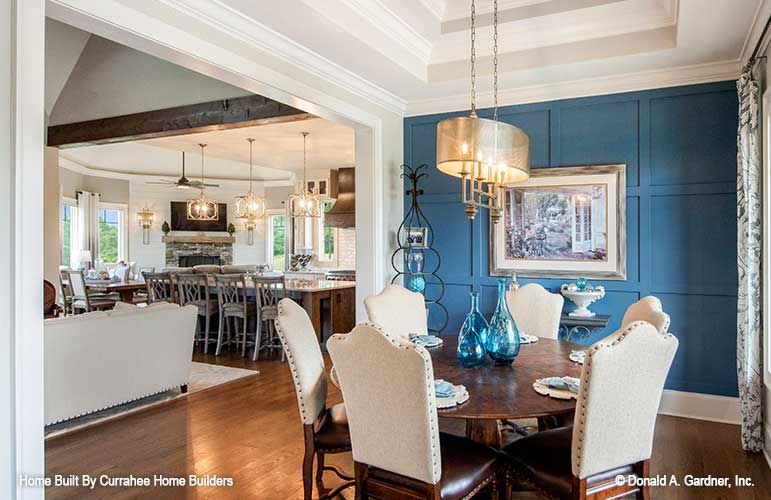

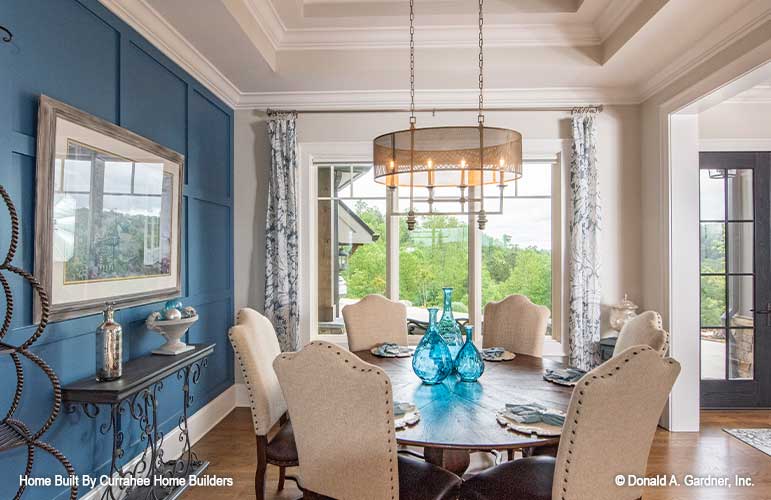

  • Tray ceiling and large window in the dining room. The Chatsworth plan 1301.
  • Dining room view into the kitchen. The Chatsworth plan 1301.

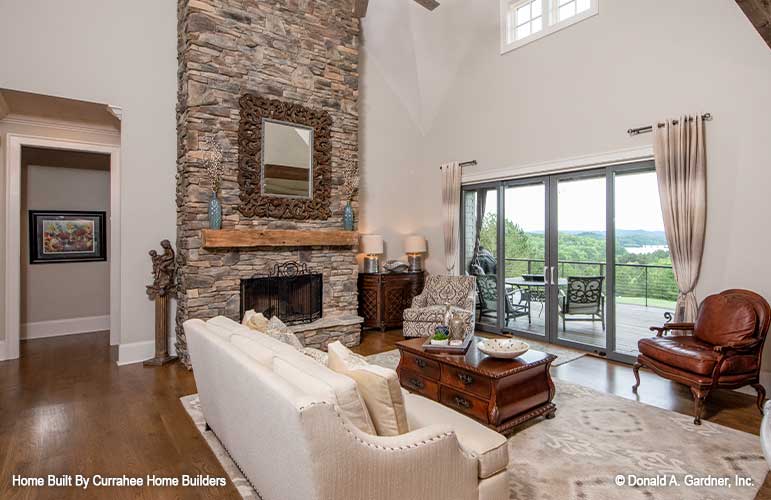

  • Great room stone fire place and double doors leading to the porch. The Chatsworth plan 1301.

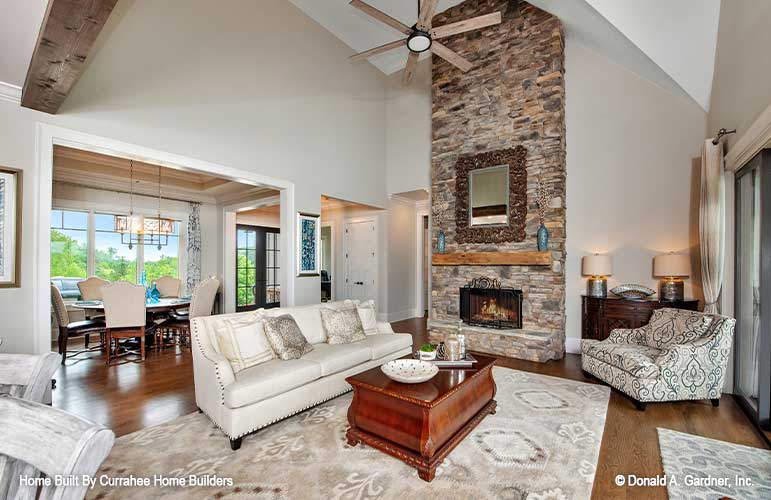

  • Great room view into the dining room. The Chatsworth plan 1301.

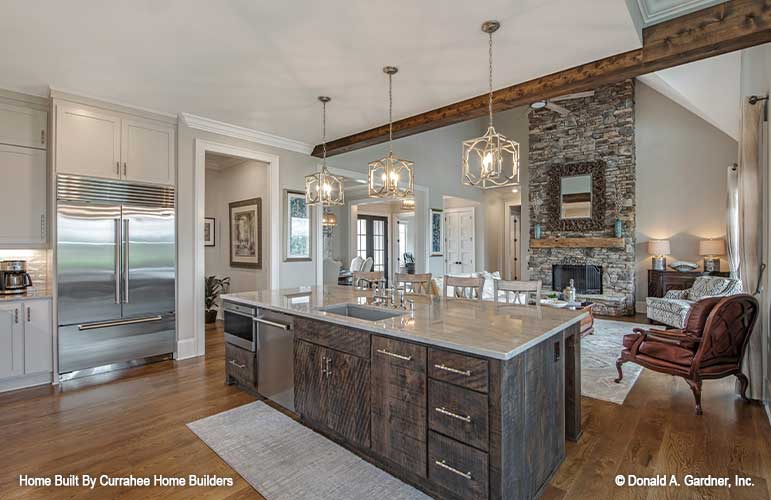

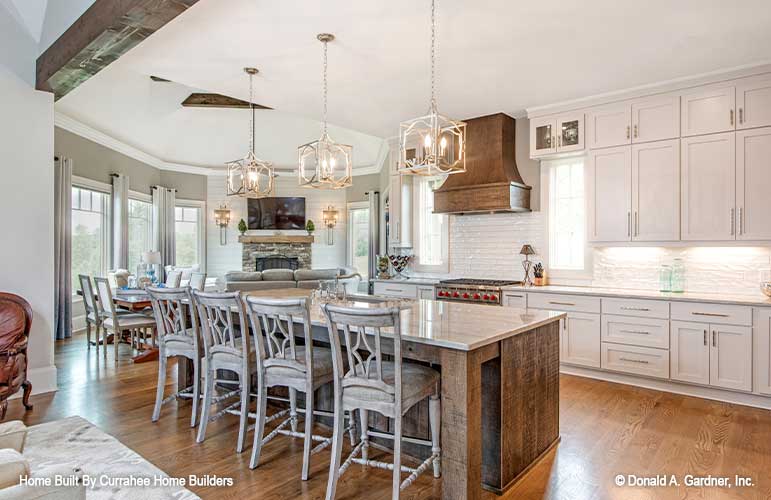

  • Spacious bar seating in the kitchen. The Chatsworth plan 1301.
  • Wood beam on the ceiling between the kitchen and the great room. The Chatsworth plan 1301.

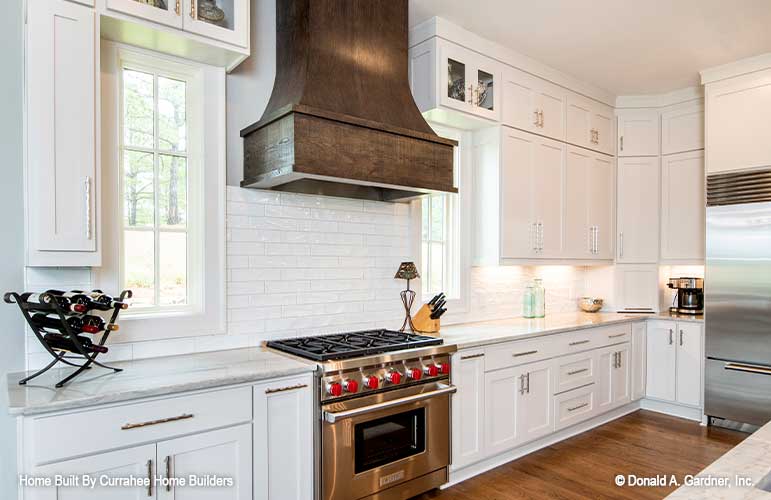

  • Subway tile backsplash and wood like vent above the stove in the kitchen. The Chatsworth plan 1301.

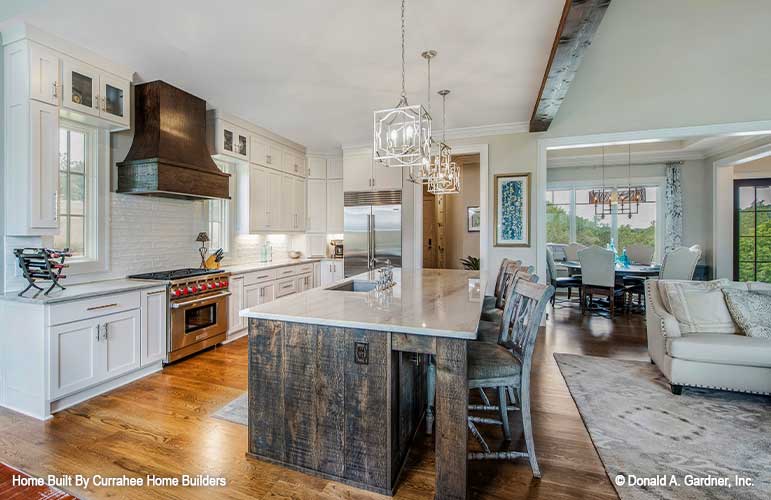

  • Kitchen item with the sink and stainless-steel appliances. The Chatsworth plan 1301.

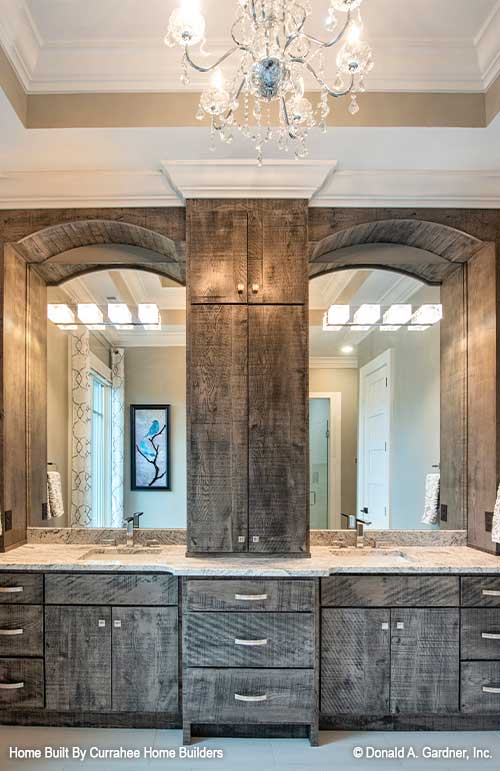

  • Double sink vanity split bit cabinet storage. The Chatsworth plan 1301.

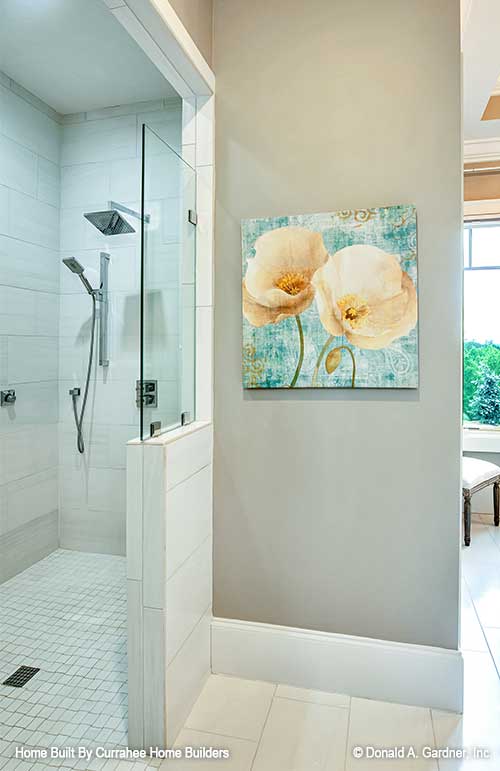

  • Open walk-in shower in the master bathroom. The Chatsworth plan 1301.

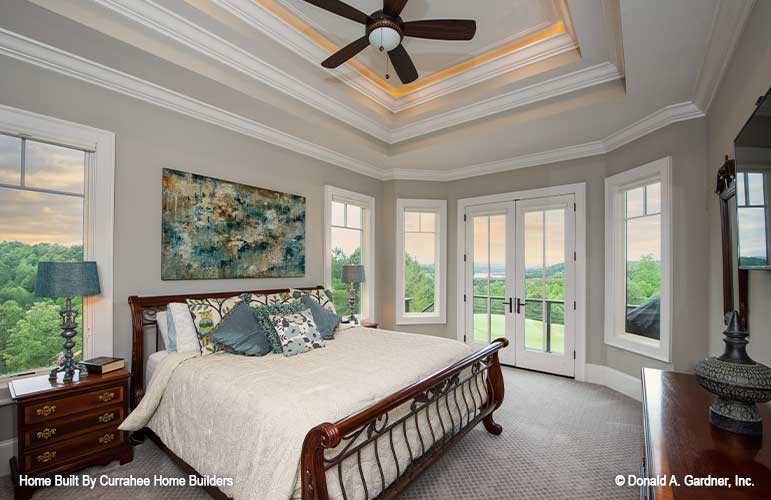

  • Tray ceiling and French patio doors in the master bedroom. The Chatsworth plan 1301

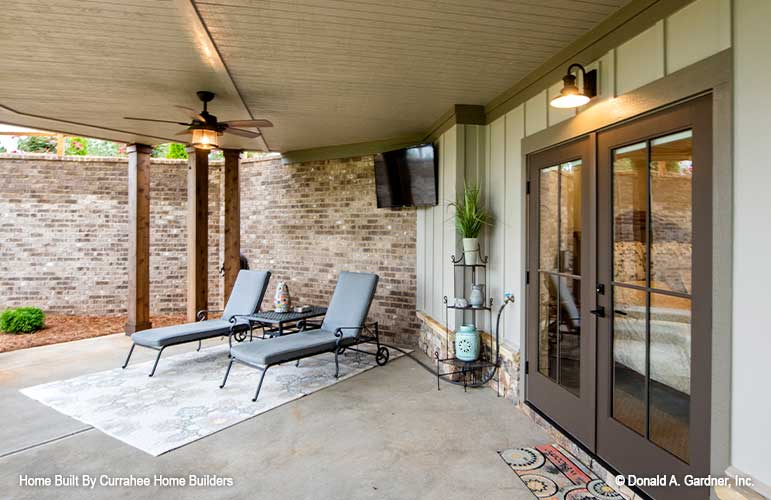

  • Covered patio with tv outside the French doors from the master bedroom. The Chatsworth plan 1301.

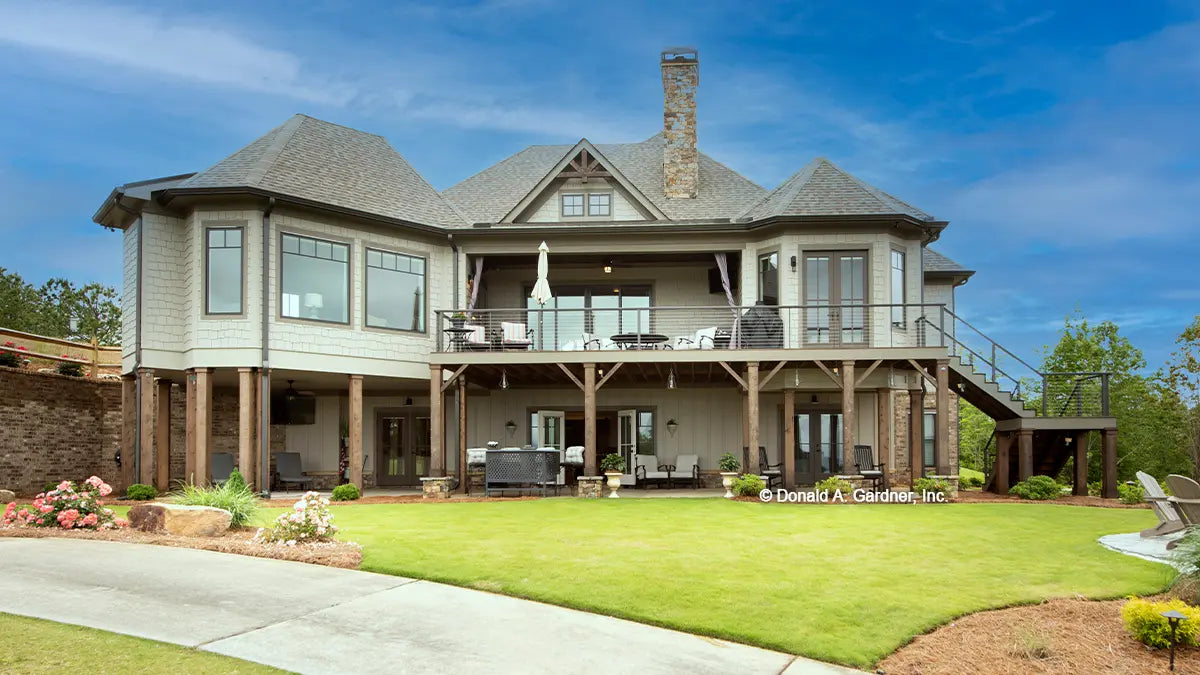

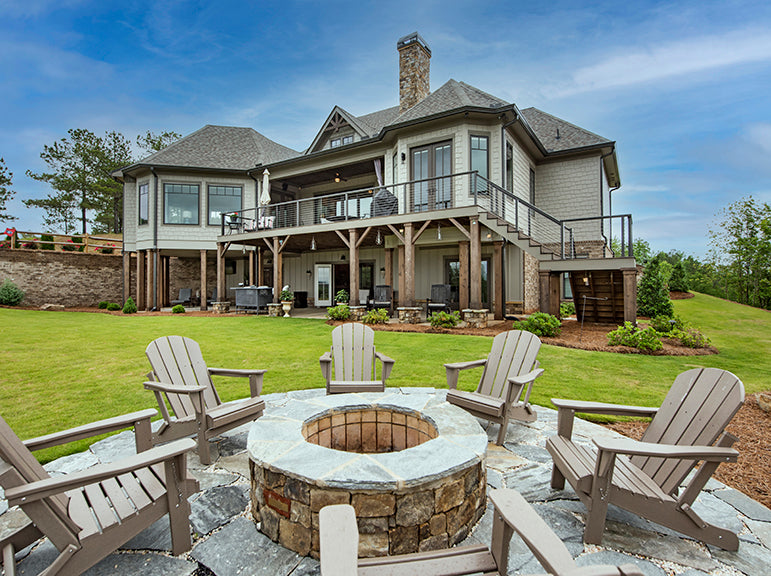

  • Relaxing firepit with a rear view of the home. The Chatsworth plan 1301.

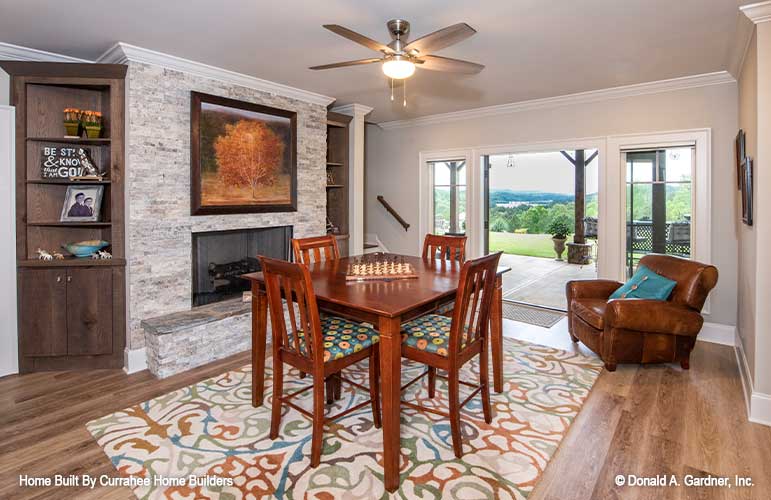

  • Patio doors and fire place in the rec room. The Chatsworth plan 1301.

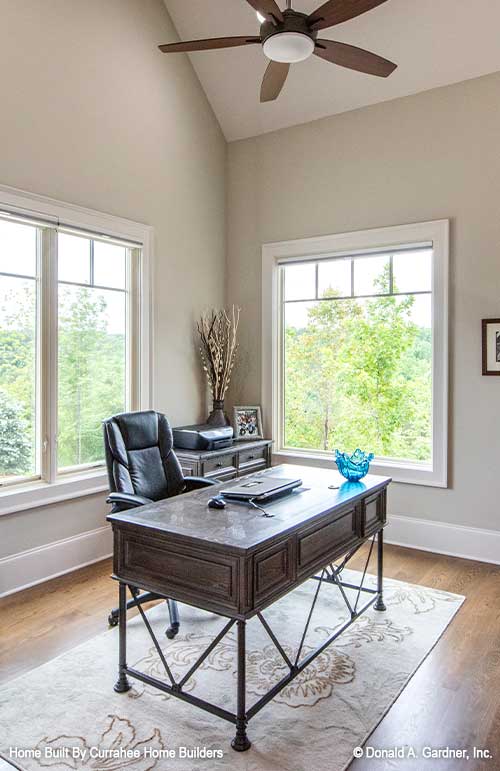

  • Well-lit study with ceiling fan. The Chatsworth plan 1301.

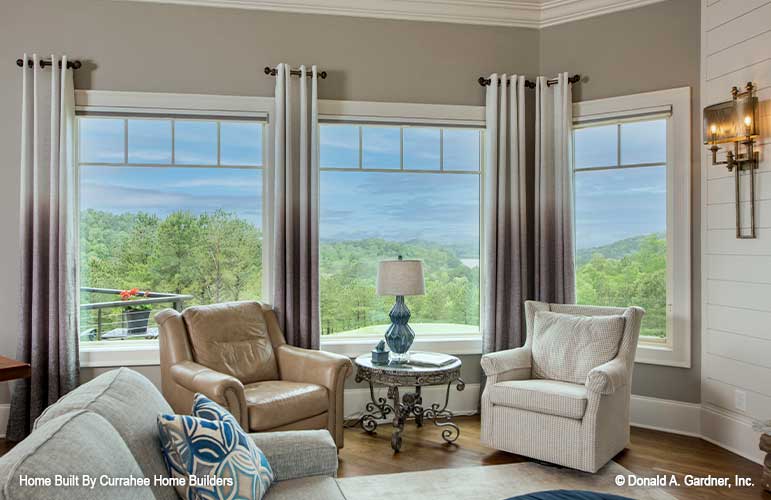

  • Pretty view from the large windows in the sunroom. The Chatsworth plan 1301.

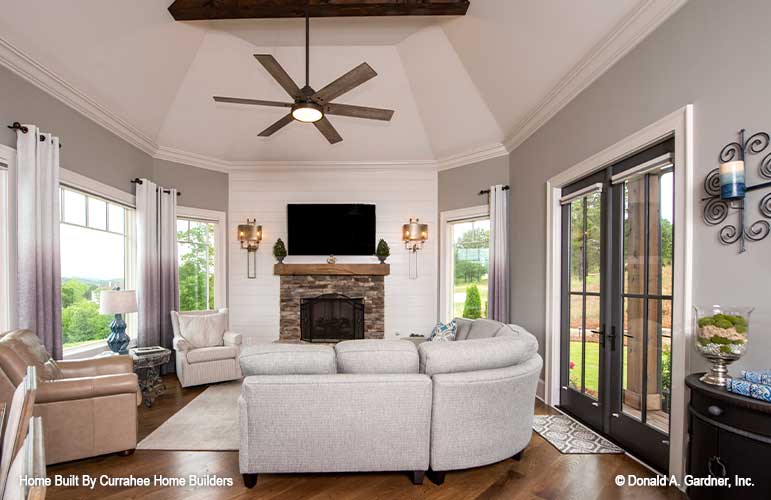

  • Fireplace in the sunroom with French patio doors. The Chatsworth plan 1301.

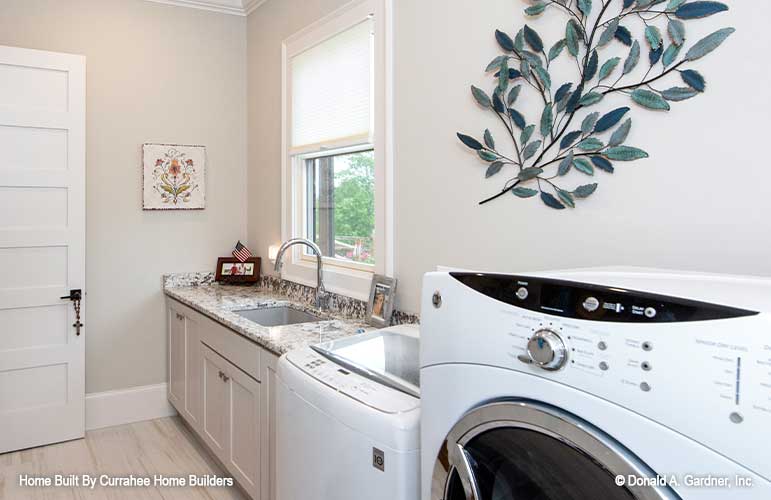

  • Utility room with a sink off to the side of the washer and dryer. The Chatsworth plan 1301.
1 24
Photographs may reflect modified homes.
3022*
Square Feet
3
Bedrooms
3.5
Baths
2
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for walkout basement house plan 1301 The Chatsworth
This is the first floor plan image for craftsman house plan 1301 The Chatsworth if the home is built over a basement
This is the bonus room floor plan image for three bedroom house plan 1301 The Chatsworth

The Chatsworth

House Plan #1301
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$2,375.00 USD
$2,375.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 3022 sq. ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Stories: 2
  • House Dimensions: 82' 9" x 84' 1"
  • **Foundation: Hillside Walkout
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Courtyard
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 334 sq. ft.
  • Other Storage: 953 sq. ft.
  • Garage/Storage: 745 sq. ft.
  • Porch: 536 sq. ft.
  • Porch - Front: 124 sq. ft.
  • Porch - Screened: 171 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Hillside walkout design with an angled floor plan

With its stone-and-shake facade and angled courtyard entry, the Chatsworth house plan makes a dramatic opening statement. And the interior of this house plan does nothing to disappoint. The foyer presents a sprawling view through the open floor plan, with formal dining room, massive great room with vaulted ceiling and towering hearth, chef's kitchen with island cooktop, and dramatic screen porch all visible. Not visible is the huge master suite with tray ceiling and bay window, dual walk-in closets and lavish bath. Downstairs, two secondary bedrooms with private baths flank a rec room with fireplace. All three rooms have French doors leading to the huge covered lower porch with spa.
