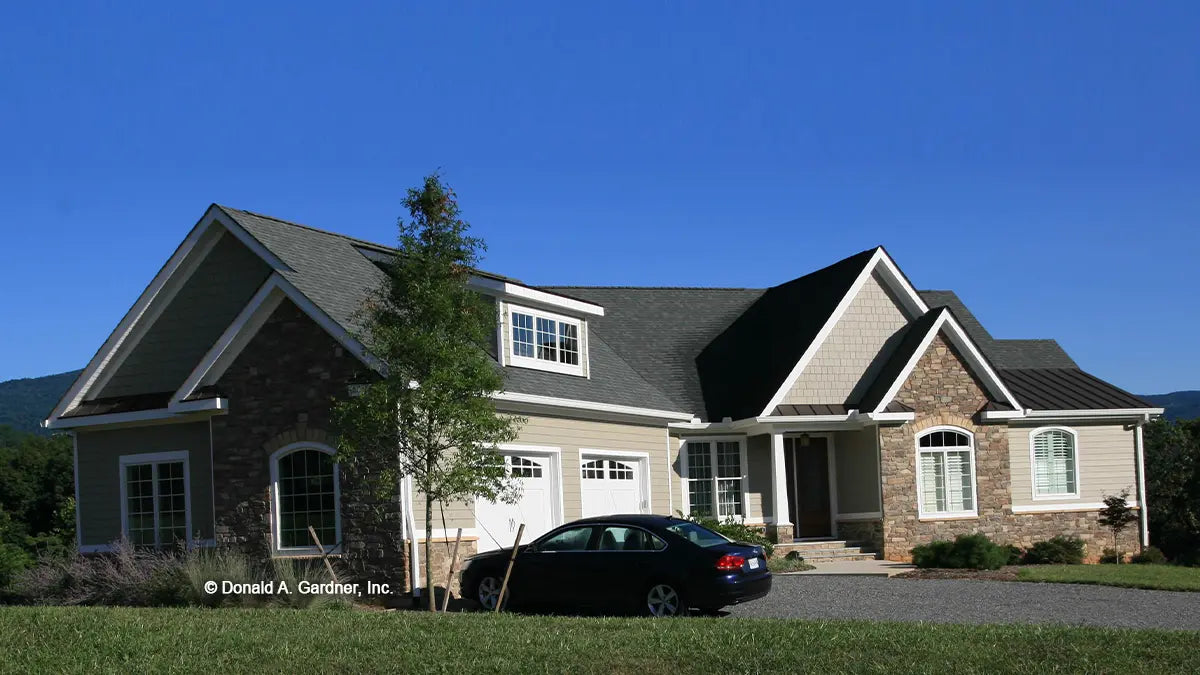

• Front view photograph, submitted by the customer. The Hammond Hill plan 1217.

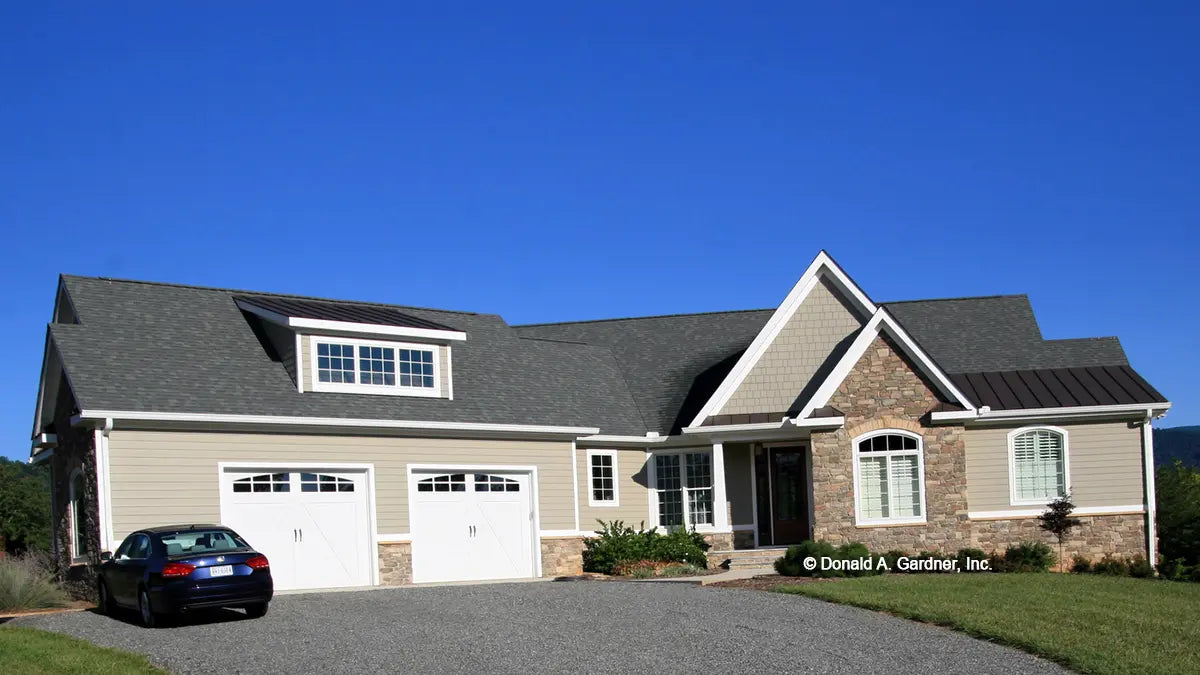

  • Front side view photograph. The Hammond Hill plan 1217.

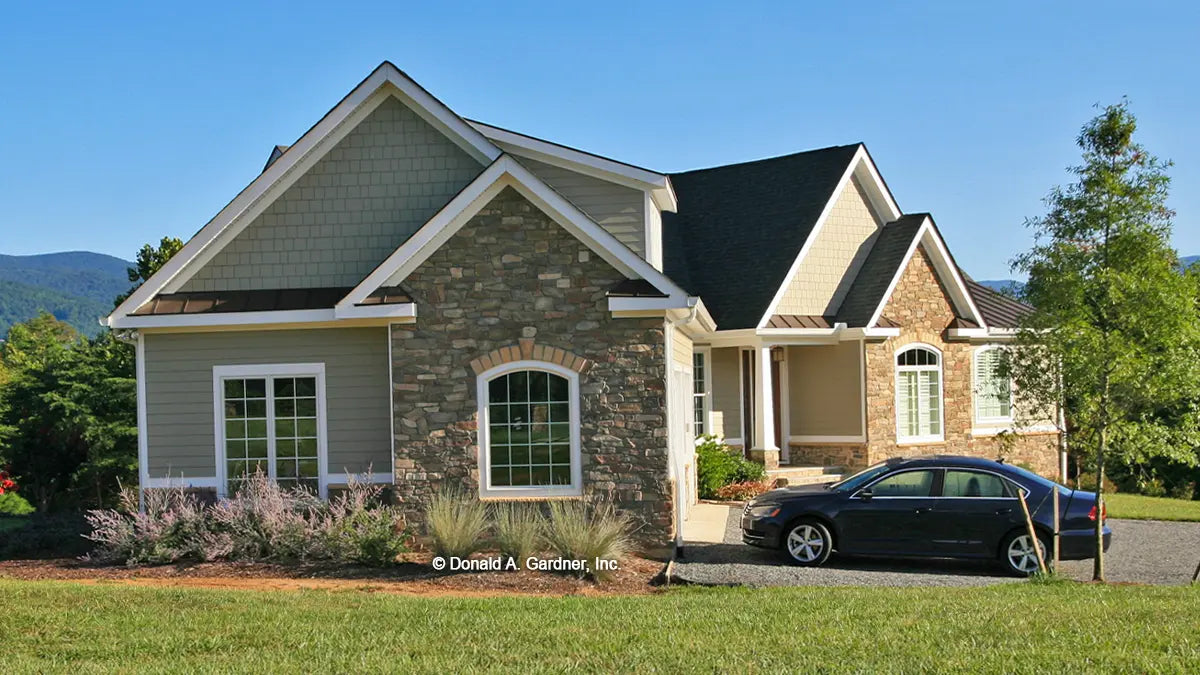

  • Side view photograph. The Hammond Hill plan 1217.

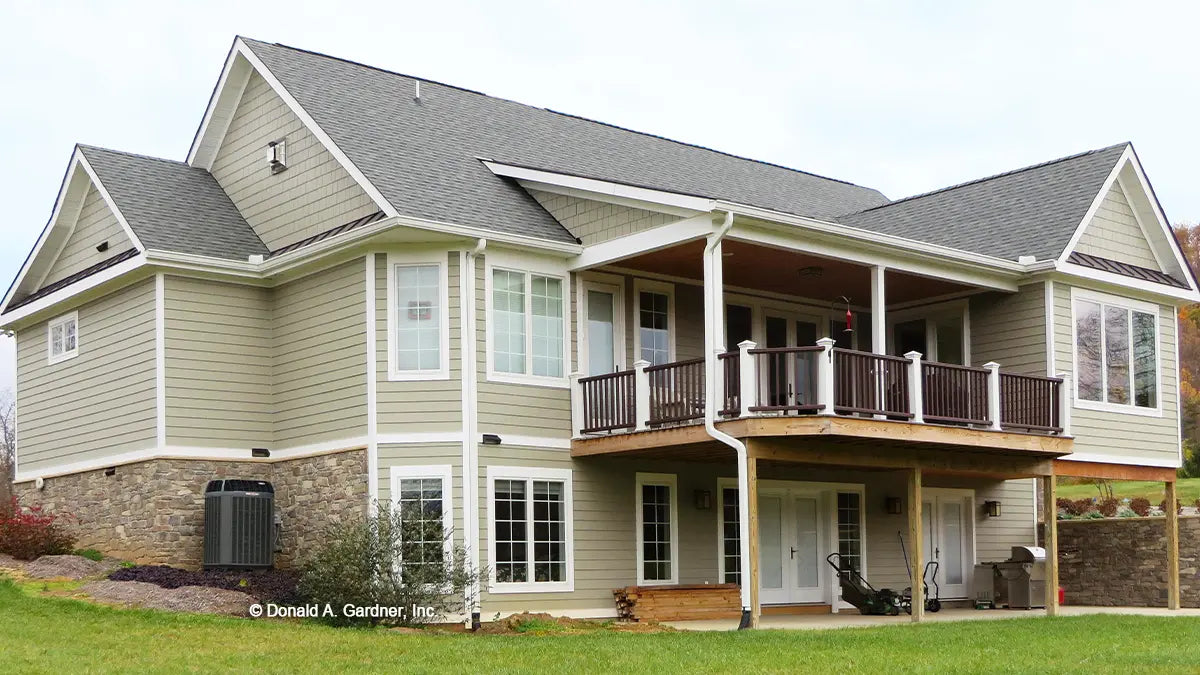

  • Rear view walk-out basement. The Hammond Hill plan 1217.
  • Front view illustration. The Hammond Hill plan 1217.

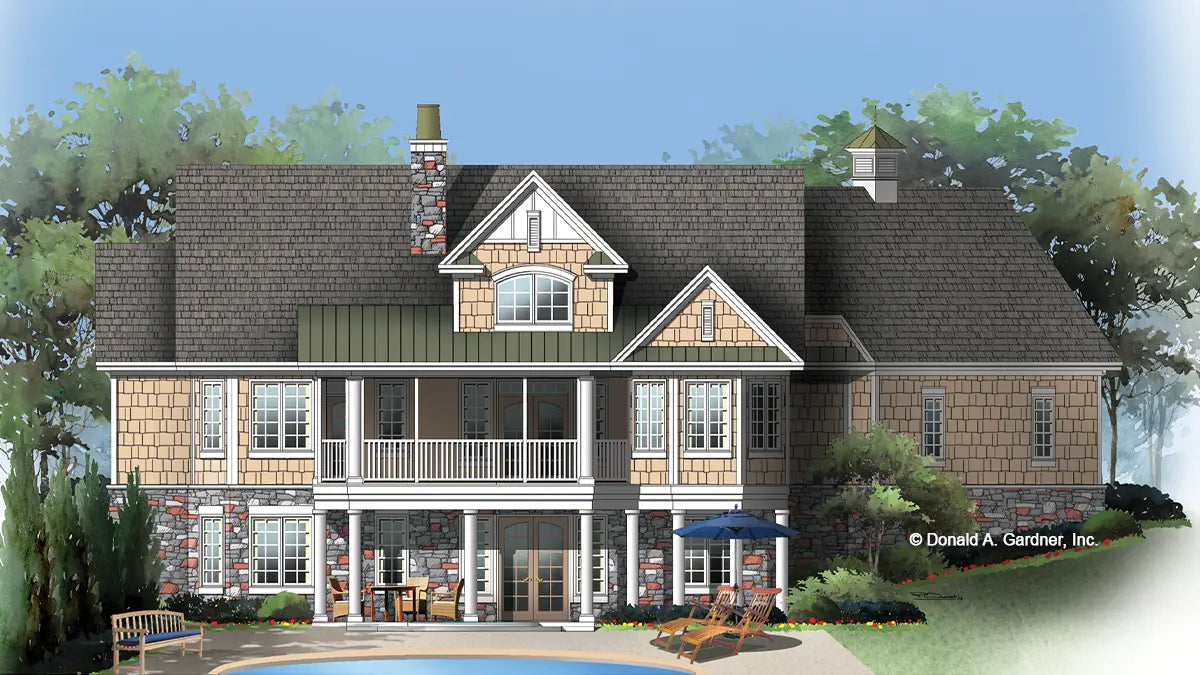

  • Rear view walk out basement illustration. The Hammond Hill plan 1217.

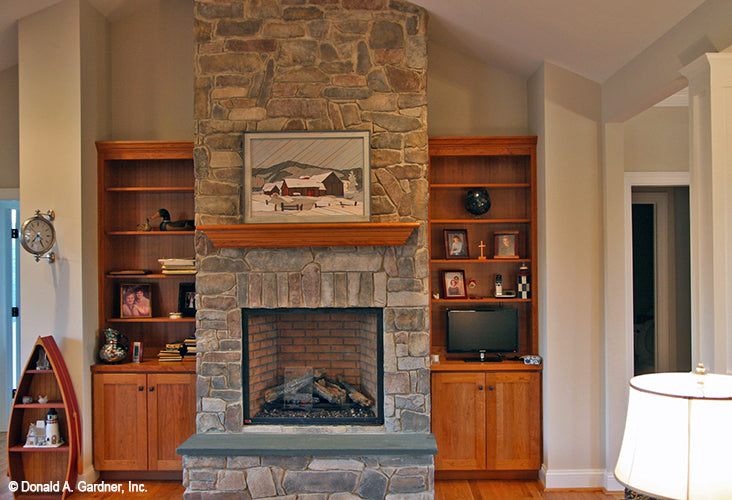

  • Floor to ceiling stone fireplace. The Hammond Hill plan 1217.

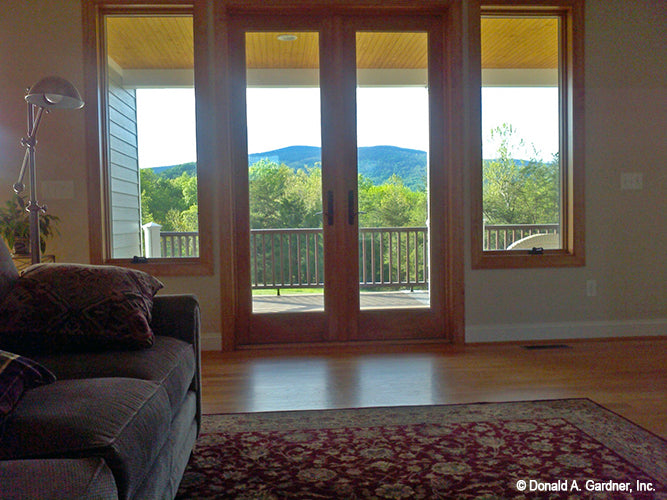

  • Glass French patio doors in the great room. The Hammond Hill plan 1217.

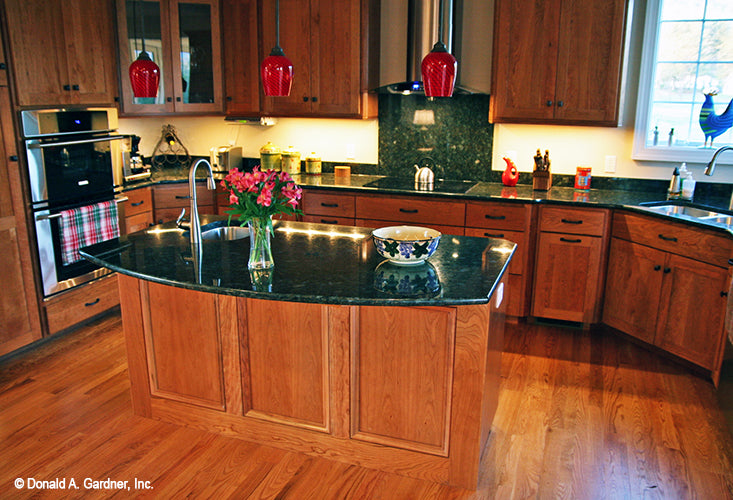

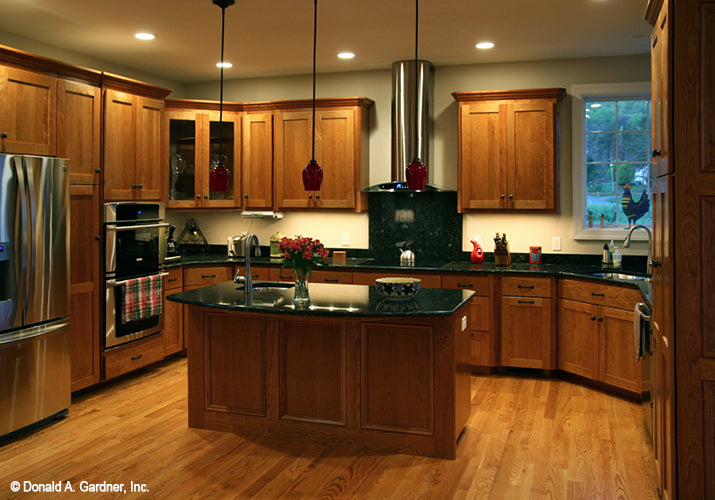

  • Island with a sink in the kitchen. The Hammond Hill plan 1217.
  • Brown cabinets in the kitchen. The Hammond Hill plan 1217.

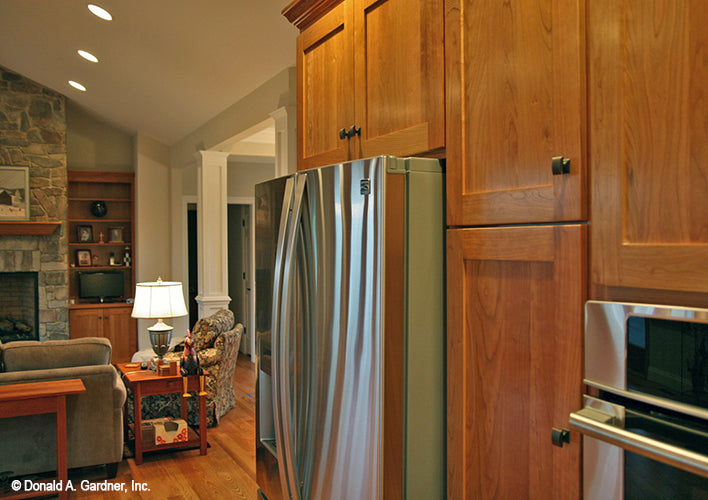

  • Stainless-steel appliances in the kitchen. The Hammond Hill plan 1217.
1 11
Photographs may reflect modified homes.
2544*
Square Feet
3
Bedrooms
3.5
Baths
2
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for rustic house plan 1217 The Hammond Hill
This is the basement floor plan image for walkout basement house plan 1217 The Hammond Hill

The Hammond Hill

House Plan #1217
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,675.00 USD
$1,675.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2544 sq. ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Stories: 2
  • House Dimensions: 76' 5" x 63' 8"
  • **Foundation: Hillside Walkout
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Courtyard
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Garage/Storage: 627 sq. ft.
  • Porch: 542 sq. ft.
  • Patio: 164 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Perfect For View Lots

At just over 2500 square feet, this hillside walkout design offers great curb appeal and a functional floor plan to suit any family's needs. Stone and cedar shake complement the home's rustic styling and an angled courtyard garage adds convenience. The main level features a convenient study/office, unique dining room with tray ceiling, vaulted great room with fireplace and built-ins and a breathtaking octagonal breakfast room that showcases rear views. Both the dining room and kitchen enjoy easy access to the spacious walk-in pantry. The secluded master suite is an enviable retreat, complete with tray ceiling, two walk-in closets, rear porch access and master bath with large shower. The lower level includes two more bedrooms, two full bathrooms, a recreation room and plenty of storage space.
