The Connelly
Photographs may reflect modified homes.
1629*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for small house plan 1098 The Connelly
This is the bonus room floor plan image for simple house plan 1098 The Connelly
The Connelly
Rotating Image

The Connelly

Plan Number: 1098
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation
$1,525.00 USD

Plan Type: PDF, Review, CAD explained below. Learn more.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.

Additional Specs:

  • *Total Living: 1629 sq. ft.
  • Bedrooms: 3
  • Bathrooms: 2
  • Stories: 1
  • House Dimensions: 38' 11" x 64' 8"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Front
  • Bonus Room: 325 sq. ft.
  • Garage/Storage: 486 sq. ft.
  • Porch: 157 sq. ft.
  • Patio: 208 sq. ft.
* Some plans may increase in square footage to accommodate 2x6 framing.

** Alternate foundations may be available for an additional charge.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
NFC Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Big Style for Narrow Lots

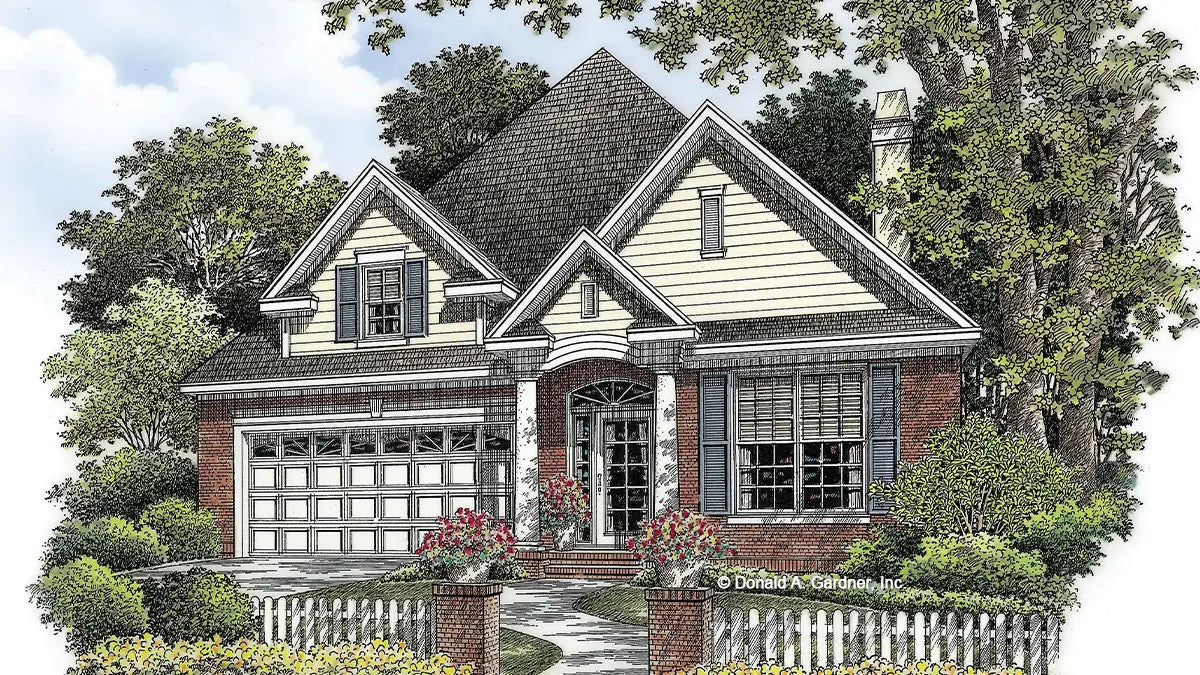

Ideal for narrower lots, this plan's open layout lives larger than its square footage implies. The striking exterior, with dramatic columns and arch-top windows over the front-entry garage, mirrors the alluring interior as well. A vestibule sits just behind the foyer and decoratively separates two bedrooms. Completely open, the large dining and great room seamlessly flow into one another, making retiring after a meal a short step. Cathedral ceilings crown both rooms and the great room walks out onto a rear porch and patio. The spacious master bedroom also features rear porch access, inviting cool breezes indoors. A separate shower, with built-in seat, his-and-her sinks and a walk-in closet complete the master suite.oors.
Return Policy

ALL SALES ARE FINAL. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show them the plan and determine what they will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.
Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.
Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
