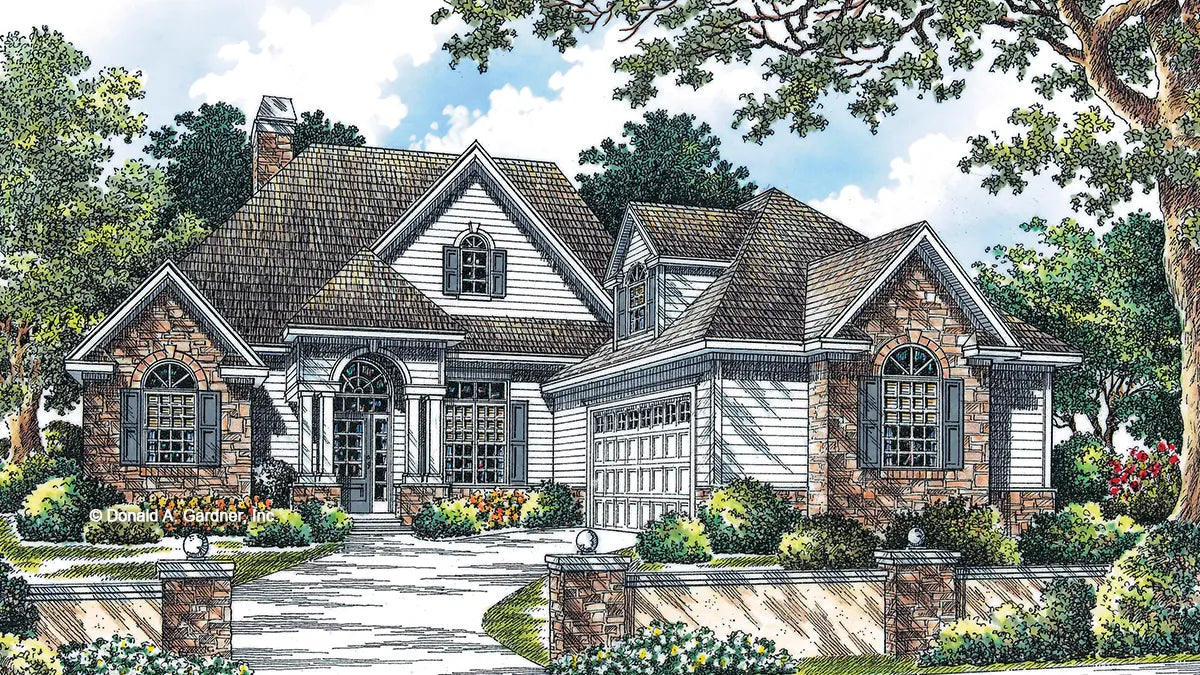

• courtyard garage entry and rectangular footprint lend efficiency to the traffic flow and construction cost in this stylish 3-bedroom Traditional.

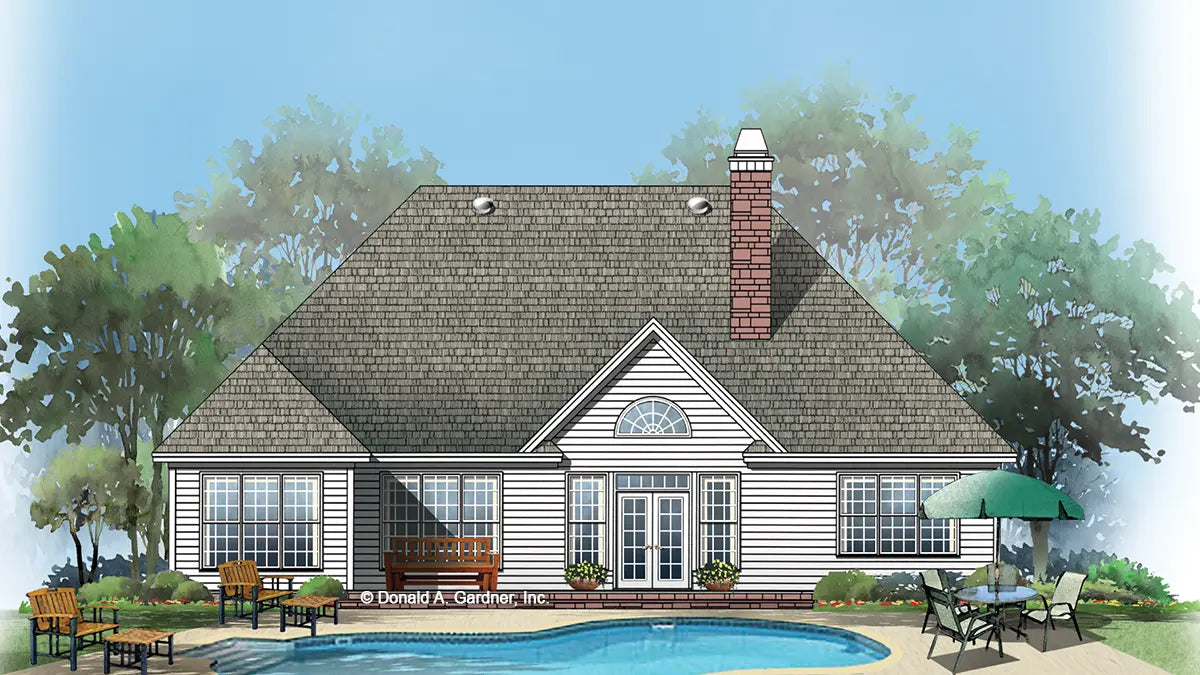

  • french doors that open out onto the rear deck is the foccal point of the back of this home
1 2
Photographs may reflect modified homes.
2019*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

first floor layout with a courtyard garage, a study, master suite on the left and 1 bedroom and the kitchen on the right with the great room in the middle
bonus room with dormer window over the garage
first floor plan showing the adjustments to add a set of stairs for access to the optional basement

The Hampton Wick

House Plan #1077
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,575.00 USD
$1,575.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2019 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Stories: 1
  • House Dimensions: 57' 0" x 70' 10"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Courtyard
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 277 sq. ft.
  • Garage/Storage: 540 sq. ft.
  • Porch: 53 sq. ft.
  • Patio: 247 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Compact Footprint

A courtyard garage entry and rectangular footprint lend efficiency to the traffic flow and construction cost in this stylish 3-bedroom Traditional. Double doors lead from the foyer into the study/bedroom, which features a second entrance near the bonus room stairs. Built-ins flank the fireplace, while columns and a tray ceiling define the dining room.
