• Front view illustration. The Ravencroft plan 1062.

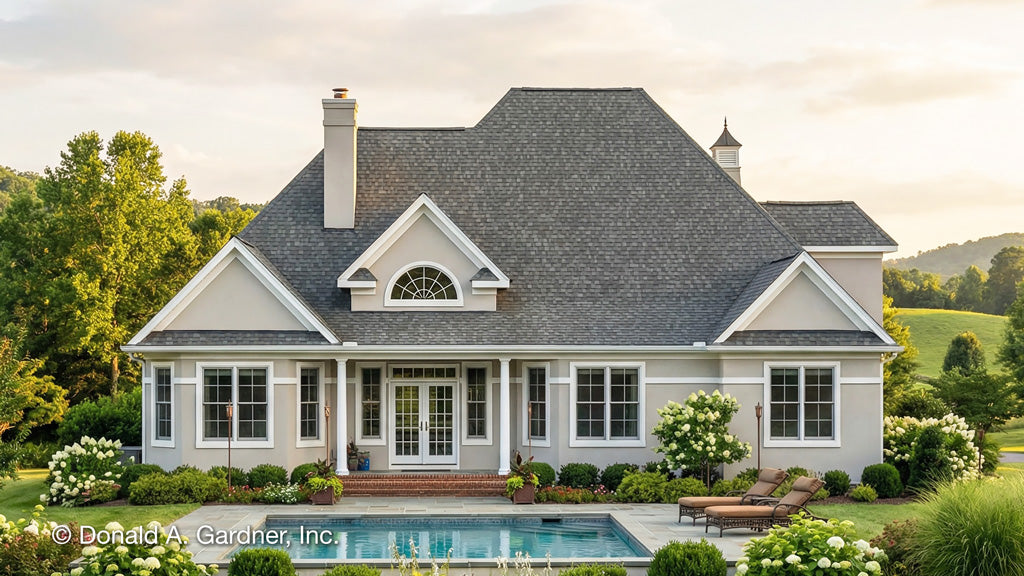

  • Rear view illustration. The Ravencroft plan 1062.
1 2
Photographs may reflect modified homes.
1821*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for European house plan 1062 The Ravencroft
This is the bonus room floor plan image for three bedroom house plan 1062 The Ravencroft
This is the first floor plan image for cottage house plan 1062 The Ravencroft if the home is built over a basement

The Ravencroft

House Plan #1062
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,475.00 USD
$1,475.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 1821 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Stories: 1
  • House Dimensions: 54' 4" x 61' 4"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 345 sq. ft.
  • Garage/Storage: 563 sq. ft.
  • Porch: 176 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

A Touch Of Old World Flair

A hipped roof combines with stucco and stone to create an elegant elevation with a touch of Old World flair. Arches frame circle-top transoms, and a cupola tops the side-entry garage. By using columns and a minimum of walls to designate rooms, the floorplan is remarkably open. Tray ceilings in the dining room and master bedroom, along with cathedral ceilings in the great room and secondary bedroom, add sophistication and visual space. The kitchen offers a pass-thru, which services the great room. A French door leads from the master bedroom to the rear porch, and the master bathroom includes a double vanity, separate shower, garden tub and private privy. Two spacious walk-in closets divide the master suite.

View full details

You May Also Like to Know:

Return Policy

ALL SALES ARE FINAL. Because plans are printed especially for you at the time you place your order, returns and refunds are not acceptable. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show him the plan and determine what he will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.

Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.

Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
