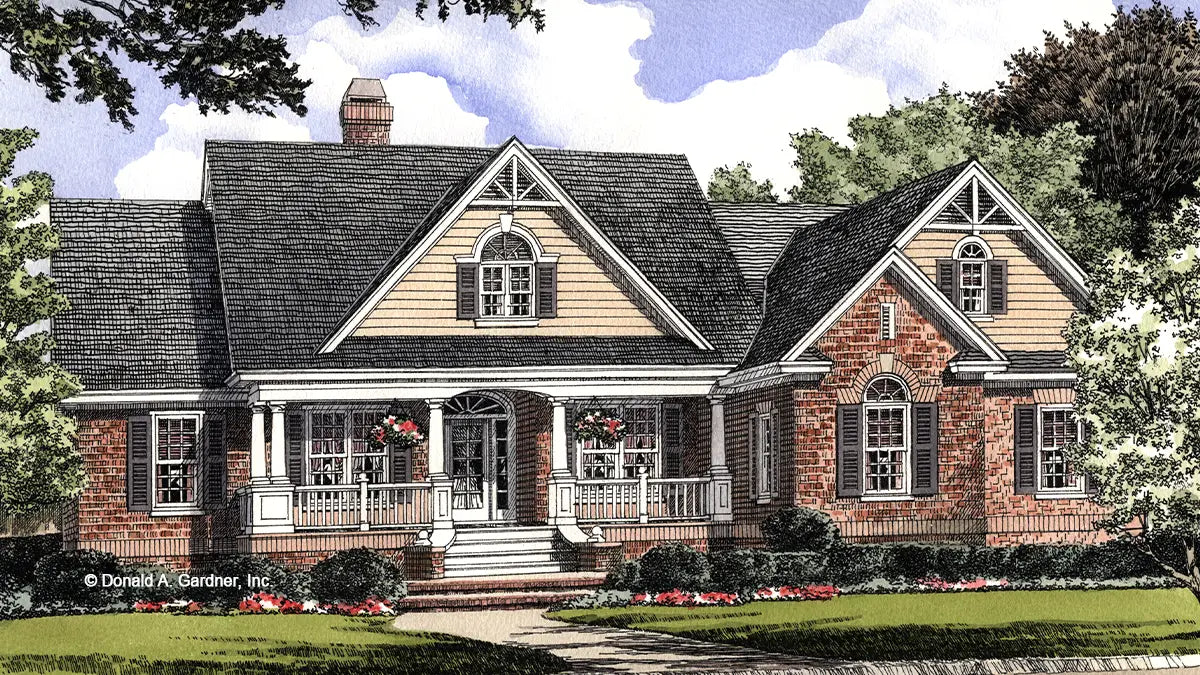

• Front view illustration. The Jeffcoat plan 1031.

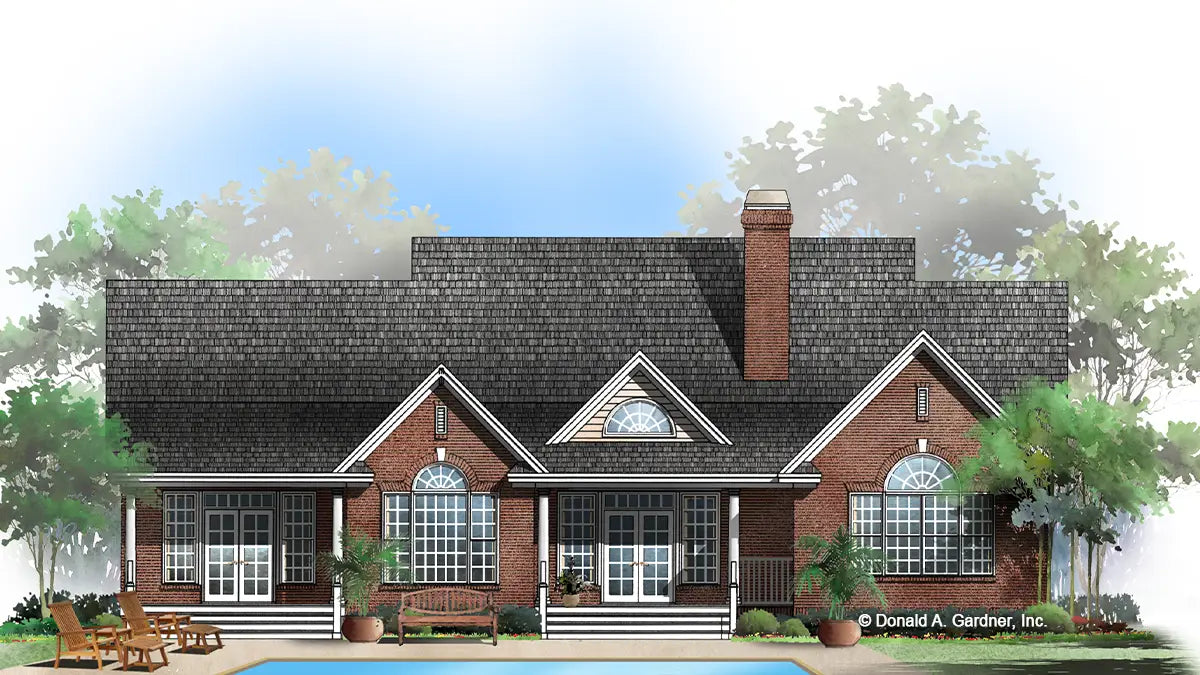

  • Rear view illustration. The Jeffcoat plan 1031.
1 2
Photographs may reflect modified homes.
2636*
Square Feet
3
Bedrooms
2.5
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for three bedroom house plan 1031 The Jeffcoat
This is the bonus room floor plan image for ranch house plan 1031 The Jeffcoat
This is the first floor plan image for traditional house plan 1031 The Jeffcoat if the home is built over a basement

The Jeffcoat

House Plan #1031
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,675.00 USD
$1,675.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • Total Living: 2636 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Stories: 1
  • House Dimensions: 67' 3" x 69' 9"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 425 sq. ft.
  • Garage/Storage: 557 sq. ft.
  • Porch: 513 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Easy Living Ranch Plan

An elegant facade, combined with a floorplan that balances openness with room definition, makes this three-bedroom three-bedroom, single-story home ideal. Windows usher in natural light and views. Decorative ceilings, French doors and built-ins add custom-style. The family/media room opens to the kitchen and features a staircase leading to the bonus room. Note the study/bedroom, utility and storage room.
