The Gracehaven
Photographs may reflect modified homes.
3111*
Square Feet
4
Bedrooms
3.5
Baths
2
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

first floor layout has a study, great room open to the kitchen and master suite in the rear
second floor design shows open area above the great room and the foyer, and the large bonus room over the garage
first floor layout with alterations to add access to the basement
The Gracehaven

The Gracehaven

Plan Number: 1019
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation
$1,925.00 USD

Plan Type: PDF, CAD explained below. Learn more.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery. Contact us for estimated date.

Additional Specs:

  • *Total Living: 3111 sq. ft.
  • Bedrooms: 4
  • Bathrooms: 3.5
  • Stories: 2
  • House Dimensions: 61' 11" x 63' 11"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
  • Bonus Room: 491 sq. ft.
  • Garage/Storage: 605 sq. ft.
  • Porch: 500 sq. ft.
  • Patio: 233 sq. ft.
* Some plans may increase in square footage to accommodate 2x6 framing.

** Alternate foundations may be available for an additional charge.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

Stately and Sophisticated

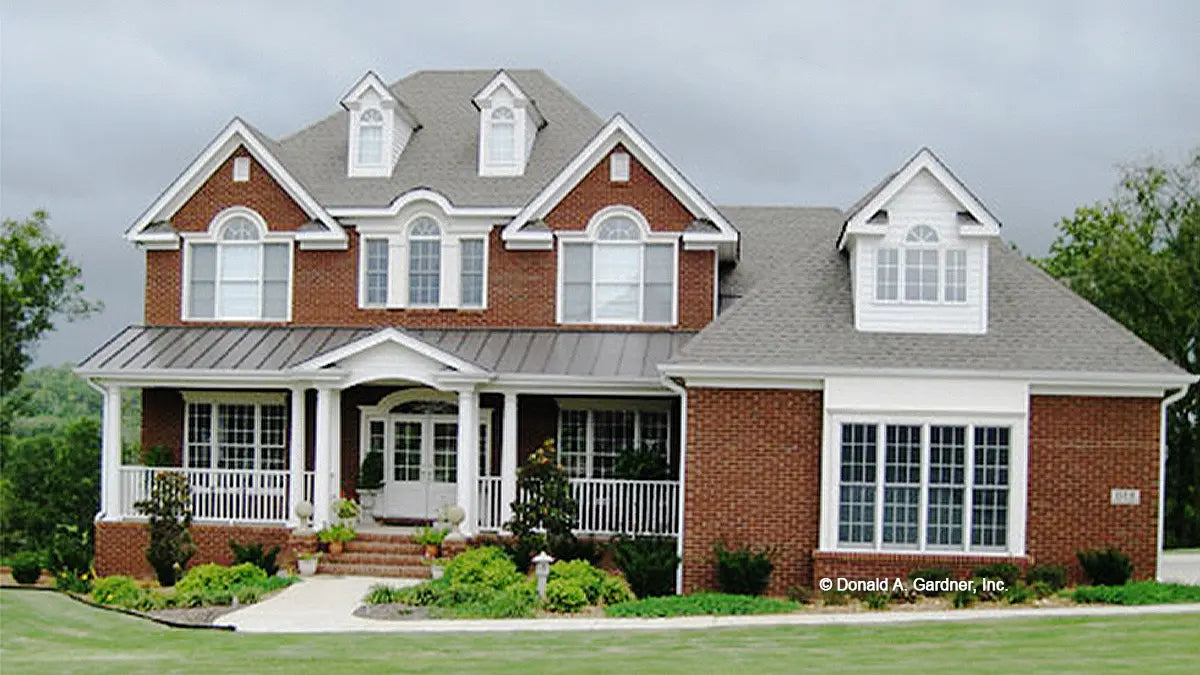

Stately and sophisticated, this brick Traditional home showcases drama in the entryway with bold columns and a barrel-vault arch that leads to the double front door. Upon entrance, the study and dining room flank a grand staircase. A see-thru fireplace, bay window and walk-in pantry add elegance and convenience. Note the bonus room.
Return Policy

ALL SALES ARE FINAL. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show them the plan and determine what they will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.
Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.
Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
