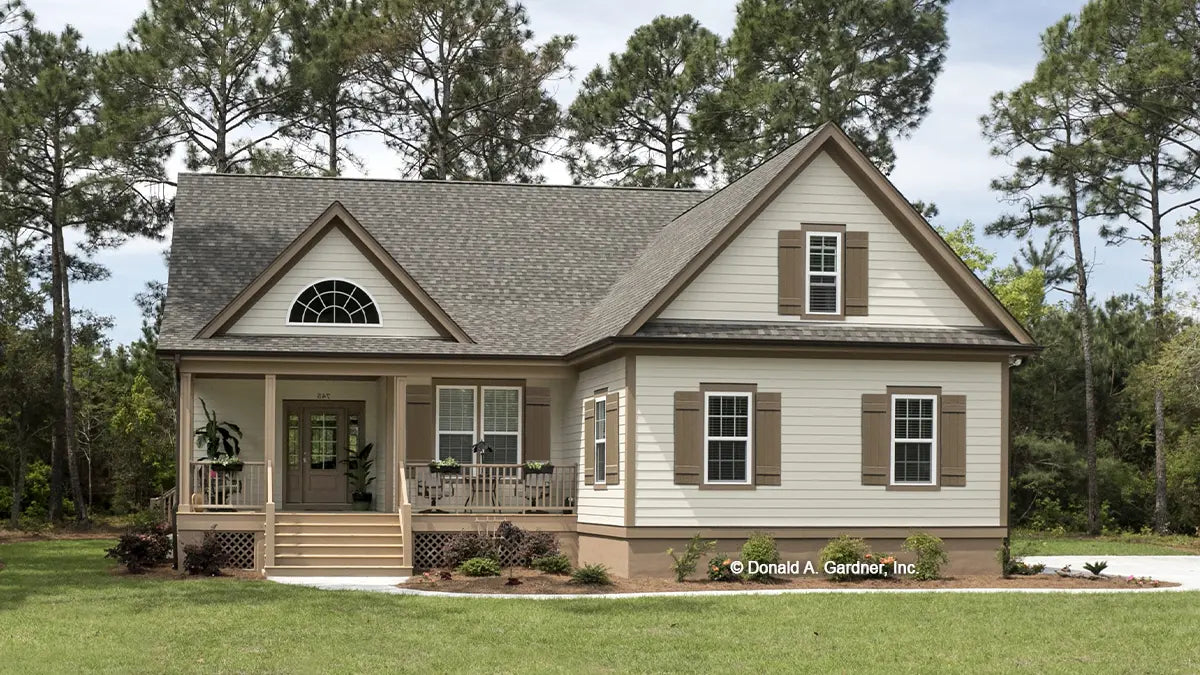

• Front view exterior photograph submitted by the customer. The Jarrell plan 1017.

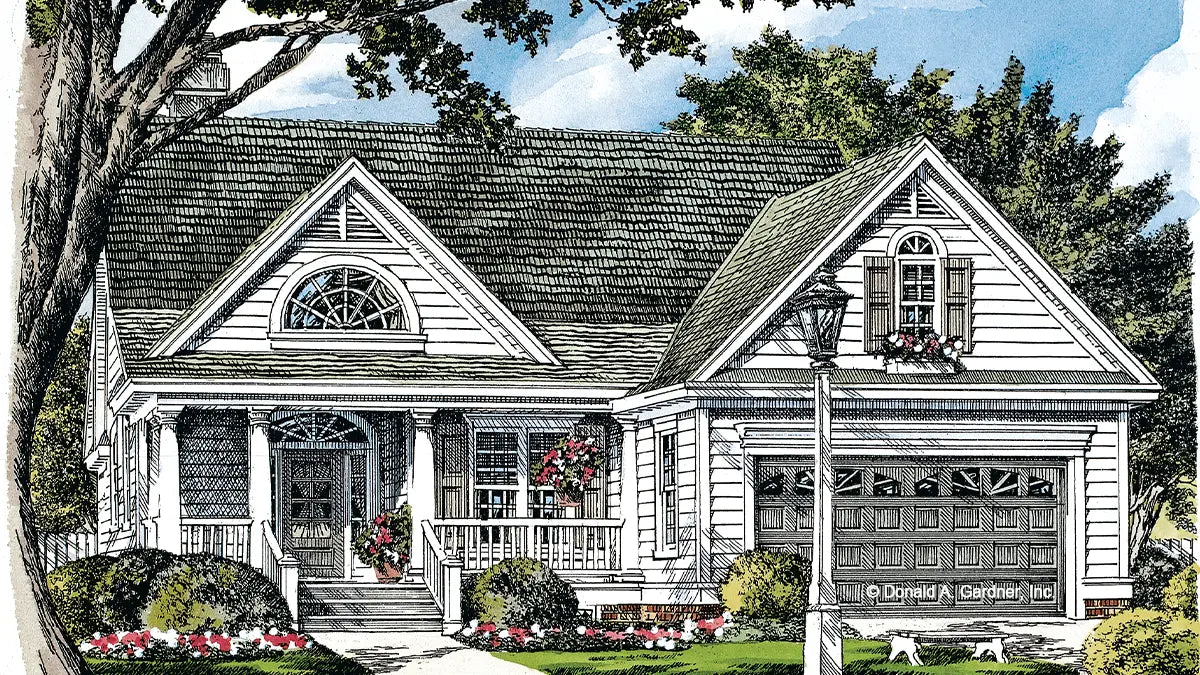

  • Front view illustration of The Jarrell plan 1017.
  • Rear view illustration of The Jarrell plan 1017.

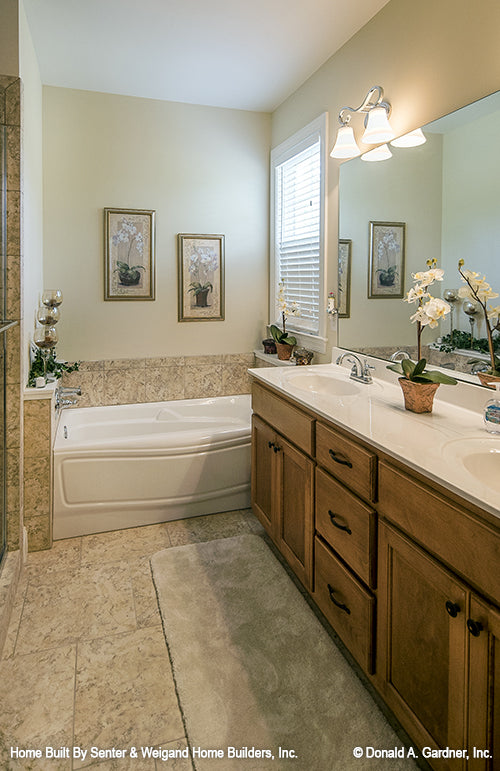

  • Double sink vanity with tub off to the side in the bathroom. The Jarrell plan 1017.
  • Clipped ceiling in bedroom with ceiling window. The Jarrell plan 1017.

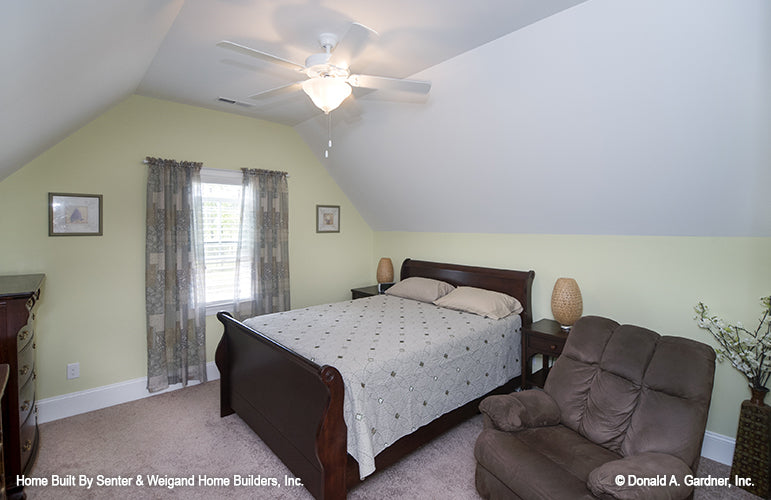

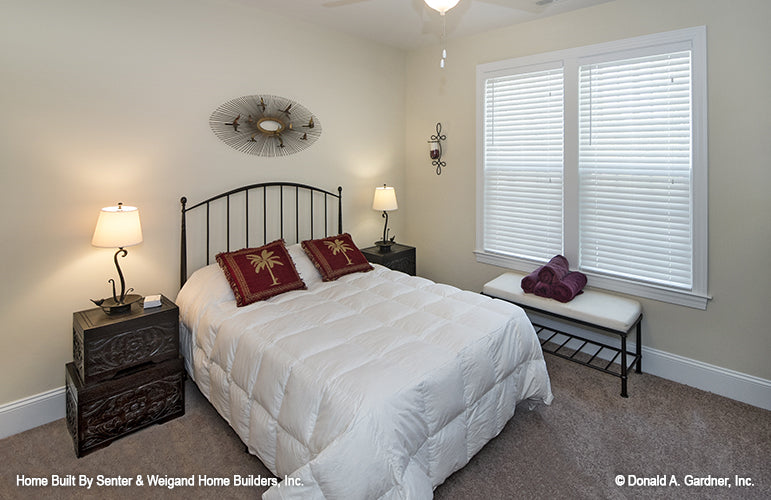

  • Secondary bedroom with double windows. The Jarrell plan 1017.

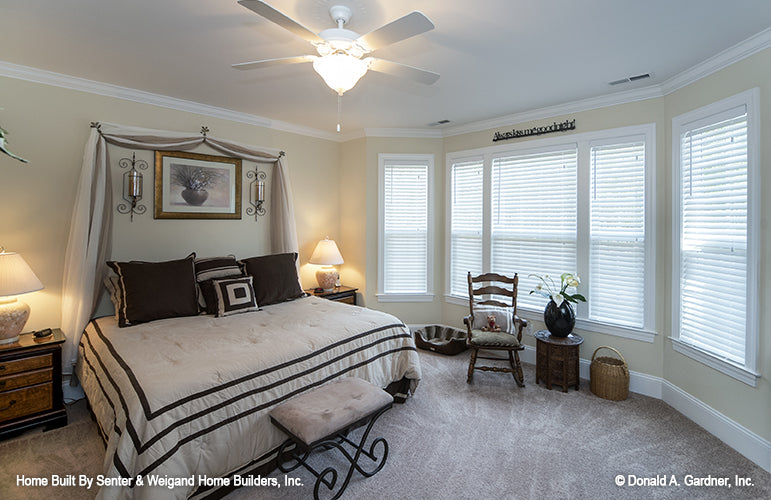

  • Lots of natural light with many windows in the master bedroom. The Jarrell plan 1017.

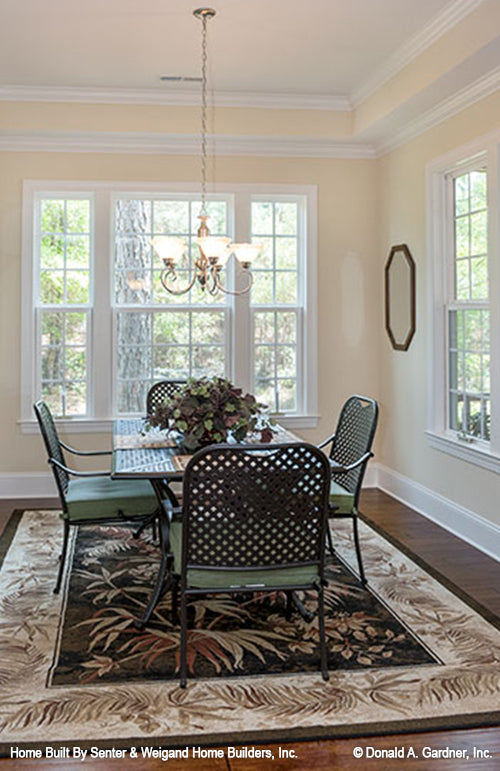

  • Well-lit dining room with tray ceiling. The Jarrell plan 1017.

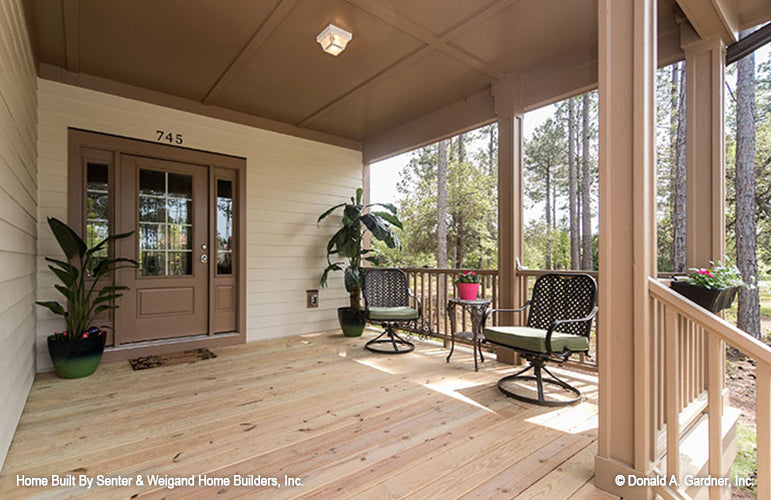

  • Covered front porch with seating area off to the side of the front door. The Jarrell plan 1017.

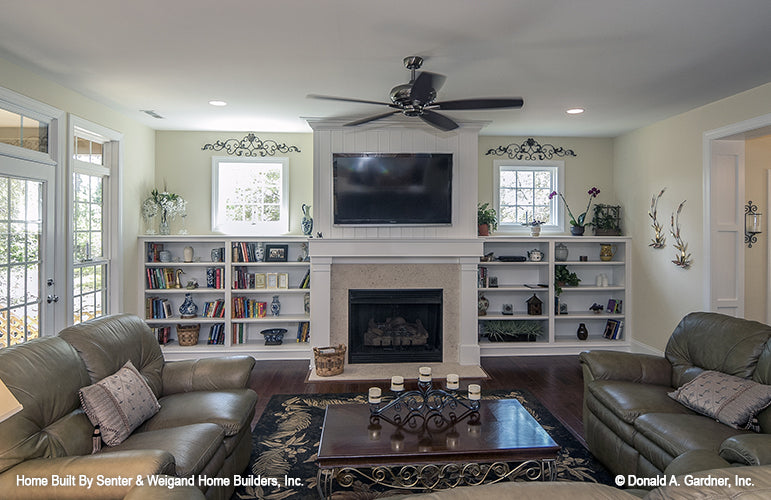

  • Great room view of the fireplace with built in bookshelves. The Jarrell plan 1017.

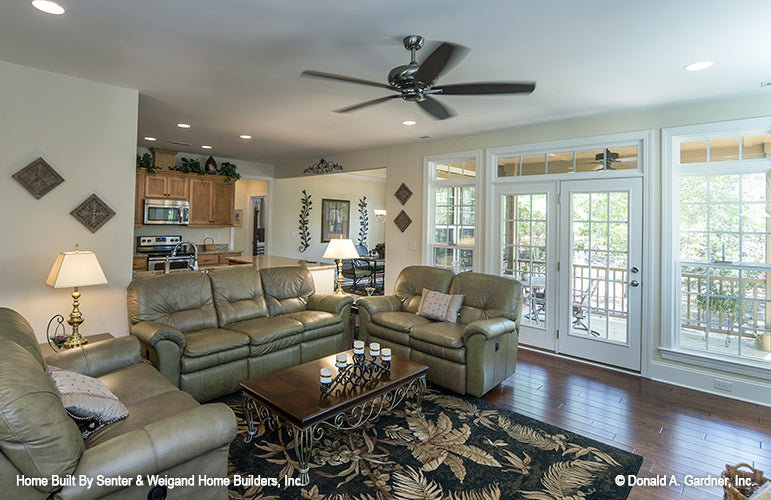

  • Great room view of the large windows and patio door. The Jarrell plan 1017.

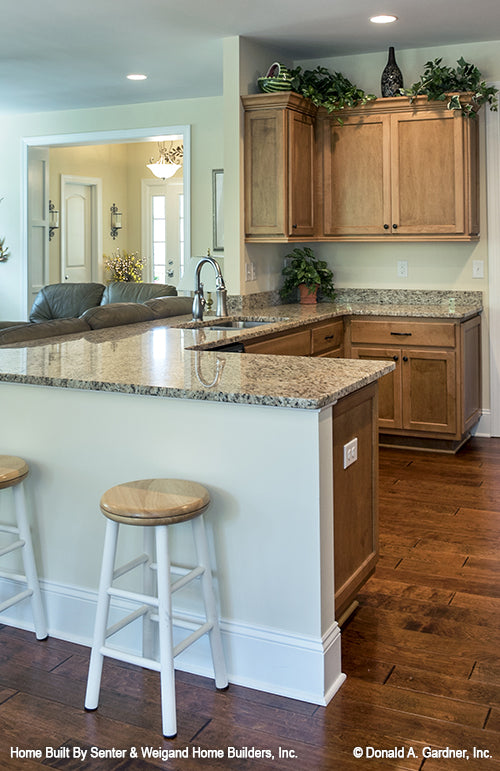

  • Counter height bar seating in the kitchen. The Jarrell plan 1017.

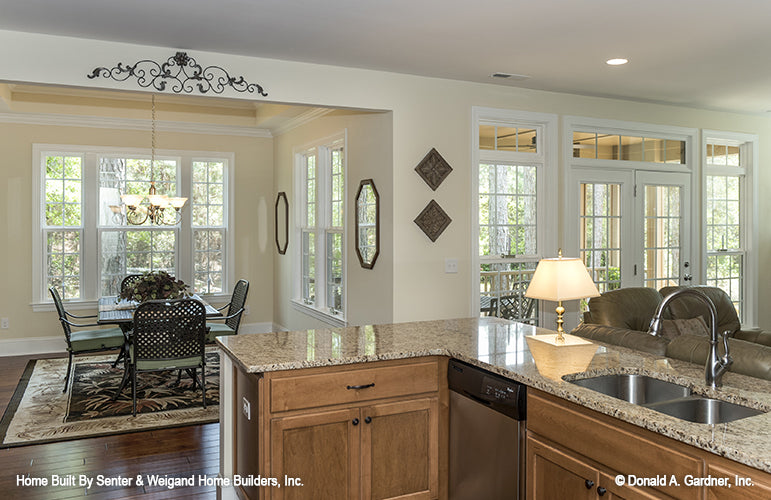

  • Kitchen view into the dining room. The Jarrell plan 1017.

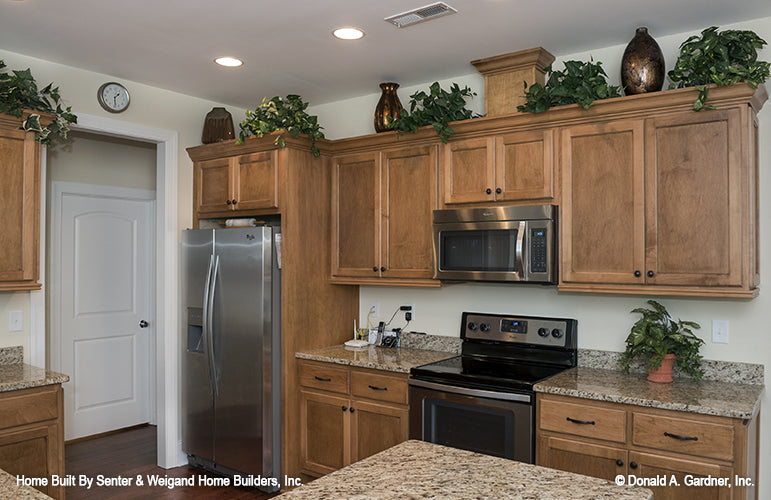

  • Lots of cabinet space in the kitchen. The Jarrell plan 1017.

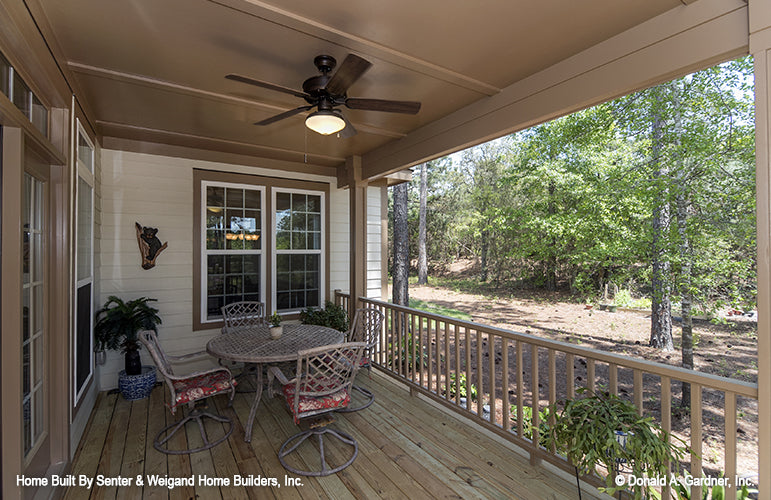

  • Covered rear porch with ceiling fan. The Jarrell plan 1017.

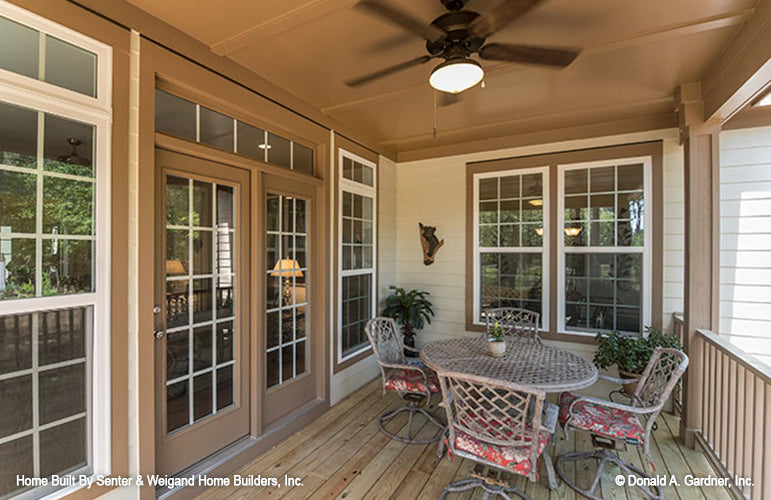

  • Second view of covered rear porch with banister. The Jarrell plan 1017.

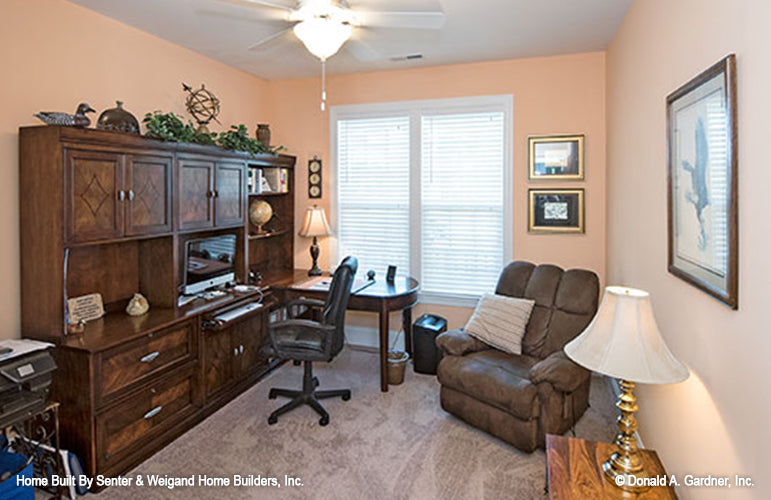

  • Cozy well-lit study. The Jarrell plan 1017.
1 18
Photographs may reflect modified homes.
1727*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.

This is the first floor plan image for small house plan 1017 The Jarrell
This is the second floor plan image for three bedroom house plan 1017 The Jarrell
This is the first floor plan image for one story house plan 1017 The Jarrell if the home is built over a basement
Rotating Image

The Jarrell

House Plan #1017
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation Type

Plan Type: PDF, Review, CAD explained below. Learn more here.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.
$1,525.00 USD
$1,525.00 USD
Sale Sold out
house plan modifications

Additional Specs:

  • *Total Living: 1727 sq. ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Stories: 1
  • House Dimensions: 46' 0" x 66' 4"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Front
*Some plans may increase in square footage to accommodate 2x6 framing.
**Alternate foundations may be available for an additional charge.

Unfinished Square Footage:

  • Bonus Room: 346 sq. ft.
  • Garage/Storage: 482 sq. ft.
  • Porch: 230 sq. ft.
  • Porch - Screened: 177 sq. ft.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)

PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)

PDF Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Modest One-Story with Outdoor Living

This small house plan balances room definition with an open floorplan. A bay window and French doors invite light inside, while a front porch and screened porch take living outdoors. With a breakfast counter, the kitchen is the heart of the house plan, and tray ceilings crown the dining room, master bedroom and study/bedroom.
