The Sullivan

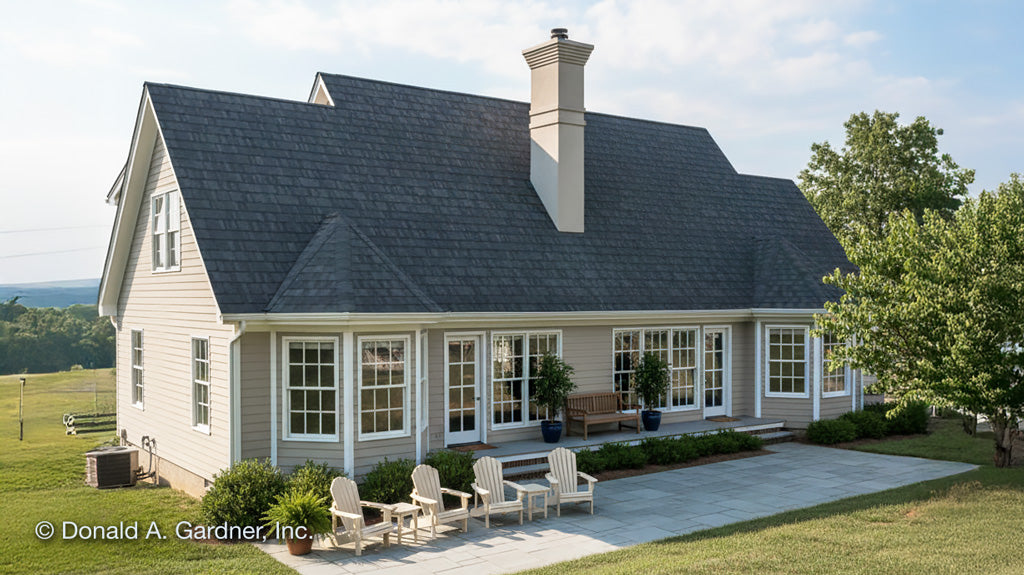

Photographs may reflect modified homes.
1695*
Square Feet
3
Bedrooms
2
Baths
1
Stories

* Square Footage does not include "Bonus Room" or other unfinished/optional spaces shown on the floor plan.
The Sullivan
Rotating Image

The Sullivan

Plan Number: 513
#1 Select Plan Type
#2 Select Reverse Option
#3 Select Exterior Wall & Foundation
$1,525.00 USD

Plan Type: PDF, Review, CAD explained below. Learn more.

Plan selections of Reverse, Exterior Wall and Foundation Type may delay delivery by 3 to 5 weeks. Contact us for estimated date.

Additional Specs:

  • *Total Living: 1695 sq. ft.
  • Bedrooms: 3
  • Bathrooms: 2
  • Stories: 1
  • House Dimensions: 54' 8" x 54' 4"
  • **Foundation: Crawl Space
  • Exterior Wall Construction: 2x4
  • Garage Bays: 2
  • Garage Load: Side
  • Bonus Room: 287 sq. ft.
  • Garage/Storage: 527 sq. ft.
  • Porch: 148 sq. ft.
  • Patio: 297 sq. ft.
* Some plans may increase in square footage to accommodate 2x6 framing.

** Alternate foundations may be available for an additional charge.

Plan Types Explained:

AutoCAD file with Unlimited Build

Electronic files emailed of the complete set of construction drawings, only to be used with AutoCAD compatible software. Comes with UNLIMITED license to build home. Please consult a professional before purchasing. (Free PDF file included. NON REFUNDABLE)
PDF Reproducible Set

One full set construction drawings in PDF format is emailed and provides license for unlimited copies to be printed to build the home ONE time. (Emailed within 1 business day. NON REFUNDABLE)
NFC Review Set

One PDF set of construction drawings stamped "Not For Construction" - for review only. May be upgraded to a PDF or AutoCAD within 180 days with payment of a nominal upgrade fee plus difference in cost. NO license to build is provided.

Small Three-Bedroom House

An open floor plan and an abundance of windows create horizontal spaciousness, while cathedral and tray ceilings add vertical volume to this three-bedroom family home. The formal foyer, punctuated by elegant interior columns, leads to a spacious great room with fireplace and a light-filled octagonal dining room beyond. The kitchen receives definition from columns and features a pantry and angled countertop with a liberal breakfast bar. The bedroom wing hosts a master suite with double door entry, cathedral ceiling, patio access, walk-in closet, and lavish bath. Two additional bedrooms share a hall bath, and bonus space above the garage provides extra room for storage and expansion.
Return Policy

ALL SALES ARE FINAL. Please double-check your selection before ordering. We encourage you to learn the building codes for your area. If you have a builder in mind, show them the plan and determine what they will need to build the home and meet local building codes. Feel free to contact us to discuss any concerns you may have before ordering.
Delivery & Returns

If your order has not arrived as scheduled, please contact our Customer Sales & Support department at 800.388.7580 or email us. PDF and AutoCAD plan packages ordered before noon Eastern Standard Time, Monday-Friday, will be emailed the same day. Orders placed after noon Eastern Standard Time will be emailed the next business day. If you have requested an alternate foundation or wall construction, full reverse option or other modifications to your plan, consult a Customer Sales & Support representative for more information about the status of your order.
Whats In a Set?

Learn all about what comes in a set of plans here. If you have any questions please contact us.
